Cadence跑版图后仿真引脚mismatch问题

 在Cadence跑仿后真的时候，可能会出现引脚pin识别不了的问题，

问题如下：

Netlisting failed because terminal 'vdd' specified in placed master 'test/gongshanji/symbol'
does not exist in switch master 'test/gongshanji/calibre'. To continue netlisting, either set
the 'simCheckTermMismatchAction' to 'ignore', or set the
'simCheckTermMismatchAction' to 'warning' and 'nlAction' to 'ignore' for the
missing terminal.
Mismatch was found between the terminals in the cellView and those on the
           termOrder property on the CDF. Because of the mismatch, the CDF termOrder will
           be ignored. The terminals in the cellView will be netlisted in the alphabetical
           order of their names. Eliminate the mismatch if you want the CDF termOrder
           property to be used for netlisting.

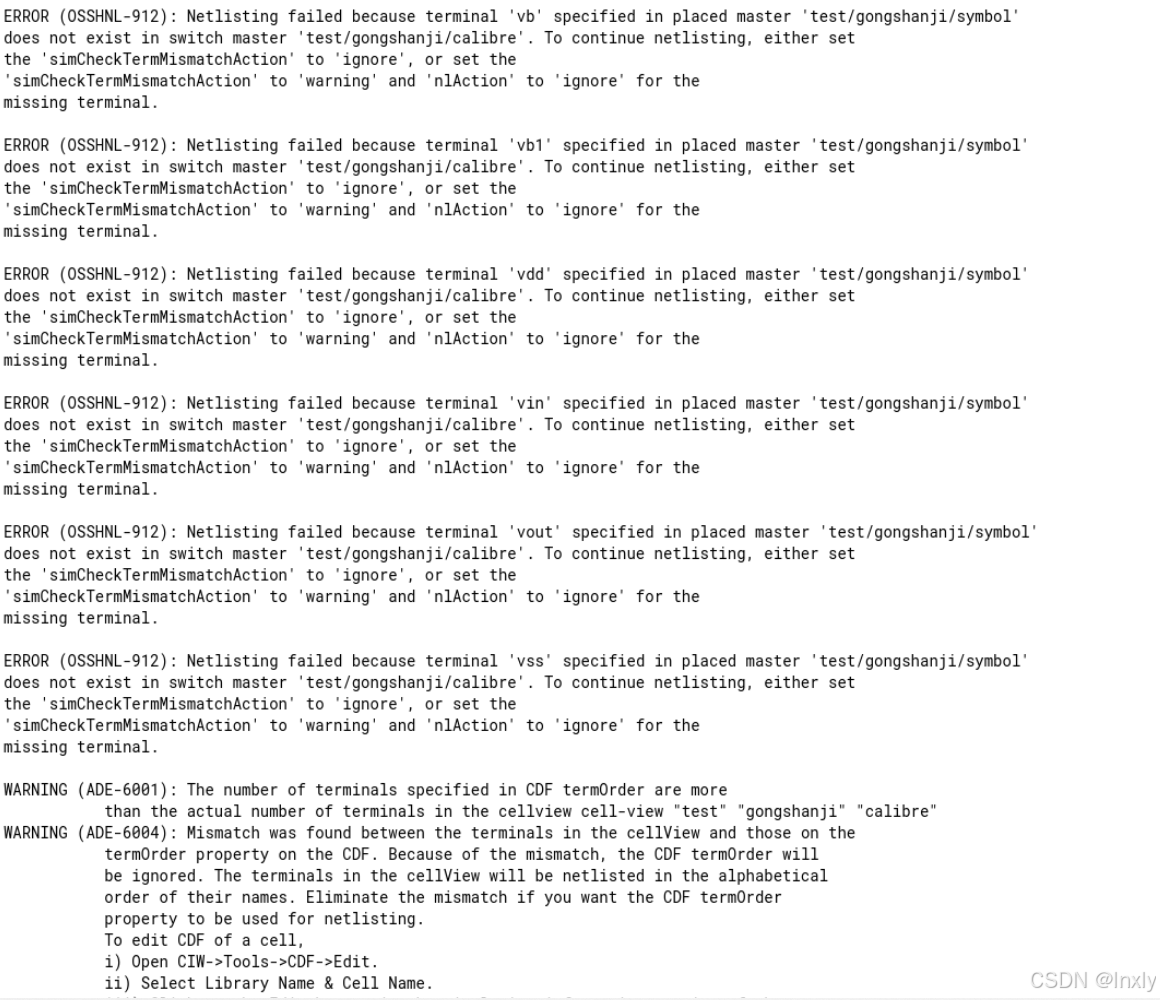

问题如图：

这个情况看起来就是没有一个引脚可以识别出来，估计是软件bug。可能是在测试电路的cellview那里，symbol引线上的标签和pin上名字一样，导致冲突，识别不了，（但前仿似乎可以），后仿就出问题。

解决方法：

把symbol的引脚名字全部改成大写，把版图的pin也改了，然后所有流程再走一遍，再后仿，就可以了。
