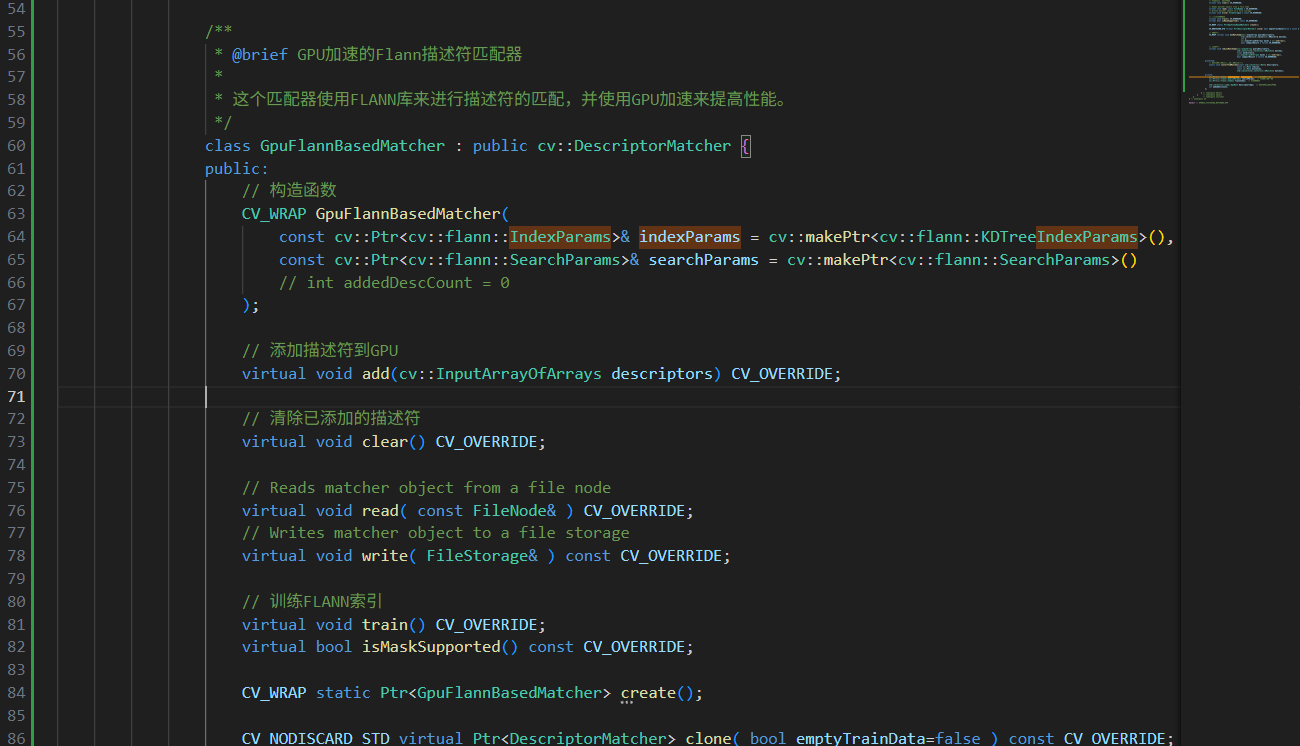

头文件.h：

/**

* @brief GPU加速的Flann描述符匹配器

* 这个匹配器使用FLANN库来进行描述符的匹配，并使用GPU加速来提高性能。

class GpuFlannBasedMatcher : public cv::DescriptorMatcher {

public:

// 构造函数

CV_WRAP GpuFlannBasedMatcher(

const cv::Ptr<cv::flann::IndexParams>& indexParams = cv::makePtr<cv::flann::KDTreeIndexParams>(),

const cv::Ptr<cv::flann::SearchParams>& searchParams = cv::makePtr<cv::flann::SearchParams>()

// int addedDescCount = 0

);

// 添加描述符到GPU

virtual void add(cv::InputArrayOfArrays descriptors) CV_OVERRIDE;

// 清除已添加的描述符

virtual void clear() CV_OVERRIDE;

// Reads matcher object from a file node

virtual void read( const FileNode& ) CV_OVERRIDE;

// Writes matcher object to a file storage

virtual void write( FileStorage& ) const CV_OVERRIDE;

// 训练FLANN索引

virtual void train() CV_OVERRIDE;

virtual bool isMaskSupported() const CV_OVERRIDE;

CV_WRAP static Ptr<GpuFlannBasedMatcher> create();

CV_NODISCARD_STD virtual Ptr<DescriptorMatcher> clone( bool emptyTrainData=false ) const CV_OVERRIDE;

// KNN匹配

CV_WRAP virtual void knnMatchImpl(cv::InputArray queryDescriptors,

std::vector<std::vector<cv::DMatch>>& matches,

int k,

cv::InputArrayOfArrays masks = cv::noArray(),

bool compactResult = false) CV_OVERRIDE;

// 半径匹配

virtual void radiusMatchImpl(cv::InputArray queryDescriptors,

std::vector<std::vector<cv::DMatch>>& matches,

float maxDistance,

cv::InputArrayOfArrays masks = cv::noArray(),

bool compactResult = false) CV_OVERRIDE;

protected:

// 将FLANN搜索结果转换为DMatch格式

static void convertToDMatches(const std::vector<cv::Mat>& descriptors,

const cv::Mat& indices,

const cv::Mat& distances,

std::vector<std::vector<cv::DMatch>>& matches);

private:

cv::Ptr<cv::flann::IndexParams> indexParams; // FLANN索引参数

cv::Ptr<cv::flann::SearchParams> searchParams; // FLANN搜索参数

cv::Ptr<cv::flann::Index> flannIndex; // FLANN索引

std::vector<cv::cuda::GpuMat> descriptorsGpu; // 存储GPU上的描述符

int addedDescCount;

};

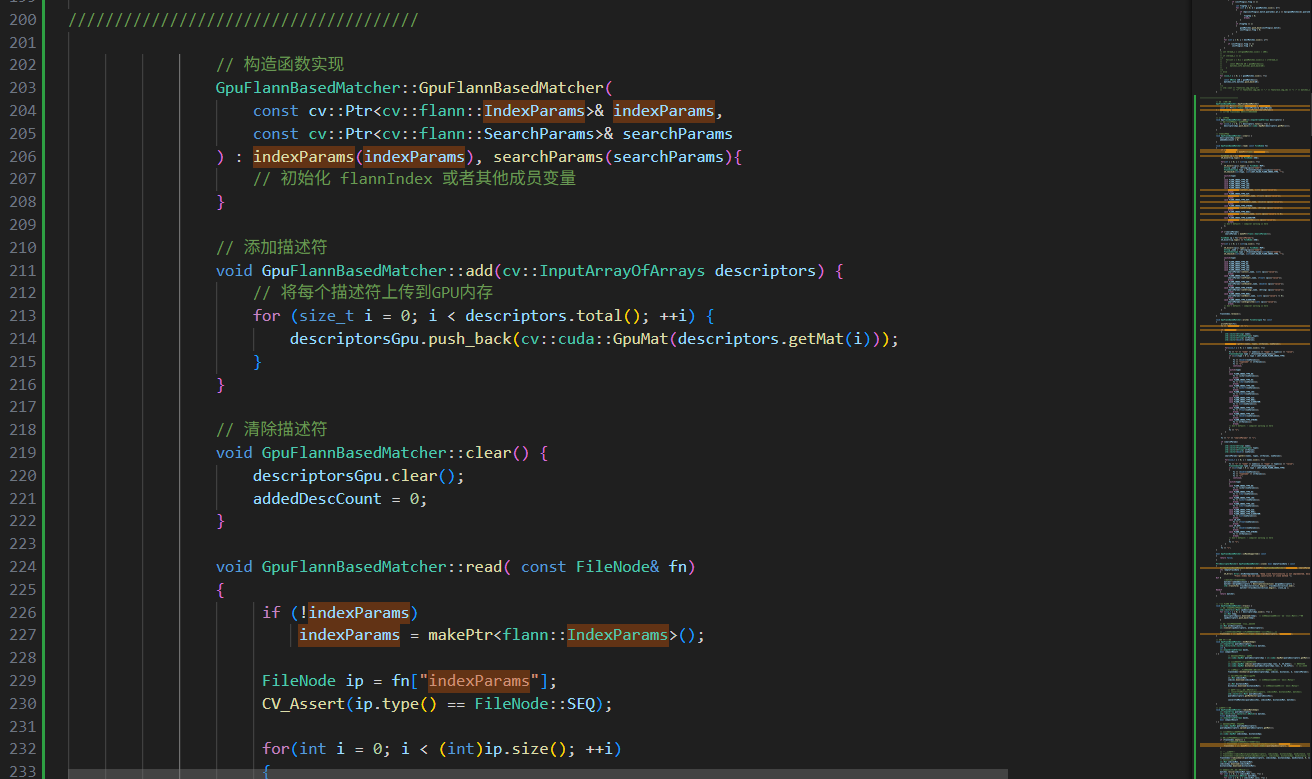

.cpp文件函数实现：

// 构造函数实现

GpuFlannBasedMatcher::GpuFlannBasedMatcher(

const cv::Ptr<cv::flann::IndexParams>& indexParams,

const cv::Ptr<cv::flann::SearchParams>& searchParams

) : indexParams(indexParams), searchParams(searchParams){

// 初始化 flannIndex 或者其他成员变量

}

// 添加描述符

void GpuFlannBasedMatcher::add(cv::InputArrayOfArrays descriptors) {

// 将每个描述符上传到GPU内存

for (size_t i = 0; i < descriptors.total(); ++i) {

descriptorsGpu.push_back(cv::cuda::GpuMat(descriptors.getMat(i)));

}

// 清除描述符

void GpuFlannBasedMatcher::clear() {

descriptorsGpu.clear();

addedDescCount = 0;

}

void GpuFlannBasedMatcher::read( const FileNode& fn)

{

if (!indexParams)

indexParams = makePtr<flann::IndexParams>();

FileNode ip = fn["indexParams"];

CV_Assert(ip.type() == FileNode::SEQ);

for(int i = 0; i < (int)ip.size(); ++i)

{

CV_Assert(ip[i].type() == FileNode::MAP);

String _name = (String)ip[i]["name"];

FlannIndexType type = (FlannIndexType)(int)ip[i]["type"];

CV_CheckLE((int)type, (int)LAST_VALUE_FLANN_INDEX_TYPE, "");

switch(type)

{

case FLANN_INDEX_TYPE_8U:

case FLANN_INDEX_TYPE_8S:

case FLANN_INDEX_TYPE_16U:

case FLANN_INDEX_TYPE_16S:

case FLANN_INDEX_TYPE_32S:

indexParams->setInt(_name, (int) ip[i]["value"]);

break;

case FLANN_INDEX_TYPE_32F:

indexParams->setFloat(_name, (float) ip[i]["value"]);

break;

case FLANN_INDEX_TYPE_64F:

indexParams->setDouble(_name, (double) ip[i]["value"]);

break;

case FLANN_INDEX_TYPE_STRING:

indexParams->setString(_name, (String) ip[i]["value"]);

break;

case FLANN_INDEX_TYPE_BOOL:

indexParams->setBool(_name, (int) ip[i]["value"] != 0);

break;

case FLANN_INDEX_TYPE_ALGORITHM:

indexParams->setAlgorithm((int) ip[i]["value"]);

break;

// don't default: - compiler warning is here

};

}

if (!searchParams)

searchParams = makePtr<flann::SearchParams>();

FileNode sp = fn["searchParams"];

CV_Assert(sp.type() == FileNode::SEQ);

for(int i = 0; i < (int)sp.size(); ++i)

{

CV_Assert(sp[i].type() == FileNode::MAP);

String _name = (String)sp[i]["name"];

FlannIndexType type = (FlannIndexType)(int)sp[i]["type"];

CV_CheckLE((int)type, (int)LAST_VALUE_FLANN_INDEX_TYPE, "");

switch(type)

{

case FLANN_INDEX_TYPE_8U:

case FLANN_INDEX_TYPE_8S:

case FLANN_INDEX_TYPE_16U:

case FLANN_INDEX_TYPE_16S:

case FLANN_INDEX_TYPE_32S:

searchParams->setInt(_name, (int) sp[i]["value"]);

break;

case FLANN_INDEX_TYPE_32F:

searchParams->setFloat(_name, (float) sp[i]["value"]);

break;

case FLANN_INDEX_TYPE_64F:

searchParams->setDouble(_name, (double) sp[i]["value"]);

break;

case FLANN_INDEX_TYPE_STRING:

searchParams->setString(_name, (String) sp[i]["value"]);

break;

case FLANN_INDEX_TYPE_BOOL:

searchParams->setBool(_name, (int) sp[i]["value"] != 0);

break;

case FLANN_INDEX_TYPE_ALGORITHM:

searchParams->setAlgorithm((int) sp[i]["value"]);

break;

// don't default: - compiler warning is here

};

}

flannIndex.release();

}

void GpuFlannBasedMatcher::write( FileStorage& fs) const

{

writeFormat(fs);

fs << "indexParams" << "[";

if (indexParams)

{

std::vector<String> names;

std::vector<FlannIndexType> types;

std::vector<String> strValues;

std::vector<double> numValues;

indexParams->getAll(names, types, strValues, numValues);

for(size_t i = 0; i < names.size(); ++i)

{

fs << "{" << "name" << names[i] << "type" << types[i] << "value";

FlannIndexType type = (FlannIndexType)types[i];

if ((int)type < 0 || type > LAST_VALUE_FLANN_INDEX_TYPE)

{

fs << (double)numValues[i];

fs << "typename" << strValues[i];

fs << "}";

continue;

}

switch(type)

{

case FLANN_INDEX_TYPE_8U:

fs << (uchar)numValues[i];

break;

case FLANN_INDEX_TYPE_8S:

fs << (char)numValues[i];

break;

case FLANN_INDEX_TYPE_16U:

fs << (ushort)numValues[i];

break;

case FLANN_INDEX_TYPE_16S:

fs << (short)numValues[i];

break;

case FLANN_INDEX_TYPE_32S:

case FLANN_INDEX_TYPE_BOOL:

case FLANN_INDEX_TYPE_ALGORITHM:

fs << (int)numValues[i];

break;

case FLANN_INDEX_TYPE_32F:

fs << (float)numValues[i];

break;

case FLANN_INDEX_TYPE_64F:

fs << (double)numValues[i];

break;

case FLANN_INDEX_TYPE_STRING:

fs << strValues[i];

break;

// don't default: - compiler warning is here

}

fs << "}";

}

fs << "]" << "searchParams" << "[";

if (searchParams)

{

std::vector<String> names;

std::vector<FlannIndexType> types;

std::vector<String> strValues;

std::vector<double> numValues;

searchParams->getAll(names, types, strValues, numValues);

for(size_t i = 0; i < names.size(); ++i)

{

fs << "{" << "name" << names[i] << "type" << types[i] << "value";

FlannIndexType type = (FlannIndexType)types[i];

if ((int)type < 0 || type > LAST_VALUE_FLANN_INDEX_TYPE)

{

fs << (double)numValues[i];

fs << "typename" << strValues[i];

fs << "}";

continue;

}

switch(type)

{

case FLANN_INDEX_TYPE_8U:

fs << (uchar)numValues[i];

break;

case FLANN_INDEX_TYPE_8S:

fs << (char)numValues[i];

break;

case FLANN_INDEX_TYPE_16U:

fs << (ushort)numValues[i];

break;

case FLANN_INDEX_TYPE_16S:

fs << (short)numValues[i];

break;

case FLANN_INDEX_TYPE_32S:

case FLANN_INDEX_TYPE_BOOL:

case FLANN_INDEX_TYPE_ALGORITHM:

fs << (int)numValues[i];

break;

case CV_32F:

fs << (float)numValues[i];

break;

case CV_64F:

fs << (double)numValues[i];

break;

case FLANN_INDEX_TYPE_STRING:

fs << strValues[i];

break;

// don't default: - compiler warning is here

}

fs << "}";

}

fs << "]";

}

bool GpuFlannBasedMatcher::isMaskSupported() const

{

return false;

}

Ptr<DescriptorMatcher> GpuFlannBasedMatcher::clone( bool emptyTrainData ) const

{

Ptr<GpuFlannBasedMatcher> matcher = makePtr<GpuFlannBasedMatcher>(indexParams, searchParams);

if( !emptyTrainData )

{

CV_Error( Error::StsNotImplemented, "deep clone functionality is not implemented, because "

"Flann::Index has not copy constructor or clone method ");

#if 0

//matcher->flannIndex;

matcher->addedDescCount = addedDescCount;

matcher->mergedDescriptors = DescriptorCollection( mergedDescriptors );

std::transform( trainDescCollection.begin(), trainDescCollection.end(),

matcher->trainDescCollection.begin(), clone_op );

#endif

}

return matcher;

}

// 训练 FLANN 索引

void GpuFlannBasedMatcher::train() {

// 将所有的GPU描述符下载到CPU

std::vector<cv::Mat> cpuDescriptors;

for (size_t i = 0; i < descriptorsGpu.size(); ++i) {

cv::Mat temp;

descriptorsGpu[i].download(temp); // 修正download调用，传入一个cv::Mat作为参数

cpuDescriptors.push_back(temp);

}

// 将所有描述符合并成一个单独的矩阵

cv::Mat allDescriptors;

cv::vconcat(cpuDescriptors, allDescriptors);

// 使用合并后的描述符训练FLANN索引（索引训练在CPU上进行）

flannIndex = cv::makePtr<cv::flann::Index>(allDescriptors, *indexParams);

}

// KNN 匹配实现

void GpuFlannBasedMatcher::knnMatchImpl(

cv::InputArray queryDescriptors,

std::vector<std::vector<cv::DMatch>>& matches,

int k,

cv::InputArrayOfArrays masks,

bool compactResult

) {

// 将查询描述符上传到GPU

cv::cuda::GpuMat queryDescriptorsGpu = cv::cuda::GpuMat(queryDescriptors.getMat());

// 创建存储匹配结果的GPU矩阵

cv::cuda::GpuMat indices(queryDescriptorsGpu.rows, k, CV_32SC1); // 索引矩阵

cv::cuda::GpuMat distances(queryDescriptorsGpu.rows, k, CV_32FC1); // 距离矩阵

// 在GPU上执行FLANN的KNN搜索，返回匹配的索引和距离

flannIndex->knnSearch(queryDescriptorsGpu, indices, distances, k, *searchParams);

// 下载GPU上的搜索结果到CPU

cv::Mat indicesMat;

indices.download(indicesMat); // 修正download调用，传入cv::Mat对象

cv::Mat distancesMat;

distances.download(distancesMat); // 修正download调用，传入cv::Mat对象

// 将匹配结果转换为DMatch格式

// convertToDMatches(queryDescriptors, indicesMat, distancesMat, matches);

std::vector<cv::Mat> queryDescsVec;

queryDescriptors.getMatVector(queryDescsVec);

convertToDMatches(queryDescsVec, indicesMat, distancesMat, matches);

}

// 半径匹配实现

void GpuFlannBasedMatcher::radiusMatchImpl(

cv::InputArray queryDescriptors,

std::vector<std::vector<cv::DMatch>>& matches,

float maxDistance,

cv::InputArrayOfArrays masks,

bool compactResult

) {

// 将查询描述符传输到GPU

cv::cuda::GpuMat queryGpuDescriptors;

queryGpuDescriptors.upload(queryDescriptors.getMat());

// 创建存储结果的GPU矩阵

cv::cuda::GpuMat indicesGpu, distancesGpu;

// 如果描述符索引未创建，先创建FLANN索引

if (flannIndex.empty()) {

// 使用默认的FLANN索引类型（KDTree）

// flannIndex = cv::flann::Index(queryGpuDescriptors, *indexParams);

flannIndex = cv::makePtr<cv::flann::Index>(queryGpuDescriptors, *indexParams);

}

// 执行半径匹配

// flannIndex->radiusMatch(queryGpuDescriptors, indicesGpu, distancesGpu, maxDistance, *searchParams);

// flannIndex->radiusSearch(queryGpuDescriptors, indicesGpu, distancesGpu, maxDistance, *searchParams);

flannIndex->radiusSearch(queryGpuDescriptors, indicesGpu, distancesGpu, maxDistance, 0, *searchParams);

// 下载结果到CPU

cv::Mat indicesMat, distancesMat;

indicesGpu.download(indicesMat);

distancesGpu.download(distancesMat);

// 处理结果并转换为DMatch格式

matches.resize(indicesMat.rows);

for (int i = 0; i < indicesMat.rows; ++i) {

std::vector<cv::DMatch> matchRow;

for (int j = 0; j < indicesMat.cols; ++j) {

int index = indicesMat.at<int>(i, j);

if (index >= 0 && distancesMat.at<float>(i, j) <= maxDistance) {

matchRow.push_back(cv::DMatch(i, index, distancesMat.at<float>(i, j)));

}

matches[i] = matchRow;

}

// 将 FLANN 索引结果转换为 DMatch 格式

void GpuFlannBasedMatcher::convertToDMatches(

const std::vector<cv::Mat>& descriptors,

const cv::Mat& indices,

const cv::Mat& distances,

std::vector<std::vector<cv::DMatch>>& matches

) {

matches.clear();

for (int i = 0; i < indices.rows; ++i) {

std::vector<cv::DMatch> rowMatches;

for (int j = 0; j < indices.cols; ++j) {

int idx = indices.at<int>(i, j); // 获取匹配的索引

float dist = distances.at<float>(i, j); // 获取匹配的距离

rowMatches.push_back(cv::DMatch(i, idx, dist)); // 创建DMatch对象

}

matches.push_back(rowMatches);

}

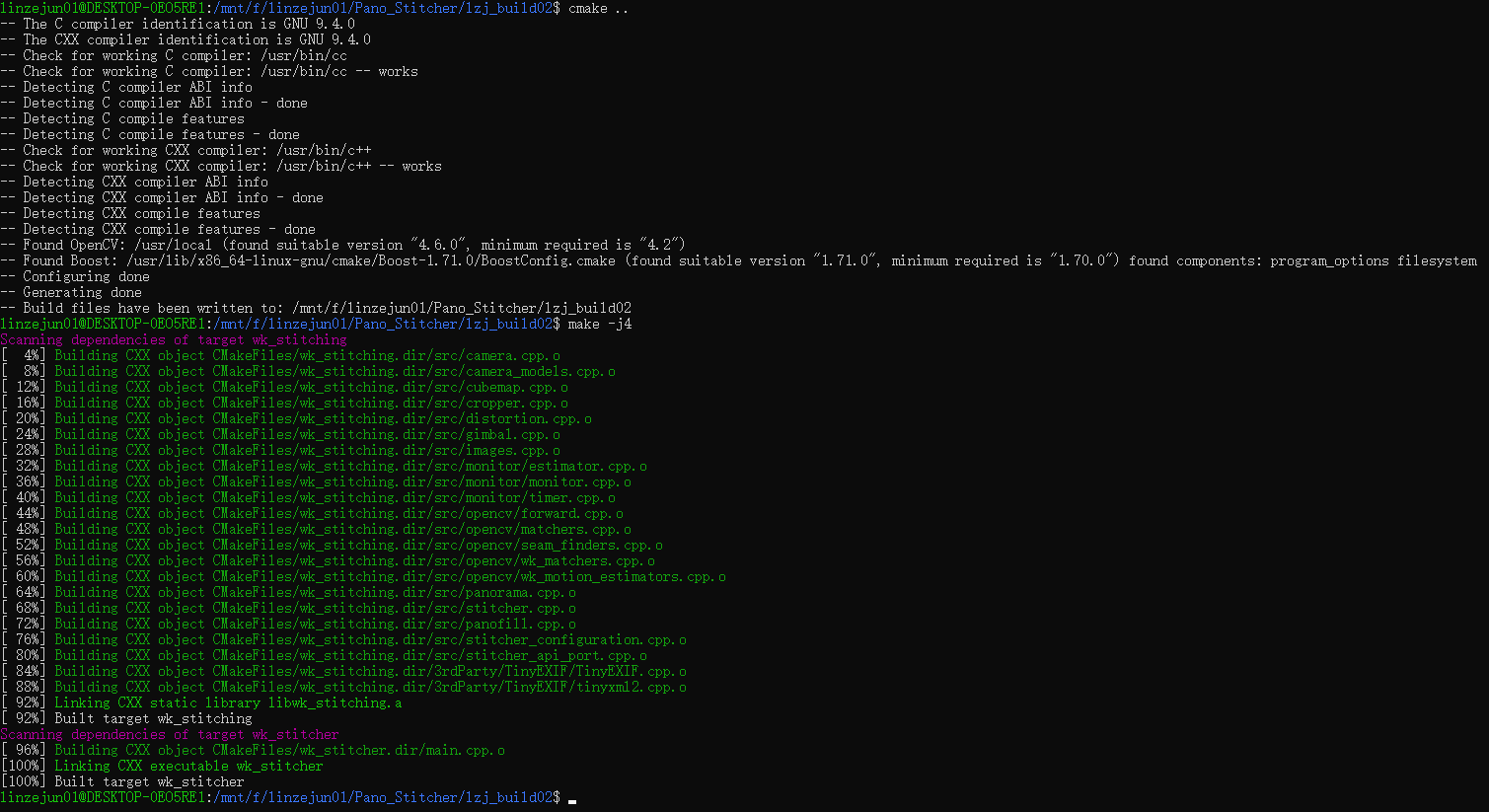

编译：
