本文介绍了如何在UnrealEngine中创建和配置门头文件，添加UCurveFloat和UTimelineComponent来控制门的开启动画，以及通过碰撞检测触发动画播放和反向播放的过程。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

一.添加门头文件和声明

#include "Components/TimelineComponent.h"
#include"Components/BoxComponent.h"

	UPROPERTY(EditAnywhere,BlueprintReadWrite,Category = "MyCurve")
	UCurveFloat* MyCurveFloat;
	UPROPERTY(EditAnywhere, BlueprintReadWrite, Category = "MyCurve")
	UTimelineComponent* MyTimeline;
	UPROPERTY(EditAnywhere,BlueprintReadWrite,Category = "MyScenceComponent")
	USceneComponent* MyScene;
	UPROPERTY(EditAnywhere,BlueprintReadWrite,Category = "MyScenceComponent")
	UStaticMeshComponent* MyDoorMesh;
	UPROPERTY(EditAnywhere,BlueprintReadWrite,Category = "MyScenceComponent")
	UBoxComponent* MyBox;

	FOnTimelineFloat TimelineDelegate;
	FOnTimelineEvent TimelineFinishedDelegate;
	UFUNCTION()
	void TimelineStart(float value);
	UFUNCTION()
	void TimelineFinished();
	UFUNCTION()
	void BeginOverlapFunction( UPrimitiveComponent* OverlappedComponent, AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult);
	UFUNCTION()
	void EndOverlapFunction( UPrimitiveComponent* OverlappedComponent, AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex);

再上篇的基础上，添加了StaticMeshComponent, UBoxComponent。和碰撞的三个函数。

二.添加组件并进行加载

构造函数中将组件的父子级关系设置好，静态加载Drremesh，再设置碰撞大小。

// Sets default values
AMyTimeLineActor::AMyTimeLineActor()
{
 	// Set this actor to call Tick() every frame.  You can turn this off to improve performance if you don't need it.
	PrimaryActorTick.bCanEverTick = true;
	MyTimeline = CreateDefaultSubobject<UTimelineComponent>(TEXT("MyTimeLineComponent"));
	MyScene = CreateDefaultSubobject<USceneComponent>(TEXT("MySenceComponet"));
	MyBox = CreateDefaultSubobject<UBoxComponent>(TEXT("MyBoxComponent"));
	MyDoorMesh = CreateDefaultSubobject<UStaticMeshComponent>(TEXT("MyStaticMeshComponet"));
	static ConstructorHelpers::FObjectFinder<UStaticMesh>TmpStaticMesh(TEXT("/Script/Engine.StaticMesh'/Game/StarterContent/Architecture/Wall_400x400.Wall_400x400'"));
	if (TmpStaticMesh.Succeeded())
	{
		MyDoorMesh->SetStaticMesh(TmpStaticMesh.Object);
	}
	//MyScene->SetupAttachment(RootComponent);
	RootComponent = MyScene;
	MyDoorMesh->SetupAttachment(MyScene);

	MyBox->SetupAttachment(MyScene);
	MyBox->SetBoxExtent(FVector(200,100,100));
	MyBox->SetRelativeLocation(FVector(200,0,0));
}

三.设置TimeLine的参数

将TimeLine进行代理绑定，将碰撞进行代理绑定。

void AMyTimeLineActor::BeginPlay()
{
	Super::BeginPlay();
	TimelineDelegate.BindUFunction(this,TEXT("TimelineStart"));   //dailiyoucanshu
	TimelineFinishedDelegate.BindUFunction(this,TEXT("TimelineFinished"));
	MyTimeline->AddInterpFloat(MyCurveFloat,TimelineDelegate);
	MyTimeline->SetLooping(false);
	//MyTimeline->PlayFromStart();
	//MyTimeline->Play();
	MyTimeline->SetTimelineFinishedFunc(TimelineFinishedDelegate);   //

	MyBox->OnComponentBeginOverlap.AddDynamic(this, &AMyTimeLineActor::BeginOverlapFunction);
	MyBox->OnComponentEndOverlap.AddDynamic(this, &AMyTimeLineActor::EndOverlapFunction);
}

四.在时间轴设置对应逻辑

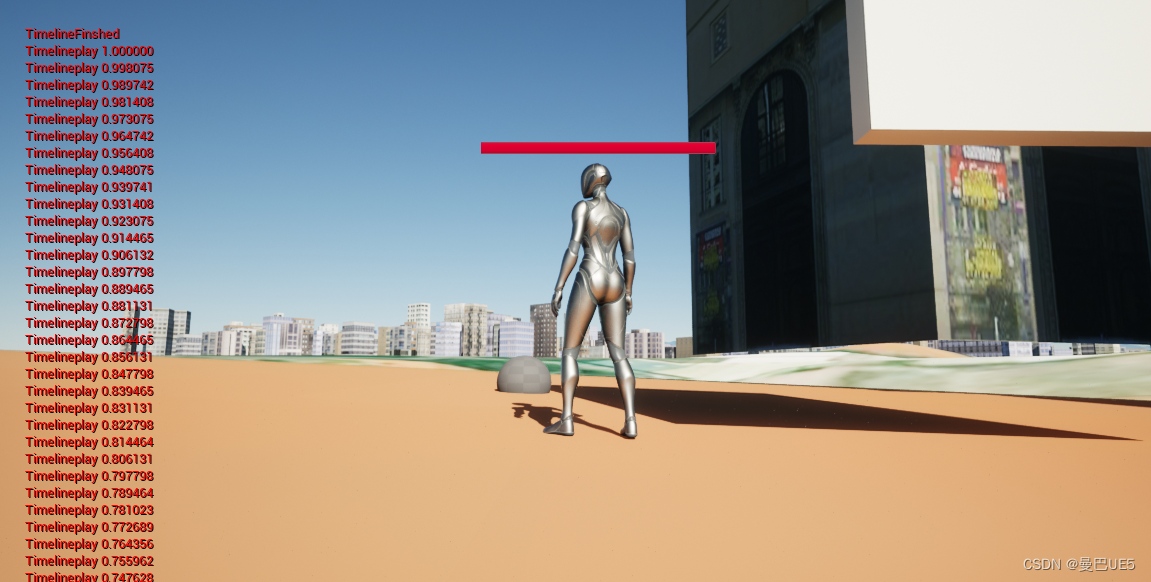

设置时间轴持续调用的，TimelineStart(float value)。其中value是对应Time的曲线value。这里持续开门。开到90°

void AMyTimeLineActor::TimelineStart(float value)
{
	GEngine->AddOnScreenDebugMessage(-1,5.0f,FColor::Red,FString::Printf(TEXT("Timelineplay %f"),value));
	float YawRotation = FMath::Lerp(0,90,value);
	MyDoorMesh->SetRelativeRotation(FRotator(0,YawRotation,0));
}

void AMyTimeLineActor::TimelineFinished()
{
	GEngine->AddOnScreenDebugMessage(-1,5.0f,FColor::Red,TEXT("TimelineFinshed"));

}

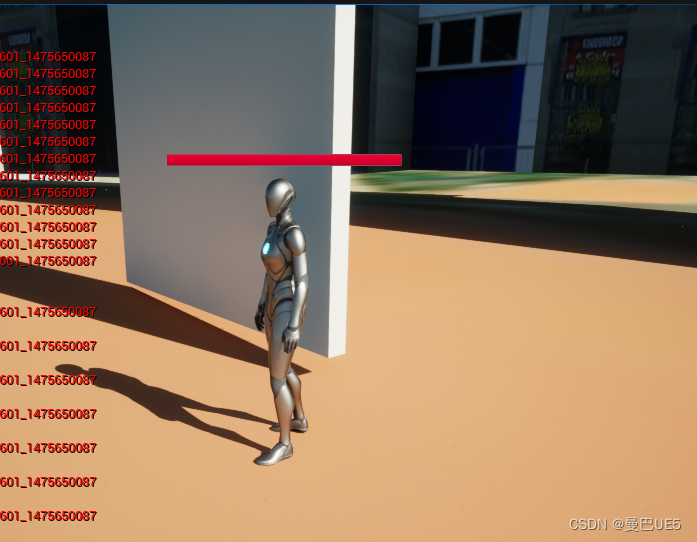

五.在碰撞设置Timeline的播放

判断是否是MyCharacter,再进行开门动画播放。离开时，倒过来播放

void AMyTimeLineActor::BeginOverlapFunction(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult)
{
	AMyCharacter* TmpCharacter = Cast<AMyCharacter>(OtherActor);
	if (TmpCharacter)
	{
		MyTimeline->PlayFromStart();
	}
}

void AMyTimeLineActor::EndOverlapFunction(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex)
{
	AMyCharacter* TmpCharacter = Cast<AMyCharacter>(OtherActor);
	if (TmpCharacter)
	{
		MyTimeline->ReverseFromEnd();
	}
	//GEngine->AddOnScreenDebugMessage(-1, 5.0f, FColor::Red, TEXT("TimelineFinshed"));
}
