华为eNSP-VLAN间路由

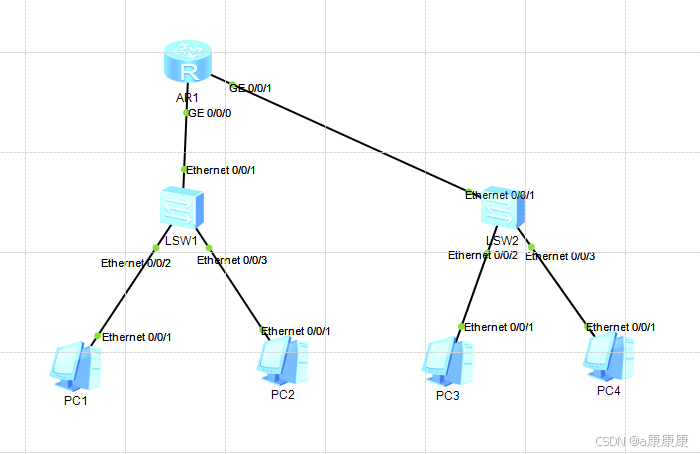

拓扑图如下：

要求：左侧配置单臂路由，右侧配置三层交换机



PC的配置：

PC1 属于VLAN10        ip：192.168.10.1/24        网关：192.168.10.254

PC2 属于VLAN20        ip：192.168.20.1/24        网关：192.168.20.254

PC3 属于VLAN30        ip：192.168.30.1/24        网关：192.168.30.254

PC4 属于VLAN40        ip：192.168.40.1/24        网关：192.168.40.254



单臂路由配置

LSW1：

[Huawei]sy
[Huawei]sysname LSW1
[LSW1]vlan batch 10 20

[LSW1]int e0/0/2
[LSW1-Ethernet0/0/2]port link-type access
[LSW1-Ethernet0/0/2]port default vlan 10

[LSW1-Ethernet0/0/2]int e0/0/3
[LSW1-Ethernet0/0/3]port link-type access
[LSW1-Ethernet0/0/3]port default vlan 20

[LSW1-Ethernet0/0/3]int e0/0/1
[LSW1-Ethernet0/0/1]port link-type  trunk
[LSW1-Ethernet0/0/1]port trunk allow-pass vlan 10 20

AR1：

<Huawei>system-view
[Huawei]sysname AR1

[AR1]int g0/0/0.1
[AR1-GigabitEthernet0/0/0.1]ip address 192.168.10.254 24
[AR1-GigabitEthernet0/0/0.1]dot1q termination vid 10
[AR1-GigabitEthernet0/0/0.1]arp broadcast enable


[AR1-GigabitEthernet0/0/0.1]int g0/0/0.2
[AR1-GigabitEthernet0/0/0.2]ip address 192.168.20.254 24
[AR1-GigabitEthernet0/0/0.2]dot1q termination  vid 20
[AR1-GigabitEthernet0/0/0.2]arp broadcast enable

效果：

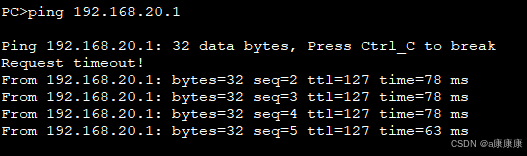

PC1 ping PC2



三层交换机：

LSW2

<Huawei>system-view
[Huawei]sysname LSW2

[LSW2]vlan  batch  30 40

[LSW2]int Eth0/0/2
[LSW2-Ethernet0/0/2]port link-type access
[LSW2-Ethernet0/0/2]port default vlan  30

[LSW2-Ethernet0/0/2]int e0/0/3
[LSW2-Ethernet0/0/3]port link-type access
[LSW2-Ethernet0/0/3]port default vlan  40

[LSW2-Ethernet0/0/3]int vlan 30
[LSW2-Vlanif30]ip address 192.168.30.254 24

[LSW2-Vlanif30]int vlan 40
[LSW2-Vlanif40]ip address 192.168.40.254 24

效果

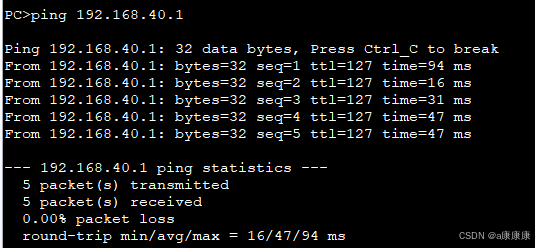

PC3 ping PC4：



互通：

[AR1]int g0/0/1
[AR1-GigabitEthernet0/0/1]ip address 10.1.1.1 24
[AR1]ip route-static 0.0.0.0 0.0.0.0 10.1.1.2

[LSW2]vlan  99
[LSW2]int e0/0/1
[LSW2-Ethernet0/0/1]port link-type access
[LSW2-Ethernet0/0/1]port default vlan  99
[LSW2]int Vlanif  99
[LSW2-Vlanif99]ip address  10.1.1.2 24
[LSW2]ip route-static 0.0.0.0 0.0.0.0 10.1.1.1

效果：

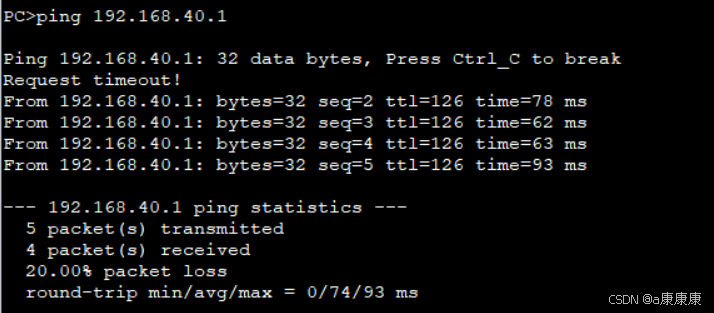

PC1 ping PC4
