【DBC专题】-11-使用Cantools将CAN/CANFD DBC自动生成C语言代码

目录

1 安装Python和Cantools

1.1 查看Python已安装的Package包

1.2 在Python中安装Cantools插件包

1.3 获取更多Cantools工具的更新动态

2 经典CAN/CANFD DBC自动生成C语言代码

2.1 批处理文件CAN_DBC_To_C.bat内容说明

2.2 经典CAN/CANFD DBC文件要求

2.3 如何使用生成的C语言代码

3 附录：CAN DBC文件

4 附录：生成的can_dbc_demo.c文件

5 附录：生成的can_dbc_demo.h文件

结尾

---

优质博文推荐阅读（单击下方链接，即可跳转）：

Vector工具链

CAN Matrix DBC

CAN Matrix Arxml

1 安装Python和Cantools

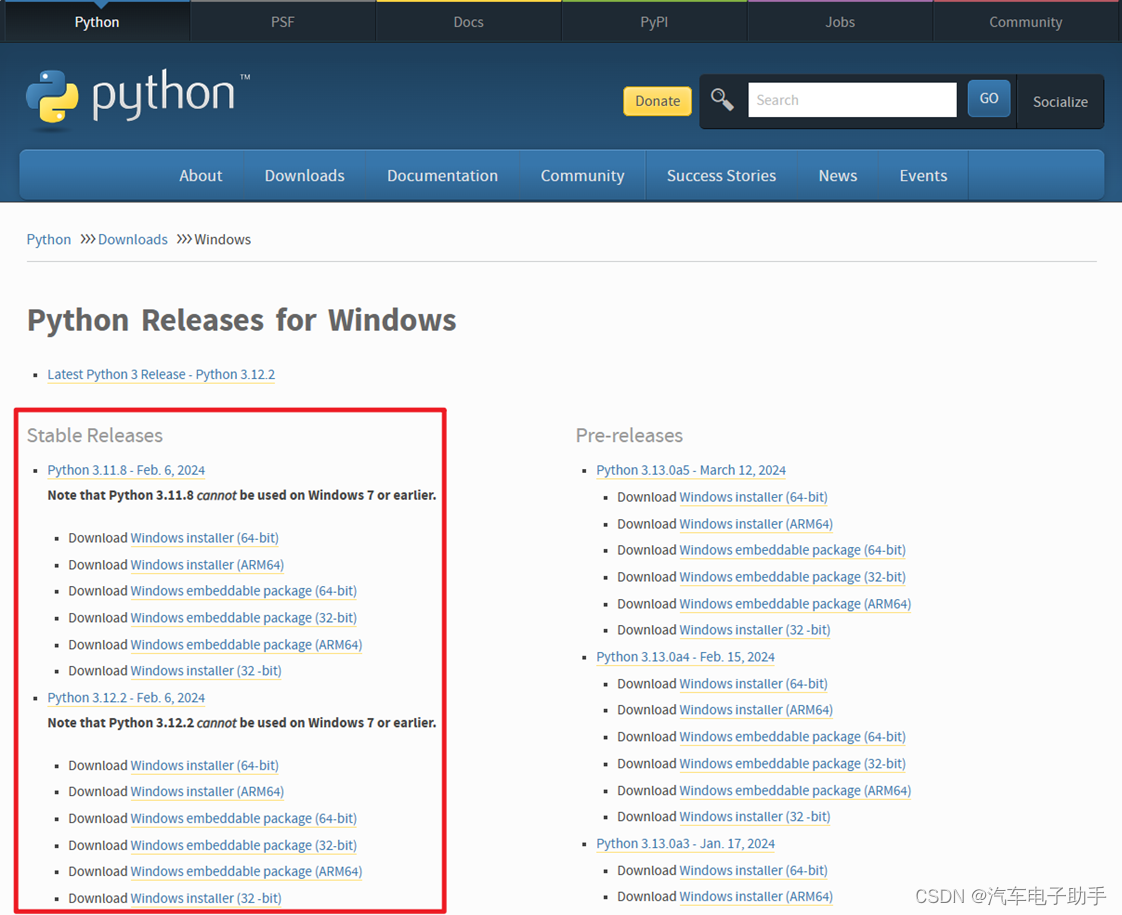

在Python Releases for Windows | Python.org链接中，找到你需要的Python版本（建议使用3.7及以上版本）下载，并安装。

1.1 查看Python已安装的Package包

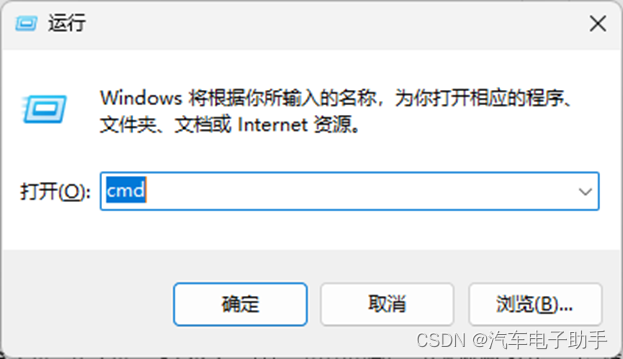

快捷键Win + R，打开运行对话框，在其中输入CMD，单击确定。

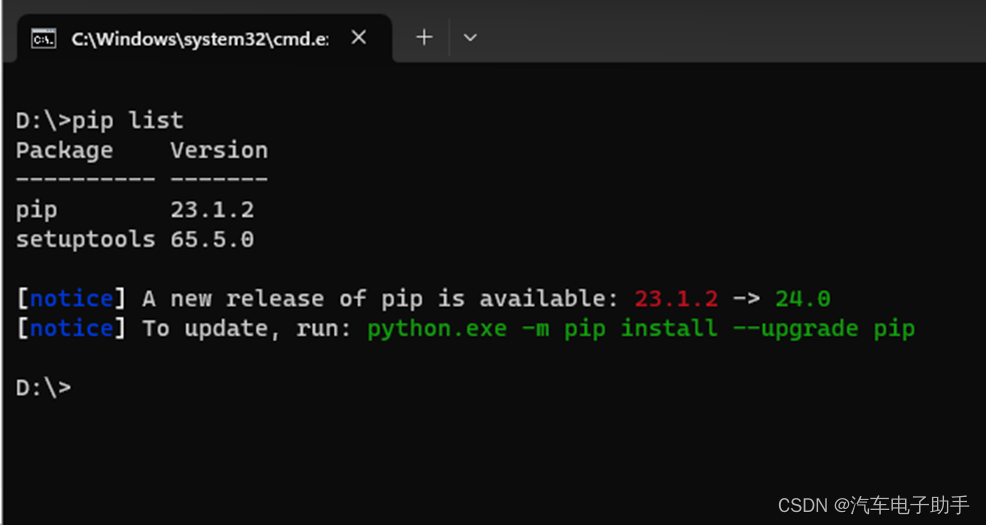

在弹出的“Windows 命令提示符”窗口，输入命令pip list，可以查看Python已安装的包，及其版本。

1.2 在Python中安装Cantools插件包

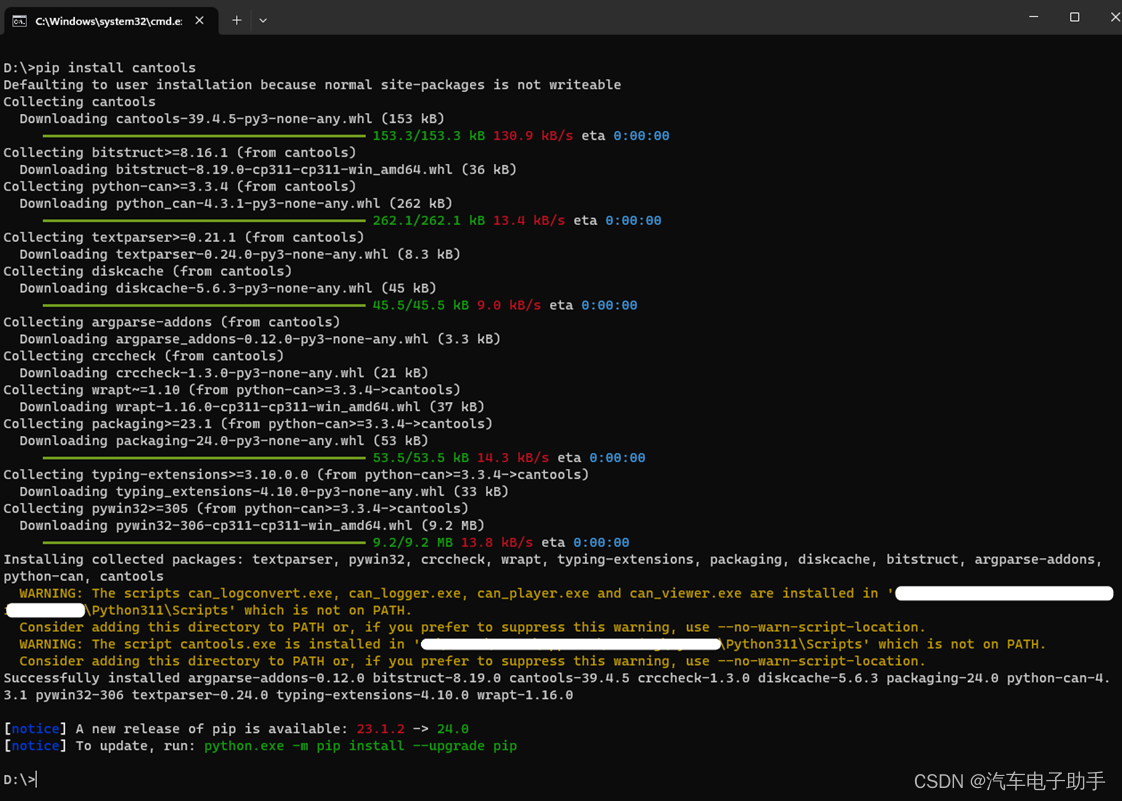

在弹出的“Windows 命令提示符”窗口，输入命令pip install cantools，安装Cantools插件包。

Cantools成功安装后提示：

Successfully installed argparse-addons-0.12.0 bitstruct-8.19.0 cantools-39.4.5 crccheck-1.3.0 diskcache-5.6.3 packaging-24.0 python-can-4.3.1 pywin32-306 textparser-0.24.0 typing-extensions-4.10.0 wrapt-1.16.0

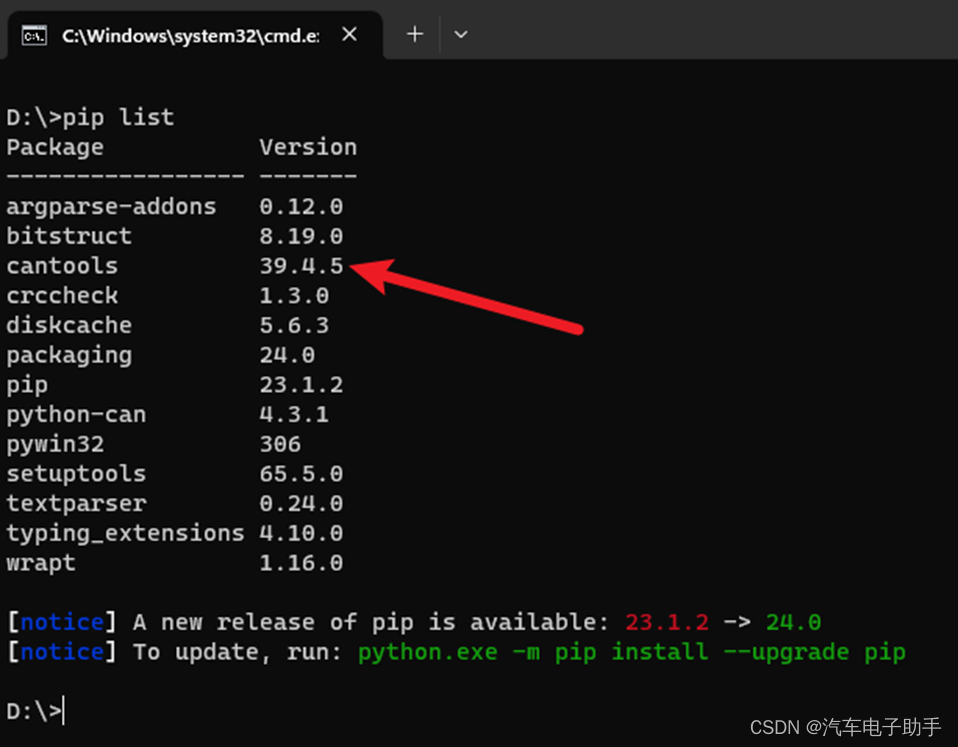

使用命令pip list，可以获取Cantools的版本。

1.3 获取更多Cantools工具的更新动态

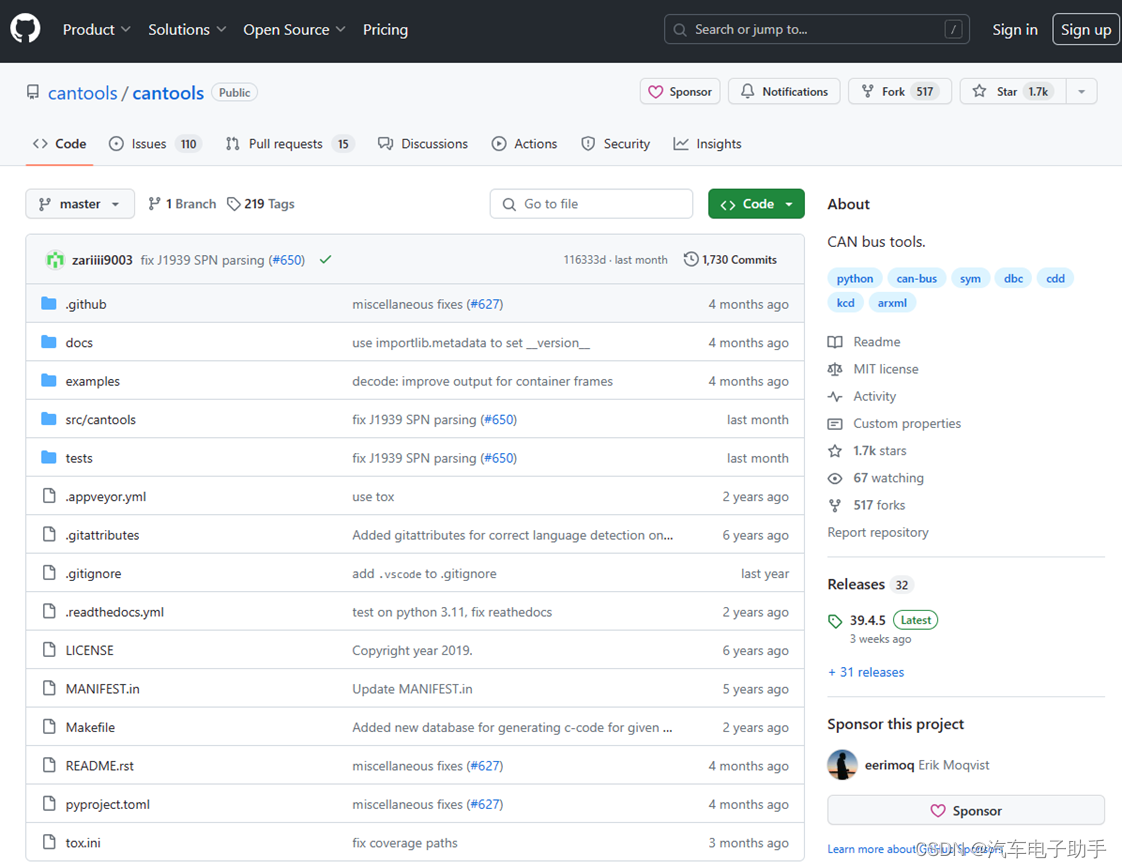

在GitHub - cantools/cantools: CAN bus tools.链接中，可以关注Cantools该插件最新的更新动态。

2 经典CAN/CANFD DBC自动生成C语言代码

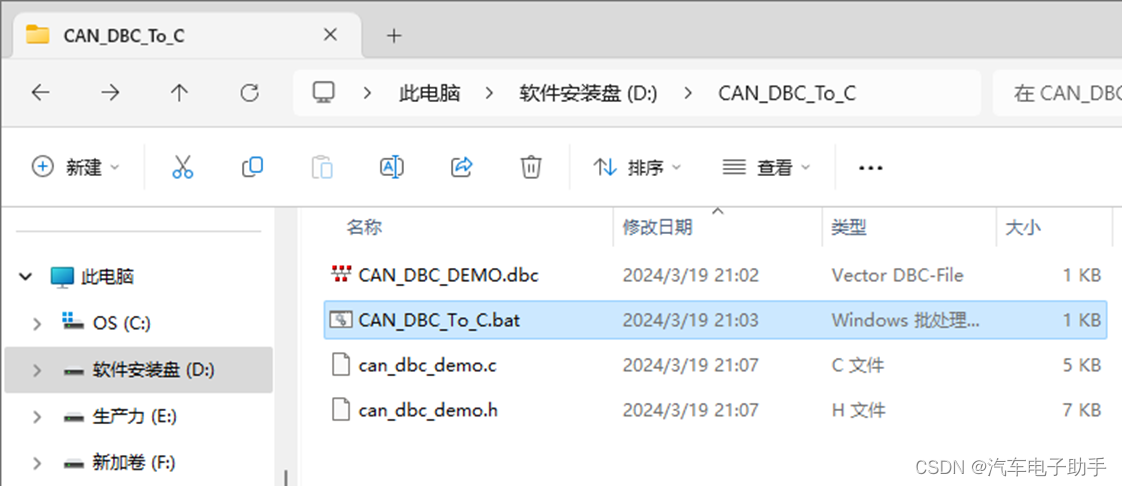

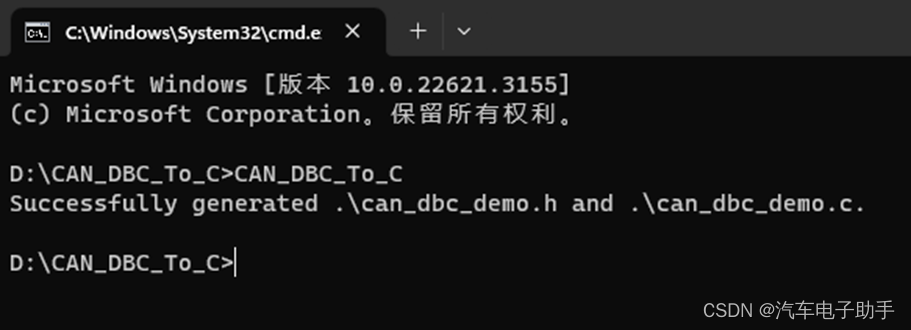

双击运行批处理文件CAN_DBC_To_C.bat，自动生成两个can_dbc_demo.c和can_dbc_demo.h，将这两个文件添加到你的编译环境中，并调用生成的API接口即可。

2.1 批处理文件CAN_DBC_To_C.bat内容说明

CAN_DBC_To_C.bat内容摘录如下，使用该批处理文件需要注意以下四点：

• CAN DBC文件与批处理文件在同一个目录下；
• CAN DBC文件不能数字，或特殊字符开头，否则生成的代码，不符合C语言语法；
• 使用文本编辑工具，打开批处理文件，将CAN_DBC_DEMO替换成同目录下的DBC文件名称；
• 使用文本编辑工具，打开批处理文件，将DCDC替换成DBC中你所使用的发送节点名称。

@echo off

::切换至当前目录
cd.

::经典CAN / CANFD DBC自动生成C语言代码
python -m cantools  generate_c_source -e "gb18030" CAN_DBC_DEMO.dbc --node DCDC

2.2 经典CAN/CANFD DBC文件要求

这个很重要，决定了能否生成C代码文件，以及生成C代码文件的质量。

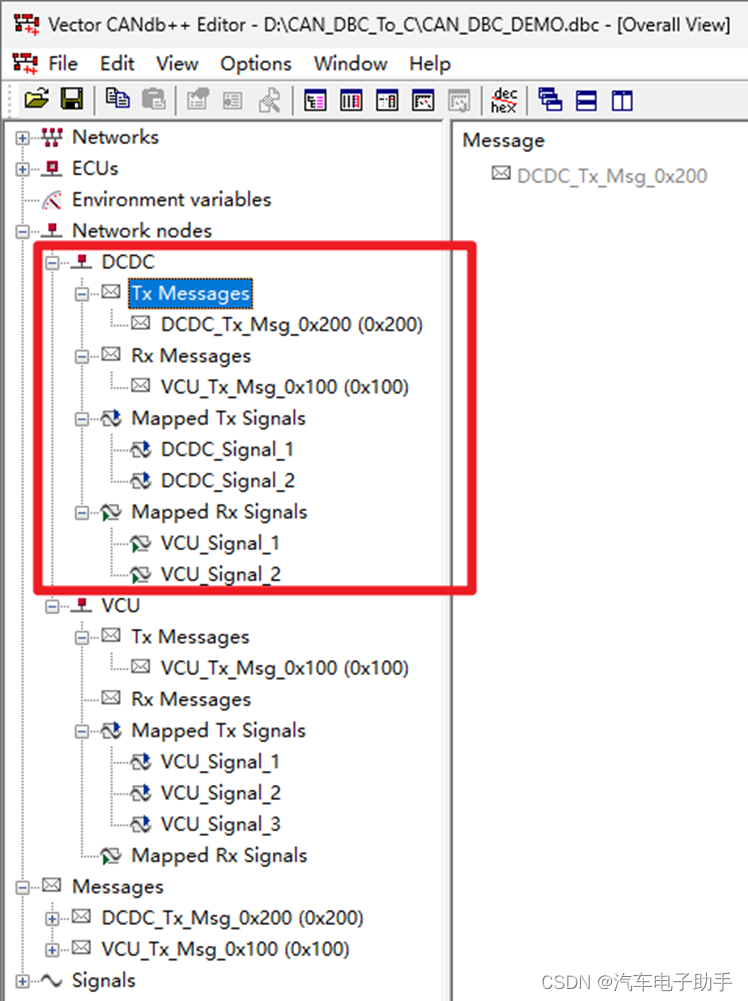

以使用的CAN_DBC_DEMO.dbc为例，该批处理文件自动生成的是节点DCDC所收/发的帧和信号的C语言代码。故没有在Tx Messages，Rx Messages，Mapped Tx Signals，Mapped Rx Signals出现的帧和信号，不会生成代码。

小结：在编辑Message和Signal时，需要明确该帧的“发送节点”，以及帧内信号的“接收节点”。

如何准确的制作一个DBC文件，参考博文【DBC专题】-1-如何使用CANdb++ Editor创建并制作一个DBC_dbc文件中信号的值描述如何修改添加-CSDN博客https://blog.csdn.net/qfmzhu/article/details/111403266

2.3 如何使用生成的C语言代码

API接口****_pack(例如can_dbc_demo_dcdc_tx_msg_0x200_pack)表示将本节点发送的信号的结构体（传参struct can_dbc_demo_dcdc_tx_msg_0x200_t *src_p）拼接成“字节数组”；

API接口****_unpack (例如can_dbc_demo_vcu_tx_msg_0x100_unpack) 表示将本节点接收的信号的结构体（传参struct can_dbc_demo_vcu_tx_msg_0x100_t *dst_p,），由“字节数组”进行解包得到。

3 附录：CAN DBC文件

将该内容复制到txt文件中，并将后缀txt修改为dbc，即可得到该DEMO DBC文件。

VERSION ""


NS_ :
	NS_DESC_
	CM_
	BA_DEF_
	BA_
	VAL_
	CAT_DEF_
	CAT_
	FILTER
	BA_DEF_DEF_
	EV_DATA_
	ENVVAR_DATA_
	SGTYPE_
	SGTYPE_VAL_
	BA_DEF_SGTYPE_
	BA_SGTYPE_
	SIG_TYPE_REF_
	VAL_TABLE_
	SIG_GROUP_
	SIG_VALTYPE_
	SIGTYPE_VALTYPE_
	BO_TX_BU_
	BA_DEF_REL_
	BA_REL_
	BA_DEF_DEF_REL_
	BU_SG_REL_
	BU_EV_REL_
	BU_BO_REL_
	SG_MUL_VAL_

BS_:

BU_: DCDC VCU


BO_ 512 DCDC_Tx_Msg_0x200: 8 DCDC
 SG_ DCDC_Signal_2 : 9|4@0+ (1,0) [0|0] "" Vector__XXX
 SG_ DCDC_Signal_1 : 7|14@0+ (1,0) [0|0] "" Vector__XXX

BO_ 256 VCU_Tx_Msg_0x100: 8 VCU
 SG_ VCU_Signal_3 : 15|8@0+ (1,0) [0|0] "" Vector__XXX
 SG_ VCU_Signal_2 : 3|2@0+ (1,0) [0|0] ""  DCDC
 SG_ VCU_Signal_1 : 1|2@0+ (1,0) [0|0] ""  DCDC



BA_DEF_  "BusType" STRING ;
BA_DEF_DEF_  "BusType" "CAN";

4 附录：生成的can_dbc_demo.c文件

/**
 * The MIT License (MIT)
 *
 * Copyright (c) 2018-2019 Erik Moqvist
 *
 * Permission is hereby granted, free of charge, to any person
 * obtaining a copy of this software and associated documentation
 * files (the "Software"), to deal in the Software without
 * restriction, including without limitation the rights to use, copy,
 * modify, merge, publish, distribute, sublicense, and/or sell copies
 * of the Software, and to permit persons to whom the Software is
 * furnished to do so, subject to the following conditions:
 *
 * The above copyright notice and this permission notice shall be
 * included in all copies or substantial portions of the Software.
 *
 * THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND,
 * EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF
 * MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
 * NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS
 * BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN
 * ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN
 * CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
 * SOFTWARE.
 */

/**
 * This file was generated by cantools version 39.4.5 Tue Mar 19 21:28:58 2024.
 */

#include <string.h>

#include "can_dbc_demo.h"

static inline uint8_t pack_left_shift_u8(
    uint8_t value,
    uint8_t shift,
    uint8_t mask)
{
    return (uint8_t)((uint8_t)(value << shift) & mask);
}

static inline uint8_t pack_left_shift_u16(
    uint16_t value,
    uint8_t shift,
    uint8_t mask)
{
    return (uint8_t)((uint8_t)(value << shift) & mask);
}

static inline uint8_t pack_right_shift_u8(
    uint8_t value,
    uint8_t shift,
    uint8_t mask)
{
    return (uint8_t)((uint8_t)(value >> shift) & mask);
}

static inline uint8_t pack_right_shift_u16(
    uint16_t value,
    uint8_t shift,
    uint8_t mask)
{
    return (uint8_t)((uint8_t)(value >> shift) & mask);
}

static inline uint8_t unpack_right_shift_u8(
    uint8_t value,
    uint8_t shift,
    uint8_t mask)
{
    return (uint8_t)((uint8_t)(value & mask) >> shift);
}

int can_dbc_demo_dcdc_tx_msg_0x200_pack(
    uint8_t *dst_p,
    const struct can_dbc_demo_dcdc_tx_msg_0x200_t *src_p,
    size_t size)
{
    if (size < 8u) {
        return (-EINVAL);
    }

    memset(&dst_p[0], 0, 8);

    dst_p[0] |= pack_right_shift_u16(src_p->dcdc_signal_1, 6u, 0xffu);
    dst_p[1] |= pack_left_shift_u16(src_p->dcdc_signal_1, 2u, 0xfcu);
    dst_p[1] |= pack_right_shift_u8(src_p->dcdc_signal_2, 2u, 0x03u);
    dst_p[2] |= pack_left_shift_u8(src_p->dcdc_signal_2, 6u, 0xc0u);

    return (8);
}

int can_dbc_demo_dcdc_tx_msg_0x200_init(struct can_dbc_demo_dcdc_tx_msg_0x200_t *msg_p)
{
    if (msg_p == NULL) return -1;

    memset(msg_p, 0, sizeof(struct can_dbc_demo_dcdc_tx_msg_0x200_t));

    return 0;
}

uint16_t can_dbc_demo_dcdc_tx_msg_0x200_dcdc_signal_1_encode(double value)
{
    return (uint16_t)(value);
}

bool can_dbc_demo_dcdc_tx_msg_0x200_dcdc_signal_1_is_in_range(uint16_t value)
{
    return (value <= 16383u);
}

uint8_t can_dbc_demo_dcdc_tx_msg_0x200_dcdc_signal_2_encode(double value)
{
    return (uint8_t)(value);
}

bool can_dbc_demo_dcdc_tx_msg_0x200_dcdc_signal_2_is_in_range(uint8_t value)
{
    return (value <= 15u);
}

int can_dbc_demo_vcu_tx_msg_0x100_unpack(
    struct can_dbc_demo_vcu_tx_msg_0x100_t *dst_p,
    const uint8_t *src_p,
    size_t size)
{
    if (size < 8u) {
        return (-EINVAL);
    }

    dst_p->vcu_signal_2 = unpack_right_shift_u8(src_p[0], 2u, 0x0cu);
    dst_p->vcu_signal_1 = unpack_right_shift_u8(src_p[0], 0u, 0x03u);

    return (0);
}

int can_dbc_demo_vcu_tx_msg_0x100_init(struct can_dbc_demo_vcu_tx_msg_0x100_t *msg_p)
{
    if (msg_p == NULL) return -1;

    memset(msg_p, 0, sizeof(struct can_dbc_demo_vcu_tx_msg_0x100_t));

    return 0;
}

double can_dbc_demo_vcu_tx_msg_0x100_vcu_signal_2_decode(uint8_t value)
{
    return ((double)value);
}

bool can_dbc_demo_vcu_tx_msg_0x100_vcu_signal_2_is_in_range(uint8_t value)
{
    return (value <= 3u);
}

double can_dbc_demo_vcu_tx_msg_0x100_vcu_signal_1_decode(uint8_t value)
{
    return ((double)value);
}

bool can_dbc_demo_vcu_tx_msg_0x100_vcu_signal_1_is_in_range(uint8_t value)
{
    return (value <= 3u);
}

5 附录：生成的can_dbc_demo.h文件

/**
 * The MIT License (MIT)
 *
 * Copyright (c) 2018-2019 Erik Moqvist
 *
 * Permission is hereby granted, free of charge, to any person
 * obtaining a copy of this software and associated documentation
 * files (the "Software"), to deal in the Software without
 * restriction, including without limitation the rights to use, copy,
 * modify, merge, publish, distribute, sublicense, and/or sell copies
 * of the Software, and to permit persons to whom the Software is
 * furnished to do so, subject to the following conditions:
 *
 * The above copyright notice and this permission notice shall be
 * included in all copies or substantial portions of the Software.
 *
 * THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND,
 * EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF
 * MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
 * NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS
 * BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN
 * ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN
 * CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
 * SOFTWARE.
 */

/**
 * This file was generated by cantools version 39.4.5 Tue Mar 19 21:28:58 2024.
 */

#ifndef CAN_DBC_DEMO_H
#define CAN_DBC_DEMO_H

#ifdef __cplusplus
extern "C" {
#endif

#include <stdint.h>
#include <stdbool.h>
#include <stddef.h>

#ifndef EINVAL
#    define EINVAL 22
#endif

/* Frame ids. */
#define CAN_DBC_DEMO_DCDC_TX_MSG_0X200_FRAME_ID (0x200u)
#define CAN_DBC_DEMO_VCU_TX_MSG_0X100_FRAME_ID (0x100u)

/* Frame lengths in bytes. */
#define CAN_DBC_DEMO_DCDC_TX_MSG_0X200_LENGTH (8u)
#define CAN_DBC_DEMO_VCU_TX_MSG_0X100_LENGTH (8u)

/* Extended or standard frame types. */
#define CAN_DBC_DEMO_DCDC_TX_MSG_0X200_IS_EXTENDED (0)
#define CAN_DBC_DEMO_VCU_TX_MSG_0X100_IS_EXTENDED (0)

/* Frame cycle times in milliseconds. */


/* Signal choices. */


/* Frame Names. */
#define CAN_DBC_DEMO_DCDC_TX_MSG_0X200_NAME "DCDC_Tx_Msg_0x200"
#define CAN_DBC_DEMO_VCU_TX_MSG_0X100_NAME "VCU_Tx_Msg_0x100"

/* Signal Names. */
#define CAN_DBC_DEMO_DCDC_TX_MSG_0X200_DCDC_SIGNAL_1_NAME "DCDC_Signal_1"
#define CAN_DBC_DEMO_DCDC_TX_MSG_0X200_DCDC_SIGNAL_2_NAME "DCDC_Signal_2"
#define CAN_DBC_DEMO_VCU_TX_MSG_0X100_VCU_SIGNAL_2_NAME "VCU_Signal_2"
#define CAN_DBC_DEMO_VCU_TX_MSG_0X100_VCU_SIGNAL_1_NAME "VCU_Signal_1"
#define CAN_DBC_DEMO_VCU_TX_MSG_0X100_VCU_SIGNAL_3_NAME "VCU_Signal_3"

/**
 * Signals in message DCDC_Tx_Msg_0x200.
 *
 * All signal values are as on the CAN bus.
 */
struct can_dbc_demo_dcdc_tx_msg_0x200_t {
    /**
     * Range: -
     * Scale: 1
     * Offset: 0
     */
    uint16_t dcdc_signal_1;

    /**
     * Range: -
     * Scale: 1
     * Offset: 0
     */
    uint8_t dcdc_signal_2;
};

/**
 * Signals in message VCU_Tx_Msg_0x100.
 *
 * All signal values are as on the CAN bus.
 */
struct can_dbc_demo_vcu_tx_msg_0x100_t {
    /**
     * Range: -
     * Scale: 1
     * Offset: 0
     */
    uint8_t vcu_signal_2;

    /**
     * Range: -
     * Scale: 1
     * Offset: 0
     */
    uint8_t vcu_signal_1;

    /**
     * Range: -
     * Scale: 1
     * Offset: 0
     */
    uint8_t vcu_signal_3;
};

/**
 * Pack message DCDC_Tx_Msg_0x200.
 *
 * @param[out] dst_p Buffer to pack the message into.
 * @param[in] src_p Data to pack.
 * @param[in] size Size of dst_p.
 *
 * @return Size of packed data, or negative error code.
 */
int can_dbc_demo_dcdc_tx_msg_0x200_pack(
    uint8_t *dst_p,
    const struct can_dbc_demo_dcdc_tx_msg_0x200_t *src_p,
    size_t size);

/**
 * Init message fields to default values from DCDC_Tx_Msg_0x200.
 *
 * @param[in] msg_p Message to init.
 *
 * @return zero(0) on success or (-1) in case of nullptr argument.
 */
int can_dbc_demo_dcdc_tx_msg_0x200_init(struct can_dbc_demo_dcdc_tx_msg_0x200_t *msg_p);

/**
 * Encode given signal by applying scaling and offset.
 *
 * @param[in] value Signal to encode.
 *
 * @return Encoded signal.
 */
uint16_t can_dbc_demo_dcdc_tx_msg_0x200_dcdc_signal_1_encode(double value);

/**
 * Check that given signal is in allowed range.
 *
 * @param[in] value Signal to check.
 *
 * @return true if in range, false otherwise.
 */
bool can_dbc_demo_dcdc_tx_msg_0x200_dcdc_signal_1_is_in_range(uint16_t value);

/**
 * Encode given signal by applying scaling and offset.
 *
 * @param[in] value Signal to encode.
 *
 * @return Encoded signal.
 */
uint8_t can_dbc_demo_dcdc_tx_msg_0x200_dcdc_signal_2_encode(double value);

/**
 * Check that given signal is in allowed range.
 *
 * @param[in] value Signal to check.
 *
 * @return true if in range, false otherwise.
 */
bool can_dbc_demo_dcdc_tx_msg_0x200_dcdc_signal_2_is_in_range(uint8_t value);

/**
 * Unpack message VCU_Tx_Msg_0x100.
 *
 * @param[out] dst_p Object to unpack the message into.
 * @param[in] src_p Message to unpack.
 * @param[in] size Size of src_p.
 *
 * @return zero(0) or negative error code.
 */
int can_dbc_demo_vcu_tx_msg_0x100_unpack(
    struct can_dbc_demo_vcu_tx_msg_0x100_t *dst_p,
    const uint8_t *src_p,
    size_t size);

/**
 * Init message fields to default values from VCU_Tx_Msg_0x100.
 *
 * @param[in] msg_p Message to init.
 *
 * @return zero(0) on success or (-1) in case of nullptr argument.
 */
int can_dbc_demo_vcu_tx_msg_0x100_init(struct can_dbc_demo_vcu_tx_msg_0x100_t *msg_p);

/**
 * Decode given signal by applying scaling and offset.
 *
 * @param[in] value Signal to decode.
 *
 * @return Decoded signal.
 */
double can_dbc_demo_vcu_tx_msg_0x100_vcu_signal_2_decode(uint8_t value);

/**
 * Check that given signal is in allowed range.
 *
 * @param[in] value Signal to check.
 *
 * @return true if in range, false otherwise.
 */
bool can_dbc_demo_vcu_tx_msg_0x100_vcu_signal_2_is_in_range(uint8_t value);

/**
 * Decode given signal by applying scaling and offset.
 *
 * @param[in] value Signal to decode.
 *
 * @return Decoded signal.
 */
double can_dbc_demo_vcu_tx_msg_0x100_vcu_signal_1_decode(uint8_t value);

/**
 * Check that given signal is in allowed range.
 *
 * @param[in] value Signal to check.
 *
 * @return true if in range, false otherwise.
 */
bool can_dbc_demo_vcu_tx_msg_0x100_vcu_signal_1_is_in_range(uint8_t value);


#ifdef __cplusplus
}
#endif

#endif

结尾

获取更多“汽车电子资讯”和“工具链使用”，

请关注CSDN博客“汽车电子助手”，做您的好助手。
