Shader场景雾效

原创已于 2024-11-18 20:23:29 修改 · 272 阅读

0 ·

CC 4.0 BY-SA版权

文章标签：

#shader

于 2024-11-18 19:27:16 首次发布

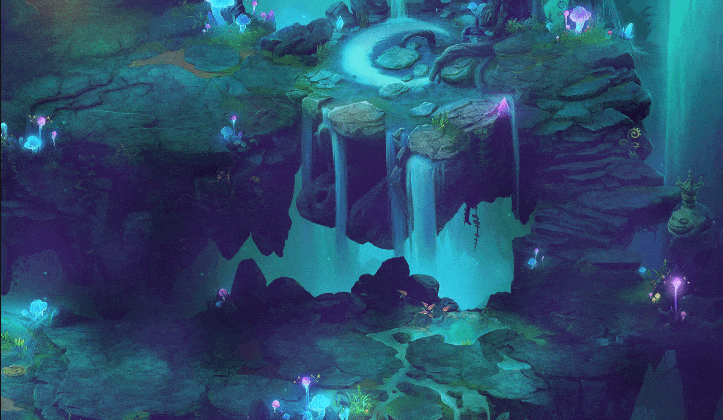

在这里插入图片描述

{
    Properties
    {
        _Color ("Fog Color", Color) = (1,1,1,1)
        _MainTex ("Albedo (RGB)", 2D) = "white" {}
        _Glossiness ("Smoothness", Range(0,1)) = 0.5
        _Metallic ("Metallic", Range(0,1)) = 0.0
    }
    SubShader
    {

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 vertex : SV_POSITION;
            };

            sampler2D _MainTex;
            float3 _Color;

            float rand(float2 p)
            {
                return frac(sin(dot(p,float2(12.9898,78.233)))*43758.5453);
            }
            float noise(float2 x){
                float2 i=floor(x);
                float2 f=frac(x);
                float a=rand(i);
                float b=rand(i+float2(1.0,0.0));
                float c=rand(i+float2(0.0,1.0));
                float d=rand(i+float2(1.0,1.0));
                float2 u=f*f*f*(f*(f*6-15)+10);

                float x1=lerp(a,b,u.x);
                float x2=lerp(c,d,u.x);
                return lerp(x1,x2,u.y);
            }
            float fbm(float2 x){
                float scale=3;
                float res=0;
                float w=4;
                for(int i=0;i<5;++i){  //5：代表雾效叠加层数
                    res+=noise(x*w);
                    w*=1.5;
                }
                return res;
            }

            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                o.uv = v.uv;
                return o;
            }

            fixed4 frag (v2f i) : SV_Target
            {
                fixed3 col = tex2D(_MainTex, i.uv).rgb;
                //float rb=fbm(i.uv); //噪声函数
                float rb=fbm(i.uv + _Time.x); //加个时间参数
                float3 col_fog = rb*_Color;

                float3 col_out = lerp(col,col_fog,0.08);
                return fixed4(col_out,1);
            }
            ENDCG
        }
    }
}
