Unity实现杀戮尖塔出牌效果（一.扇形开牌）

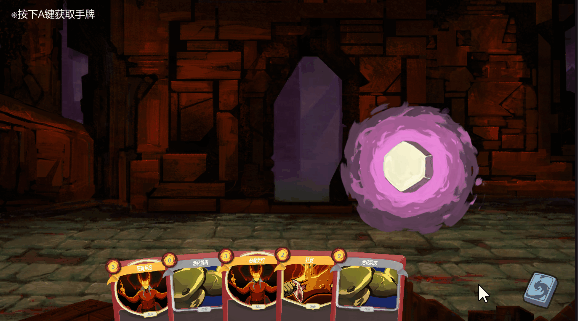

最终效果展示

主要步骤

一. 扇形开牌

二. 鼠标指向卡牌时，卡牌强调动画

①卡牌高度提升
②卡牌旋转归零
③卡牌层级高于其他手牌

三. 卡牌使用效果

1. 攻击类型卡牌

①拖拽超过一定高度之后卡牌会移动到手牌中心位置
②出现攻击引导箭头
③成功指向目标怪物后打出

2. 技能能力类型卡牌

①可自由拖动
②脱离手牌高度后打出

四. 卡牌使用结束效果

1. 播放攻击特效

2. 播放卡牌收尾特效

①卡牌从当前位置移动到中心位置
②卡牌居中悬停展示几毫秒
③播放回归弃牌堆动画

代码详解

一. 扇形开牌

核心代码

public class CardItem : MonoBehaviour
{
    /// <summary>
    /// 卡牌扇形展开中心点
    /// </summary>
    public Vector3 root;
    /// <summary>
    /// 展开角度
    /// </summary>
    public float rot;
    /// <summary>
    /// 展开半径
    /// </summary>
    public float size;
    /// <summary>
    /// 动画速度
    /// </summary>
    public float animSpeed = 10;
    /// <summary>
    /// 高度值（决定卡牌层级）
    /// </summary>
    public float zPos=0;


    public  void RefreshData(Vector3 root,float rot, float size,float zPos)
    {
        this.root = root;
        this.rot = rot;
        this.size = size;
        this.zPos = -zPos*0.02f;
    }
    // Update is called once per frame
    void Update()
    {
        SetPos();
    }
    public void SetPos()
    {
        //设置卡牌位置
        float x = root.x + Mathf.Cos(rot) * size;
        float y = root.y + Mathf.Sin(rot) * size;
        transform.position = Vector3.Lerp(transform.position, new Vector3(x, y, root.z+this.zPos), Time.deltaTime * animSpeed);
        //设置卡牌角度
        float rotZ = GetAngleInDegrees(root, transform.position);
        Vector3 localEulerAngles = transform.localEulerAngles;
        Quaternion rotationQuaternion = Quaternion.Euler(new Vector3(0, 0, rotZ));
        transform.rotation = Quaternion.RotateTowards(transform.rotation, rotationQuaternion, Time.deltaTime * animSpeed * 30);
    }
    /// <summary>
    /// 获取两个向量之间的弧度值0-2π
    /// </summary>    /// <param name="positionA">点A坐标</param>
    /// <param name="positionB">点B坐标</param>
    /// <returns></returns>
    public static float GetAngleInDegrees(Vector3 positionA, Vector3 positionB)
    {
        // 计算从A指向B的向量
        Vector3 direction = positionB - positionA;
        // 将向量标准化
        Vector3 normalizedDirection = direction.normalized;
        // 计算夹角的弧度值
        float dotProduct = Vector3.Dot(normalizedDirection, Vector3.up);
        float angleInRadians = Mathf.Acos(dotProduct);

        //判断夹角的方向：通过计算一个参考向量与两个物体之间的叉乘，可以确定夹角是顺时针还是逆时针方向。这将帮助我们将夹角的范围扩展到0到360度。
        Vector3 cross = Vector3.Cross(normalizedDirection, Vector3.up);
        if (cross.z > 0)
        {
           angleInRadians = 2 * Mathf.PI - angleInRadians;
        }
        // 将弧度值转换为角度值
        float angleInDegrees = angleInRadians * Mathf.Rad2Deg;
        return angleInDegrees;
    }}

public class CardManager : MonoBehaviour
{
    /// <summary>
    /// 卡牌起始位置
    /// </summary>
    public Vector3 rootPos=new Vector3(0,-33.5f,20);
    /// <summary>
    /// 卡牌对象
    /// </summary>
    public GameObject cardItem;
    /// <summary>
    /// 扇形半径
    /// </summary>
    public float size =30f;
    /// <summary>
    /// 卡牌出现最大位置
    /// </summary>
    private float minPos = 1.415f;
    /// <summary>
    /// 卡牌出现最小位置
    /// </summary>
    private float maxPos = 1.73f;
    /// <summary>
    /// 手牌列表
    /// </summary>
    private List<CardItem> cardList;
    /// <summary>
    /// 手牌位置
    /// </summary>
    private List<float> rotPos;
    /// <summary>
    /// 最大手牌数量
    /// </summary>
    private int CardMaxCount=8;

    void Start()
    {        InitCard();
    }    /// <summary>
    /// 数据初始化
    /// </summary>
    public  void InitCard()
    {
          rotPos=InitRotPos(CardMaxCount);
    }
    /// <summary>
    /// 初始化位置
    /// </summary>
    /// <param name="count"></param>
    /// <param name="interval"></param>
    /// <returns></returns>
    public List<float> InitRotPos(int count)
    {
        List<float> rotPos=new List<float>();
        float interval = (maxPos - minPos)/count;
        for (int i = 0; i < count; i++)
        {
            float nowPos = maxPos - interval * i;
            rotPos.Add(nowPos);
        }
        return rotPos;
    }
    // Update is called once per frame
    void Update()
    {
        TaskItemDetection();
        RefereshCard();
    }
    /// <summary>
    /// 添加卡牌
    /// </summary>
    public  void AddCard()
    {
        if (cardList==null)
        {
            cardList=new List<CardItem>();
        }
        if (cardList.Count>=CardMaxCount)
        {
            Debug.Log("手牌数量上限");
            return;
        }
        GameObject item = Instantiate(cardItem,this.transform);
        CardItem text=item.GetComponent<CardItem>();
        text.RefreshData(rootPos,0,0,0);
        cardList.Add(text);
    }
    /// <summary>
    /// 手牌状态刷新
    /// </summary>
    public void RefereshCard()
    {
        if (cardList==null)
        {
           return;
        }
        for (int i = 0; i < cardList.Count; i++)
        {
            cardList[i].RefreshData(rootPos,rotPos[i],size,i);
        }
    }
    /// <summary>
    /// 销毁卡牌
    /// </summary>
    public  void RemoveCard()
    {
        if (cardList==null)
        {
            return;
        }
        CardItem item = cardList[cardList.Count - 1];
        cardList.Remove(item);
        Destroy(item.gameObject);
    }
	/// <summary>
    /// 销毁卡牌
    /// </summary>
    /// <param name="item"></param>
    public  void RemoveCard(CardItem item)
    {
        if (cardList==null)
        {
	        return;
        }
        cardList.Remove(item);
        Destroy(item.gameObject);
    }
    private Vector3 oldmousePosition;

    /// <summary>
    /// 玩家操作检测
    /// </summary>
    public void TaskItemDetection()
    {
       if (Input.GetKeyDown(KeyCode.A))
        {
           AddCard();
        }
     }
}
