VisionPro_9.5中ToolBlock脚本编写&通过脚本绘制Record显示简单示例

1. 导读：

前面有一篇博客分享了如何使用C#调用ToolBlock，以完成一个简单的视觉开发项目。今天主要分享一下在ToolBlock中，如何编写运行脚本，主要包括以下几个方面的演示：

1. ToolBlock添加输入项，主要用于用户界面参数修改，然后以参数的形式传入ToolBlock，以影响算法工具。
2. 通过函数绘制自定义图形Graphics，然后将其打印到ToolBlock的某一个图层中（在VP中常说的Record类似于PS中的图层）。
3. 输出一个不常用的数据类型，PMAlign工具的运行结果对象，也就是CogPMAlignResults类型。

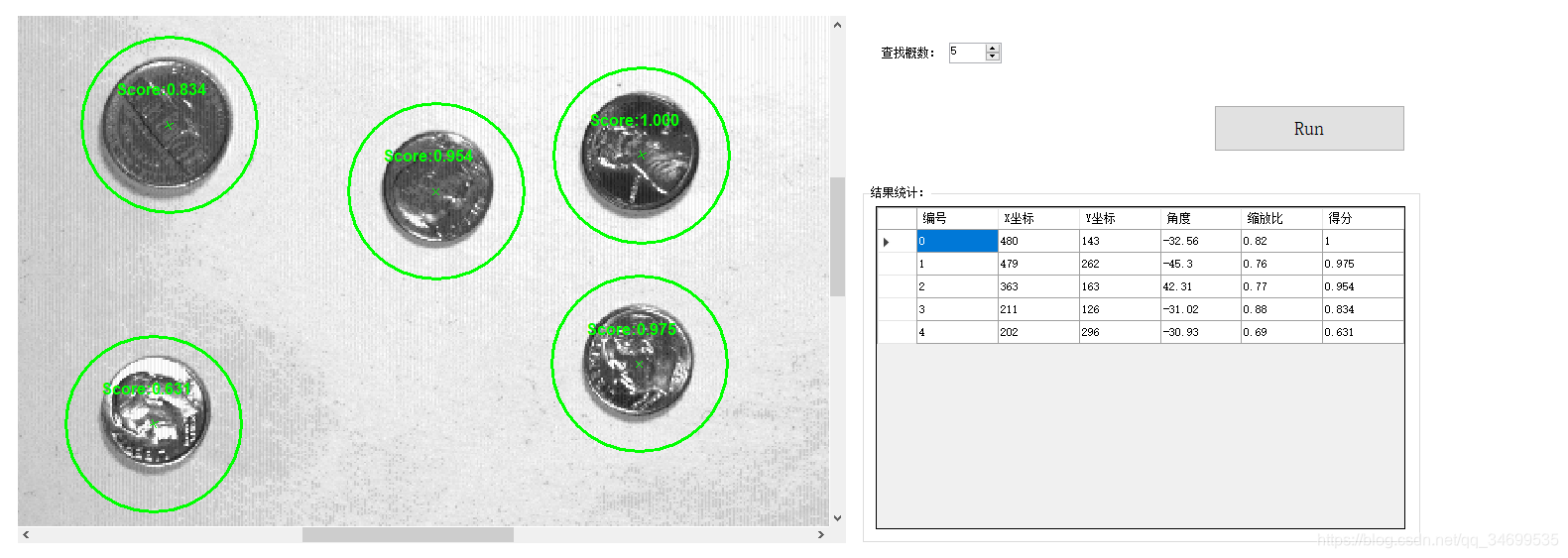

最终效果：

2. 实现步骤：

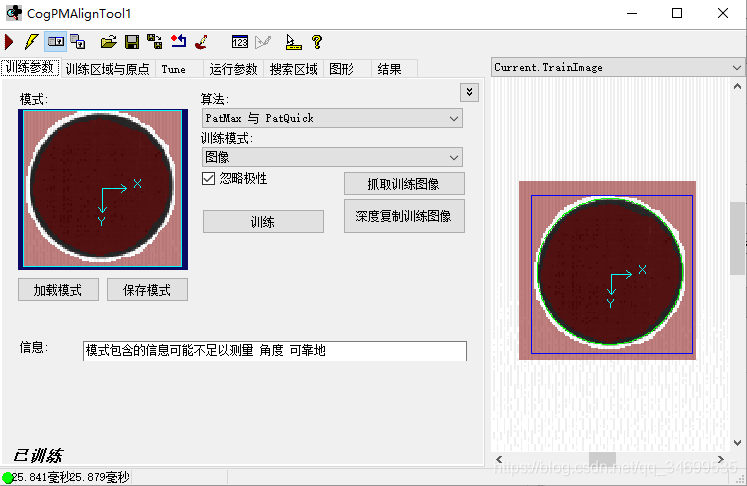

1. 在ToolBlock中添加一个CogPMAlignTool 工具，然后选择一张边缘对比较好的图像，训练模板。

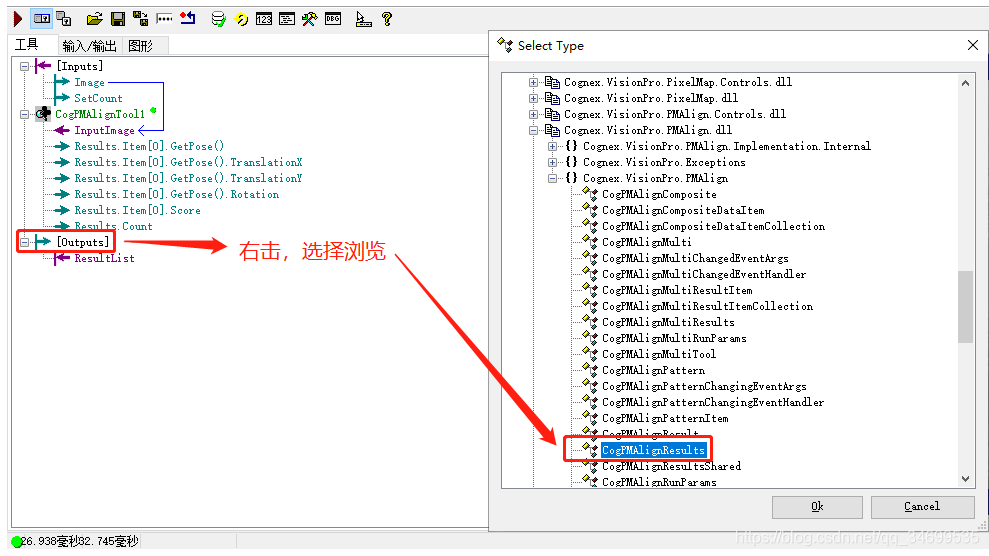

2. 选择ToolBlock的输出引脚类型–CogPMAlignResults

3. 为当前ToolBlocl编写脚本，注意：这里选择C#高级脚本模式。

public class CogToolBlockAdvancedScript : CogToolBlockAdvancedScriptBase
{
  private Cognex.VisionPro.ToolBlock.CogToolBlock mToolBlock;
  private CogPMAlignTool pmaTool = new CogPMAlignTool();
  private CogGraphicCollection graphicList = new CogGraphicCollection();
  public override bool GroupRun(ref string message, ref CogToolResultConstants result)
  {
     //if (System.Diagnostics.Debugger.IsAttached) System.Diagnostics.Debugger.Break();
    graphicList.Clear();

    //初始化PMAlign工具
    pmaTool = mToolBlock.Tools["CogPMAlignTool1"]as CogPMAlignTool;

    //将ToolBlock的Inputs[SetCount]引脚设置为PMAlignTool的预期查找数量
    pmaTool.RunParams.ApproximateNumberToFind = (int) mToolBlock.Inputs["SetCount"].Value;

     //运行PMAlign工具
    pmaTool.Run();

     //获取结果，并将自定义图像添加到画板中
    foreach (CogPMAlignResult item in pmaTool.Results)
    {
      graphicList.Add(CreateCircle(item.GetPose().TranslationX, item.GetPose().TranslationY, 50, CogColorConstants.Green));
      graphicList.Add(CreatLabel("Score:" + item.Score.ToString("0.000"), 12, item.GetPose().TranslationX - 30, item.GetPose().TranslationY - 25, CogColorConstants.Green));
    }

    //将PMAlign工具的结果集合绑定到ToolBlock的输出
    mToolBlock.Outputs["ResultList"].Value = pmaTool.Results;

    //如果ToolBlock内的运行流程是自定义的，则返回false，否则如果按照正常流程执行则返回true
    return false;
  }
    /// <summary>
  /// 绘制仿射矩形
  /// </summary>
   private CogRectangleAffine CreateRectangleAffine(double Postion_X, double Postion_Y, double Weight, double Height, double Rotation, CogColorConstants Color)
  {
    CogRectangleAffine RectangleAffine = new CogRectangleAffine();
    RectangleAffine.SetOriginLengthsRotationSkew(Postion_X, Postion_Y, Weight, Height, Rotation, 0);
    RectangleAffine.Color = Color;
    RectangleAffine.LineStyle = CogGraphicLineStyleConstants.Solid;
    RectangleAffine.LineWidthInScreenPixels = 1;
    //RectangleAffine.SelectedSpaceName = affine.Region.SelectedSpaceName;
    return RectangleAffine;
  }
   /// <summary>
  /// 绘制矩形
  /// </summary>
  private CogRectangle CreatRectangle(double Postion_X, double Postion_Y, double Weight, double Height, CogColorConstants Color)
  {
    CogRectangle Rectangle = new CogRectangle();
    Rectangle.X = Postion_X;
    Rectangle.Y = Postion_Y;
    Rectangle.SetCenterWidthHeight(Rectangle.X, Rectangle.Y, Weight, Height);
    Rectangle.Color = Color;
    Rectangle.LineStyle = CogGraphicLineStyleConstants.Solid;
    Rectangle.LineWidthInScreenPixels = 5;
    return Rectangle;
  }

   /// <summary>
  /// 绘制标签
  /// </summary>
  private CogGraphicLabel CreatLabel(string text, float size, double x, double y, CogColorConstants Color)
  {
    CogGraphicLabel label = new CogGraphicLabel();
    label.Font = new Font("Arial", size, FontStyle.Bold, GraphicsUnit.Point);
    label.Color = Color;
    label.SetXYText(x, y, text);
    label.Alignment = CogGraphicLabelAlignmentConstants.TopLeft;
    return label;
  }

   /// <summary>
  /// 绘制圆形
  /// </summary>
  private CogCircle CreateCircle(double Center_X,double Center_Y,double Radius,CogColorConstants color)
  {
    CogCircle circle = new CogCircle();
    circle.CenterX = Center_X;
    circle.CenterY = Center_Y;
    circle.Radius = Radius;
    circle.Color = color;
    circle.LineStyle=CogGraphicLineStyleConstants.Solid;
    circle.LineWidthInScreenPixels = 3;
    return circle;
  }

   /// <summary>
  /// 当上一次的记录发生改变，并正在重构时调用此函数
  /// </summary>
  /// <param name="lastRecord">新的运行记录</param>
  public override void ModifyLastRunRecord(Cognex.VisionPro.ICogRecord lastRecord)
  {
    // 遍历画板，然后将自定义图形添加到ToolBlock的新的绘制记录上
    foreach (ICogGraphic item in graphicList)
    {
      mToolBlock.AddGraphicToRunRecord(item, lastRecord, "CogPMAlignTool1.InputImage", "Script");
    }
  }
}

4. 开发程序中，在ToolBlock的Ran事件回调函数中显示，并获取结果。

 private void OnToolBlockRan(object sender, EventArgs e)
 {
     cogRecordDisplay2.Image = null;
     //将当前ToolBlock的Record显示在RecordDisplay控件上
     cogRecordDisplay2.Record = (CogRecord)cogToolBlock2.CreateLastRunRecord().SubRecords[0];
     cogRecordDisplay2.Fit(true);

     //获取ToolBlock的输出结果，然后显示DataGridView控件中
     List<DataObj> dataList = new List<DataObj>();
     CogPMAlignResults resultList = (CogPMAlignResults)cogToolBlock2.Outputs["ResultList"].Value;
     foreach (CogPMAlignResult item in resultList)
     {
        dataList.Add(new DataObj(item.ID, item.GetPose().TranslationX, item.GetPose().TranslationY, item.GetPose().Rotation, item.GetPose().Scaling, item.Score));
     }
     dgv_DataList.DataSource = dataList;
 }

以上如有错误，欢迎指正，谢谢。。
