本文使用的 Latex 模板为 IEEE 的 Manuscript Templates for Conference Proceedings，模板下载网址为：https://www.ieee.org/conferences/publishing/templates.html。

将模板下载下来并直接进行编译，我们都会发现该 latex 模板中作者名字都是没有对齐的：

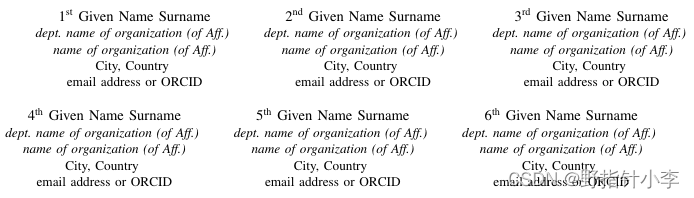

IEEE conference template-1
如果我们的某一行很长的话，这种不对齐的现象会更显眼：

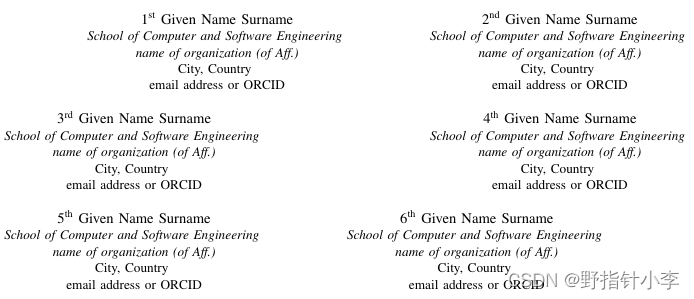

IEEE conference template-2
这种情况的解决办法如下（以6位作者为例）：

Step 1： 将作者顺序按照 135 246 进行排列，并将 \and 给删除。

模板中的作者排列方式为 123 456，如下：

\author{
\IEEEauthorblockN{1\textsuperscript{st} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
\textit{name of organization (of Aff.)}\\
City, Country \\
email address or ORCID}

\and

\IEEEauthorblockN{2\textsuperscript{nd} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
\textit{name of organization (of Aff.)}\\
City, Country \\
email address or ORCID}

\and

\IEEEauthorblockN{3\textsuperscript{rd} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
\textit{name of organization (of Aff.)}\\
City, Country \\
email address or ORCID}

\and

\IEEEauthorblockN{4\textsuperscript{th} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
\textit{name of organization (of Aff.)}\\
City, Country \\
email address or ORCID}

\and

\IEEEauthorblockN{5\textsuperscript{th} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
\textit{name of organization (of Aff.)}\\
City, Country \\
email address or ORCID}

\and

\IEEEauthorblockN{6\textsuperscript{th} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
\textit{name of organization (of Aff.)}\\
City, Country \\
email address or ORCID}
}

我们先给改为 135 246的排列顺序，并将 \and 删掉后，如下：

\author{
\IEEEauthorblockN{1\textsuperscript{st} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
\textit{name of organization (of Aff.)}\\
City, Country \\
email address or ORCID}

\IEEEauthorblockN{3\textsuperscript{rd} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
	\textit{name of organization (of Aff.)}\\
	City, Country \\
	email address or ORCID}

\IEEEauthorblockN{5\textsuperscript{th} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
	\textit{name of organization (of Aff.)}\\
	City, Country \\
	email address or ORCID}

\IEEEauthorblockN{2\textsuperscript{nd} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
\textit{name of organization (of Aff.)}\\
City, Country \\
email address or ORCID}

\IEEEauthorblockN{4\textsuperscript{th} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
\textit{name of organization (of Aff.)}\\
City, Country \\
email address or ORCID}

\IEEEauthorblockN{6\textsuperscript{th} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
\textit{name of organization (of Aff.)}\\
City, Country \\
email address or ORCID}
}

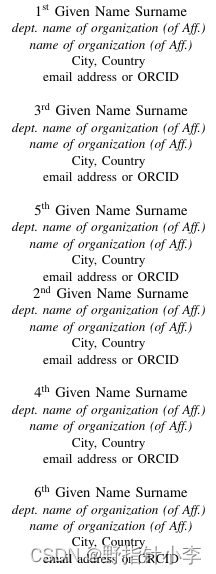

结束上面一步后，现在编译后长这样：
135 246
Step 2： 接着分别在 135 和 246 之间用 \\ 换行。

\author{
\IEEEauthorblockN{1\textsuperscript{st} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
\textit{name of organization (of Aff.)}\\
City, Country \\
email address or ORCID} \\

\IEEEauthorblockN{3\textsuperscript{rd} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
	\textit{name of organization (of Aff.)}\\
	City, Country \\
	email address or ORCID} \\

\IEEEauthorblockN{5\textsuperscript{th} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
	\textit{name of organization (of Aff.)}\\
	City, Country \\
	email address or ORCID}

\IEEEauthorblockN{2\textsuperscript{nd} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
\textit{name of organization (of Aff.)}\\
City, Country \\
email address or ORCID} \\

\IEEEauthorblockN{4\textsuperscript{th} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
\textit{name of organization (of Aff.)}\\
City, Country \\
email address or ORCID} \\

\IEEEauthorblockN{6\textsuperscript{th} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
\textit{name of organization (of Aff.)}\\
City, Country \\
email address or ORCID}
}

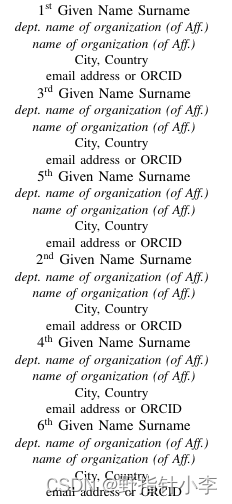

加上换行符后编译后长这样：
135 246换行
我们发现加上换行符后，除了 5 和 2 之间的间距没变，其余的都有了间隔。

Step 3： 最后一步，我们在 5 和 2 之间加上 \and 即可：

\author{
\IEEEauthorblockN{1\textsuperscript{st} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
\textit{name of organization (of Aff.)}\\
City, Country \\
email address or ORCID} \\

\IEEEauthorblockN{3\textsuperscript{rd} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
	\textit{name of organization (of Aff.)}\\
	City, Country \\
	email address or ORCID} \\

\IEEEauthorblockN{5\textsuperscript{th} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
	\textit{name of organization (of Aff.)}\\
	City, Country \\
	email address or ORCID}
\and
\IEEEauthorblockN{2\textsuperscript{nd} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
\textit{name of organization (of Aff.)}\\
City, Country \\
email address or ORCID} \\

\IEEEauthorblockN{4\textsuperscript{th} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
\textit{name of organization (of Aff.)}\\
City, Country \\
email address or ORCID} \\

\IEEEauthorblockN{6\textsuperscript{th} Given Name Surname}
\IEEEauthorblockA{\textit{dept. name of organization (of Aff.)} \\
\textit{name of organization (of Aff.)}\\
City, Country \\
email address or ORCID}
}

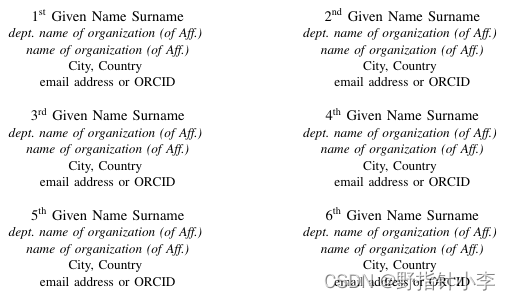

编译后就能够正常对齐了：
