文章详细介绍了TMS320x281x系列芯片中ePWM模块的配置，包括时钟初始化、中断设置、计数器模式、相位设置、中断服务例程等。通过EPWM1_Init和EPWM6_Init等函数展示了如何设置PWM波形，以及如何通过中断检测和处理来控制PWM输出。此外，还讨论了死区时间、故障区和直流电机控制等相关应用。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

一、01Demo-Epwm_Time_Interrupt

1、主函数

void main()
{
    DINT;//关闭所有中断

    SysCtrlInit(); //初始化时钟
    InitPieCtrl();//复位中断向量
    InitPieVectTable();//初始化中断向量表

    //将程序复制至RAM内存中运行-此程序可以不需要
    memcpy((Uint16 *)&RamfuncsRunStart,(Uint16 *)&RamfuncsLoadStart,(unsigned long)&RamfuncsLoadSize);
    InitFlash();

    GPIOInit();
    EPWM1_Init(15000);

       for(;;)
       {
           DELAY_US(500000);//500mS
           //GpioDataRegs.GPBTOGGLE.bit.GPIO39 = 1;//绿灯亮
           GpioDataRegs.GPASET.bit.GPIO22 = 1;//黄灯亮
           GpioDataRegs.GPBSET.bit.GPIO33 = 1;//红灯亮
       }
}

2、EPWM配置部分


void EPWM1_Init(Uint16 tbprd)
{
    EALLOW;
    SysCtrlRegs.PCLKCR0.bit.TBCLKSYNC = 0;   // Disable TBCLK within the ePWM
    SysCtrlRegs.PCLKCR1.bit.EPWM1ENCLK = 1;  // ePWM1
    EDIS;

    // Interrupts that are used in this example are re-mapped to
    // ISR functions found within this file.
    EALLOW;  // This is needed to write to EALLOW protected registers
    PieVectTable.EPWM1_INT = &epwm1_timer_isr;
    EDIS;    // This is needed to disable write to EALLOW protected registers

    EALLOW;
    SysCtrlRegs.PCLKCR0.bit.TBCLKSYNC = 0;      // Stop all the TB clocks
    EDIS;

    // Setup Sync
    EPwm1Regs.TBCTL.bit.SYNCOSEL = TB_SYNC_IN;  // Pass through

    // Allow each timer to be sync'ed
    EPwm1Regs.TBCTL.bit.PHSEN = TB_ENABLE;

    EPwm1Regs.TBPHS.half.TBPHS = 0;

    EPwm1Regs.TBPRD = tbprd;
    EPwm1Regs.TBCTL.bit.CTRMODE = TB_COUNT_UP;    // Count up
    EPwm1Regs.TBCTL.bit.HSPCLKDIV=TB_DIV1;
    EPwm1Regs.TBCTL.bit.CLKDIV=TB_DIV1;
    EPwm1Regs.ETSEL.bit.INTSEL = ET_CTR_ZERO;     // Select INT on Zero event
    EPwm1Regs.ETSEL.bit.INTEN = 1;  // Enable INT
    EPwm1Regs.ETPS.bit.INTPRD = ET_1ST;           // Generate INT on 1st event

    EALLOW;
    SysCtrlRegs.PCLKCR0.bit.TBCLKSYNC = 1;         // Start all the timers synced
    EDIS;

    // Enable CPU INT3 which is connected to EPWM1-6 INT:
    IER |= M_INT3;

    // Enable EPWM INTn in the PIE: Group 3 interrupt 1-6
    PieCtrlRegs.PIEIER3.bit.INTx1 = 1;

    // Enable global Interrupts and higher priority real-time debug events:
    EINT;   // Enable Global interrupt INTM
    ERTM;   // Enable Global realtime interrupt DBGM
}

（1）时钟初始化

关闭时钟基准，开启pwm时钟。

SysCtrlRegs.PCLKCR0.bit.TBCLKSYNC = 0;
SysCtrlRegs.PCLKCR1.bit.EPWM1ENCLK = 1;  // ePWM1

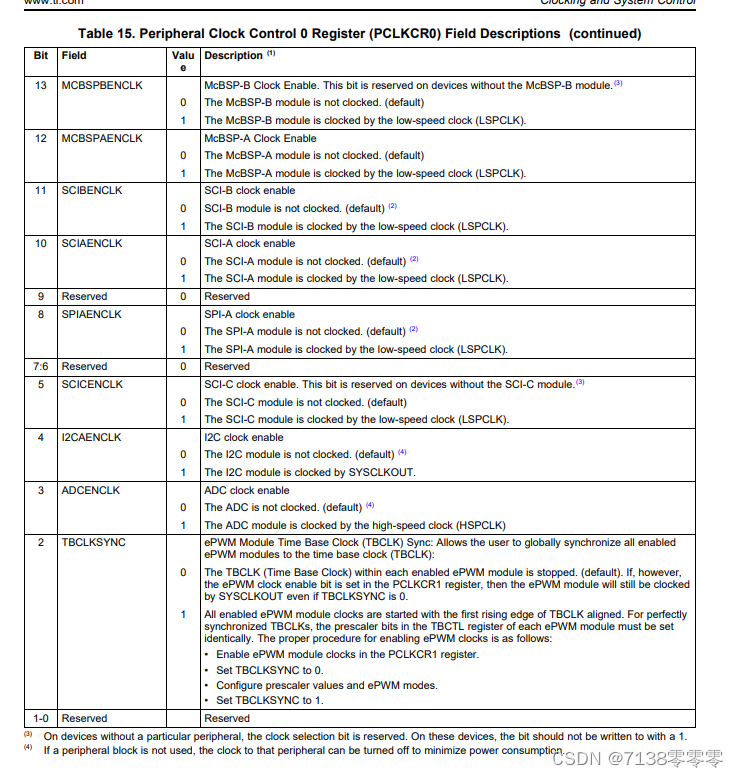

TBCLKSYNC ：对应PCLKCR0;

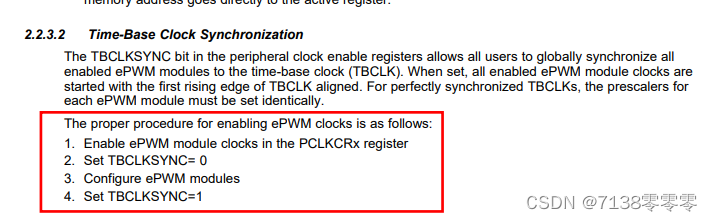

ePWM模块时间基准时钟（TBCLK）同步允许用户全局同步所有启用的ePWM模块到时间基准时钟（TBCLK）：

0：每个启用的ePWM模块内的TBCLK（时间基准时钟）被停止。（默认值）。但是，如果在PCLKCR1寄存器中设置了ePWM时钟使能位，则即使TBCLKSYNC为0，ePWM模块仍将由SYSCLKOUT提供时钟。
1：所有启用的ePWM模块时钟在第一个上升沿对齐的同时启动。对于完全同步的TBCLK，每个ePWM模块的TBCTL寄存器中的分频器位必须设置为相同的值。启用ePWM时钟的正确程序如下：
• 在PCLKCR1寄存器中启用ePWM模块时钟。
• 将TBCLKSYNC设置为0。
• 配置分频器值和ePWM模式。
• 将TBCLKSYNC设置为1。

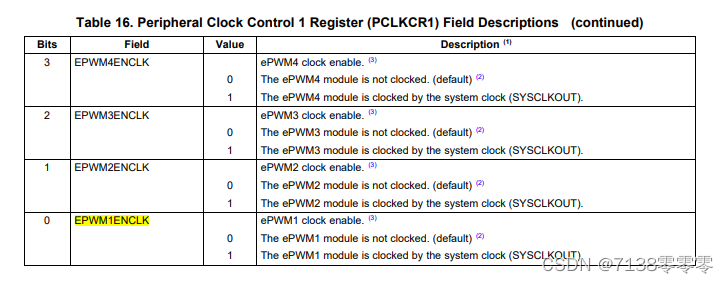

EPWM1ENCLK：对应PCLKCR1

（2）epwm波中断

PieVectTable.EPWM1_INT = &epwm1_timer_isr;

（3）模块设置

 EALLOW;  // This is needed to write to EALLOW protected registers
    PieVectTable.EPWM1_INT = &epwm1_timer_isr;
    EDIS;    // This is needed to disable write to EALLOW protected registers

    EALLOW;
    SysCtrlRegs.PCLKCR0.bit.TBCLKSYNC = 0;      // Stop all the TB clocks
    EDIS;

    // Setup Sync
    EPwm1Regs.TBCTL.bit.SYNCOSEL = TB_SYNC_IN;  // Pass through

    // Allow each timer to be sync'ed
    EPwm1Regs.TBCTL.bit.PHSEN = TB_ENABLE;

    EPwm1Regs.TBPHS.half.TBPHS = 0;

    EPwm1Regs.TBPRD = tbprd;
    EPwm1Regs.TBCTL.bit.CTRMODE = TB_COUNT_UP;    // Count up
    EPwm1Regs.TBCTL.bit.HSPCLKDIV=TB_DIV1;
    EPwm1Regs.TBCTL.bit.CLKDIV=TB_DIV1;
    EPwm1Regs.ETSEL.bit.INTSEL = ET_CTR_ZERO;     // Select INT on Zero event
    EPwm1Regs.ETSEL.bit.INTEN = 1;  // Enable INT
    EPwm1Regs.ETPS.bit.INTPRD = ET_1ST;           // Generate INT on 1st event

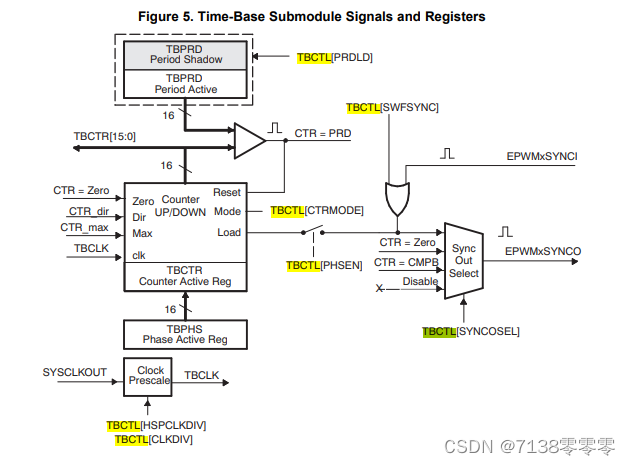

TB模块进行时间周期与频率设置：

 EPwm1Regs.TBCTL.bit.SYNCOSEL = 0x0;

 EPwm1Regs.TBCTL.bit.PHSEN = 0x1;

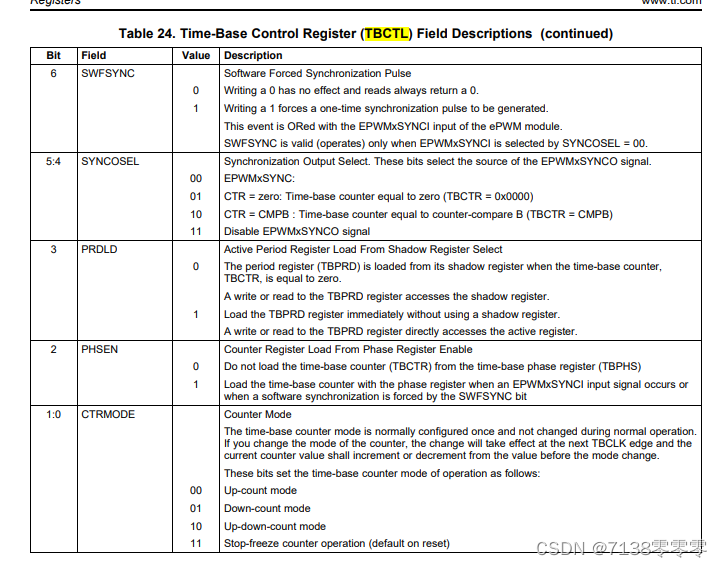

SYNCOSEL位：同步输出选择。这些位选择EPWMxSYNCO信号的来源。

00：EPWMxSYNC。
01：CTR = 0：时间基准计数器等于零（TBCTR = 0x0000）。
10：CTR = CMPB：时间基准计数器等于计数-比较B（TBCTR = CMPB）。
11：禁用EPWMxSYNCO信号。

EPwmSYNCO信号可以用于同步其他模块或设备。当SYNCOSEL位为0时，TBCTR为零（起始状态）时，会生成一个EPwmSYNC信号，并且该信号会在TBCTR到达计数器上限时告诉其他模块它必须更新其状态。

PHSEN 位：计数器寄存器从相位寄存器中启用加载；

0：不要从时间基准相位寄存器（TBPHS）加载时间基准计数器（TBCTR）寄存器；
1：当发生EPWMxSYNCI输入信号或由SWFSYNC位强制进行软件同步时，将时间基准计数器从相位寄存器中加载。

EPwm1Regs.TBCTL.bit.CTRMODE = TB_COUNT_UP;    // Count up
EPwm1Regs.TBCTL.bit.HSPCLKDIV=TB_DIV1;
EPwm1Regs.TBCTL.bit.CLKDIV=TB_DIV1;

CTRMODE位：时间基准计数器模式通常只在配置期间设置，不在正常操作中改变。如果更改计数器的模式，则更改将在下一个TBCLK边沿生效，并且当前计数器值应从模式更改之前的值增加或减少。这些位按以下方式设置计数器的时间基准模式：
00 上计数模式
01 下计数模式
10 上下计数模式
11 停止计数器操作（复位时默认）

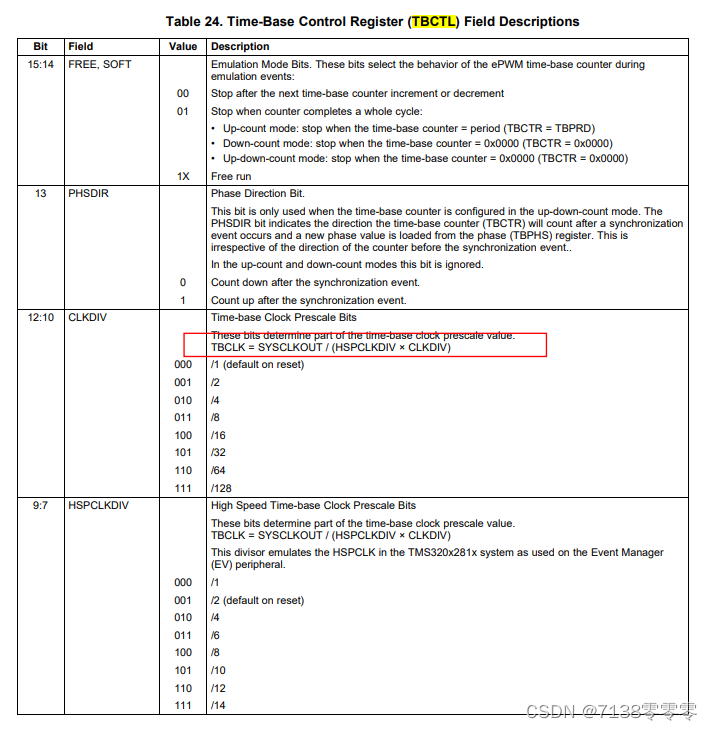

HSPCLKDIV：这些位决定时间基准时钟预分频值的一部分。
TBCLK = SYSCLKOUT / (HSPCLKDIV × CLKDIV)
这个除法器模拟了在TMS320x281x系统中Event Manager (EV) 外设中使用的HSPCLK。
000 /1
001 /2 (复位时的默认值)
010 /4
011 /6
100 /8
101 /10
110 /12
111 /14

CLKDIV：这些位决定时间基准时钟预分频值的一部分。
TBCLK = SYSCLKOUT / (HSPCLKDIV × CLKDIV)
000 /1 (复位时的默认值)
001 /2
010 /4
011 /8
100 /16
101 /32
110 /64
111 /128

 EPwm1Regs.TBPHS.half.TBPHS = 0;

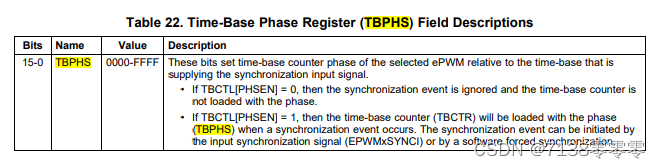

TBPHS.half.TBPHS,这些位设置所选ePWM相对于提供同步输入信号的时间基准计数器的相位。
• 如果TBCTL [PHSEN] = 0，则忽略同步事件，时间基准计数器不加载相位。
• 如果TBCTL [PHSEN] = 1，则当发生同步事件时，时间基准计数器（TBCTR）将被加载相位（TBPHS）。同步事件可以由输入同步信号（EPWMxSYNCI）或软件强制同步引发。

此处设置加载相位为0.

 EPwm1Regs.TBPRD = tbprd;

设置计数周期数字。

EPwm1Regs.ETSEL.bit.INTSEL = ET_CTR_ZERO;     // Select INT on Zero event
EPwm1Regs.ETSEL.bit.INTEN = 1;  // Enable INT

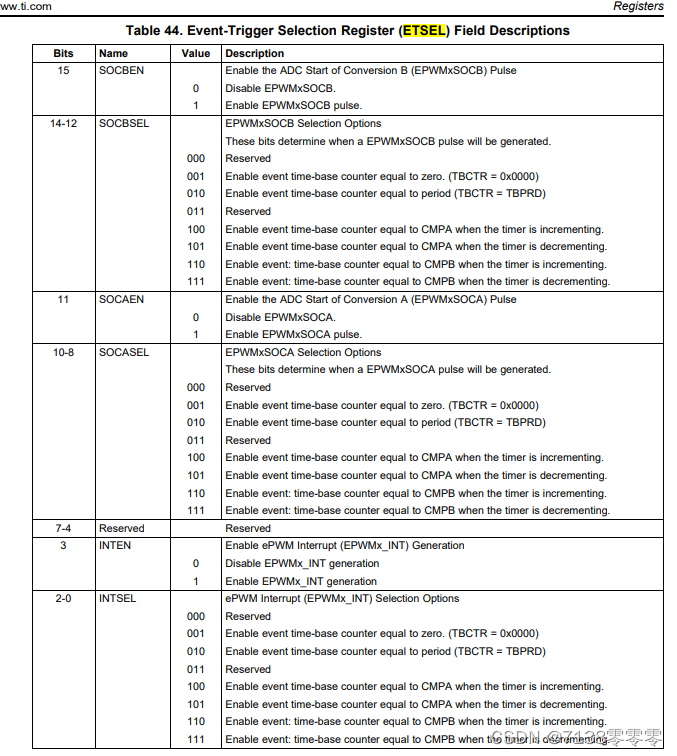

ETSEL事件触发选择寄存器及触发子模块的寄存器。

INTEN：启用ePWM中断（EPWMx_INT）发生生成
0 禁用EPWMx_INT生成
1 启用EPWMx_INT生成

INTSEL：ePWM中断（EPWMx_INT）选择选项
000 保留
001 启用事件时间基准计数器等于零。（TBCTR = 0x0000）
010 启用事件时间基准计数器等于周期（TBCTR = TBPRD）
011 保留
100 当计时器递增时，启用事件时间基准计数器等于CMPA。
101 当计时器递减时，启用事件时间基准计数器等于CMPA。
110 当计时器递增时，启用事件时间基准计数器等于CMPB。
111 当计时器递减时，启用事件时间基准计数器等于CMPB。

此处设计INTSEL=0x1；

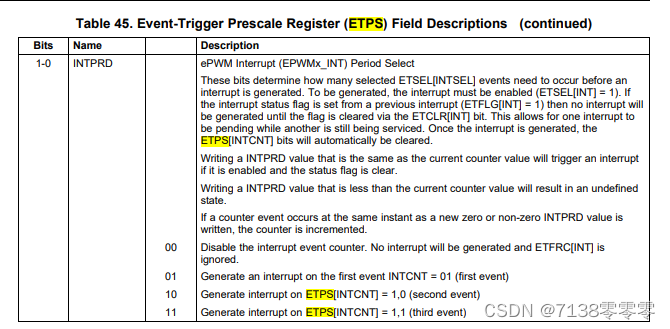

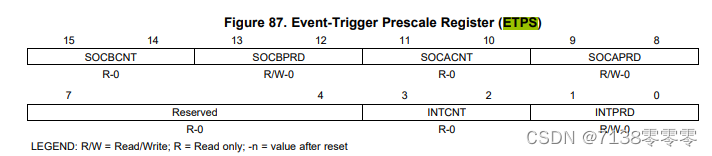

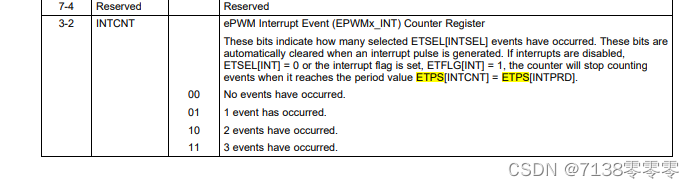

 EPwm1Regs.ETPS.bit.INTPRD = ET_1ST;           // Generate INT on 1st event

	// Enable CPU INT3 which is connected to EPWM1-6 INT:
	IER |= M_INT3;

	// Enable EPWM INTn in the PIE: Group 3 interrupt 1-6
	PieCtrlRegs.PIEIER3.bit.INTx1 = 1;

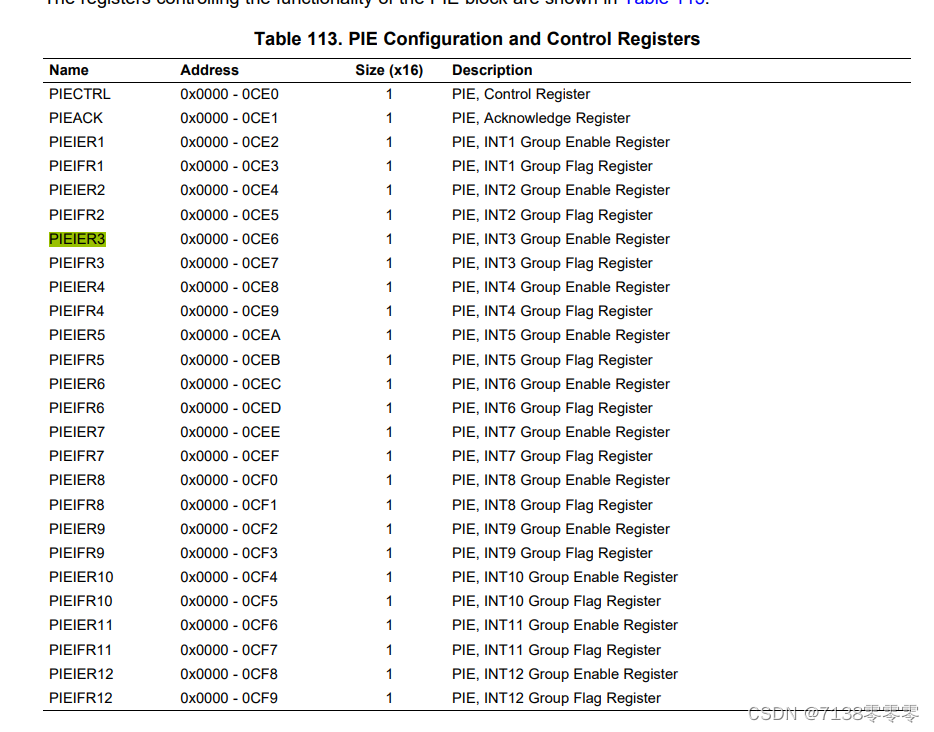

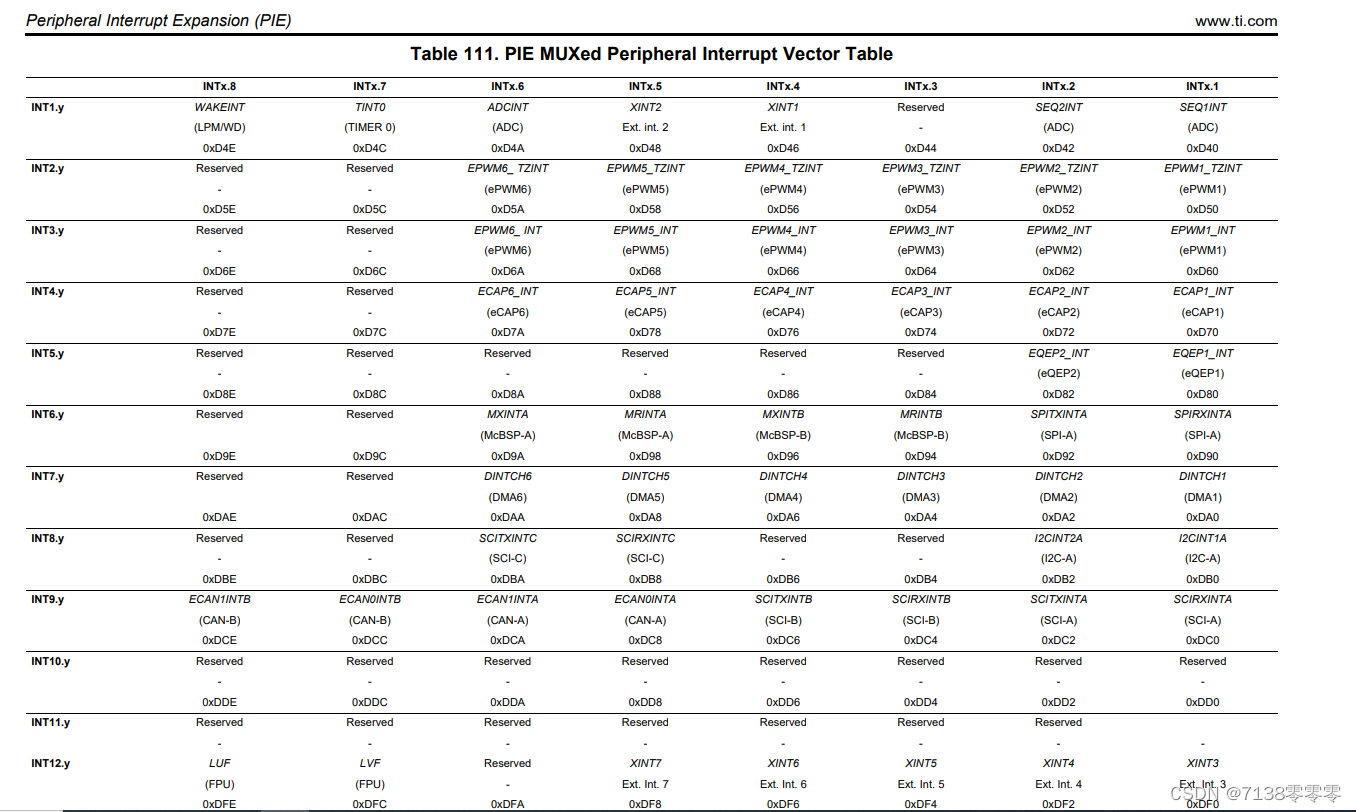

PIEIER3>INT3,使能中断向量。

3、EPWM波中断检测

这部分主要是通过亮灯来进行检测，epwm波中断。

interrupt void epwm1_timer_isr(void)
{
	static Uint16 cnt=0;
	cnt++;
	if(cnt==3000)
	{
	cnt=0;
	GpioDataRegs.GPBTOGGLE.bit.GPIO39 = 1;
	}

	// Clear INT flag for this timer
	EPwm1Regs.ETCLR.bit.INT = 1;
	// Acknowledge this interrupt to receive more interrupts from group 3
	PieCtrlRegs.PIEACK.bit.ACK3 = 1;
}

二、02Demo-ePWM_Up_AQ

void main()
{
	int i=0;
	unsigned char fx=0;

	InitSysCtrl();

	InitPieCtrl();
	IER = 0x0000;
	IFR = 0x0000;
	InitPieVectTable();

//	LED_Init();
	EPWM6_Init(500);

	while(1)
	{
		if(fx==0)
		{
			i++;
			if(i==300)
			{
				fx=1;
			}
		}
		else
		{
			i--;
			if(i==0)
			{
				fx=0;
			}
		}
		EPwm6A_SetCompare(i);  //i值最大可以取499，因为ARR最大值是499.
		EPwm6B_SetCompare(300-i);  //i值最大可以取499，因为ARR最大值是499.
		DELAY_US(10*1000);
	}
}

void EPWM6_Init(Uint16 tbprd)
{
	EALLOW;
	SysCtrlRegs.PCLKCR0.bit.TBCLKSYNC = 0;   // Disable TBCLK within the ePWM
	SysCtrlRegs.PCLKCR1.bit.EPWM6ENCLK = 1;  // ePWM6
	EDIS;

	InitEPwm6Gpio();

	// Setup Sync
	EPwm6Regs.TBCTL.bit.SYNCOSEL = TB_SYNC_DISABLE;  // Pass through
	// Allow each timer to be sync'ed
	EPwm6Regs.TBCTL.bit.PHSEN = TB_DISABLE;
	EPwm6Regs.TBPHS.half.TBPHS = 0;
	EPwm6Regs.TBCTR = 0x0000;                  // Clear counter
	EPwm6Regs.TBPRD = tbprd;
	EPwm6Regs.TBCTL.bit.CTRMODE = TB_COUNT_UP;    // Count up
	EPwm6Regs.TBCTL.bit.HSPCLKDIV=TB_DIV1;
	EPwm6Regs.TBCTL.bit.CLKDIV=TB_DIV1;

	// Setup shadow register load on ZERO
	EPwm6Regs.CMPCTL.bit.SHDWAMODE = CC_SHADOW;
	EPwm6Regs.CMPCTL.bit.SHDWBMODE = CC_SHADOW;
	EPwm6Regs.CMPCTL.bit.LOADAMODE = CC_CTR_ZERO;
	EPwm6Regs.CMPCTL.bit.LOADBMODE = CC_CTR_ZERO;

	// Set Compare values
	EPwm6Regs.CMPA.half.CMPA = 0;    // Set compare A value
	EPwm6Regs.CMPB = 0;              // Set Compare B value

	// Set actions
	EPwm6Regs.AQCTLA.bit.ZRO = AQ_CLEAR;            // Set PWM1A on Zero
	EPwm6Regs.AQCTLA.bit.CAU = AQ_SET;          // Clear PWM1A on event A, up count
	EPwm6Regs.AQCTLB.bit.ZRO = AQ_CLEAR;            // Set PWM1B on Zero
	EPwm6Regs.AQCTLB.bit.CBU = AQ_SET;          // Clear PWM1B on event B, up count

	EPwm6Regs.ETSEL.bit.INTSEL = ET_CTR_ZERO;     // Select INT on Zero event
	EPwm6Regs.ETSEL.bit.INTEN = 1;  // Enable INT
	EPwm6Regs.ETPS.bit.INTPRD = ET_1ST;           // Generate INT on 1st event

	EALLOW;
	SysCtrlRegs.PCLKCR0.bit.TBCLKSYNC = 1;         // Start all the timers synced
	EDIS;
}

void EPwm6A_SetCompare(Uint16 val)
{
	EPwm6Regs.CMPA.half.CMPA = val;  //设置占空比
}
void EPwm6B_SetCompare(Uint16 val)
{
	EPwm6Regs.CMPB = val;  //设置占空比
}

三、03Demo-PWM_updowm_AQ

void main()
{
	int i=0;


	InitSysCtrl();

	InitPieCtrl();
	IER = 0x0000;
	IFR = 0x0000;
	InitPieVectTable();

	LED_Init();
	TIM0_Init(150,200000);//200ms
	EPWM1_Init(15000);

	while(1)
	{

		EPwm1A_SetCompare(7500);

	}
}

void EPWM1_Init(Uint16 tbprd)
{
	EALLOW;
	SysCtrlRegs.PCLKCR0.bit.TBCLKSYNC = 1;   // Disable TBCLK within the ePWM
	SysCtrlRegs.PCLKCR1.bit.EPWM1ENCLK = 1;  // ePWM1
	EDIS;

	InitEPwm1Gpio();

	// Interrupts that are used in this example are re-mapped to
	// ISR functions found within this file.
	EALLOW;  // This is needed to write to EALLOW protected registers
	PieVectTable.EPWM1_INT = &epwm1_isr;
	EDIS;    // This is needed to disable write to EALLOW protected registers

	EALLOW;
	SysCtrlRegs.PCLKCR0.bit.TBCLKSYNC = 0;      // Stop all the TB clocks
	EDIS;

	// Setup Sync
	EPwm1Regs.TBCTL.bit.SYNCOSEL = TB_SYNC_DISABLE;  // Pass through
	// Allow each timer to be sync'ed
	EPwm1Regs.TBCTL.bit.PHSEN = TB_DISABLE;
	EPwm1Regs.TBPHS.half.TBPHS = 0;
	EPwm1Regs.TBCTR = 0x0000;                  // Clear counter
	EPwm1Regs.TBPRD = tbprd;
	EPwm1Regs.TBCTL.bit.CTRMODE = TB_COUNT_UPDOWN;
	EPwm1Regs.TBCTL.bit.HSPCLKDIV=TB_DIV1;
	EPwm1Regs.TBCTL.bit.CLKDIV=TB_DIV1;

	// Setup shadow register load on ZERO
	EPwm1Regs.CMPCTL.bit.SHDWAMODE = CC_SHADOW;
	EPwm1Regs.CMPCTL.bit.SHDWBMODE = CC_SHADOW;
	EPwm1Regs.CMPCTL.bit.LOADAMODE = CC_CTR_ZERO;
	EPwm1Regs.CMPCTL.bit.LOADBMODE = CC_CTR_ZERO;

	// Set Compare values
	EPwm1Regs.CMPA.half.CMPA = 0;    // Set compare A value
	EPwm1Regs.CMPB = 0;              // Set Compare B value

	// Set actions
	EPwm1Regs.AQCTLA.bit.ZRO = AQ_CLEAR;            // Set PWM1A on Zero
	EPwm1Regs.AQCTLA.bit.CAU = AQ_SET;          // Clear PWM1A on event A, up count
	EPwm1Regs.AQCTLB.bit.ZRO = AQ_SET;            // Set PWM1B on Zero
	EPwm1Regs.AQCTLB.bit.CBU = AQ_CLEAR;          // Clear PWM1B on event B, up count

	EPwm1Regs.ETSEL.bit.INTSEL = ET_CTR_ZERO;     // Select INT on Zero event
	EPwm1Regs.ETSEL.bit.INTEN = 1;  // Enable INT
	EPwm1Regs.ETPS.bit.INTPRD = ET_1ST;           // Generate INT on 1st event

	EALLOW;
	SysCtrlRegs.PCLKCR0.bit.TBCLKSYNC = 1;         // Start all the timers synced
	EDIS;

	// Enable CPU INT3 which is connected to EPWM1-3 INT:
	IER |= M_INT3;

	// Enable EPWM INTn in the PIE: Group 3 interrupt 1-3
	PieCtrlRegs.PIEIER3.bit.INTx1 = 1;

	// Enable global Interrupts and higher priority real-time debug events:
	EINT;   // Enable Global interrupt INTM
	ERTM;   // Enable Global realtime interrupt DBGM
}

interrupt void epwm1_isr(void)
{
	static Uint16 cnt=0;

	cnt++;
	if(cnt==5000)
	{
		cnt=0;
		LED3_TOGGLE;
	}

	// Clear INT flag for this timer
	EPwm1Regs.ETCLR.bit.INT = 1;
	// Acknowledge this interrupt to receive more interrupts from group 3
	PieCtrlRegs.PIEACK.all = PIEACK_GROUP3;
}

void EPwm1A_SetCompare(Uint16 val)
{
	EPwm1Regs.CMPA.half.CMPA = val;  //设置占空比
}
void EPwm1B_SetCompare(Uint16 val)
{
	EPwm1Regs.CMPB = val;  //设置占空比
}

四、04Demo-PWM_deadband

void main()
{
	int i=0;


	InitSysCtrl();

	InitPieCtrl();
	IER = 0x0000;
	IFR = 0x0000;
	InitPieVectTable();

	LED_Init();
	TIM0_Init(150,200000);//200ms
	EPWM1_Init(15000);

	while(1)
	{

		EPwm1A_SetCompare(7500);

	}
}

interrupt void epwm1_isr(void);
void EPWM1_Init(Uint16 tbprd)
{
	EALLOW;
	SysCtrlRegs.PCLKCR0.bit.TBCLKSYNC = 1;   // Disable TBCLK within the ePWM
	SysCtrlRegs.PCLKCR1.bit.EPWM1ENCLK = 1;  // ePWM1
	EDIS;

	InitEPwm1Gpio();

	// Interrupts that are used in this example are re-mapped to
	// ISR functions found within this file.
	EALLOW;  // This is needed to write to EALLOW protected registers
	PieVectTable.EPWM1_INT = &epwm1_isr;
	EDIS;    // This is needed to disable write to EALLOW protected registers

	EALLOW;
	SysCtrlRegs.PCLKCR0.bit.TBCLKSYNC = 0;      // Stop all the TB clocks
	EDIS;

	// Setup Sync
	EPwm1Regs.TBCTL.bit.SYNCOSEL = TB_SYNC_DISABLE;  // Pass through
	// Allow each timer to be sync'ed
	EPwm1Regs.TBCTL.bit.PHSEN = TB_DISABLE;
	EPwm1Regs.TBPHS.half.TBPHS = 0;
	EPwm1Regs.TBCTR = 0x0000;                  // Clear counter
	EPwm1Regs.TBPRD = tbprd;
	EPwm1Regs.TBCTL.bit.CTRMODE = TB_COUNT_UP;
	EPwm1Regs.TBCTL.bit.HSPCLKDIV=TB_DIV1;
	EPwm1Regs.TBCTL.bit.CLKDIV=TB_DIV1;

	// Setup shadow register load on ZERO
	EPwm1Regs.CMPCTL.bit.SHDWAMODE = CC_SHADOW;
	EPwm1Regs.CMPCTL.bit.SHDWBMODE = CC_SHADOW;
	EPwm1Regs.CMPCTL.bit.LOADAMODE = CC_CTR_ZERO;
	EPwm1Regs.CMPCTL.bit.LOADBMODE = CC_CTR_ZERO;

	// Set Compare values
	EPwm1Regs.CMPA.half.CMPA = 0;    // Set compare A value
	EPwm1Regs.CMPB = 0;              // Set Compare B value

	// Set actions
	EPwm1Regs.AQCTLA.bit.ZRO = AQ_SET;            // Set PWM1A on Zero
	EPwm1Regs.AQCTLA.bit.CAU = AQ_CLEAR;          // Clear PWM1A on event A, up count
	EPwm1Regs.AQCTLB.bit.ZRO = AQ_CLEAR;            // Set PWM1B on Zero
	EPwm1Regs.AQCTLB.bit.CBU = AQ_SET;          // Clear PWM1B on event B, up count

	// Active Low PWMs - Setup Deadband
	EPwm1Regs.DBCTL.bit.OUT_MODE = DB_FULL_ENABLE;
	EPwm1Regs.DBCTL.bit.POLSEL = DB_ACTV_LO;
	EPwm1Regs.DBCTL.bit.IN_MODE = DBA_ALL;
	EPwm1Regs.DBRED = 1000;
	EPwm1Regs.DBFED = 0;

	EPwm1Regs.ETSEL.bit.INTSEL = ET_CTR_ZERO;     // Select INT on Zero event
	EPwm1Regs.ETSEL.bit.INTEN = 1;  // Enable INT
	EPwm1Regs.ETPS.bit.INTPRD = ET_1ST;           // Generate INT on 1st event

	EALLOW;
	SysCtrlRegs.PCLKCR0.bit.TBCLKSYNC = 1;         // Start all the timers synced
	EDIS;

	// Enable CPU INT3 which is connected to EPWM1-3 INT:
	IER |= M_INT3;

	// Enable EPWM INTn in the PIE: Group 3 interrupt 1-3
	PieCtrlRegs.PIEIER3.bit.INTx1 = 1;

	// Enable global Interrupts and higher priority real-time debug events:
	EINT;   // Enable Global interrupt INTM
	ERTM;   // Enable Global realtime interrupt DBGM
}

interrupt void epwm1_isr(void)
{
	static Uint16 cnt=0;

	cnt++;
	if(cnt==5000)
	{
		cnt=0;
		LED3_TOGGLE;
	}

	// Clear INT flag for this timer
	EPwm1Regs.ETCLR.bit.INT = 1;
	// Acknowledge this interrupt to receive more interrupts from group 3
	PieCtrlRegs.PIEACK.all = PIEACK_GROUP3;
}

五、05Demo-PWM_trip_zone

void main()
{
	int i=0;

	InitSysCtrl();
	InitPieCtrl();
	IER = 0x0000;
	IFR = 0x0000;
	InitPieVectTable();

	LED_Init();
	TIM0_Init(150,200000);//200ms
	EPWM1_Init(15000);

	while(1)
	{
		EPwm1A_SetCompare(7500);
	}
}

interrupt void epwm1_tzint_isr(void);
void EPWM1_Init(Uint16 tbprd)
{
	EALLOW;
	SysCtrlRegs.PCLKCR0.bit.TBCLKSYNC = 1;   // Disable TBCLK within the ePWM
	SysCtrlRegs.PCLKCR1.bit.EPWM1ENCLK = 1;  // ePWM1
	EDIS;

	InitEPwm1Gpio();
	InitTzGpio();

	//以下3个IO口设置为输出，作为列扫描
	EALLOW;
	//初始化行1的GPIO48
	GpioCtrlRegs.GPBPUD.bit.GPIO48 = 0;   									// Enable pullup on GPIO48
	GpioDataRegs.GPBCLEAR.bit.GPIO48 = 1;   									// Load output latch
	GpioCtrlRegs.GPBMUX2.bit.GPIO48 = 0;  									// GPIO48 = GPIO
	GpioCtrlRegs.GPBDIR.bit.GPIO48 = 1;   									// GPIO48 = output

	//初始化行2的GPIO49
	GpioCtrlRegs.GPBPUD.bit.GPIO49 = 0;   									// Enable pullup on GPIO49
	GpioDataRegs.GPBCLEAR.bit.GPIO49 = 1;   									// Load output latch
	GpioCtrlRegs.GPBMUX2.bit.GPIO49 = 0;  									// GPIO49 = GPIO
	GpioCtrlRegs.GPBDIR.bit.GPIO49 = 1;   									// GPIO49 = output

	//初始化行3的GPIO50
	GpioCtrlRegs.GPBPUD.bit.GPIO50 = 0;   									// Enable pullup on GPIO50
	GpioDataRegs.GPBCLEAR.bit.GPIO50 = 1;   									// Load output latch
	GpioCtrlRegs.GPBMUX2.bit.GPIO50 = 0;  									// GPIO50 = GPIO
	GpioCtrlRegs.GPBDIR.bit.GPIO50 = 1;   									// GPIO50 = output
	EDIS;

	// Interrupts that are used in this example are re-mapped to
	// ISR functions found within this file.
	EALLOW;  // This is needed to write to EALLOW protected registers
	PieVectTable.EPWM1_TZINT = &epwm1_tzint_isr;
	EDIS;    // This is needed to disable write to EALLOW protected registers

	EALLOW;
	SysCtrlRegs.PCLKCR0.bit.TBCLKSYNC = 0;      // Stop all the TB clocks
	EDIS;

	// Enable TZ1 and TZ2 as one shot trip sources
	EALLOW;
	EPwm1Regs.TZSEL.bit.OSHT1 = 1;
	EPwm1Regs.TZSEL.bit.OSHT2 = 1;

	// What do we want the TZ1 and TZ2 to do?
	EPwm1Regs.TZCTL.bit.TZA = TZ_FORCE_HI;
	EPwm1Regs.TZCTL.bit.TZB = TZ_FORCE_LO;

	// Enable TZ interrupt
	EPwm1Regs.TZEINT.bit.OST = 1;
	EDIS;

	// Setup Sync
	EPwm1Regs.TBCTL.bit.SYNCOSEL = TB_SYNC_DISABLE;  // Pass through
	// Allow each timer to be sync'ed
	EPwm1Regs.TBCTL.bit.PHSEN = TB_DISABLE;
	EPwm1Regs.TBPHS.half.TBPHS = 0;
	EPwm1Regs.TBCTR = 0x0000;                  // Clear counter
	EPwm1Regs.TBPRD = tbprd;
	EPwm1Regs.TBCTL.bit.CTRMODE = TB_COUNT_UP;
	EPwm1Regs.TBCTL.bit.HSPCLKDIV=TB_DIV1;
	EPwm1Regs.TBCTL.bit.CLKDIV=TB_DIV1;

	// Setup shadow register load on ZERO
	EPwm1Regs.CMPCTL.bit.SHDWAMODE = CC_SHADOW;
	EPwm1Regs.CMPCTL.bit.SHDWBMODE = CC_SHADOW;
	EPwm1Regs.CMPCTL.bit.LOADAMODE = CC_CTR_ZERO;
	EPwm1Regs.CMPCTL.bit.LOADBMODE = CC_CTR_ZERO;

	// Set Compare values
	EPwm1Regs.CMPA.half.CMPA = 0;    // Set compare A value
	EPwm1Regs.CMPB = 0;              // Set Compare B value

	// Set actions
	EPwm1Regs.AQCTLA.bit.ZRO = AQ_SET;            // Set PWM1A on Zero
	EPwm1Regs.AQCTLA.bit.CAU = AQ_CLEAR;          // Clear PWM1A on event A, up count
	EPwm1Regs.AQCTLB.bit.ZRO = AQ_CLEAR;            // Set PWM1B on Zero
	EPwm1Regs.AQCTLB.bit.CAU = AQ_SET;          // Clear PWM1B on event B, up count


	EALLOW;
	SysCtrlRegs.PCLKCR0.bit.TBCLKSYNC = 1;         // Start all the timers synced
	EDIS;

	// Enable CPU INT3 which is connected to EPWM1-3 INT:
	IER |= M_INT2;

	// Enable EPWM INTn in the PIE: Group 3 interrupt 1-3
	PieCtrlRegs.PIEIER2.bit.INTx1 = 1;

	// Enable global Interrupts and higher priority real-time debug events:
	EINT;   // Enable Global interrupt INTM
	ERTM;   // Enable Global realtime interrupt DBGM
}

interrupt void epwm1_tzint_isr(void)
{
	 EALLOW;
	 EPwm1Regs.TZCLR.bit.OST = 1;
	 EPwm1Regs.TZCLR.bit.INT = 1;
	 EDIS;
	// Acknowledge this interrupt to receive more interrupts from group 3
	PieCtrlRegs.PIEACK.all = PIEACK_GROUP2;
}


void EPwm1A_SetCompare(Uint16 val)
{
	EPwm1Regs.CMPA.half.CMPA = val;  //设置占空比
}
void EPwm1B_SetCompare(Uint16 val)
{
	EPwm1Regs.CMPB = val;  //设置占空比
}

六、06Demo-PWM_dc_motor

void main()
{
	int i=0;


	InitSysCtrl();

	InitPieCtrl();
	IER = 0x0000;
	IFR = 0x0000;
	InitPieVectTable();

	LED_Init();
	TIM0_Init(150,200000);//200ms
	KEY_Init();
	DCMotor_ePWM2_Init();

	while(1)
	{

	}
}

#include "dc_motor.h"
#include "key.h"

void DC_Motor_Init(void)
{
	EALLOW;

	//DC_MOTOR端口配置--1路
	GpioCtrlRegs.GPAMUX1.bit.GPIO2=0;
	GpioCtrlRegs.GPADIR.bit.GPIO2=1;

	GpioCtrlRegs.GPAMUX1.bit.GPIO3=0;
	GpioCtrlRegs.GPADIR.bit.GPIO3=1;


	//DC_MOTOR端口配置--2路
	GpioCtrlRegs.GPAMUX1.bit.GPIO4=0;
	GpioCtrlRegs.GPADIR.bit.GPIO4=1;

	GpioCtrlRegs.GPAMUX1.bit.GPIO5=0;
	GpioCtrlRegs.GPADIR.bit.GPIO5=1;

	EDIS;

	GpioDataRegs.GPACLEAR.bit.GPIO2=1;
	GpioDataRegs.GPACLEAR.bit.GPIO3=1;
	GpioDataRegs.GPACLEAR.bit.GPIO4=1;
	GpioDataRegs.GPACLEAR.bit.GPIO5=1;
}







// 宏定义每个定时器周期寄存器的周期值；
#define EPWM2_TIMER_TBPRD  3750  // 周期值
#define EPWM2_MAX_CMPA     3700
#define EPWM2_MIN_CMPA       0
#define EPWM2_MAX_CMPB     3700
#define EPWM2_MIN_CMPB       0

/***************全局变量定义****************/
Uint16 pwm_stepValue=0;  //高电平时间
Uint16 Direction=0;//转速方向

interrupt void epwm2_isr(void);

void DCMotor_ePWM2_Init(void)
{
	EALLOW;
	SysCtrlRegs.PCLKCR0.bit.TBCLKSYNC = 1;   // Disable TBCLK within the ePWM
	SysCtrlRegs.PCLKCR1.bit.EPWM2ENCLK = 1;  // ePWM2
	EDIS;

	InitEPwm2Gpio();

	// Interrupts that are used in this example are re-mapped to
	// ISR functions found within this file.
	EALLOW;  // This is needed to write to EALLOW protected registers
	PieVectTable.EPWM2_INT = &epwm2_isr;
	EDIS;    // This is needed to disable write to EALLOW protected registers

	EALLOW;
	SysCtrlRegs.PCLKCR0.bit.TBCLKSYNC = 0;
	EDIS;

	// 设置时间基准的时钟信号（TBCLK）
	EPwm2Regs.TBCTL.bit.CTRMODE = TB_COUNT_UP; // 递增计数模式
	EPwm2Regs.TBPRD = EPWM2_TIMER_TBPRD;       // 设置定时器周期
	EPwm2Regs.TBCTL.bit.PHSEN = TB_DISABLE;    // 禁止相位加载
	EPwm2Regs.TBPHS.half.TBPHS = 0x0000;       // 时基相位寄存器的值赋值0
	EPwm2Regs.TBCTR = 0x0000;                   // 时基计数器清零
	EPwm2Regs.TBCTL.bit.HSPCLKDIV = TB_DIV2;   // 设置时基时钟速率为系统时钟SYSCLKOUT/4=37.5MHZ;
	EPwm2Regs.TBCTL.bit.CLKDIV = TB_DIV2;//由时基时钟频率和时基周期可知PWM1频率=10KHZ；

	// 设置比较寄存器的阴影寄存器加载条件：时基计数到0
	EPwm2Regs.CMPCTL.bit.SHDWAMODE = CC_SHADOW;
	EPwm2Regs.CMPCTL.bit.SHDWBMODE = CC_SHADOW;
	EPwm2Regs.CMPCTL.bit.LOADAMODE = CC_CTR_ZERO;
	EPwm2Regs.CMPCTL.bit.LOADBMODE = CC_CTR_ZERO;


	// 设置比较寄存器的值
	EPwm2Regs.CMPA.half.CMPA = EPWM2_MIN_CMPA;     // 设置比较寄存器A的值
	EPwm2Regs.CMPB = EPWM2_MIN_CMPB;               // 设置比较寄存器B的值

	// 设置动作限定；首先默认为转动方向为正转，这时只有PWM1A输出占空比；
	EPwm2Regs.AQCTLA.bit.ZRO = AQ_SET;            // 计数到0时PWM1A输出高电平
	EPwm2Regs.AQCTLA.bit.CAU = AQ_CLEAR;          // 递增计数时，发生比较寄存器A匹配时清除PWM1A输出

	EPwm2Regs.AQCTLB.bit.ZRO = AQ_CLEAR;            // 计数到0时PWM1B输出低电平
	EPwm2Regs.AQCTLB.bit.CBU = AQ_CLEAR;          // 递增计数时，发生比较寄存器A匹配时清除PWM1B输出

	// 3次0匹配事件发生时产生一个中断请求；一次匹配是100us，一共300us产生一次中断；
	EPwm2Regs.ETSEL.bit.INTSEL = ET_CTR_ZERO;     // 选择0匹配事件中断
	EPwm2Regs.ETSEL.bit.INTEN = 1;                // 使能事件触发中断
	EPwm2Regs.ETPS.bit.INTPRD = ET_3RD;           // 3次事件产生中断请求

	EALLOW;
	SysCtrlRegs.PCLKCR0.bit.TBCLKSYNC = 1;
	EDIS;

	IER |= M_INT3;
	PieCtrlRegs.PIEIER3.bit.INTx2 = 1;

	EINT;   // Enable Global interrupt INTM
	ERTM;   // Enable Global realtime interrupt DBGM
}

interrupt void epwm2_isr(void)
{
	static unsigned char key=0;

	key=KEY_Scan(0);
	if(key==KEY1_PRESS||key==KEY2_PRESS||key==KEY3_PRESS)
	{
		if(key==KEY3_PRESS)
		{
			//保证下面EPWMA和EPWMB相互切换同时输出0电平；
			EPwm2Regs.CMPA.half.CMPA = 0;//改变脉宽
			EPwm2Regs.CMPB = 0;//改变脉宽

			if(Direction==0)
			{
				// 设置动作限定；首先默认为转动方向为反转，这时只有PWM1B输出占空比；
				EPwm2Regs.AQCTLA.bit.ZRO = AQ_CLEAR;            // 计数到0时PWM1A输出低电平
				EPwm2Regs.AQCTLA.bit.CAU = AQ_CLEAR;          // 递增计数时，发生比较寄存器A匹配时清除PWM1A输出

				EPwm2Regs.AQCTLB.bit.ZRO = AQ_SET;            // 计数到0时PWM1B输出高电平
				EPwm2Regs.AQCTLB.bit.CBU = AQ_CLEAR;          // 递增计数时，发生比较寄存器A匹配时清除PWM1B输出
				Direction=1;
			}
			else
			{
				// 设置动作限定；首先默认为转动方向为正转，这时只有PWM1A输出占空比；
				EPwm2Regs.AQCTLA.bit.ZRO = AQ_SET;            // 计数到0时PWM1A输出高电平
				EPwm2Regs.AQCTLA.bit.CAU = AQ_CLEAR;          // 递增计数时，发生比较寄存器A匹配时清除PWM1A输出

				EPwm2Regs.AQCTLB.bit.ZRO = AQ_CLEAR;            // 计数到0时PWM1B输出低电平
				EPwm2Regs.AQCTLB.bit.CBU = AQ_CLEAR;          // 递增计数时，发生比较寄存器A匹配时清除PWM1B输出
				Direction=0;
			}
			pwm_stepValue=0;
		}
		else
		{
			if(key==KEY1_PRESS)
			{
				if(pwm_stepValue!=3500)
					pwm_stepValue+=500;
			}
			else if(key==KEY2_PRESS)
			{
				if(pwm_stepValue!=0)
					pwm_stepValue=pwm_stepValue-500;
			}
		}

		EPwm2Regs.CMPA.half.CMPA = pwm_stepValue;//改变脉宽
		EPwm2Regs.CMPB = pwm_stepValue;//改变脉宽
	}

	// 清除这个定时器的中断标志位
	EPwm2Regs.ETCLR.bit.INT = 1;
	// 清除PIE应答寄存器的第三位，以响应组3内的其他中断请求；
	PieCtrlRegs.PIEACK.all = PIEACK_GROUP3;
}
