【LeetCode刷题日记】链表带头结点和不带头结点的区别
参考博客:链表头结点和不带头结点的区别,单链表的创建(有头结点和无头结点)
一、概念辨析
线性表的插入删除需要移动大量的元素,因此引入链表(本文讨论单链表)的概念,链表元素之间通过“链”来链接,因此插入和删除时不需要大量的移动元素,而只需要改变“链”的关系即可。

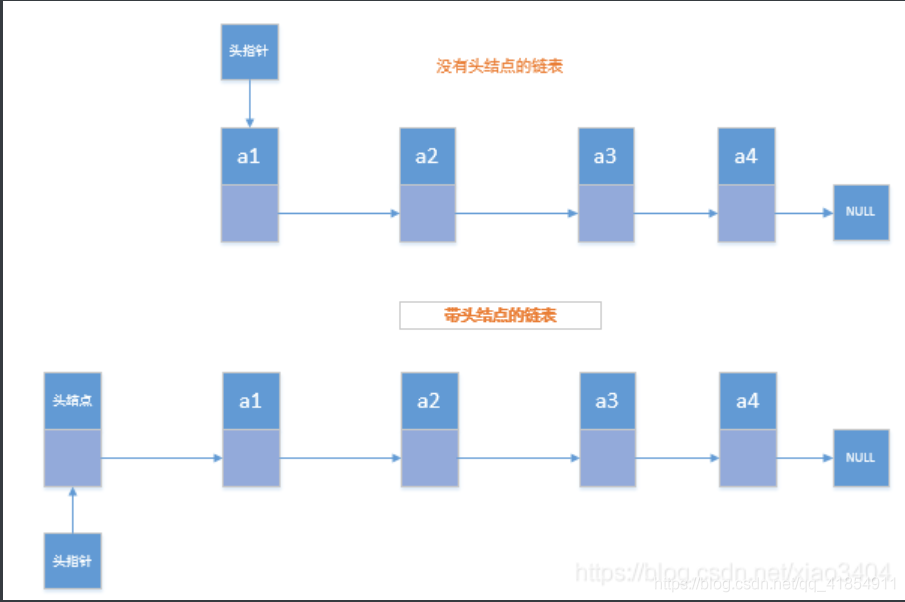

头指针:通常使用“头指针”来标识一个链表,如单链表L,头指针为NULL时表示一个空链表。链表非空时,头指针指向的是第一个结点的存储位置。
头结点:在单链表的第一个结点之前附加一个结点,称为头结点。头结点的Data域可以不设任何信息,也可以记录表长等相关信息。若链表是带有头结点的,则头指针指向头结点的存储位置。
[注意]无论是否有头结点,头指针始终指向链表的第一个结点。如果有头结点,头指针就指向头结点。
二、引入头结点的优势
优势1:第1个位置的插入、删除更加方便,带来操作上的统一
例如:head为头指针,x待插入(后插方式)的新结点,p为指向任意结点的指针。
对于带头结点的插入到第一个位置的代码:
//p = head;
x->next = head->next;
head->next = x;
插入其他结点
x->next = p->next;
p->next = x;
若令p=head,则带有头结点的链表,可以实现代码复用,减少分支。
对于不带头结点的插入到第一个位置的代码:
x->next = head;
head = x;
插入其他结点
x->next = p->next;
p->next = x;
因此,不带头结点的链表,插入第一个结点时,需要特殊处理,删除操作类似。
优势2:统一空表和非空表的处理
若使用头结点,无论表是否为空,头指针都指向头结点,也就是*LNode类型,对于空表和非空表的操作是一致的。
若不使用头结点,当表非空时,头指针指向第1个结点的地址,即*LNode类型,但是对于空表,头指针指向的是NULL,此时空表和非空表的操作是不一致的。
所以单链表一般为带头结点的单链表。
三、带头结点和不带头结点的头插法和尾插法
1 带头结点的链表
为了方便,创建带有10个结点的链表,链表的数据域为整数类型,取随机整数。链表结构如下图:
1.1 头插法
头插法的思想如下图:
伪代码实现:
(1)创建一个头结点,ListNode *head = new ListNode(10) ; //头结点数据域保存结点的个数
head -> next = nullptr;
(2)插入结点1,LIstNode *s = new ListNode(rand()); // 创建结点1
s - > next = head -> next;
head -> next = s;
(3)插入结点2,LIstNode *s = new ListNode(rand()); // 创建结点2
s - > next = head -> next; // 这里 head - > next 其实就是结点1
head -> next = s;
(4)重复上述流程,创建完成
1.2 头插法代码实现
struct ListNode{
int val;
ListNode *next;
ListNode(int x) : val(x), next(nullptr){
}
}
// 头插法
ListNode* CreateList(int length){
if (length < 1)
return nullptr;
ListNode *head = new ListNode(length);
head -> next = nullptr;
int k = 1;
ListNode *s = nullptr;
srand(unsigned(time(0)));
while (k <= length){
s = new ListNode(rand());
s -> next = head -> next;
head -> next = s;
k++;
}
return head;
}
1.3 尾插法
尾插法的思想如下图:
伪代码实现:
(1)创建一个头结点,ListNode *head = new ListNode(10) ; //头结点数据域保存结点的个数
ListNode *s = head;
(2)插入结点1,LIstNode *r = new ListNode(rand()); // 创建结点1
s -> next = r;
s = r;
(3)插入结点2,LIstNode *r = new ListNode(rand()); // 创建结点2
s - > next = r;
s = r;
(4)重复上述流程,最后时,让s -> next = nullptr,返回head。
1.4 尾插法代码实现
struct ListNode{
int val;
ListNode *next;
ListNode(int x) : val(x), next(nullptr){
}
}
// 尾差法
ListNode* CreateList(int length){
if (length < 1)
return nullptr;
ListNode *head = new ListNode(length);
ListNode *s = head;
int k = 1;
ListNode *r = nullptr;
srand(unsigned(time(0)));
while (k <= length){
r = new ListNode(rand());
s -> next = r;
s = r;
k++;
}
s -> next = nullptr;
return head;
}
2 无头结点的链表
为了方便,创建带有10个结点的链表,链表的数据域为整数类型,取随机整数。链表结构如下图:
2.1 头插法
头插法思路如下:
伪代码实现:
(1)创建结点1,ListNode *head = new ListNode(10) ; //头结点数据域保存结点的个数
head -> next = nullptr;
ListNode *s = nullptr;
(2)插入结点2,LIstNode *s = new ListNode(rand()); // 创建结点1
s -> next = head;
head = s;
(3)插入结点3,LIstNode *s = new ListNode(rand()); // 创建结点2
s -> next = head;
head = s;
(4)重复上述流程,创建完成
2.2 头插法代码实现
struct ListNode{
int val;
ListNode *next;
ListNode(int x) : val(x), next(nullptr){
}
}
// 头插法
ListNode* CreateList(int length){
if (length < 1)
return nullptr;
srand(unsigned(time(0)));
ListNode *head = new ListNode(rand());
head -> next = nullptr;
ListNode *s = nullptr;
int k = 1;
while (k <= length - 1){
s = new ListNode(rand());
s -> next = head;
head = s;
k++
}
return head;
}
2.3 尾插法
尾插法思路如下:
伪代码实现:
(1)创建结点1,ListNode *head = new ListNode(10) ; //头结点数据域保存结点的个数
ListNode *s = head;
(2)插入结点2,LIstNode *r = new ListNode(rand()); // 创建结点1
s -> next = r;
s = r;
(3)插入结点3,LIstNode *r = new ListNode(rand()); // 创建结点2
s -> next = r;
s = r;
(4)重复上述流程,最后时,让s -> next = nullptr,返回head。
2.4 尾插法代码实现
struct ListNode{
int val;
ListNode *next;
ListNode(int x) : val(x), next(nullptr){
}
}
// 头插法
ListNode* CreateList(int length){
if (length < 1)
return nullptr;
srand(unsigned(time(0)));
ListNode *head = new ListNode(rand());
ListNode *s = head, *r = nullptr;
int k = 1;
while (k <= length - 1){
r = new ListNode(rand());
s -> next = r;
s = r;
k++
}
s -> next = nullptr;
return head;
}
// 将头结点放在循环里面
ListNode* CreateList(int length){
if (length < 1)
return nullptr;
srand(unsigned(time(0)));
ListNode *head = nullptr, *s = nullptr, *r = nullptr;
int k = 1;
while (k <= length){
r = new ListNode(rand());
if (head == nullptr)
head = r;
else
s -> next = r;
s = r;
k++
}
s -> next = nullptr;
return head;
}
