yolov4网络结构

这篇文章中，我将从细节解释yolo原理以及其代码实现。

1.什么是YOLO？

YOLO(you only look once)是一种使用卷积神经网络进行目标检测的算法。

2.YOLOv4网络结构

YOLOv4由两部分组成：

• BackBone:CSPDarknet53
• Neck:SPP+PAN

细节图如下(当输入图像为618x618）：

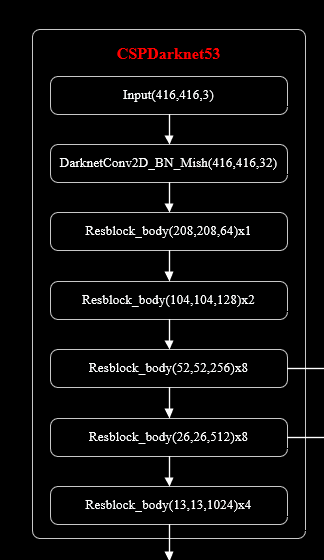

细节图如下(当输入图像为416x416）：

各层网络结构的计算细节可通过代码及：CNN中卷积层的计算细节

2.1 CSPDarknet53网络

各模块解释:

1. DarknetCon2D_BN_Mish: DarknetConv2D+BatchNormalization+Mish（激活函数）：
   DarknetConv2D:具体参数设置如下：

@wraps(Conv2D)
def DarknetConv2D(*args, **kwargs):
    darknet_conv_kwargs = {'kernel_regularizer': l2(5e-4)}
    darknet_conv_kwargs['padding'] = 'valid' if kwargs.get('strides')==(2,2) else 'same'
    darknet_conv_kwargs.update(kwargs)
    return Conv2D(*args, **darknet_conv_kwargs)

---

Mish是yolov4的激活函数,公式及图像如下：

$$Mish=x\times tanh(ln(1+e^x)$$

代码如下：

class Mish(Layer):
    # python3 中的call函数
    # https://blog.csdn.net/weixin_44207181/article/details/90648473
    def __init__(self, **kwargs):
        super(Mish, self).__init__(**kwargs)
        self.supports_masking = True

    def call(self, inputs):
        return input * K.tanh(K.softplus(inputs))

    def get_config(self):
        config = super(Mish, self).get_config()
        return config

    def compute_output_shape(self, input_shape):
        return input_shape

---

将三个小模块组成DarknetCon2D_BN_Mish：

def DarknetConv2D_BN_Mish(*args, **kwargs):
    no_bias_kwargs = {'use_bias': False}
    no_bias_kwargs.update(kwargs)
    return compose(
        DarknetConv2D(*args, **no_bias_kwargs),
        BatchNormalization(),
        Mish())

---

2. resrblock_body:残差边。

代码：

def resblock_body(x, num_filters, num_blocks, all_narrow=True):
    # 进行长宽的压缩
    preconv1 = ZeroPadding2D(((1, 0), (1, 0)))(x)
    preconv1 = DarknetConv2D_BN_Mish(num_filters, (3, 3), strides=(2, 2))(preconv1)

    # 生成一个大的残差边
    shortconv = DarknetConv2D_BN_Mish(num_filters // 2 if all_narrow else num_filters, (1, 1))(preconv1)

    # 主干部分的卷积
    mainconv = DarknetConv2D_BN_Mish(num_filters // 2 if all_narrow else num_filters, (1, 1))(preconv1)
    # 1x1卷积对通道数进行整合->3x3卷积提取特征，使用残差网络
    for i in range(num_blocks):
        y = compose(
            DarknetConv2D_BN_Mish(num_filters // 2, (1, 1)),
            DarknetConv2D_BN_Mish(num_filters // 2 if all_narrow else num_filters, (3, 3))
        )(mainconv)
        mainconv = Add()([mainconv,y])
    #1x1卷积后和残差边堆叠
    postconv = DarknetConv2D_BN_Mish(num_filters//2 if all_narrow else num_filters,(1,1))(mainconv)
    route = Concatenate()([postconv,shortconv])

    #最后对通道数进行整合
    return DarknetConv2D_BN_Mish(num_filters,(1,1))(route)

2.2 Neck:SPP+PAN

目标检测模型的Neck部分主要用来融合不同尺寸特征图的特征信息。常见的有MaskRCNN中使用的FPN等，这里我们用EfficientDet论文中的一张图来进行说明。

可见，随着人们追求检测器在COCO数据集上的MAP指标,Neck部分也是出了很多花里胡哨的结构。

再贴一下SPP与PANnet的网络细节图。

代码：

from functools import wraps
import tensorflow as tf
from tensorflow.keras import backend as K
from tensorflow.keras.layers import Conv2D, Add, ZeroPadding2D, UpSampling2D, Concatenate, MaxPooling2D, LeakyReLU, \
    BatchNormalization
from tensorflow.keras.models import Model
from tensorflow.keras.regularizers import l2
from nets.CSPdarknet53 import darknet_body
from utils.utils import compose

# ----------------------------------------------------#
#   单次卷积
#   @wraps(Con2D)保证Conv2D的__name__和__doc__属性不受改变
# ----------------------------------------------------#
@wraps(Conv2D)
def DarknetConv2D(*args, **kwargs):
    darkne_conv_kwargs = {'kernel_regularizer':l2(5e-4)}
    darkne_conv_kwargs['padding']= 'valid' if kwargs.get('strides') ==(2,2) else 'same'
    darkne_conv_kwargs.update(kwargs)
    return Conv2D(*args,**darkne_conv_kwargs)

# ------------------------------------------------------#
#   卷积块
#   DarknetConv2D + BatchNormalization + LeakyReLU
# ------------------------------------------------------#
def DarknetConv2D_BN_Leaky(*args,**kwargs):
    no_bias_kwargs = {'use_bias':False}
    no_bias_kwargs.update(kwargs)
    return compose(
    DarknetConv2D(*args,**no_bias_kwargs),
    BatchNormalization(),
    LeakyReLU(alpha=0.1)
    )

# ---------------------------------------------------#
#   五次卷积
# ---------------------------------------------------#
def make_five_convs(x,num_filters):
    x = DarknetConv2D_BN_Leaky(num_filters,(1,1))(x)
    x = DarknetConv2D_BN_Leaky(num_filters*2, (3,3))(x)
    x = DarknetConv2D_BN_Leaky(num_filters,(1,1))(x)
    x = DarknetConv2D_BN_Leaky(num_filters*2, (3,3))(x)
    x = DarknetConv2D_BN_Leaky(num_filters, (1,1))(x)
    return x



#----------------------------------------------------------#
#   特征层->最后的输出
#   CSPdarknet53+SPP+PANnet
#-----------------------------------------------------------#
def yolo_body(inputs,num_anchors,num_classes):
    #将图像输入CSPdarknet53网络得到三个不同的特征层
    feat1,feat2, feat3 = darknet_body(inputs)

    # 构造第一个YOLOHead
    # 若输入图像为614x614,feat3=(batch_size,19,19,1024)
    # 若输入图像为416x416,feat3=(batch_size,13,13,1024)
    P5 = DarknetConv2D_BN_Leaky(512,(1,1))(feat3)
    P5 = DarknetConv2D_BN_Leaky(1024,(3,3))(P5)
    P5 = DarknetConv2D_BN_Leaky(512,(1,1))(P5)

    # 使用了SPP结构，即不同尺度的最大池化后堆叠
    maxpool1 = MaxPooling2D(pool_size=(13,13),strides=(1,1),padding='same')(P5)
    maxpool2 = MaxPooling2D(pool_size=(9,9),strides=(1,1),padding='same')(P5)
    maxpool3 = MaxPooling2D(pool_size=(5,5),strides=(1,1),padding='same')(P5)
    P5 = Concatenate()[maxpool1,maxpool2,maxpool3,P5]
    P5 = DarknetConv2D_BN_Leaky(512,(1,1))(P5)
    P5 = DarknetConv2D_BN_Leaky(1024,(3,3))(P5)
    P5 = DarknetConv2D_BN_Leaky(512,(1,1))(P5)

    P5_upsample = compose(DarknetConv2D_BN_Leaky(256,(1,1)),UpSampling2D(2))(P5)

    P4 = DarknetConv2D_BN_Leaky(256,(1,1))(feat2)
    P4 = Concatenate()([P4,P5_upsample])
    P4 = make_five_convs(P4,256)

    P4_upsample = compose(DarknetConv2D_BN_Leaky(128,(1,1)),UpSampling2D(2))(P4)

    P3 = DarknetConv2D_BN_Leaky(128,(1,1))(feat1)
    P3 = Concatenate(P3,P4_upsample)
    P3 = make_five_convs(P3,128)

    # 输入图像为618x618时 (76,76,num_anchor*(num_classes+5)
    P3_output = DarknetConv2D_BN_Leaky(256, (3, 3))(P3)
    P3_output = DarknetConv2D(num_anchors*(num_classes+5),(1,1))(P3_output)

    P3_downsaple = ZeroPadding2D(((1,0),(1,0)))(P3)
    P3_downsample = DarknetConv2D_BN_Leaky(256, (3, 3), strides=(2, 2))(P3_downsample)
    P4 = Concatenate()([P3_downsaple,P4])
    P4 = make_five_convs(P4,256)

    # (38,38,num_anchor*(num_classes+5)
    P4_output = DarknetConv2D_BN_Leaky(512, (3, 3))(P4)
    P4_output = DarknetConv2D(num_anchors * (num_classes + 5), (1, 1))(P4_output)

    P4_downsample = ZeroPadding2D(((1, 0), (1, 0)))(P4)
    P4_downsample = DarknetConv2D_BN_Leaky(512, (3, 3), strides=(2, 2))(P4_downsample)
    P5 = Concatenate()([P4_downsample, P5])
    P5 = make_five_convs(P5, 512)
    # (19,19,num_anchor*(num_classes+5)
    P5_output = DarknetConv2D_BN_Leaky(1024, (3, 3))(P5)
    P5_output = DarknetConv2D(num_anchors * (num_classes + 5), (1, 1))(P5_output)

    return Model(inputs, [P5_output, P4_output, P3_output])
