pyecharts绘制漏斗图Funnel遇到的坑：漏斗图形状绘制不对，上面全是正方形

来块小鱼饼干(≧^.^≦)

于 2024-12-02 15:29:06 发布

阅读量333

点赞数 5

文章标签： python 信息可视化开发语言

本文链接：https://blog.csdn.net/qq_55163835/article/details/144189337

版权

绘制漏斗图Funnel时由于没有在.add中设置数据的min_和max_，导致漏斗图使用默认值min_=0,max=100,限制了你的数据导致他不能正常显示漏斗样式，以下时使用默认min_和max_绘制的图

from pyecharts.charts import *
import pyecharts.options as opts

stages = ["初步接触", "产生兴趣", "请求报价", "商务谈判", "确定合作"]
values = [1000, 750, 500, 300, 150]
data = [list(z) for z in zip(stages, values)]

funnel = (
    Funnel({"bg_color":"#FFFFFF"})
    .add(
        "潜在客户转化",
        data,
         label_opts=opts.LabelOpts(
            position="inside",  # 标签位置
             formatter="{b}: {c}"
        ),
    )
    .set_global_opts(
        title_opts=opts.TitleOpts(title="销售漏斗分析"),
        legend_opts=opts.LegendOpts(border_color="#ccc", border_width=1, pos_top="5%")
    )
)
funnel.render_notebook()

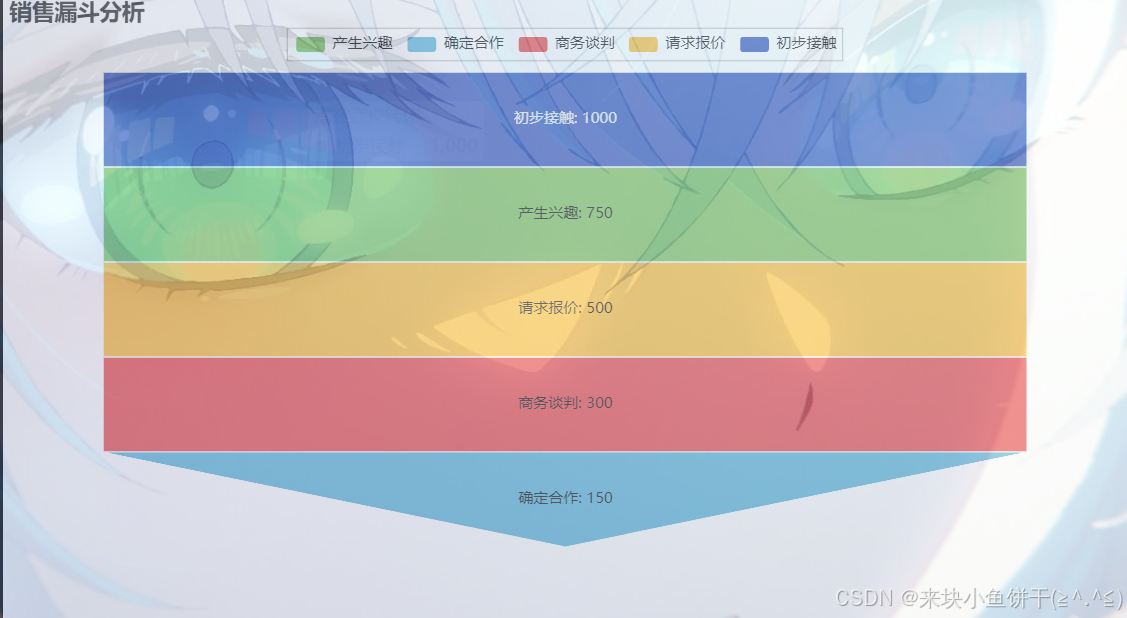

绘制效果如下

当你加上min_和max_的限制后你绘制的图如下所示:代码如下

from pyecharts.charts import *
import pyecharts.options as opts

stages = ["初步接触", "产生兴趣", "请求报价", "商务谈判", "确定合作"]
values = [1000, 750, 500, 300, 150]
data = [list(z) for z in zip(stages, values)]


funnel = (
    Funnel({"bg_color":"#FFFFFF"})
    .add(
        "潜在客户转化",
        data,
         label_opts=opts.LabelOpts(
            position="inside",  # 标签位置
             formatter="{b}: {c}"
        ),
        min_=0,
        max_=1000,
    )
    .set_global_opts(
        title_opts=opts.TitleOpts(title="销售漏斗分析"),
        legend_opts=opts.LegendOpts(border_color="#ccc", border_width=1, pos_top="5%")
    )
)
funnel.render_notebook()

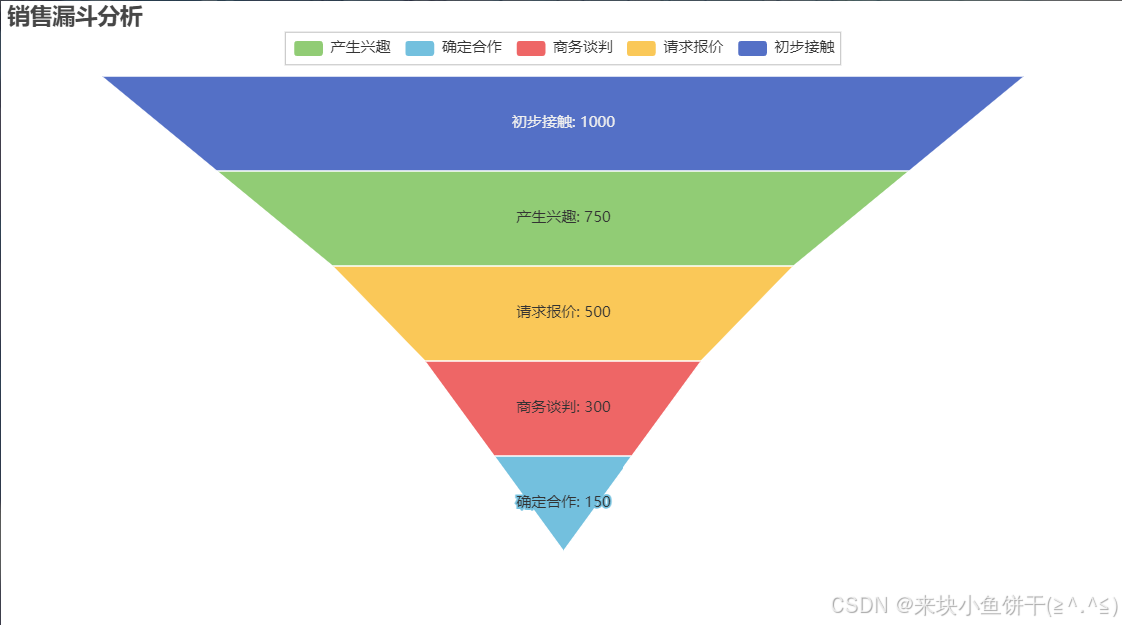

绘制结果如下
