shader toy 水面
根据代码的理解，如果有误，请指正
概述

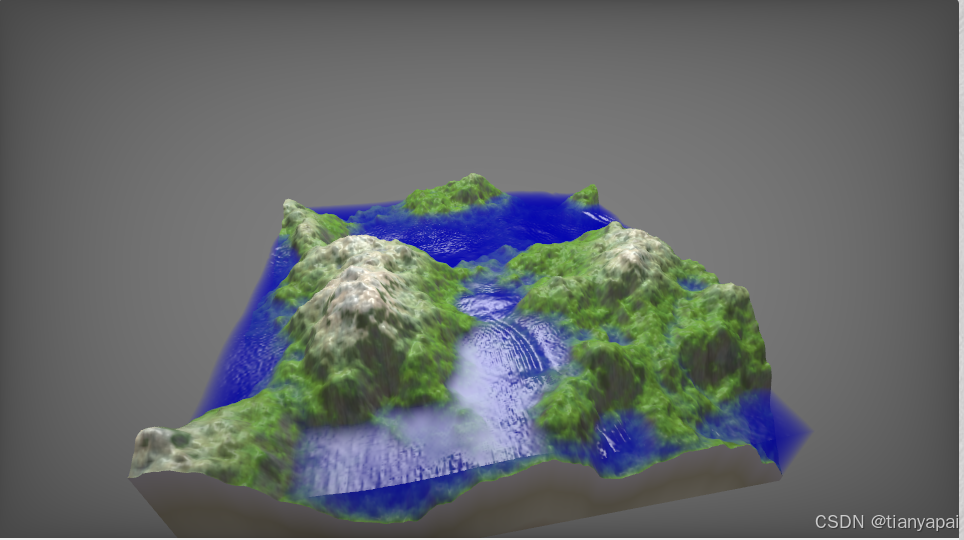

Shader - Shadertoy BETA 中有个水模拟的例子进行源码解析，该例子分为了5个过程：
- 初步建立山脉和湖泊模型，同时追溯前一次的水面高程情况；
- 计算当前水面高程与之前水流还未完全消退的总流量，并依据总流量设置一定的减缓流量；
- 将1中当前水面高程减去2中的输出流量，计算出下一次的流量；
- 该阶段就是2的相同过程。
详细过程
过程1
这个过程中主要是输出地形高程和当前水面高度，就是当前位置减去流出量，然后加上流入量，流出量和流入量是参考前一时刻的水流量，如果当前是第一帧，没有前一帧的情况，结果就只有地形高程和初始水深。
// compute Terrain and update water level 1st pass
float boxNoise( in vec2 p, in float z )
{
vec2 fl = floor(p);
vec2 fr = fract(p);
fr = smoothstep(0.0, 1.0, fr);
float res = mix(mix( hash13(vec3(fl, z)), hash13(vec3(fl + vec2(1,0), z)),fr.x),
mix( hash13(vec3(fl + vec2(0,1), z)), hash13(vec3(fl + vec2(1,1), z)),fr.x),fr.y);
return res;
}
// 地形高程计算
float Terrain( in vec2 p, in float z, in int octaveNum)
{
float a = 1.0;
float f = .0;
for (int i = 0; i < octaveNum; i++)
{
f += a * boxNoise(p, z);
a *= 0.45;
p = 2.0 * rot(radians(41.0)) * p;
}
return f;
}
vec2 readHeight(ivec2 p)
{
p = clamp(p, ivec2(0), ivec2(textureSize - 1));
return texelFetch(iChannel0, p, 0).xy;
}
vec4 readOutFlow(ivec2 p)
{
if(p.x < 0 || p.y < 0 || p.x >= textureSize || p.y >= textureSize)
return vec4(0);
return texelFetch(iChannel1, p, 0);
}
void mainImage( out vec4 fragColor, in vec2 fragCoord )
{
// Outside 超出范围就去掉
if( max(fragCoord.x, fragCoord.y) > float(textureSize) )
discard;
// Terrain 计算地形高程
vec2 uv = fragCoord / float(textureSize);
float t = iTime / transitionTime;
float terrainElevation = mix(Terrain(uv * 4.0, floor(t), octaves), Terrain(uv * 4.0, floor(t) + 1.0, octaves), smoothstep(1.0 - transitionPercent, 1.0, fract(t))) * 0.5;
// Water 初始水面高度
float waterDept = initialWaterLevel;
if(iFrame != 0)
{
// 当前位置水面高程
ivec2 p = ivec2(fragCoord);
vec2 height = readHeight(p);
// 当前位置流出量
vec4 OutFlow = texelFetch(iChannel1, p, 0);
float totalOutFlow = OutFlow.x + OutFlow.y + OutFlow.z + OutFlow.w;
// 当前位置流入量
float totalInFlow = 0.0;
totalInFlow += readOutFlow(p + ivec2( 1, 0)).z;
totalInFlow += readOutFlow(p + ivec2( 0, 1)).w;
totalInFlow += readOutFlow(p + ivec2(-1, 0)).x;
totalInFlow += readOutFlow(p + ivec2( 0, -1)).y;
// 当前位置水的深度 = 当前位置水深 - 流出量 + 流入量
waterDept = height.y - totalOutFlow + totalInFlow;
}
fragColor = vec4(terrainElevation, waterDept, 0, 1);
}过程2
这个过程如果当前是第一帧，还没有产生水面流动情况，所以是vec4(0)，如果不是第一帧，就要参考前一次的水面高程和前一次的水面减少量；高程差决定了水流，而前一次的水流差也会对水的流动有影响。但是高程差对水流的影像与前一次的水流差影像程度不同，所以使用了不同的衰减系数，同时水的流动性较小时nOutFlow直接使用计算结果，如果水流较大时还要nOutFlow = nOutFlow * (height.y / totalFlow);进一步减少水的波动情况，防止出现各种溢出造成的水不可控。
// Update Outflow 1st pass
vec2 readHeight(ivec2 p)
{
p = clamp(p, ivec2(0), ivec2(textureSize - 1));
return texelFetch(iChannel0, p, 0).xy;
}
float computeOutFlowDir(vec2 centerHeight, ivec2 pos)
{
vec2 dirHeight = readHeight(pos);
return max(0.0f, (centerHeight.x + centerHeight.y) - (dirHeight.x + dirHeight.y));
}
void mainImage( out vec4 fragColor, in vec2 fragCoord )
{
ivec2 p = ivec2(fragCoord);
// Init to zero at frame 0
if(iFrame == 0)
{
fragColor = vec4(0);
return;
}
// Outside ?
if( max(p.x, p.y) > textureSize )
discard;
vec4 oOutFlow = texelFetch(iChannel1, p, 0);
vec2 height = readHeight(p);
vec4 nOutFlow;
nOutFlow.x = computeOutFlowDir(height, p + ivec2( 1, 0));
nOutFlow.y = computeOutFlowDir(height, p + ivec2( 0, 1));
nOutFlow.z = computeOutFlowDir(height, p + ivec2(-1, 0));
nOutFlow.w = computeOutFlowDir(height, p + ivec2( 0, -1));
nOutFlow = attenuation * oOutFlow + strenght * nOutFlow;
float totalFlow = nOutFlow.x + nOutFlow.y + nOutFlow.z + nOutFlow.w;
if(totalFlow > minTotalFlow)
{
if(height.y < totalFlow)
{
nOutFlow = nOutFlow * (height.y / totalFlow);
}
}
else
{
nOutFlow = vec4(0);
}
fragColor = nOutFlow;
}过程3
该过程类比过程1
// water level 2nd pass
vec2 readHeight(ivec2 p)
{
p = clamp(p, ivec2(0), ivec2(textureSize - 1));
return texelFetch(iChannel0, p, 0).xy;
}
vec4 readOutFlow(ivec2 p)
{
if(p.x < 0 || p.y < 0 || p.x >= textureSize || p.y >= textureSize)
return vec4(0);
return texelFetch(iChannel1, p, 0);
}
void mainImage( out vec4 fragColor, in vec2 fragCoord )
{
// Outside ?
if( max(fragCoord.x, fragCoord.y) > float(textureSize) )
discard;
// Water
ivec2 p = ivec2(fragCoord);
vec2 height = readHeight(p);
vec4 OutFlow = texelFetch(iChannel1, p, 0);
float totalOutFlow = OutFlow.x + OutFlow.y + OutFlow.z + OutFlow.w;
float totalInFlow = 0.0;
totalInFlow += readOutFlow(p + ivec2( 1, 0)).z;
totalInFlow += readOutFlow(p + ivec2( 0, 1)).w;
totalInFlow += readOutFlow(p + ivec2(-1, 0)).x;
totalInFlow += readOutFlow(p + ivec2( 0, -1)).y;
float waterDept = height.y - totalOutFlow + totalInFlow;
fragColor = vec4(height.x, waterDept, 0, 1);
}过程4
该过程类比过程2
// Update Outflow 2nd pass
vec2 readHeight(ivec2 p)
{
p = clamp(p, ivec2(0), ivec2(textureSize - 1));
return texelFetch(iChannel0, p, 0).xy;
}
float computeOutFlowDir(vec2 centerHeight, ivec2 pos)
{
vec2 dirHeight = readHeight(pos);
return max(0.0f, (centerHeight.x + centerHeight.y) - (dirHeight.x + dirHeight.y));
}
void mainImage( out vec4 fragColor, in vec2 fragCoord )
{
ivec2 p = ivec2(fragCoord);
// Outside ?
if( max(p.x, p.y) > textureSize )
discard;
vec4 oOutFlow = texelFetch(iChannel1, p, 0);
vec2 height = readHeight(p);
vec4 nOutFlow;
nOutFlow.x = computeOutFlowDir(height, p + ivec2( 1, 0));
nOutFlow.y = computeOutFlowDir(height, p + ivec2( 0, 1));
nOutFlow.z = computeOutFlowDir(height, p + ivec2(-1, 0));
nOutFlow.w = computeOutFlowDir(height, p + ivec2( 0, -1));
nOutFlow = attenuation * oOutFlow + strenght * nOutFlow;
float totalFlow = nOutFlow.x + nOutFlow.y + nOutFlow.z + nOutFlow.w;
if(totalFlow > minTotalFlow)
{
if(height.y < totalFlow)
{
nOutFlow = nOutFlow * (height.y / totalFlow);
}
}
else
{
nOutFlow = vec4(0);
}
fragColor = nOutFlow;
}显示
这部分主要是基于前几个阶段进行可视化，大概过程是屏幕空间raymarch，首先检查是否与场景包围盒相交，如果不想交就直接读取环境颜色，如果相交，检查是否与地形相交，然后检查与水面相交，两者之差就是水深，根据水的深度计算光照。
// Created by David Gallardo - xjorma/2021
// License Creative Commons Attribution-NonCommercial-ShareAlike 3.0
#define AA
#define GAMMA 1
const vec3 light = vec3(0.,4.,2.);
const float boxHeight = 0.45;
/*
void mainImage( out vec4 fragColor, in vec2 fragCoord )
{
ivec2 p = ivec2(fragCoord);
float h = texelFetch(iChannel0, p, 0).x;
float w = texelFetch(iChannel1, p, 0).x;
fragColor = vec4(h, w, w, 1.0);
}*/
vec2 getHeight(in vec3 p)
{
p = (p + 1.0) * 0.5;
vec2 p2 = p.xz * vec2(float(textureSize)) / iResolution.xy;
p2 = min(p2, vec2(float(textureSize) - 0.5) / iResolution.xy);
vec2 h = texture(iChannel0, p2).xy;
h.y += h.x;
return h - boxHeight;
}
vec3 getNormal(in vec3 p, int comp)
{
float d = 2.0 / float(textureSize);
float hMid = getHeight(p)[comp];
float hRight = getHeight(p + vec3(d, 0, 0))[comp];
float hTop = getHeight(p + vec3(0, 0, d))[comp];
return normalize(cross(vec3(0, hTop - hMid, d), vec3(d, hRight - hMid, 0)));
}
vec3 terrainColor(in vec3 p, in vec3 n, out float spec)
{
spec = 0.1;
vec3 c = vec3(0.21, 0.50, 0.07);
float cliff = smoothstep(0.8, 0.3, n.y);
c = mix(c, vec3(0.25), cliff);
spec = mix(spec, 0.3, cliff);
float snow = smoothstep(0.05, 0.25, p.y) * smoothstep(0.5, 0.7, n.y);
c = mix(c, vec3(0.95, 0.95, 0.85), snow);
spec = mix(spec, 0.4, snow);
vec3 t = texture(iChannel1, p.xz * 5.0).xyz;
return mix(c, c * t, 0.75);
}
vec3 undergroundColor(float d)
{
vec3 color[4] = vec3[](vec3(0.5, 0.45, 0.5), vec3(0.40, 0.35, 0.25), vec3(0.55, 0.50, 0.4), vec3(0.45, 0.30, 0.20));
d *= 6.0;
d = min(d, 3.0 - 0.001);
float fr = fract(d);
float fl = floor(d);
return mix(color[int(fl)], color[int(fl) + 1], fr);
}
vec3 Render(in vec3 ro, in vec3 rd)
{
vec3 n;
vec2 ret = boxIntersection(ro, rd, vec3(1, boxHeight, 1), n);
if(ret.x > 0.0)
{
vec3 pi = ro + rd * ret.x;
// Find Terrain
vec3 tc;
vec3 tn;
float tt = ret.x;
vec2 h = getHeight(pi);
float spec;
if(pi.y < h.x)
{
tn = n;
tc = undergroundColor(h.x - pi.y);
}
else
{
for (int i = 0; i < 80; i++)
{
vec3 p = ro + rd * tt;
float h = p.y - getHeight(p).x;
if (h < 0.0002 || tt > ret.y)
break;
tt += h * 0.4;
}
tn = getNormal(ro + rd * tt, 0);
tc = terrainColor(ro + rd * tt, tn, spec);
}
{
vec3 lightDir = normalize(light - (ro + rd * tt));
tc = tc * (max( 0.0, dot(lightDir, tn)) + 0.3);
spec *= pow(max(0., dot(lightDir, reflect(rd, tn))), 10.0);
tc += spec;
}
if(tt > ret.y)
{
tc = backgroundColor;
}
// Find Water
float wt = ret.x;
h = getHeight(pi);
vec3 waterNormal;
if(pi.y < h.y)
{
waterNormal = n;
}
else
{
for (int i = 0; i < 80; i++)
{
vec3 p = ro + rd * wt;
float h = p.y - getHeight(p).y;
if (h < 0.0002 || wt > min(tt, ret.y))
break;
wt += h * 0.4;
}
waterNormal = getNormal(ro + rd * wt, 1);
}
if(wt < ret.y)
{
float dist = (min(tt, ret.y) - wt);
vec3 p = waterNormal;
vec3 lightDir = normalize(light - (ro + rd * wt));
tc = applyFog( tc, vec3(0,0,0.4), dist * 15.0);
float spec = pow(max(0., dot(lightDir, reflect(rd, waterNormal))), 20.0);
tc += 0.5 * spec * smoothstep(0.0, 0.1, dist);
}
return tc;
}
return backgroundColor;
}
mat3 setCamera( in vec3 ro, in vec3 ta )
{
vec3 cw = normalize(ta-ro);
vec3 up = vec3(0, 1, 0);
vec3 cu = normalize( cross(cw,up) );
vec3 cv = normalize( cross(cu,cw) );
return mat3( cu, cv, cw );
}
vec3 vignette(vec3 color, vec2 q, float v)
{
color *= 0.3 + 0.8 * pow(16.0 * q.x * q.y * (1.0 - q.x) * (1.0 - q.y), v);
return color;
}
void mainImage( out vec4 fragColor, in vec2 fragCoord )
{
vec3 tot = vec3(0.0);
vec2 mouse = iMouse.xy;
if(length(mouse.xy) < 10.0)
mouse = iResolution.xy * 0.5;
#ifdef AA
vec2 rook[4];
rook[0] = vec2( 1./8., 3./8.);
rook[1] = vec2( 3./8.,-1./8.);
rook[2] = vec2(-1./8.,-3./8.);
rook[3] = vec2(-3./8., 1./8.);
for( int n=0; n<4; ++n )
{
// pixel coordinates
vec2 o = rook[n];
vec2 p = (-iResolution.xy + 2.0*(fragCoord+o))/iResolution.y;
#else //AA
vec2 p = (-iResolution.xy + 2.0*fragCoord)/iResolution.y;
#endif //AA
// camera
float theta = radians(360.)*(mouse.x/iResolution.x-0.5) + iTime*.2;
float phi = radians(90.)*(mouse.y/iResolution.y-0.5)-1.;
vec3 ro = 2.0 * vec3( sin(phi)*cos(theta),cos(phi),sin(phi)*sin(theta));
//vec3 ro = vec3(0.0,.2,4.0);
vec3 ta = vec3( 0 );
// camera-to-world transformation
mat3 ca = setCamera( ro, ta );
//vec3 cd = ca[2];
vec3 rd = ca*normalize(vec3(p,1.5));
vec3 col = Render(ro, rd);
tot += col;
#ifdef AA
}
tot /= 4.;
#endif
tot = vignette(tot, fragCoord / iResolution.xy, 0.6);
#if GAMMA
tot = pow(tot, vec3(1. / 2.2));
#endif
fragColor = vec4( tot, 1.0 );
}
