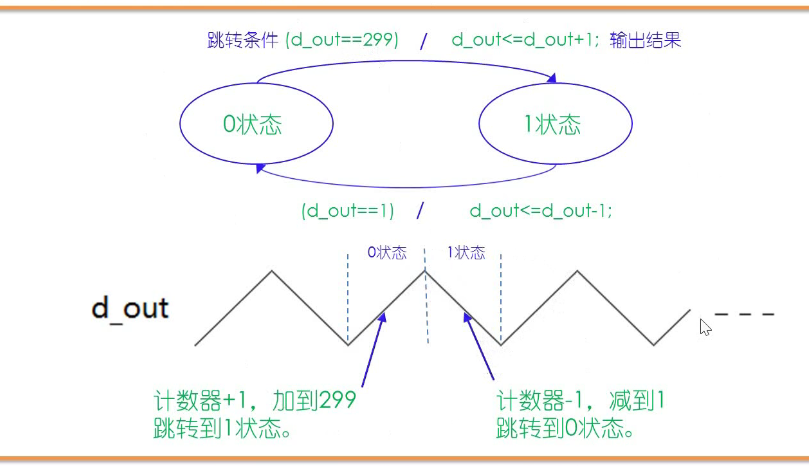

三角波发生器

代码：

//2021.11.21 lyw
//The simplest state machine——triangle wave generator

`timescale 1ns/10ps
module tri_gen (
                clk,
                res,
                d_out
);
input           clk;
input           res;
output[8:0]     d_out;      //299;2^8=256

reg             state;      //Main State Machine Register; 2 states need 1 bit
reg[8:0]        d_out;

always @(posedge clk or negedge res) begin
    if(~res)begin
        state=0;
        d_out=0;
    end
    else begin
        case(state)
        0://rise
        begin
              d_out<=d_out+1;
            if (d_out==299) begin
                state<=1;
            end
        end
        1://drop
        begin
            d_out<=d_out-1;
            if (d_out==1) begin
                state<=0;
            end
        end

        endcase

    end
end


endmodule

//-----testbench of tri_gen------
module tri_gen_tb;

reg             clk,res;
wire [8:0]      d_out;
tri_gen U1 (
                .clk(clk),
                .res(res),
                .d_out(d_out)
);
initial begin
            clk<=0;
            res<=0;
    #17     res<=1;
    #8000   $stop;
end

always #5 clk=~clk;


endmodule

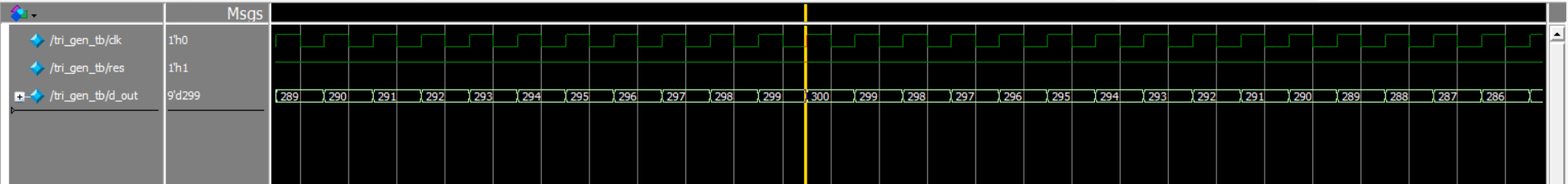

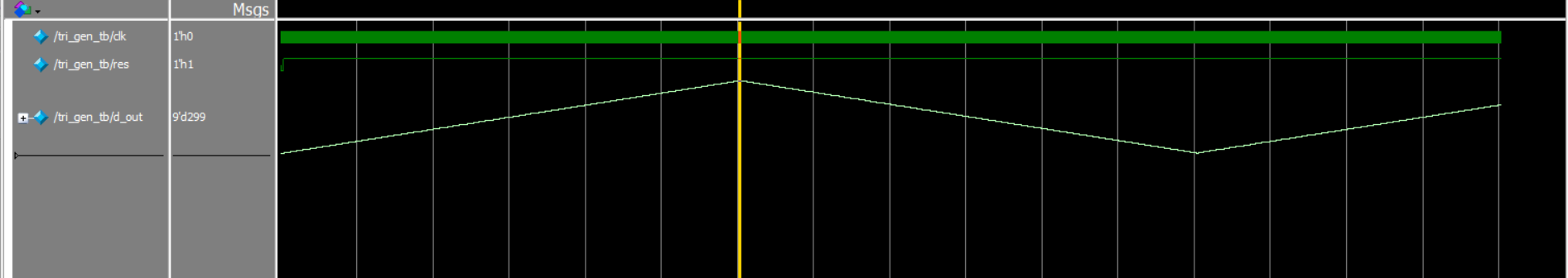

仿真波形：

用模拟方式观察：

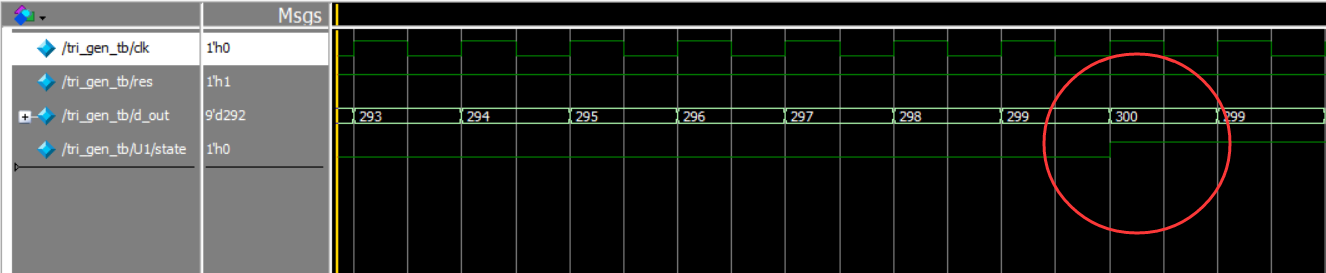

注意：判断 d_out=299 和 d_out+1 是同时进行的，此时 d_out 按照 298 来判断。到下一个时钟上升沿时，d_out=299，state=0，这个周期跑完以后 d_out=300，state=1。

梯形波发生器：

如果想把三角波换成梯形波：增加一个状态（上升、下降、平持三个状态）

代码：

//2021.11.21 lyw
//The simplest state machine——triangle wave generator

`timescale 1ns/10ps
module tri_gen (
                clk,
                res,
                d_out
);
input           clk;
input           res;
output[8:0]     d_out;      //299;2^8=256

reg[1:0]        state;      //Main State Machine Register; 2 states need 1 bit
reg[8:0]        d_out;
reg [7:0]       con;
always @(posedge clk or negedge res) begin
    if(~res)begin
        state=0;
        d_out=0;
        con<=0;
    end
    else begin
        case(state)
        0://rise
        begin
            d_out<=d_out+1;
            if (d_out==299) begin
                state<=1;
            end
        end
        1://flat
        begin
            if (con==200) begin
                state<=2;
                con<=0;
            end
            else begin
                con<=con+1;
            end
        end
        2://drop
        begin
            d_out<=d_out-1;
            if (d_out==1) begin
                state<=0;
            end
        end
        default:
        begin
            state<=0;
            con<=0;
            d_out<=0;
        end

        endcase

    end
end


endmodule

//-----testbench of tri_gen------
module tri_gen_tb;

reg             clk,res;
wire [8:0]      d_out;
tri_gen U1 (
                .clk(clk),
                .res(res),
                .d_out(d_out)
);
initial begin
            clk<=0;
            res<=0;
    #17     res<=1;
    #20000   $stop;
end

always #5 clk=~clk;


endmodule

注意：用两位来表示三种状态还有剩余，需要一个 default。

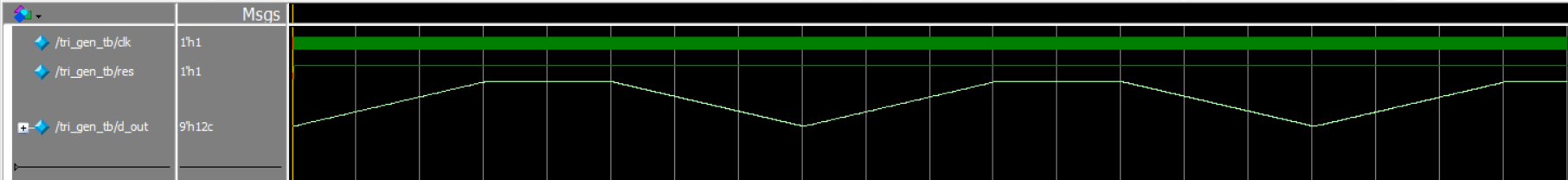

仿真波形：

如果继续改改成【上-平-下-平】格式

代码：

//2021.11.21 lyw
//The simplest state machine——triangle wave generator

`timescale 1ns/10ps
module tri_gen (
                clk,
                res,
                d_out
);
input           clk;
input           res;
output[8:0]     d_out;      //299;2^8=256

reg[1:0]        state;      //Main State Machine Register; 2 states need 1 bit
reg[8:0]        d_out;
reg [7:0]       con;
always @(posedge clk or negedge res) begin
    if(~res)begin
        state=0;
        d_out=0;
        con<=0;
    end
    else begin
        case(state)
        0://rise
        begin
            d_out<=d_out+1;
            if (d_out==299) begin
                state<=1;
            end
        end
        1://flat
        begin
            if (con==200) begin
                state<=2;
                con<=0;
            end
            else begin
                con<=con+1;
            end
        end
        2://drop
        begin
            d_out<=d_out-1;
            if (d_out==1) begin
                state<=3;
            end
        end
        /*
        default:
        begin
            state<=0;
            con<=0;
            d_out<=0;
        end
        */
        3://flat
        begin
            if (con==200) begin
                state<=0;
                con<=0;
            end
            else begin
                con<=con+1;
            end
        end
        endcase

    end
end


endmodule

//-----testbench of tri_gen------
module tri_gen_tb;

reg             clk,res;
wire [8:0]      d_out;
tri_gen U1 (
                .clk(clk),
                .res(res),
                .d_out(d_out)
);
initial begin
            clk<=0;
            res<=0;
    #17     res<=1;
    #20000   $stop;
end

always #5 clk=~clk;


endmodule

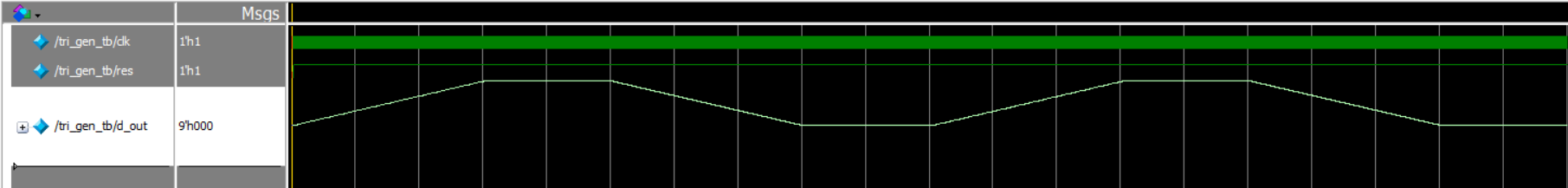

仿真波形：

写状态机曾犯过的错误：

1. 增加了状态，但 state 位数却没有随之增加。
2. 当状态不够多时，要写 default。
3. 增加了新状态，但跳转关系没改好。

---

PS：内容总结自网络，状态机好有意思啊(*￣▽￣*)
