GEE数据集——GMTED2010：2010 年全球多分辨率地形高程数据

全球多分辨率地形高程数据 2010 (GMTED2010) 数据集包含从各种来源收集的全球高程数据。此处可用的数据集版本是 Breakline Emphasis，7.5 弧秒分辨率。隔断线强调通过在指定分析窗口内通过的隔断线上保持任何最小高程或最大高程值来保持景观内的关键地形特征（溪流或山脊）。数据集报告中提供了更多详细信息 。

GMTED2010 的主要源数据集是 NGA 的 SRTM 数字地形高程数据 (DTED®, https://www2.jpl.nasa.gov/srtm/ )（填空）1 弧秒数据。对于 SRTM 覆盖区域之外的地理区域和填补 SRTM 数据中的剩余空洞，使用了以下来源：非 SRTM DTED®、两种分辨率的加拿大数字高程数据 (CDED)、Satellite Pour l''Observation de la Terre (SPOT 5) Reference3D，美国大陆和阿拉斯加的国家高程数据集 (NED)，澳大利亚的 GEODATA 9 秒数字高程模型 (DEM)，南极洲卫星雷达和激光高度计 DEM，以及格陵兰卫星雷达高度计 DEM .

该数据集取代了 GTOPO30 高程模型。

The Global Multi-resolution Terrain Elevation Data 2010 (GMTED2010) dataset contains elevation data for the globe collected from various sources. The version of the dataset available here is Breakline Emphasis, 7.5 arc-seconds resolution. Breakline emphasis maintains the critical topographic features (streams or ridges) within the landscape by maintaining any minimum elevation or maximum elevation value on a breakline that passes within the specified analysis window. More details are available in the dataset report.

The primary source dataset for GMTED2010 is NGA''s SRTM Digital Terrain Elevation Data (DTED®, https://www2.jpl.nasa.gov/srtm/) (void-filled) 1-arc-second data. For the geographic areas outside the SRTM coverage area and to fill in remaining holes in the SRTM data, the following sources were used: non-SRTM DTED®, Canadian Digital Elevation Data (CDED) at two resolutions, Satellite Pour l''Observation de la Terre (SPOT 5) Reference3D, National Elevation Dataset (NED) for the continental United States and Alaska, GEODATA 9 second digital elevation model (DEM) for Australia, an Antarctica satellite radar and laser altimeter DEM, and a Greenland satellite radar altimeter DEM.

This dataset replaces the GTOPO30 Elevation Model.

Dataset Availability

2010-01-01T00:00:00Z–2010-01-01T00:00:00

Dataset Provider

USGS

Earth Engine Snippet

ee.Image("USGS/GMTED2010")

Bands

代码

var dataset = ee.Image('USGS/GMTED2010');
var elevation = dataset.select('be75');
var elevationVis = {
  min: -100.0,
  max: 6500.0,
  gamma: 3.5,
};
Map.setCenter(17.93, 7.71, 2);
Map.addLayer(elevation, elevationVis, 'Elevation');

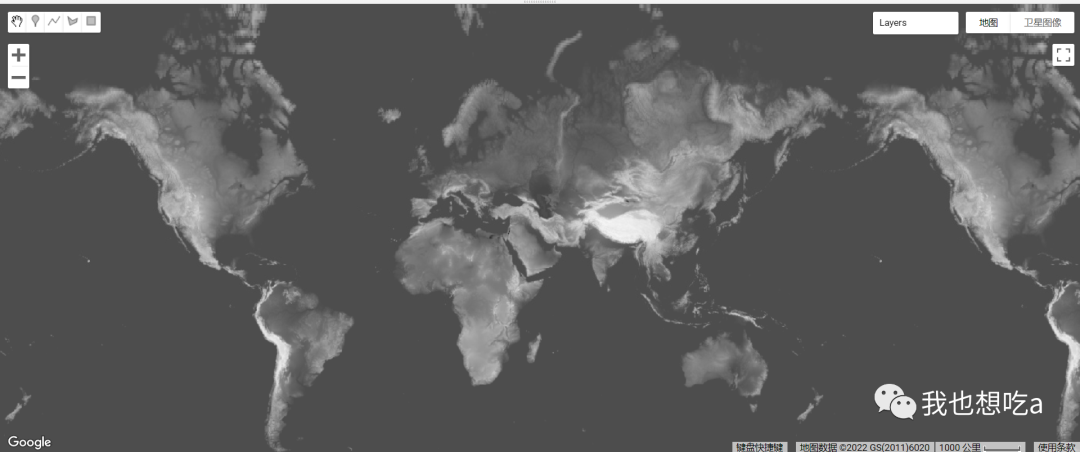

展示
