WSDM顶会 & 爱奇艺 - 基于时间序列和多模型融合的用户留存预测挑战赛

参考：冠军团队方案，本文只复刻了冠军方案特征工程和机器学习部分，无涉及深度学习部分。

1. 赛题引入

1.1 赛题描述

​ 爱奇艺是中国和世界领先的高品质视频娱乐流媒体平台，每个月有超过5亿的用户在爱奇艺上享受娱乐服务。爱奇艺秉承“悦享品质”的品牌口号，打造涵盖影剧、综艺、动漫在内的专业正版视频内容库，和“随刻”等海量的用户原创内容，为用户提供丰富的专业视频体验。

​ 爱奇艺手机端APP，通过深度学习等最新的AI技术，提升用户个性化的产品体验，更好地让用户享受定制化的娱乐服务。我们用“N日留存分”这一关键指标来衡量用户的满意程度。例如，如果一个用户10月1日的“7日留存分”等于3，代表这个用户接下来的7天里（10月2日~8日），有3天会访问爱奇艺APP。预测用户的留存分是个充满挑战的难题：不同用户本身的偏好、活跃度差异很大，另外用户可支配的娱乐时间、热门内容的流行趋势等其他因素，也有很强的周期性特征。

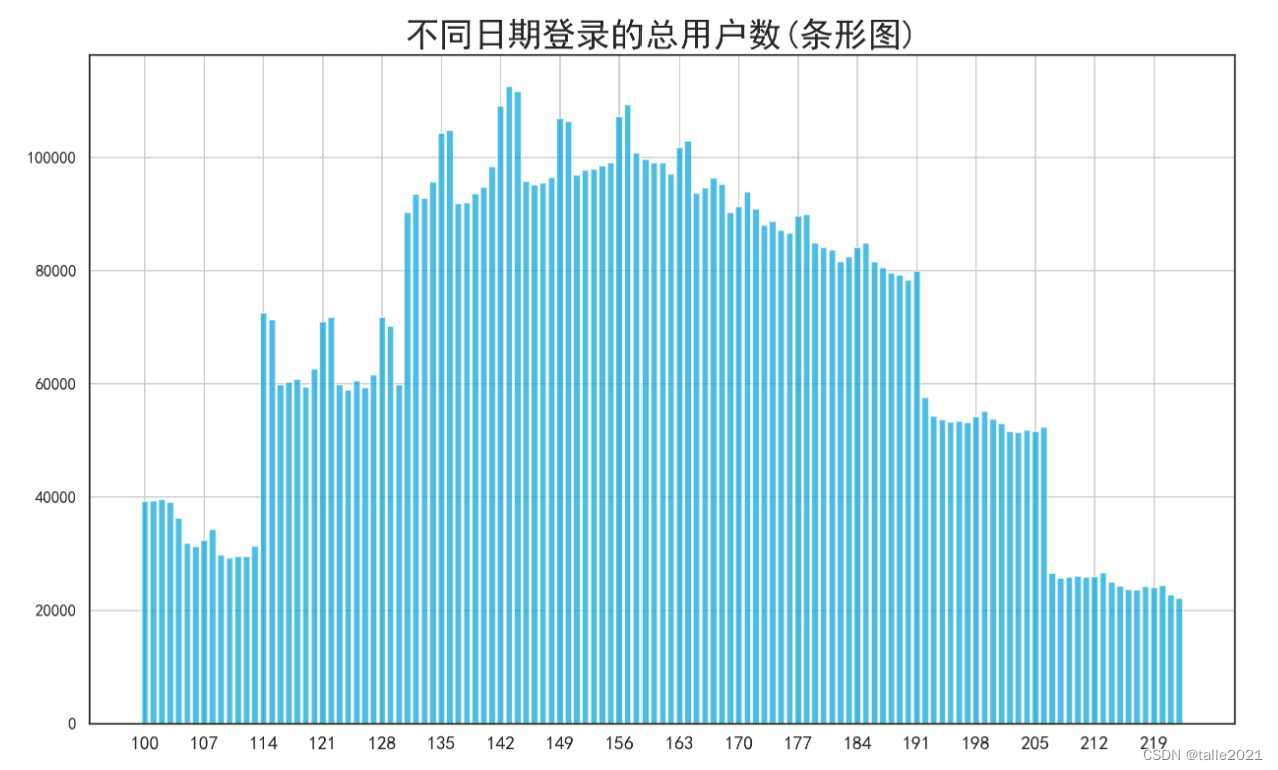

​ 在竞赛之初官方发布了帮助文档，其中提到所有用户在[131,153]之间的登录行为都是被完整记录的，因此不会有用户在这个时间段内缺少记录，因此在这个区间内计算出的7日留存分一定是准确的真实标签。

​ 本次大赛基于爱奇艺APP脱敏和采样后的数据信息，预测用户的7日留存分。参赛队伍需要设计相应的算法进行数据分析和预测。

1.2 数据描述

​ 本次比赛提供了丰富的数据集，包含视频数据、用户画像数据、用户启动日志、用户观影和互动行为日志等。针对测试集用户，需要预测每一位用户某一日的“7日留存分”。7日留存分取值范围从0到7，预测结果保留小数点后2位。

1.3 评价指标

本次比赛是一个数值预测类问题。评价函数使用：
$$100\ast (1-\frac{1}{n}\sum _{t=1}^n|\frac{F_t-A_t}{7}|)$$
n是测试集用户数量，F是参赛者对用户的7日留存分预测值，A是真实的7日留存分真实值。

1.4 数据集解释

1. User portrait data

Field name	Description
user_id
device_type	iOS, Android
device_rom	rom of the device
device_ram	ram of the device
sex
age
education
occupation_status
territory_code

2. App launch logs

Field name	Description
user_id
date	Desensitization, started from 0
launch_type	spontaneous or launched by other apps & deep-links

3. Video related data

Field name	Description
item_id	id of the video
father_id	album id, if the video is an episode of an album collection
cast	a list of actors/actresses
duration	video length
tag_list	a list of tags

4. User playback data

Field name	Description
user_id
item_id
playtime	video playback time
date	timestamp of the behavior

5. User interaction data

Field name	Description
user_id
item_id
interact_type	interaction types such as posting comments, etc.
date	timestamp of the behavior

2. 特征工程

import numpy as np
import pandas as pd
import warnings
warnings.filterwarnings("ignore")

定义目标函数：

def score(res,label,pre):
    res['diff'] = abs((res[pre]-res[label])/7)
    s = 1-sum(res['diff'])/len(res)
    return s

2.1 数据表1-用户登陆数据：app_launch_logs.csv

#app登录数据
df = pd.read_csv('F:\\Jupyter Files\\时间序列\\data\\original_data\\app_launch_logs.csv')
#测试集
test_a = pd.read_csv('F:\\Jupyter Files\\时间序列\\data\\original_data\\test-a-without-label.csv')
test = pd.read_csv('F:\\Jupyter Files\\时间序列\\data\\original_data\\test-a-without-label.csv')

test.head()

	user_id	end_date
0	10007813	205
1	10052988	210
2	10279068	200
3	10546696	216
4	10406659	183

df.head()

	user_id	launch_type	date
0	10157996	0	129
1	10139583	0	129
2	10277501	0	129
3	10099847	0	129
4	10532773	0	129

df = df.sort_values(['user_id','date']).reset_index(drop=True)
df = df[['user_id','date']].drop_duplicates().reset_index(drop=True) #去重复值
df = df[df['user_id'].isin(test_a['user_id'])]
df.head()

	user_id	date
2278	10000176	120
2279	10000176	144
2280	10000176	161
2281	10000176	162
2282	10000176	163

df_group = df.groupby('user_id').agg(list).reset_index()
df_group['date_max'] = df_group['date'].apply(lambda x: max(x))
df_group['date_min'] = df_group['date'].apply(lambda x: min(x))
df_group.head()

	user_id	date	date_max	date_min
0	10000176	[120, 144, 161, 162, 163, 165, 166, 167, 168, …	185	120
1	10000263	[131, 135, 136, 137, 140, 141, 142, 143, 145, …	212	131
2	10000355	[136, 137, 142, 144, 145, 146, 147, 148, 150, …	197	136
3	10000357	[169, 170, 171, 172, 173, 174, 175, 176, 177, …	200	169
4	10000383	[134, 156, 176, 181]	181	134

冠军团队选取了[date_min-1, end_date-6]和[131, 153]交集的部分来构建训练集，并选取end_date-7来构建线下测试集样本。其中，end_date是指该用户在测试集中被指定的、需要对留存分进行预测的日期。

user_enddate = dict(zip(test_a['user_id'],test_a['end_date']))
interval = [x for x in range(131,154)]
def extend_list(row):
    date_min = row['date_min']
    date_max = row['date_max']
    end_date = user_enddate[row['user_id']]
    return list(set([x for x in range(date_min,end_date-6)]+interval))

df_group['date_all'] = df_group.apply(extend_list, axis=1)
df_group.head()

	user_id	date	date_max	date_min	date_all
0	10000176	[120, 144, 161, 162, 163, 165, 166, 167, 168, …	185	120	[128, 129, 130, 131, 132, 133, 134, 135, 136, …
1	10000263	[131, 135, 136, 137, 140, 141, 142, 143, 145, …	212	131	[131, 132, 133, 134, 135, 136, 137, 138, 139, …
2	10000355	[136, 137, 142, 144, 145, 146, 147, 148, 150, …	197	136	[131, 132, 133, 134, 135, 136, 137, 138, 139, …
3	10000357	[169, 170, 171, 172, 173, 174, 175, 176, 177, …	200	169	[131, 132, 133, 134, 135, 136, 137, 138, 139, …
4	10000383	[134, 156, 176, 181]	181	134	[131, 132, 133, 134, 135, 136, 137, 138, 139, …

# explode函数用于将包含列表或数组的列拆分为单独的行或元素,并复制其他列的值。
df_ = df_group.explode('date_all')
df_.head()

	user_id	date	date_max	date_min	date_all
0	10000176	[120, 144, 161, 162, 163, 165, 166, 167, 168, …	185	120	128
0	10000176	[120, 144, 161, 162, 163, 165, 166, 167, 168, …	185	120	129
0	10000176	[120, 144, 161, 162, 163, 165, 166, 167, 168, …	185	120	130
0	10000176	[120, 144, 161, 162, 163, 165, 166, 167, 168, …	185	120	131
0	10000176	[120, 144, 161, 162, 163, 165, 166, 167, 168, …	185	120	132

从历史数据中构建7日留存分标签：(get_label函数代码解读）
已知测试集中需要预测的日期最小值为161，最大值为222。
1.提取表中某一行，构建特征(max_date-有登录记录的最晚日期、min_date-有登录记录的最早日期、date-需要预测的日期、date_list-登录日期列表)已知测试集中需要预测的日期最小值为161，最大值为222。
2.如果当前日期date之后的7天均小于最后登录日期，则按照date未来7天内出现的登录日期个数计数，即当前日期date的7日留存分。（set函数：用于转换成集合类型，去重作用 ）
3.如果当前日期date大于153，且该日期对应的用户id不在测试集中，则标记-999等待后续剔除。
4.如果当前日期date大于153，且该日期对应的用户id在测试集中，同时需要预测的日期与当前日期的差距小于7(比如需要预测的日期为165，当前日期为160，165<160+7，当前日期date所覆盖的区间就是要预测日期的未来了，即此时如果构建当前日期160的7日用户留存分(161167)，则后续预测165的7日留存分(166122)会出现已知未来(167)预测过去(166))，所以此情况也标记-999等待后续剔除。
5.如果当前日期date大于153，且该日期对应的用户id在测试集中，也没有出现未来预测过去的情况，则无论是否有未来7天完整的记录，均按照现有记录计算7日留存分。
6.如果当前日期date小于130，则认为没有记录且远离需要预测的未来，可以直接标记-999等待删除。
7.如果当前日期date在[130,154]之间的，则直接根据现有记录来计算7日留存分。

def get_label(row):
    max_date = row['date_max']
    min_date = row['date_min']
    date = row['date']
    date_list = row['date_list']
    if date+7 <= max_date:
        return sum([1 for x in set(date_list) if date < x < date+8])
    else:
        if date>153:
            if row['user_id'] not in user_enddate:
                return -999
            else:
                if user_enddate[row['user_id']] < date+7:
                    return -999
                else:
                    return sum([1 for x in set(date_list) if date < x < date+8])
        elif date<130:
            return -999
        else:
            return sum([1 for x in set(date_list) if date < x < date+8])

df_.rename(columns = {'date':'date_list','date_all':'date'},inplace=True)
df_['label'] = df_.apply(get_label, axis=1)
train = df_[df_['label']!=-999]
test.columns = ['user_id','date']
test['label'] = -1
train[['user_id','date','label']].to_csv('F:\Jupyter Files\时间序列\data\output_data\online_trainb.csv',index=False)
test[['user_id','date','label']].to_csv('F:\Jupyter Files\时间序列\data\output_data\online_testb.csv',index=False)

2.2 数据表2-用户观看视频时长和数目特征：user_playback_data.csv

user_pb = pd.read_csv('F:\\Jupyter Files\\时间序列\\data\\original_data\\user_playback_data.csv')
user_pb['count'] = 1
user_pb_group = user_pb[['user_id','date','playtime','count']].groupby(['user_id','date'],as_index=False).agg(sum)
user_pb_group = user_pb_group[user_pb_group['user_id'].isin(test['user_id'])]
user_pb_group.head()

	user_id	date	playtime	count
1677	10000176	162	770.829	2
1678	10000176	163	16187.517	7
1679	10000176	165	13584.509	9
1680	10000176	166	7742.622	6
1681	10000176	167	1818.905	5

train = pd.merge(train, user_pb_group, how='left')
train.head()

	user_id	date_list	date_max	date_min	date	label	playtime	count
0	10000176	[120, 144, 161, 162, 163, 165, 166, 167, 168, …	185	120	128	0	NaN	NaN
1	10000176	[120, 144, 161, 162, 163, 165, 166, 167, 168, …	185	120	129	0	NaN	NaN
2	10000176	[120, 144, 161, 162, 163, 165, 166, 167, 168, …	185	120	130	0	NaN	NaN
3	10000176	[120, 144, 161, 162, 163, 165, 166, 167, 168, …	185	120	131	0	NaN	NaN
4	10000176	[120, 144, 161, 162, 163, 165, 166, 167, 168, …	185	120	132	0	NaN	NaN

train.rename(columns = {'playtime':'playtime_last'+str(0),'count':'video_count_last'+str(0)},inplace=True)
train.head()

	user_id	date_list	date_max	date_min	date	label	playtime_last0	video_count_last0
0	10000176	[120, 144, 161, 162, 163, 165, 166, 167, 168, …	185	120	128	0	NaN	NaN
1	10000176	[120, 144, 161, 162, 163, 165, 166, 167, 168, …	185	120	129	0	NaN	NaN
2	10000176	[120, 144, 161, 162, 163, 165, 166, 167, 168, …	185	120	130	0	NaN	NaN
3	10000176	[120, 144, 161, 162, 163, 165, 166, 167, 168, …	185	120	131	0	NaN	NaN
4	10000176	[120, 144, 161, 162, 163, 165, 166, 167, 168, …	185	120	132	0	NaN	NaN

test = pd.merge(test, user_pb_group, how='left')
test.rename(columns = {'playtime':'playtime_last'+str(0),'count':'video_count_last'+str(0)},inplace=True)

在for循环中不断增加user_pb_group中的date，(例如，在最开始循环时，user_pb_group中某一行数据的date是162，经过7次循环，这行数据的date就会变为169，但这行数据所对应的其他列依然是162那天的数据。由于train中的date是不变的，因此在最后一次匹配时，train中的162匹配到的会是原本为（162-7）那天的user_pb_group的数据）。对user_pb_group来说，user_id + date被merge识别为索引了，因此merge函数会将剩下的两列play_duration和count合并到train中。利用merge函数的这个性质，可以很容易完成user_pb_group表单上的滑窗：

#滑窗
for i in range(7):
    user_pb_group['date'] = user_pb_group['date'] + 1
    train = pd.merge(train, user_pb_group, how='left')
    train.rename(columns = {'playtime':'playtime_last'+str(i+1),'count':'video_count_last'+str(i+1)},inplace=True)

    test = pd.merge(test, user_pb_group, how='left')
    test.rename(columns = {'playtime':'playtime_last'+str(i+1),'count':'video_count_last'+str(i+1)},inplace=True)
#对于某些日期用户没有视频播放行为，使用0填充的方式进行填充
train = train.fillna(0)
test = test.fillna(0)

#保存视频播放时长和视频播放次数数据
pb_feats = []
for i in range(8):
    pb_feats.append('playtime_last'+str(i))
    pb_feats.append('video_count_last'+str(i))
#构建新的视频播放表单
train[['user_id','date']+pb_feats].to_csv('F:\Jupyter Files\时间序列\data\output_data\online_train_pb.csv',index=False)
test[['user_id','date']+pb_feats].to_csv('F:\Jupyter Files\时间序列\data\output_data\online_test_pb.csv',index=False)

2.3 数据表3-用户画像数据：user_portrait_data.csv

user_trait = pd.read_csv('F:\\Jupyter Files\\时间序列\\data\\original_data\\user_portrait_data.csv')
user_trait.head()

	user_id	device_type	device_ram	device_rom	sex	age	education	occupation_status	territory_code
0	10209854	2.0	5731	109581	1.0	2.0	0.0	1.0	865101.0
1	10230057	2.0	1877	20888	1.0	4.0	0.0	1.0	864102.0
2	10194990	2.0	7593	235438	2.0	3.0	1.0	1.0	866540.0
3	10046058	2.0	NaN	55137	1.0	4.0	0.0	1.0	NaN
4	10290885	2.0	2816	52431	1.0	4.0	0.0	0.0	NaN

def deal_ram_rom(x):
    if type(x)==float:
        return np.nan
    elif len(x)==1:
        return int(x[0])
    else:
        return np.mean([eval(i) for i in x])
for i in ['device_ram','device_rom']:
    user_trait['ls_'+i] = user_trait[i].apply(lambda x: x.split(';') if type(x)==str else np.nan)
    user_trait[i+'_new'] = user_trait['ls_'+i].apply(lambda x: deal_ram_rom(x))
trait_feats = ['device_type','sex','age','education','occupation_status','device_ram_new','device_rom_new']
user_trait[['user_id']+trait_feats].to_csv('features/user_trait_feature.csv',index=False)

2.4 数据表-登录类型：app_launch_logs.csv

from scipy import stats
launch = pd.read_csv('F:\\Jupyter Files\\时间序列\\data\\original_data\\app_launch_logs.csv')
launch = launch[launch['user_id'].isin(test_a['user_id'])]
launch.head()

	user_id	launch_type	date
50	10106622	0	129
99	10319842	0	129
100	10383611	0	129
140	10305513	0	129
189	10563669	0	129

launch_type = launch.groupby(['user_id','date'],as_index=False).agg(list)
launch_type['len'] = launch_type['launch_type'].apply(lambda x: len(x))
launch_type['launch_type'].value_counts()

[0]       263882
[1]         6064
[0, 1]       502
[1, 0]       490
[0, 0]        37
[1, 1]         2
Name: launch_type, dtype: int64

def encode_launch_type(row):
    length = row['len']
    ls = row['launch_type']
    if length==2:
        return 2
    else:
        return ls[0]
launch_type['launch_type_new'] = launch_type.apply(encode_launch_type, axis=1)
launch_type['launch_type_new'] = launch_type['launch_type_new']+1
launch_type['launch_type_new'] = launch_type['launch_type_new'].fillna(0)
train = pd.merge(train, launch_type[['user_id','date','launch_type_new']], how='left')
test = pd.merge(test, launch_type[['user_id','date','launch_type_new']], how='left')

df_group.rename(columns={'date':'date_list'},inplace=True)
test = pd.merge(test,df_group[['user_id','date_list']],how='left')
#最近一次登录时间间隔
def get_last_diff(row):
    date_list = row['date_list']
    date_now = row['date']
    ls = [x for x in date_list if x<=date_now]
    return date_now - max(ls) if len(ls)>0 else np.nan
train['diff_near'] = train.apply(get_last_diff, axis=1)
test['diff_near'] = test.apply(get_last_diff, axis=1)
#当天是否登录
def is_launch(row):
    return 1 if row['date'] in row['date_list'] else 0
train['is_launch'] = train.apply(is_launch, axis=1)
test['is_launch'] = test.apply(is_launch, axis=1)

#历史总登录次数
def GetLaunchNum(row):
    end_date_ = row['date']
    date_list = row['date_list']
    return sum([1 for x in date_list if x<= end_date_])
train['launchNum'] = train.apply(GetLaunchNum, axis=1)
test['launchNum'] = test.apply(GetLaunchNum, axis=1)

#近一周的登录次数
def GetNumLastWeek(row):
    end_date_ = row['date']
    date_list = row['date_list']
    return sum([1 for x in date_list if x<= end_date_ and x > end_date_-7])
train['NumLastWeek'] = train.apply(GetNumLastWeek, axis=1)
test['NumLastWeek'] = test.apply(GetNumLastWeek, axis=1)

#前一个月的label中位数以及前四周的label均值
train = train.sort_values(['user_id','date']).reset_index(drop=True)
train_sta = train[['user_id','date','label']].groupby('user_id',as_index=False).agg(list)
train_sta.columns = ['user_id','date_all_list','label_list']
train = pd.merge(train,train_sta,how='left')

test = test.sort_values(['user_id','date']).reset_index(drop=True)
df_ = df_.sort_values(['user_id','date']).reset_index(drop=True)
df_sta = df_[['user_id','date','label']].groupby('user_id',as_index=False).agg(list)
df_sta.columns = ['user_id','date_all_list','label_list']
test = pd.merge(test,df_sta,how='left')

#用户在当前日期和预测日期之间的所有7日留存分列表
def get_his_label(row):
    end_date = row['date']
    date_all = row['date_all_list']
    ls_label = row['label_list']
    ls_new = [x for x in date_all if x+7<=end_date]
    return ls_label[:len(ls_new)]

train['label_his_list'] = train.apply(get_his_label, axis=1)
#前一个月的label中位数
train['preds_median_30'] = train['label_his_list'].apply(lambda x: np.median(x[-30:]))
#前四周的label均值
# lambda函数中的代码是一个列表推导式，用于计算label_his_list中4个元素的平均值。具体来说，通过循环遍历label_his_list的满足条件的4个元素（即倒数第1、8、15和22个元素），并将这些元素取出来，然后使用np.mean函数计算这些元素的平均值。
train['preds_mean_4'] = train['label_his_list'].apply(lambda x: np.mean([x[i] for i in range(-1*len(x),0) if i==-1 or i==-8 or i==-15 or i==-22]))

test['label_his_list'] = test.apply(get_his_label, axis=1)
test['preds_median_30'] = test['label_his_list'].apply(lambda x: np.median(x[-30:]))
test['preds_mean_4'] = test['label_his_list'].apply(lambda x: np.mean([x[i] for i in range(-1*len(x),0) if i==-1 or i==-8 or i==-15 or i==-22]))

#加权平均数
def Get_mean_4_weighted(row):
    tmp = row['label_his_list']

    if len(tmp) >= 22:
        return tmp[-1] * 0.4 + tmp[-8] * 0.3 + tmp[-15] * 0.2 + tmp[-22] * 0.1
    elif len(tmp) >= 15:
        return tmp[-1] * 0.4 + tmp[-8] * 0.3 + tmp[-15] * 0.2
    elif len(tmp) >= 8:
        return tmp[-1] * 0.4 + tmp[-8] * 0.3
    elif len(tmp) >= 1:
        return tmp[-1] * 0.4
    else:
        return 0
train['preds_mean_4_weighted'] = train.apply(Get_mean_4_weighted,axis=1)
test['preds_mean_4_weighted'] = test.apply(Get_mean_4_weighted,axis=1)

#加权中位数
import sys
sys.path.append('wquantiles-0.6/')
import wquantiles
# wquantiles.median函数是一个用于计算加权中位数的函数。使用wquantiles.median函数，需要传入两个参数：data和weights。data是一个一维数组，表示数据集；weights是一个一维数组，表示每个数据点的权重。
def GetWeightedMedian(row):
    tmp = row['label_his_list']
    tmp = tmp[-30:]
    weight = np.array([(x+1)/(30) for x in range(30)])
    if len(tmp) >= 30:
        return wquantiles.median(np.array(tmp),weight)
    else:
        tmp = [0 for x in range(30-len(tmp))] + tmp #创建一个长度为 `30-len(tmp)` 的列表，其中每个元素的值为0，并将 `tmp` 追加到该列表的末尾。
        return wquantiles.median(np.array(tmp),weight)

train['weighted_median'] = train.apply(GetWeightedMedian, axis=1)
test['weighted_median'] = test.apply(GetWeightedMedian, axis=1)

launch_feats = ['diff_near','is_launch','launch_type_new','launchNum','NumLastWeek','preds_median_30',
                'preds_mean_4','preds_mean_4_weighted','weighted_median']
train[['user_id','date']+launch_feats].to_csv('F:\Jupyter Files\时间序列\data\output_data\launch_online_train.csv',index=False)
test[['user_id','date']+launch_feats].to_csv('F:\Jupyter Files\时间序列\data\output_data\launch_online_test.csv',index=False)

2.5 合并数据表生成训练集&测试集

train_pb = pd.read_csv('F:\\Jupyter Files\\时间序列\\data\\output_data\\online_train_pb.csv')
train = pd.merge(train, train_pb, how='left')
test_pb = pd.read_csv('F:\\Jupyter Files\\时间序列\\data\\output_data\\online_test_pb.csv')
test = pd.merge(test, test_pb, how='left')

user_trait = pd.read_csv('F:\\Jupyter Files\\时间序列\\data\\output_data\\user_trait_feature.csv')
train = pd.merge(train, user_trait, how='left')
test = pd.merge(test, user_trait, how='left')

launch_train = pd.read_csv('F:\\Jupyter Files\\时间序列\\data\\output_data\\launch_online_train.csv')
train = pd.merge(train, launch_train, how='left')
launch_test = pd.read_csv('F:\\Jupyter Files\\时间序列\\data\\output_data\\launch_online_test.csv')
test = pd.merge(test, launch_test, how='left')

launch = pd.read_csv('F:\\Jupyter Files\\时间序列\\data\\original_data\\app_launch_logs.csv')
launch = launch.drop_duplicates()
launch.index = range(launch.shape[0]) #删除样本后需要恢复索引
df_launch = launch.groupby("date").count()
import matplotlib.pyplot as plt
import seaborn as sns
plt.figure(figsize=(15,9),dpi=200)
sns.set(style="white",font="Simhei", font_scale=1.1)
plt.bar(df_launch.index,df_launch["user_id"],color="#01a2d9",alpha=0.7)
plt.title("不同日期登录的总用户数(条形图)",fontsize=25)
plt.grid()
plt.xticks(ticks = range(100,221,7),fontsize=14);

根据上图可知，用户登录的情况明显具有一定的周期性。从107日开始，大约每7天就会出现2天登录高峰，猜测可能是周末。这种规律一直持续到了191日，持续了大约11-12周，猜测可能是某部剧/综艺节目的上线带来了这种效应。在数据明显按星期/月份有周期性的情况下，我们可以在对时间数据进行特征衍生时、构建基于星期、基于月份的时间特征。在本方案中，冠军团队日期为130设为星期一。

train['week'] = train['date'].apply(lambda x: (x-130)%7+1)
test['week'] = test['date'].apply(lambda x: (x-130)%7+1)
playback = pd.read_csv('F:\\Jupyter Files\\时间序列\\data\\original_data\\user_playback_data.csv')
playback = playback[playback['user_id'].isin(test['user_id'])]
user_list =set(playback['user_id'])

feats = ['playtime_last0', 'video_count_last0', 'playtime_last1', 'video_count_last1', 'playtime_last2', 'video_count_last2','playtime_last3', 'video_count_last3', 'playtime_last4', 'video_count_last4', 'playtime_last5', 'video_count_last5','playtime_last6', 'video_count_last6', 'playtime_last7', 'video_count_last7', 'device_type', 'sex','age','education','occupation_status','device_ram_new','device_rom_new','diff_near','is_launch','launch_type_new','launchNum','NumLastWeek','preds_median_30','preds_mean_4','preds_mean_4_weighted','weighted_median','week']
len(feats) #33
cat_list = ['device_type','sex','age','education','occupation_status','week','is_launch','launch_type_new']

#构建训练集
train_pos = train[train['label']>0]
train_neg = train[train['label']==0]
# 从label=0的数据集中随机抽取70%的样本，并按照新的索引重置数据帧的索引，同时丢弃原有的索引
train_neg_new = train_neg.sample(frac=0.7,random_state=2).reset_index(drop=True)
train = pd.concat([train_pos, train_neg_new])
train = train.sample(frac=1,random_state=2).reset_index(drop=True)

#继续特征衍生，这里衍生的特征在用于后续xgboost模型
for each_feat in cat_list:
    train[each_feat] = train[each_feat].fillna(0)
    test[each_feat] = test[each_feat].fillna(0)

    train[each_feat] = train[each_feat].astype(int)
    test[each_feat] = test[each_feat].astype(int)
for each_feat in cat_list:
    df_tmp = train.groupby(each_feat,as_index=False)['label'].median()
    dict_tmp = dict(zip(df_tmp[each_feat],df_tmp['label']))

    train[each_feat+'_label'] = train[each_feat].apply(lambda x: dict_tmp[x])
    test[each_feat+'_label'] = test[each_feat].apply(lambda x: dict_tmp[x])
cat_list_new = [x+'_label' for x in cat_list]

2.6 特征工程&特征筛选总结

1.视频播放状况：提取了用户当天和前七天每天的视频播放时长以及视频播放数量。

2.用户个人信息：利用了除用户的地区编号外的所有信息。对于device_rom和device_ram中一个用户存在多个值的情况，做了求均值的处理。

3.用户登录情况：提取了当天是否登录、登录类型、历史总登录次数、近一周的总登录次数以及最近一次登录距离当前时间点的时间差。

4.历史标签：提取了用户前一个月标签的中位数、用户前四周对应时间点标签的均值、加权均值以及加权中位数。其中，前四周对应的时间点是end_date-7、end_date-14、end_date-21和end_date-28。加权均值和加权中位数对较近的时间点赋较大的权重。这类特征很好地反应了用户登录的周期特点。

5.星期特征：通过分析每天用户的总登录次数，可发现用户登录总次数呈现以7天为周期的周期规律，且大致可以判断每个时间点为周几。根据上图所示，可以判断出第130天为周一。据此，给定任意date，其weekday可由计算得到。

3.模型建立

3.1 lightgbm

clf = lgbm.LGBMRegressor( objective='regression',max_depth=5, num_leaves=32, learning_rate=0.01, n_estimators=2500
                         , reg_alpha=0.1,reg_lambda=0.1, random_state=2021, subsample = 0.8, min_child_samples=500)
clf.fit(train[feats],train['label'],categorical_feature=cat_list)
test['pre_lgb'] = clf.predict(test[feats])
test['pre_lgb'] = test['pre_lgb'].apply(lambda x: 0 if x<0 else x)
test['pre_lgb'] = test['pre_lgb'].apply(lambda x: 7 if x>7 else x)

3.2 catboost

cbt = cat.CatBoostRegressor(
        iterations=500, learning_rate=0.1,
        depth=6, l2_leaf_reg=3,
        verbose=False,
        random_seed=2021)
cbt.fit(train[feats],train['label'],cat_features=cat_list)
test['pre_cat'] = cbt.predict(test[feats])
test['pre_cat'] = test['pre_cat'].apply(lambda x: 0 if x<0 else x)
test['pre_cat'] = test['pre_cat'].apply(lambda x: 7 if x>7 else x)

3.3 xgboost

在用xgboost建模中，冠军团队多加了cat_list_new特征，具体为什么这么做，我暂时还搞不懂😅

new_feats = [x for x in feats+cat_list_new if x not in cat_list]
clf_xgb = xgb.XGBRegressor(max_depth=5,n_estimators=200,learning_rate=0.15,subsample=0.8,
                          reg_alpha=0.1,reg_lambda=0.2,base_score=0, min_child_weight=5,
                          )
clf_xgb.fit(train[new_feats],train['label'])
test['pre_xgb'] = clf_xgb.predict(test[new_feats])
test['pre_xgb'] = test['pre_xgb'].apply(lambda x: 0 if x<0 else x)
test['pre_xgb'] = test['pre_xgb'].apply(lambda x: 7 if x>7 else x)

3.4 后处理

res = pd.merge(test, df_group[['user_id','date_max']],how='left')
res['diff_date'] = res['date'] - res['date_max']

将大于30天未登录的7日留存分设为0，预测值小于0.5且没看过视频的设为0

#lightgbm
def revise_pre(row):
    if row['user_id'] not in user_list and row['pre_lgb']<0.5:
        return 0
    else:
        return row['pre_lgb']
res.loc[res['diff_date']>=30,'pre_lgb'] = 0
res['pre_lgb'] = res.apply(revise_pre, axis=1)

#catboost
def revise_pre(row):
    if row['user_id'] not in user_list and row['pre_cat']<0.5:
        return 0
    else:
        return row['pre_cat']
res.loc[res['diff_date']>=30,'pre_cat'] = 0
res['pre_cat'] = res.apply(revise_pre, axis=1)

#xgboost
def revise_pre(row):
    if row['user_id'] not in user_list and row['pre_xgb']<0.5:
        return 0
    else:
        return row['pre_xgb']

res.loc[res['diff_date']>=30,'pre_xgb'] = 0
res['pre_xgb'] = res.apply(revise_pre, axis=1)

3.5 模型融合

res['pre_avg'] = 3/( 1/(res['pre_xgb']+0.00001)  + 1/(res['pre_lgb']+0.00001)  + 1/(res['pre_cat']+0.00001))

3.6 再处理

res['pre_avg'] = res['pre_avg'].apply(lambda x: 7 if x>6.5 else x)
res['pre_avg'] = res['pre_avg'].apply(lambda x: 0 if x<0.4 else x)
res['pre_avg'] = res['pre_avg'].apply(lambda x: round(x,2))
res.loc[res['pre_avg']<0.5,'pre_avg'] = 0
res.loc[(res['pre_avg']>0.6)&(res['pre_avg']<1.4),'pre_avg'] = 1
res.loc[(res['pre_avg']>1.55)&(res['pre_avg']<2.4),'pre_avg'] = 2
res.loc[(res['pre_avg']>2.55)&(res['pre_avg']<3.4),'pre_avg'] = 3
res.loc[(res['pre_avg']>3.55)&(res['pre_avg']<4.4),'pre_avg'] = 4
res.loc[(res['pre_avg']>4.55)&(res['pre_avg']<5.2),'pre_avg'] = 5
res.loc[(res['pre_avg']>5.55)&(res['pre_avg']<6.2),'pre_avg'] = 6

生成最终结果：

res[['user_id','pre_avg']].to_csv('F:\Jupyter Files\时间序列\data\output_data\submission.csv',index=False, header=False, float_format="%.2f")
