LED控制器设计（VHDL语言）

实验要求：

利用硬件描述语言设计一自定义译码器，其主要功能为下表所示：

SW0  SW1   SW2   SW3	LED0~LED3
↓     x     x      x	流水点亮
1      ↓    x      x	间隔点亮
1      1     ↓     x	追逐点亮
1      1     1      ↓	全部亮，并闪烁

其中，↓表示有键按下，1表示无键按下，x表示不管有没有按键； 流水点亮即为LED0先亮，然后LED0灭，LED1亮，依次类推；间隔点亮即为第一状态为LED0亮，第二状态为LED0保持亮、LED2亮，依次类推；追逐点亮即为第一状态为只有LED0亮，第二状态为LED0保持亮、LED1点亮，依次类推。

代码：

LIBRARY IEEE;
USE IEEE.STD_LOGIC_1164.All;
USE IEEE.STD_LOGIC_ARITH.ALL;
USE IEEE.STD_LOGIC_UNSIGNED.ALL;

ENTITY Vhdl1 IS
	 port (sys_clk,rst1:IN std_logic;
	       key1,key2,key3,key4:IN std_logic;
          led_tmp: OUT std_logic_vector(3 DOWNTO 0));
END Vhdl1;

ARCHITECTURE behav OF Vhdl1 IS
      signal tmp:std_logic_vector(3 DOWNTO 0);
      signal cnt:integer range 0 to 3;
      signal clk:std_logic;
BEGIN

     PROCESS(sys_clk)--时钟分频
          variable num:integer range 1 to 24000000;
     BEGIN
         if rising_edge(sys_clk)then
            if num = 24000000
               then num := 1;clk<= not clk;
               else num := num+1;
            END if;
			END if;
     END PROCESS;

     PROCESS(clk,rst1)
          variable  key:std_logic_vector(4 DOWNTO 0);
     BEGIN
         key := (key1&key2&key3&key4&rst1);
         if rising_edge(clk)then
            CASE key is
	            when "01111"=>tmp<="0111";--按键0
	            when "10111"=>tmp<="1011";--按键1
               when "11011"=>tmp<="1101";--按键2
               when "11101"=>tmp<="1110";--按键3
	            when "11110"=>tmp<="1111";--复位信号
               when OTHERS =>NULL;
            END CASE;
          END if;
      END PROCESS;
      PROCESS(tmp,clk)
      BEGIN
         if rising_edge(clk)then
	         CASE  tmp is
	            when  "1111" =>led_tmp <= "1111";cnt<=0;--复位信号
	            when  "0111" =>--按键0 流水灯点亮
	               CASE cnt IS
				         when 0 =>led_tmp<="1000";cnt<=cnt+1;
			            when 1 =>led_tmp<="0100";cnt<=cnt+1;
			            when 2 =>led_tmp<="0010";cnt<=cnt+1;
				         when 3 =>led_tmp<="0001";cnt<=0;
				         when OTHERS =>NULL;
                  END CASE;
	            when "1011" =>--按键1 间隔点亮
				      CASE cnt IS
				         when 0 =>led_tmp<="1000";cnt<=cnt+1;
				         when 1 =>led_tmp<="1010";cnt<=cnt+1;
				         when 2 =>led_tmp<="0100";cnt<=cnt+1;
				         when 3 =>led_tmp<="0101";cnt<=0;
				         when OTHERS =>NULL;
 	               END CASE;
	            when "1101" =>--按键2 追逐点亮
		            CASE cnt IS
				         when 0 =>led_tmp<="1000";cnt<=cnt+1;
				         when 1 =>led_tmp<="1100";cnt<=cnt+1;
				         when 2 =>led_tmp<="1110";cnt<=cnt+1;
				         when 3 =>led_tmp<="1111";cnt<=0;
	                  when OTHERS =>NULL;
                  END CASE;
	            when "1110" =>--按键3 全部点亮并闪烁
		            CASE cnt IS
				         when 0 =>led_tmp<="1111";cnt<=cnt+1;
				         when 1 =>led_tmp<="0000";cnt<=cnt+1;
				         when 2 =>led_tmp<="1111";cnt<=cnt+1;
				         when 3 =>led_tmp<="0000";cnt<=0;
	                  when OTHERS =>NULL;
                  END CASE;
	            when OTHERS =>NULL;
            END CASE;
         END if;
      END PROCESS;
END behav;

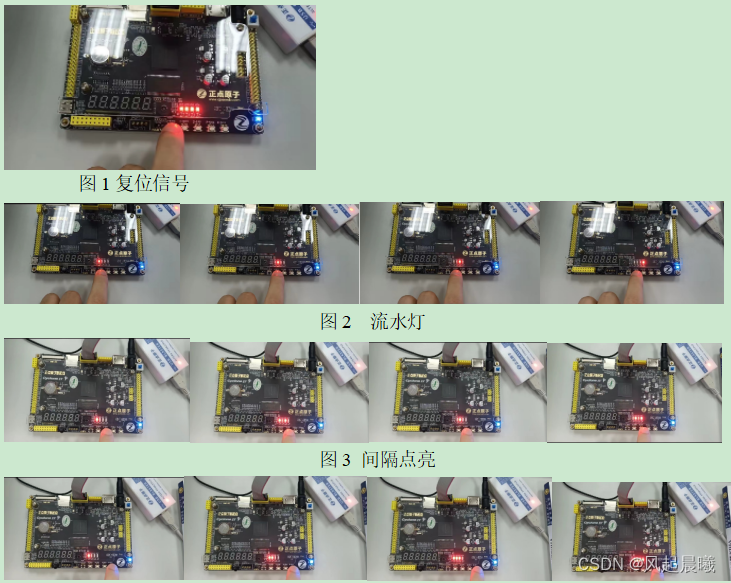

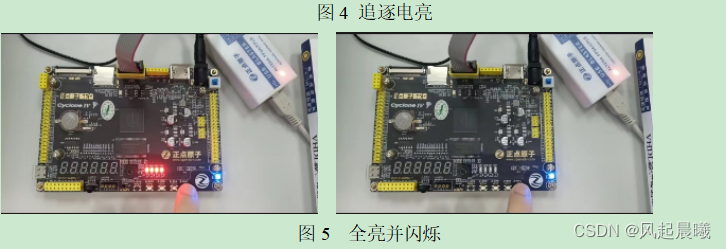

实验结果：
