表贴保险丝

1808贴片保险丝快断保险丝0451 1A 2A 3A 4A 5A 6.3A 7A 8A 10A

01 表贴保险丝

一、前言

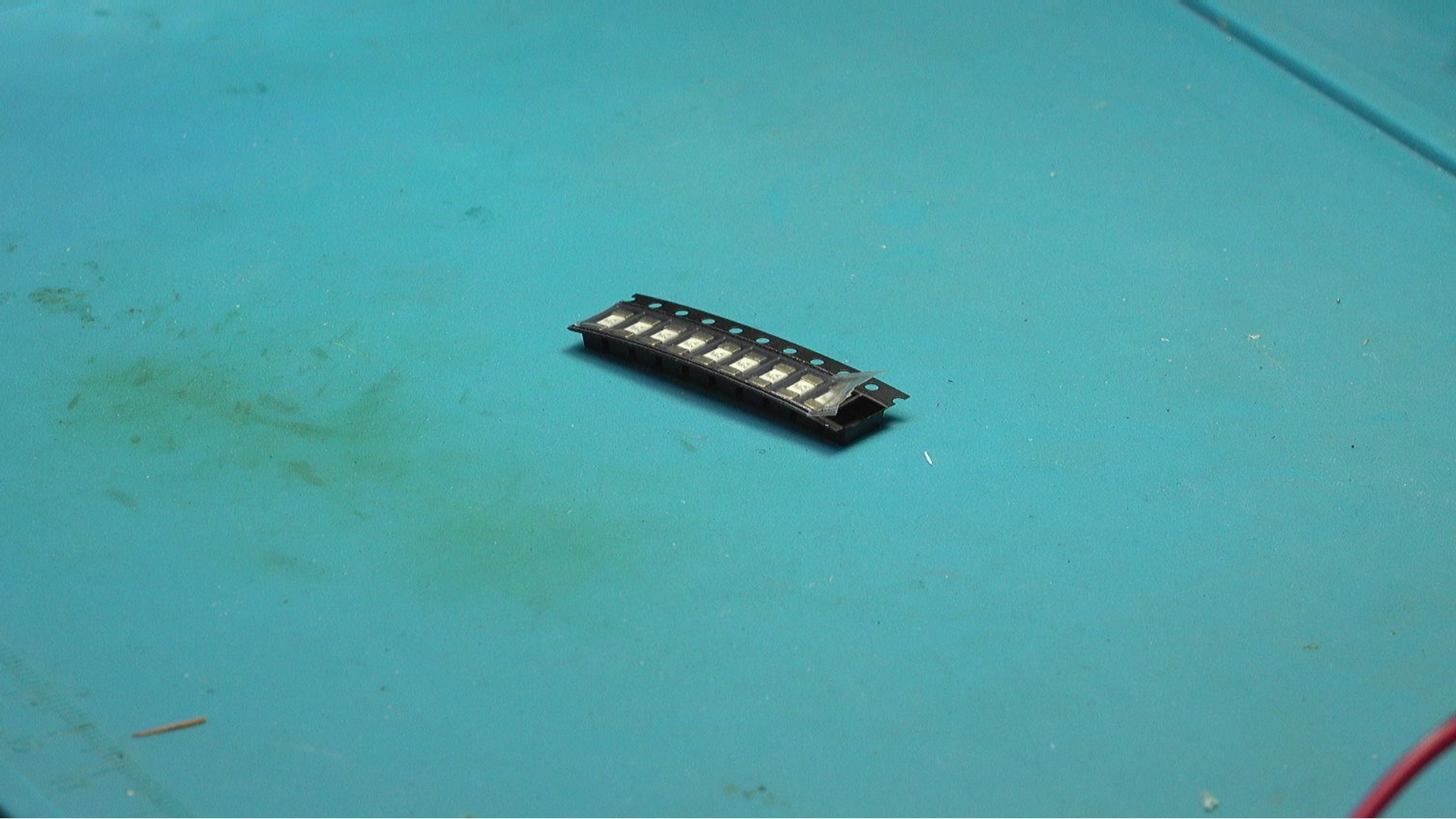

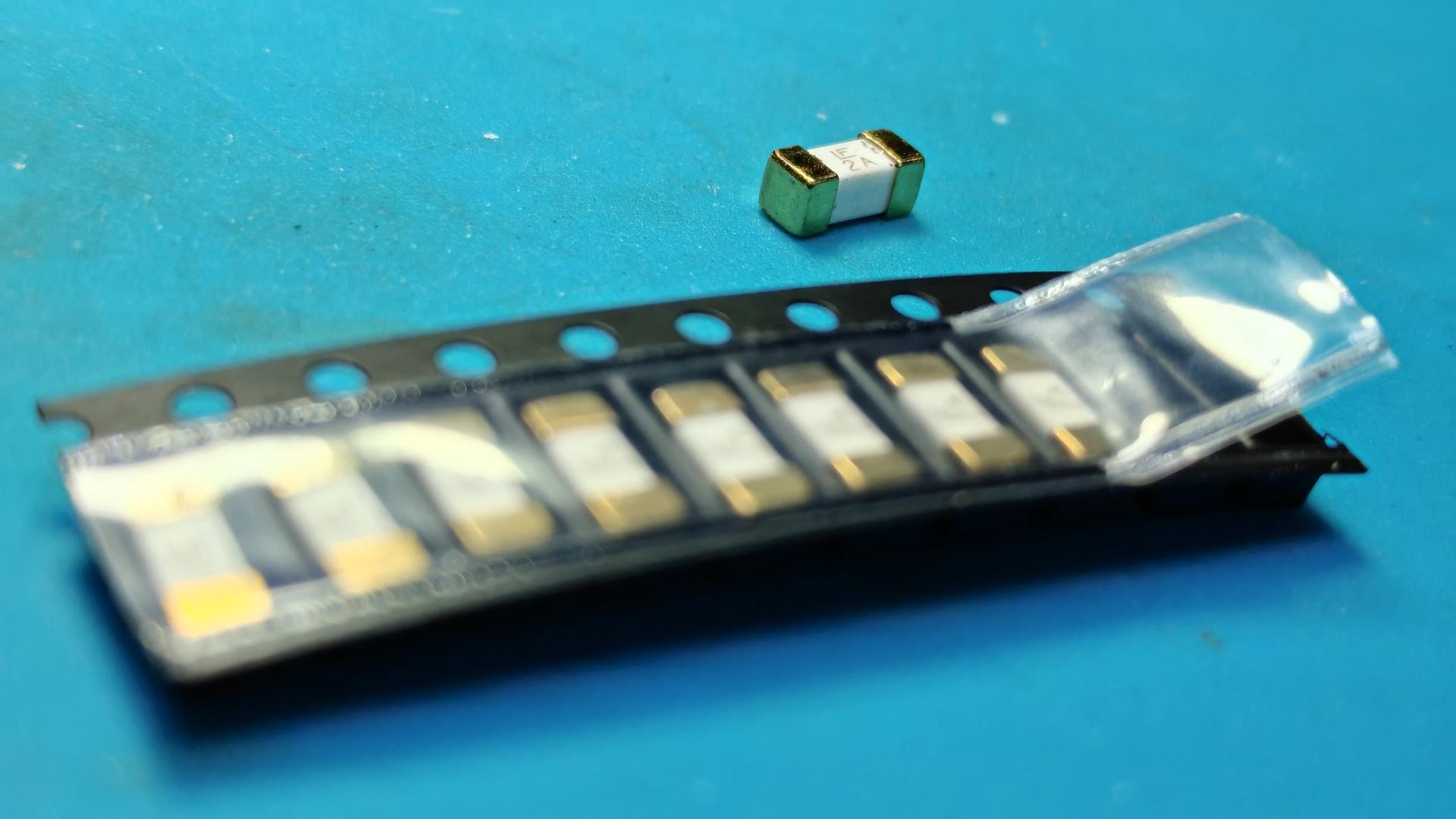

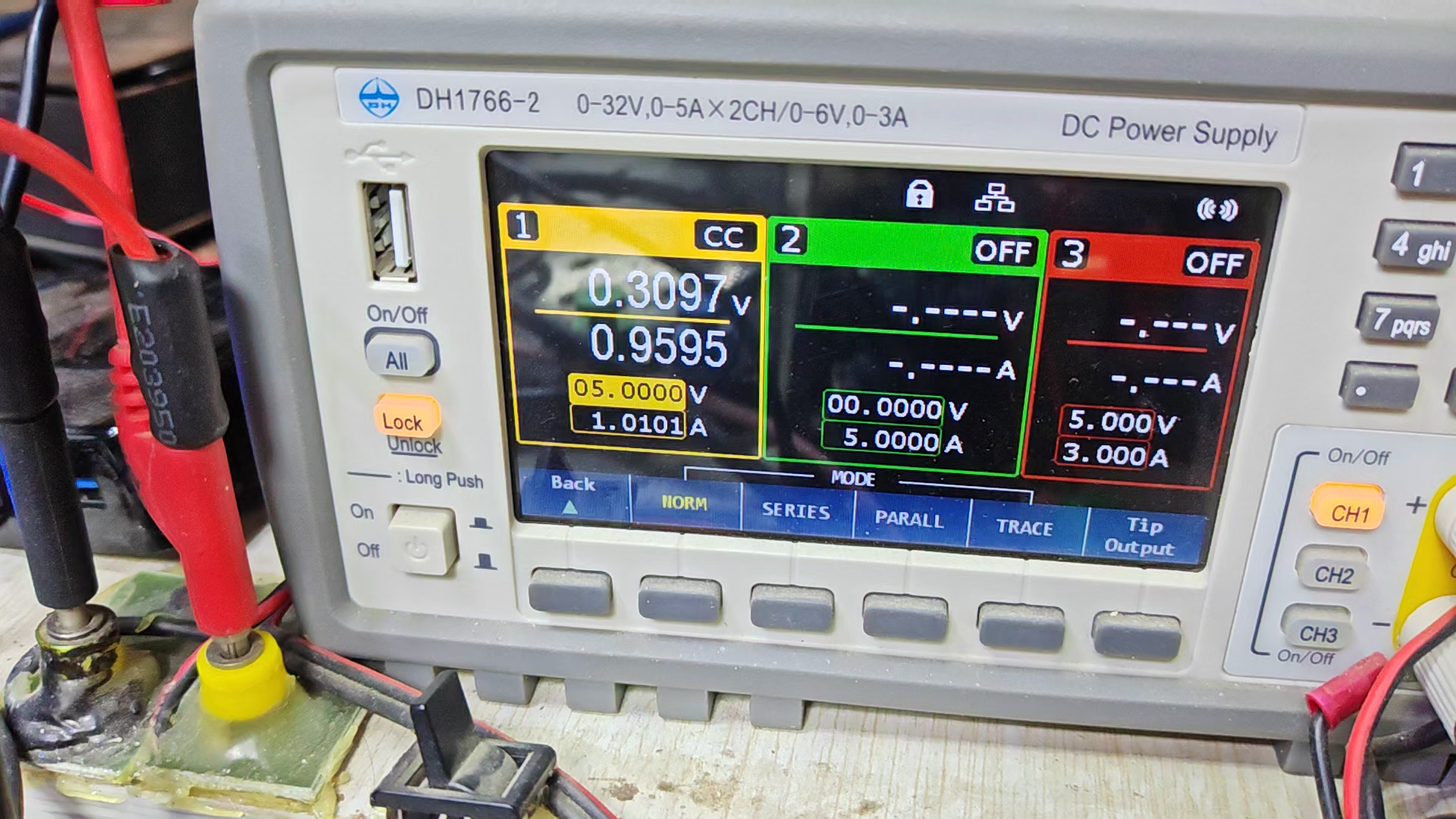

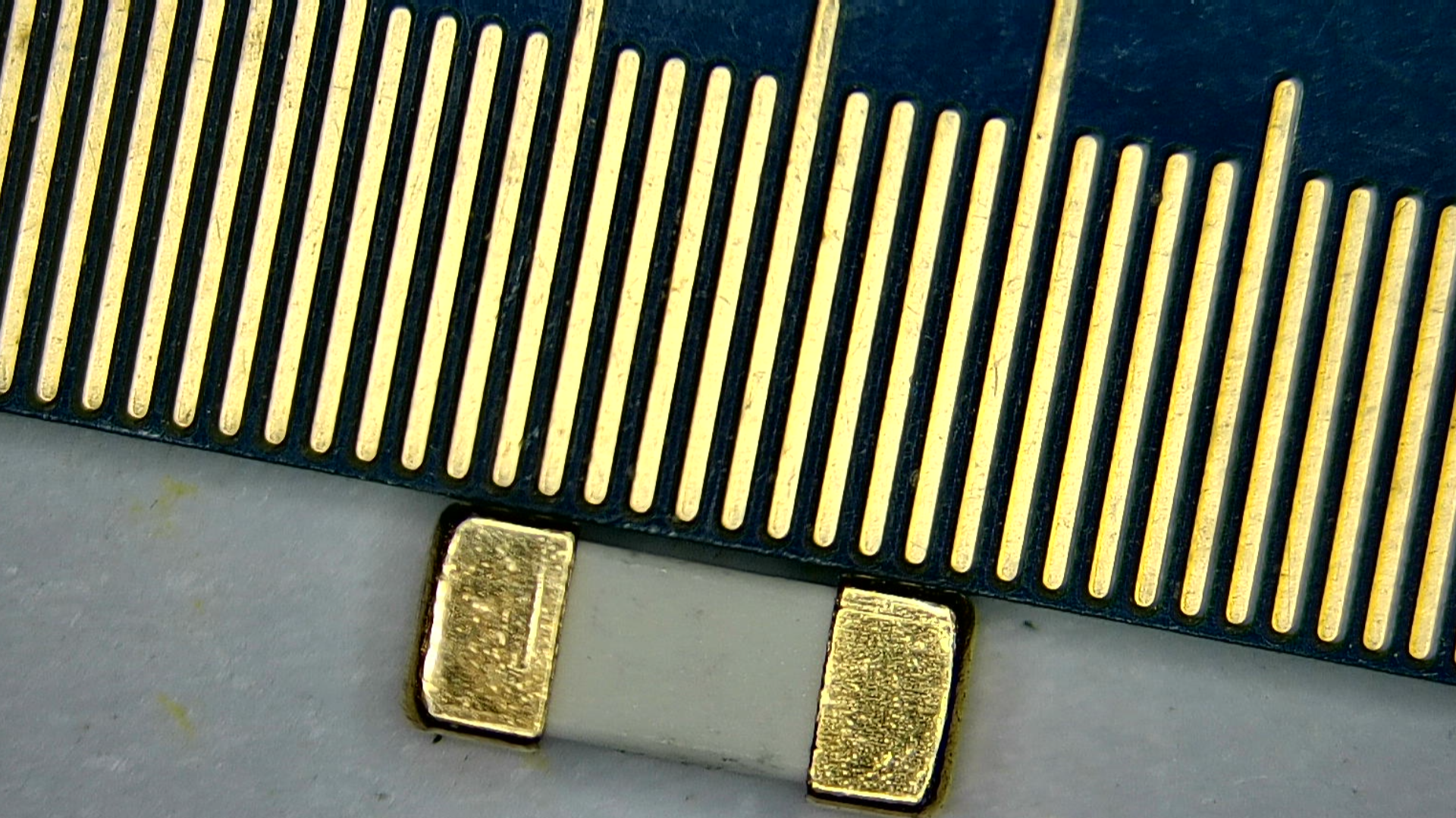

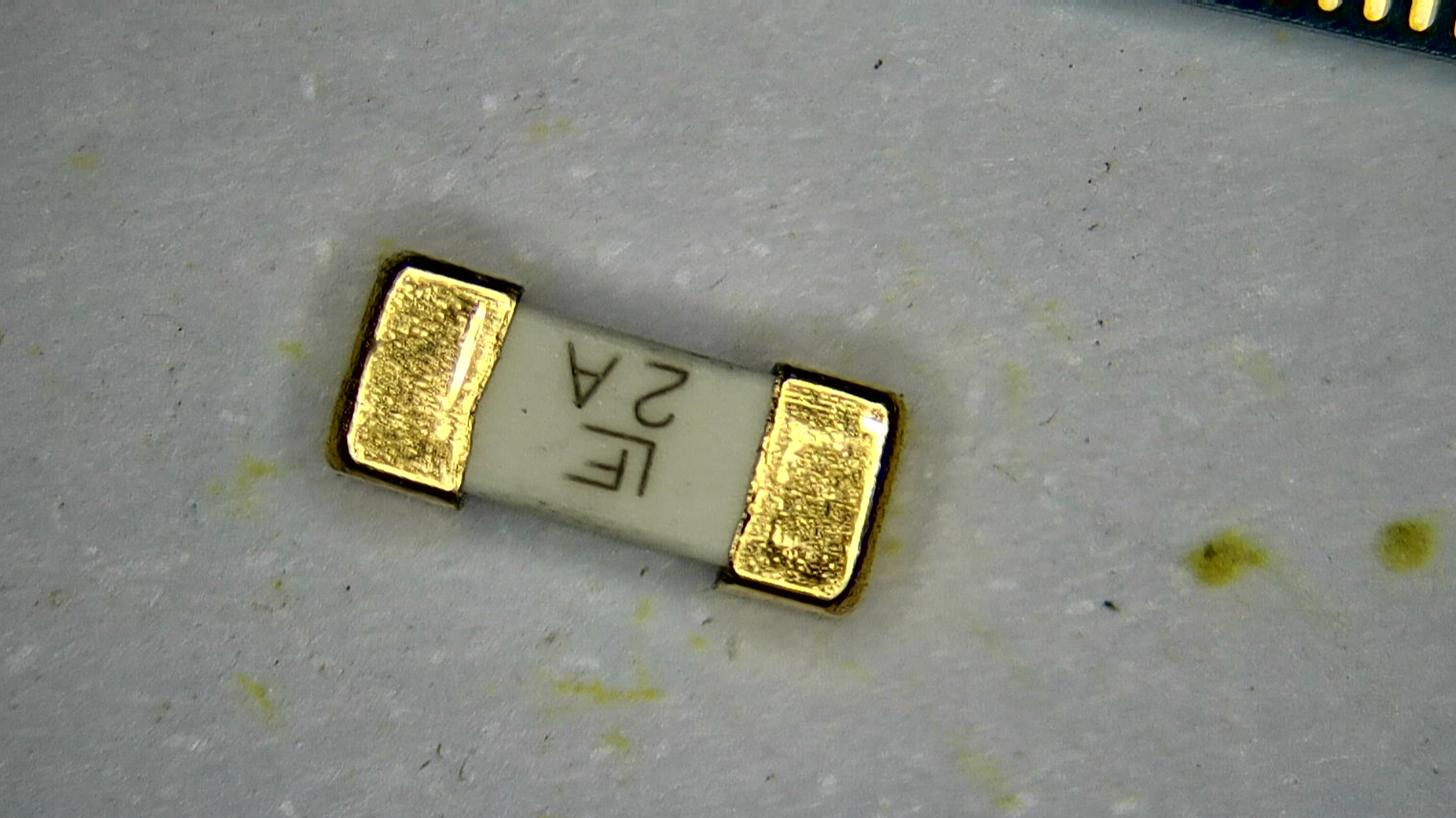

这是刚刚到货的表贴电流保险丝。它的封装尺寸为 1808。两端之间的间距超过 200 mil。下面测试一下他的特性。使用DH1766 可编程电源试探它的电流通过能力。

GM1715942627_1920_1080.MP4|_-5

二、测试结果

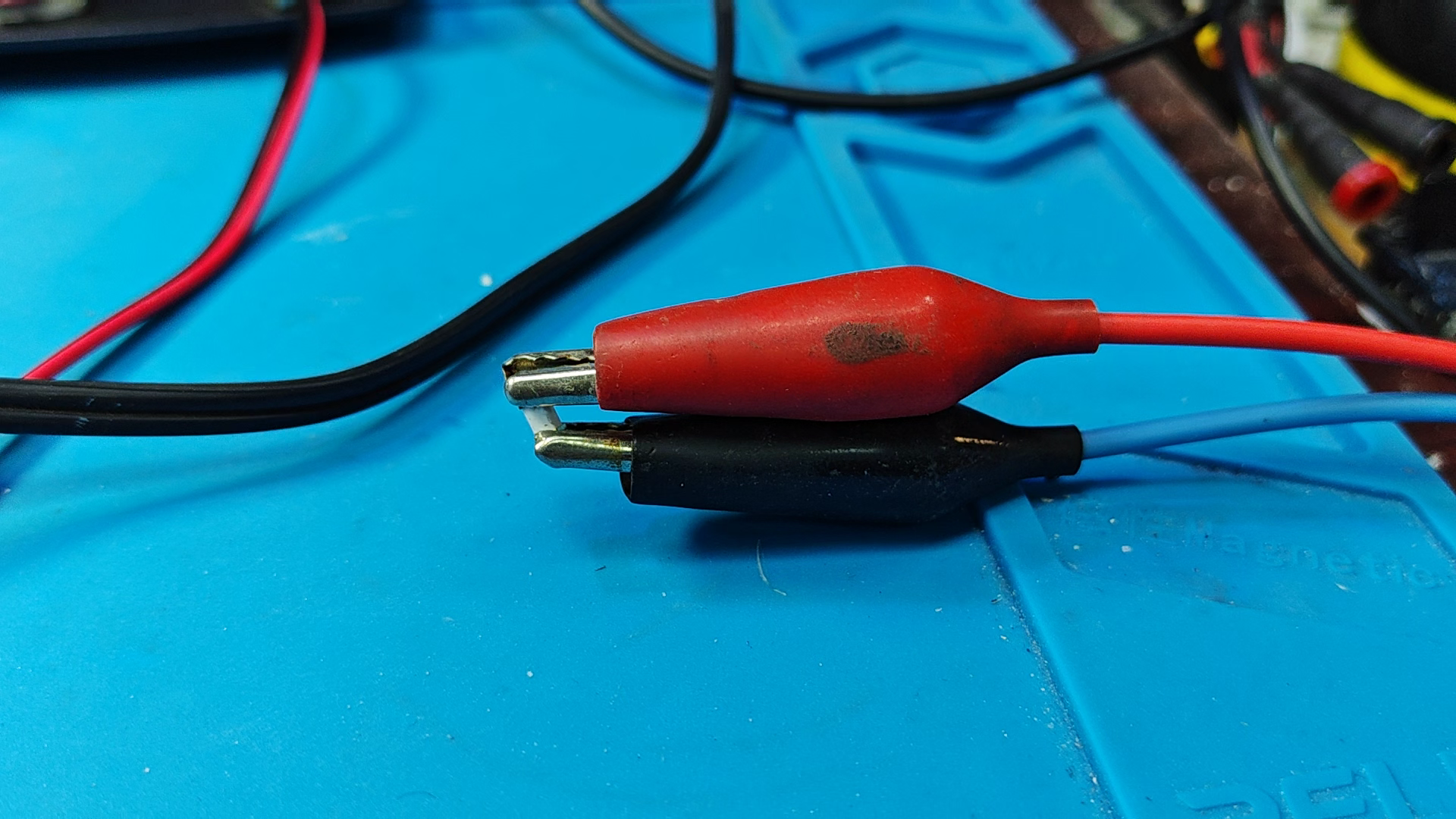

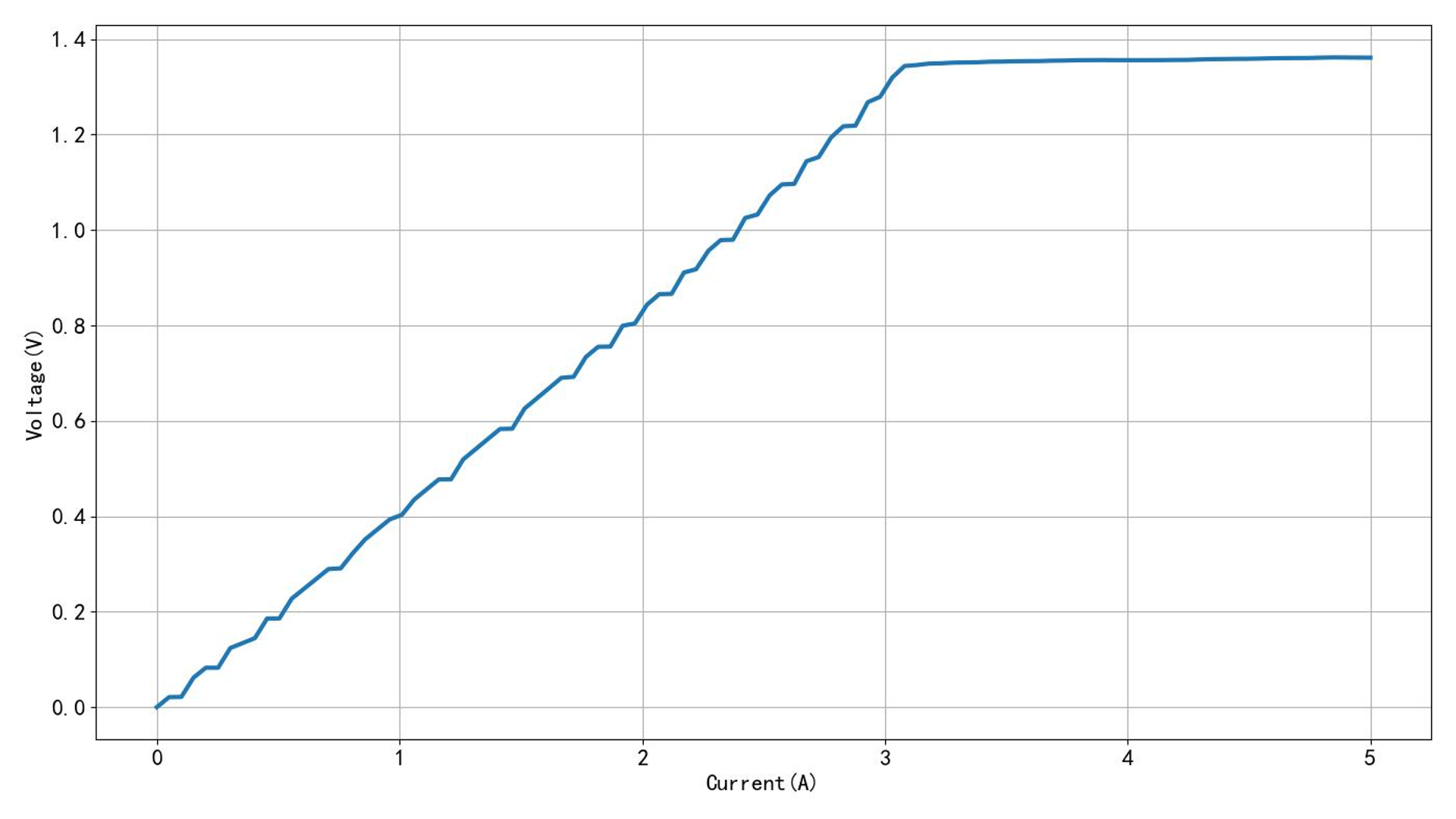

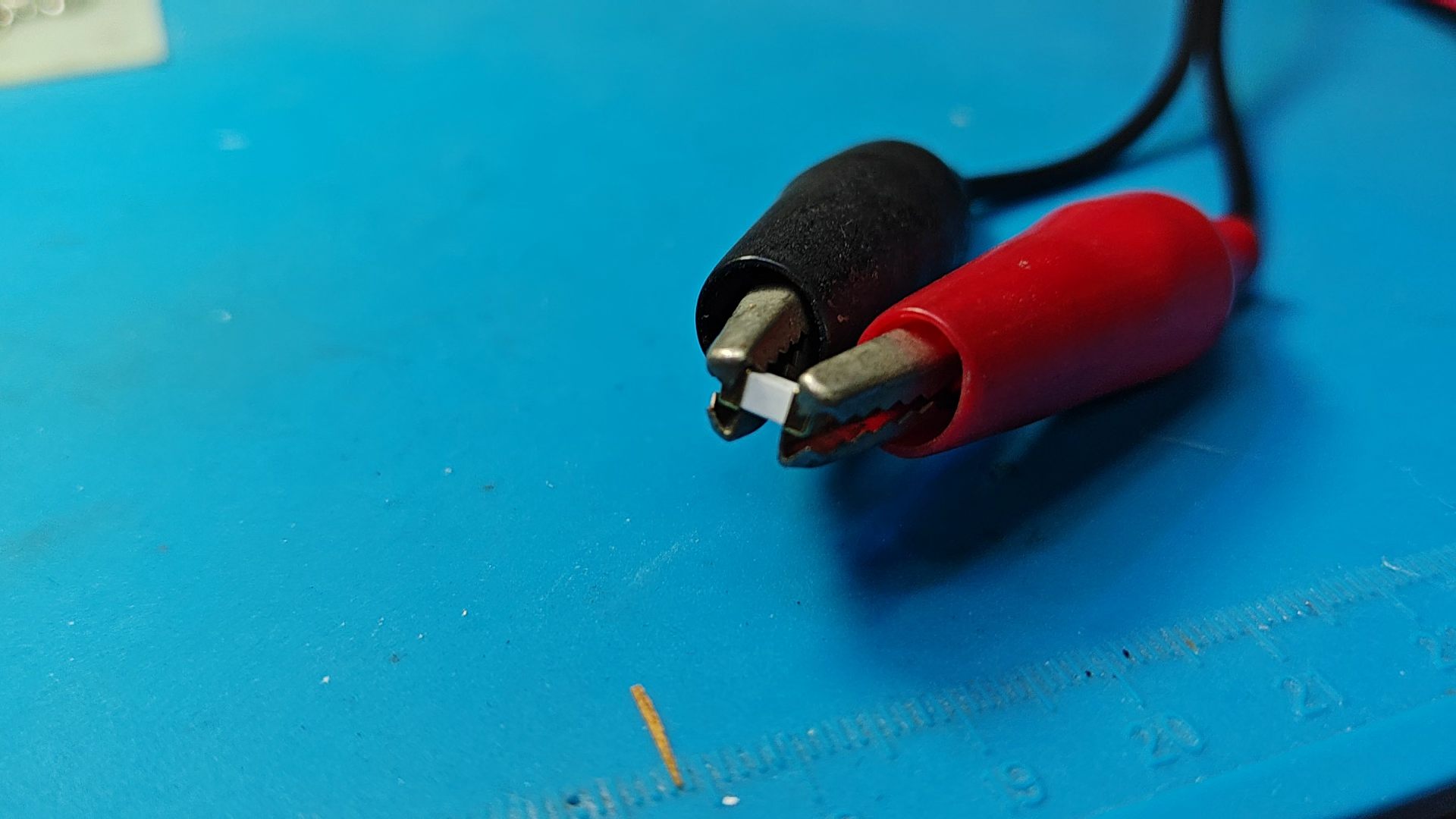

这款表贴的电流保险丝，标称值为 2安。下面使用鳄鱼嘴夹子将它与程控电源连接在一起。电源输出电流从0 逐步上升到5A，读取输出电压。记录每个电流下直流电源输出的电压值，不过现在所使用的电源最大只能达到3A。在3A时，保险丝还没有能够熔断。下面只能更换一个更大输出电流的电源再进行测试。

GM1715943515_1920_1080.MP4|_-6

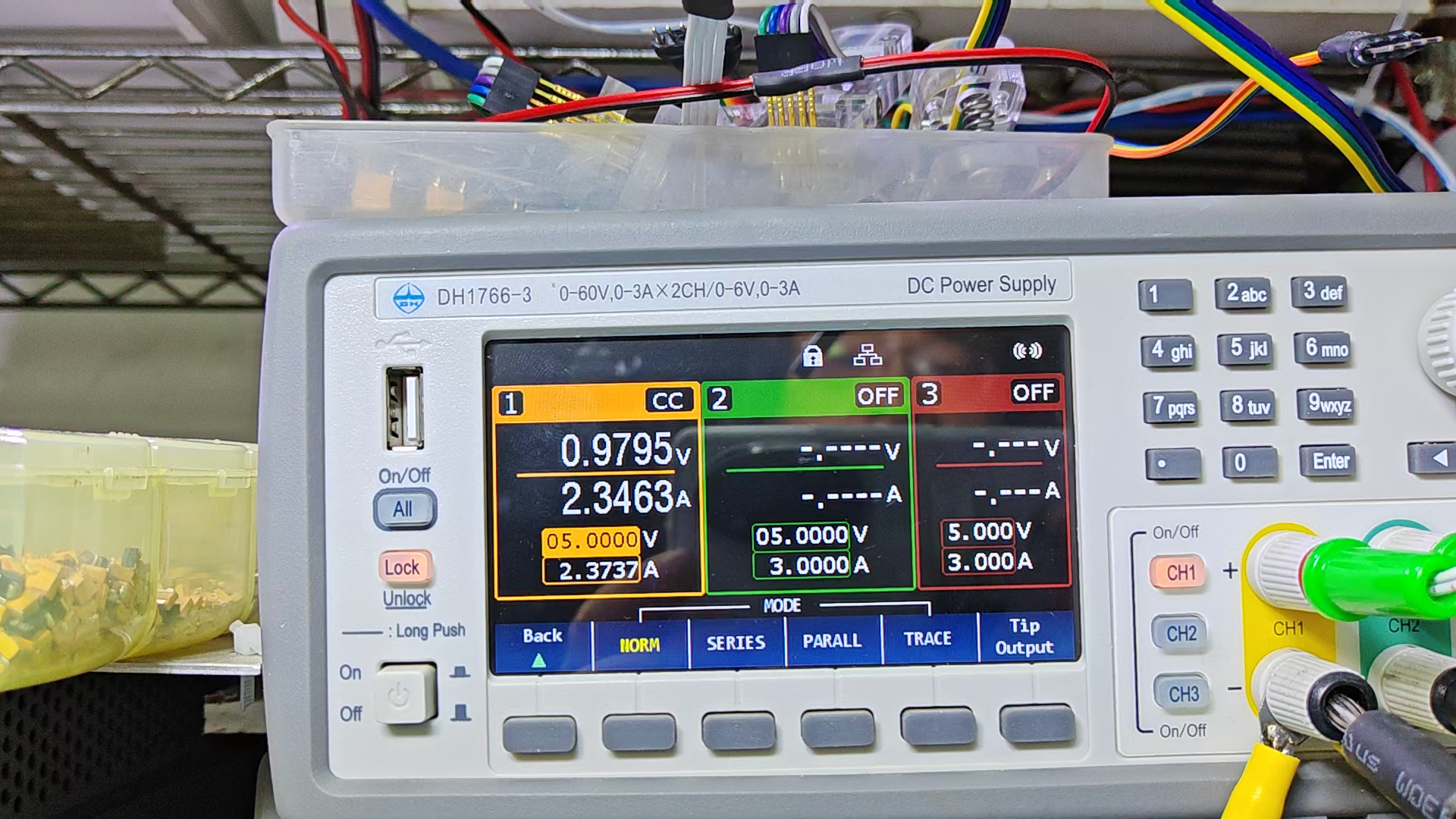

更换另外一台DH1766可编程直流电源。他的最大量程为 6A。重新测试在输出不同的电流下，保险丝的两端电压。通过测量数据曲线可以知道，保险丝在电流3.7A的时候熔断了。下面再测试另外一个保险丝，看看它的熔断电流时多少。

GM1715943983_1920_1080.MP4|_-6

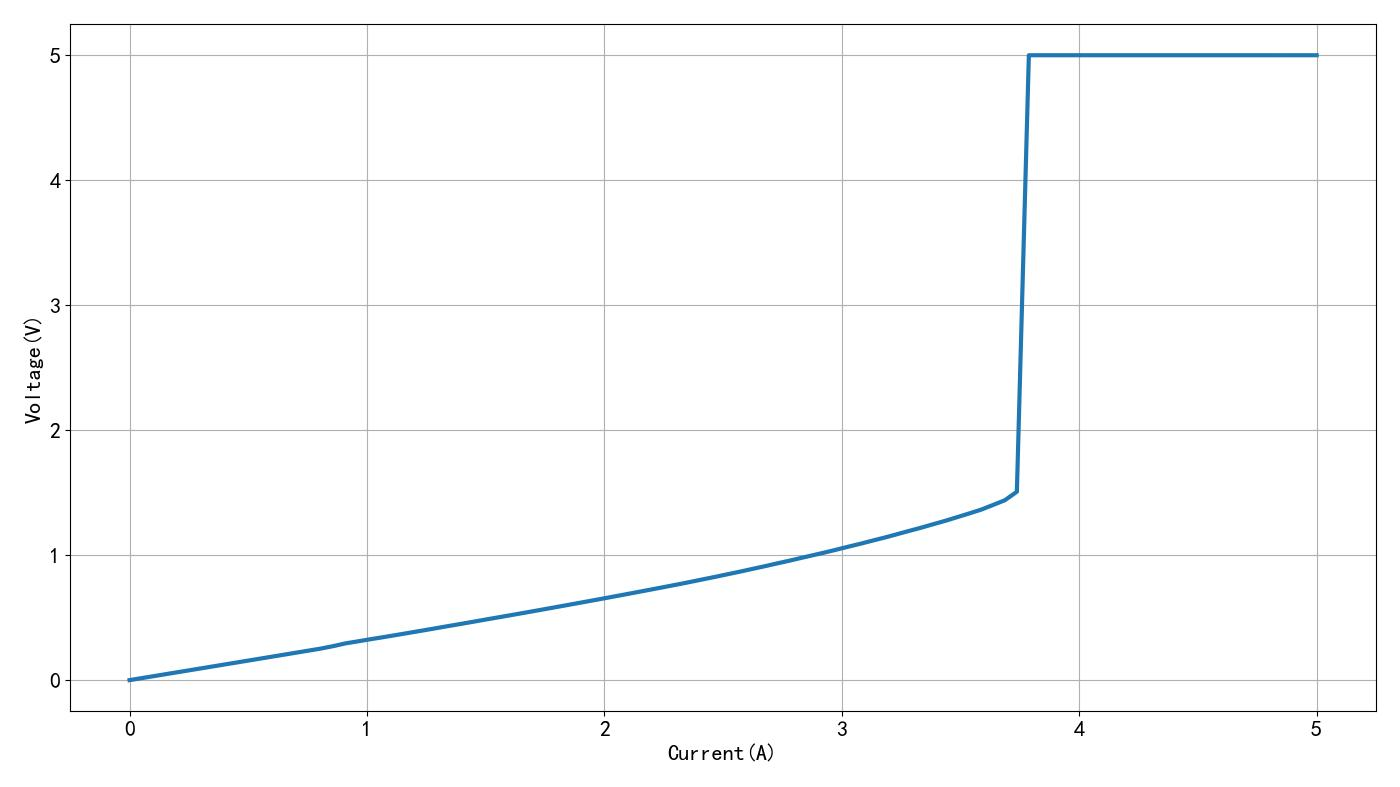

▲ 图1.2.1 不同输出电流下对应的输出电压

▲ 图1.2.1 不同输出电流下对应的输出电压

#!/usr/local/bin/python
# -*- coding: gbk -*-
#============================================================
# TEST1.PY                     -- by Dr. ZhuoQing 2024-05-17
#
# Note:
#============================================================

from headm import *
from tsmodule.tsvisa        import *

idim=linspace(0, 5, 100)
vdim = []

for i in idim:
    dh1766currlimit(i)
    time.sleep(1)
    vall = dh1766vall()
    printf(i, vall)
    vdim.append(vall[0])

    tspsave("measure", idim=idim, vdim=vdim)


dh1766currlimit(0)

plt.plot(idim, vdim, lw=3)

plt.xlabel("Current(A)")
plt.ylabel("Voltage(V)")
plt.grid(True)
plt.tight_layout()
plt.show()
plt.xlabel("Current(A)")
plt.ylabel("Voltage(V)")
plt.grid(True)
plt.tight_layout()
plt.show()







#------------------------------------------------------------
#        END OF FILE : TEST1.PY
#============================================================

idim=[0.0000,0.0505,0.1010,0.1515,0.2020,0.2525,0.3030,0.3535,0.4040,0.4545,0.5051,0.5556,0.6061,0.6566,0.7071,0.7576,0.8081,0.8586,0.9091,0.9596,1.0101,1.0606,1.1111,1.1616,1.2121,1.2626,1.3131,1.3636,1.4141,1.4646,1.5152,1.5657,1.6162,1.6667,1.7172,1.7677,1.8182,1.8687,1.9192,1.9697,2.0202,2.0707,2.1212,2.1717,2.2222,2.2727,2.3232,2.3737,2.4242,2.4747,2.5253,2.5758,2.6263,2.6768,2.7273,2.7778,2.8283,2.8788,2.9293,2.9798,3.0303,3.0808,3.1313,3.1818,3.2323,3.2828,3.3333,3.3838,3.4343,3.4848,3.5354,3.5859,3.6364,3.6869,3.7374,3.7879,3.8384,3.8889,3.9394,3.9899,4.0404,4.0909,4.1414,4.1919,4.2424,4.2929,4.3434,4.3939,4.4444,4.4949,4.5455,4.5960,4.6465,4.6970,4.7475,4.7980,4.8485,4.8990,4.9495,5.0000]
vdim=[0.0002,0.0161,0.0319,0.0476,0.0633,0.0791,0.0949,0.1107,0.1266,0.1424,0.1582,0.1740,0.1899,0.2057,0.2216,0.2375,0.2535,0.2726,0.2941,0.3097,0.3260,0.3415,0.3575,0.3735,0.3900,0.4063,0.4232,0.4396,0.4563,0.4730,0.4900,0.5066,0.5235,0.5403,0.5574,0.5747,0.5920,0.6094,0.6269,0.6444,0.6622,0.6801,0.6981,0.7161,0.7344,0.7528,0.7713,0.7906,0.8103,0.8297,0.8500,0.8701,0.8913,0.9121,0.9341,0.9552,0.9778,1.0000,1.0220,1.0453,1.0693,1.0926,1.1175,1.1416,1.1676,1.1939,1.2195,1.2471,1.2742,1.3037,1.3332,1.3637,1.4013,1.4398,1.5079,5.0004,5.0004,5.0004,5.0004,5.0005,5.0004,5.0004,5.0004,5.0004,5.0003,5.0004,5.0004,5.0004,5.0004,5.0004,5.0004,5.0003,5.0004,5.0004,5.0004,5.0004,5.0003,5.0004,5.0004,5.0004]

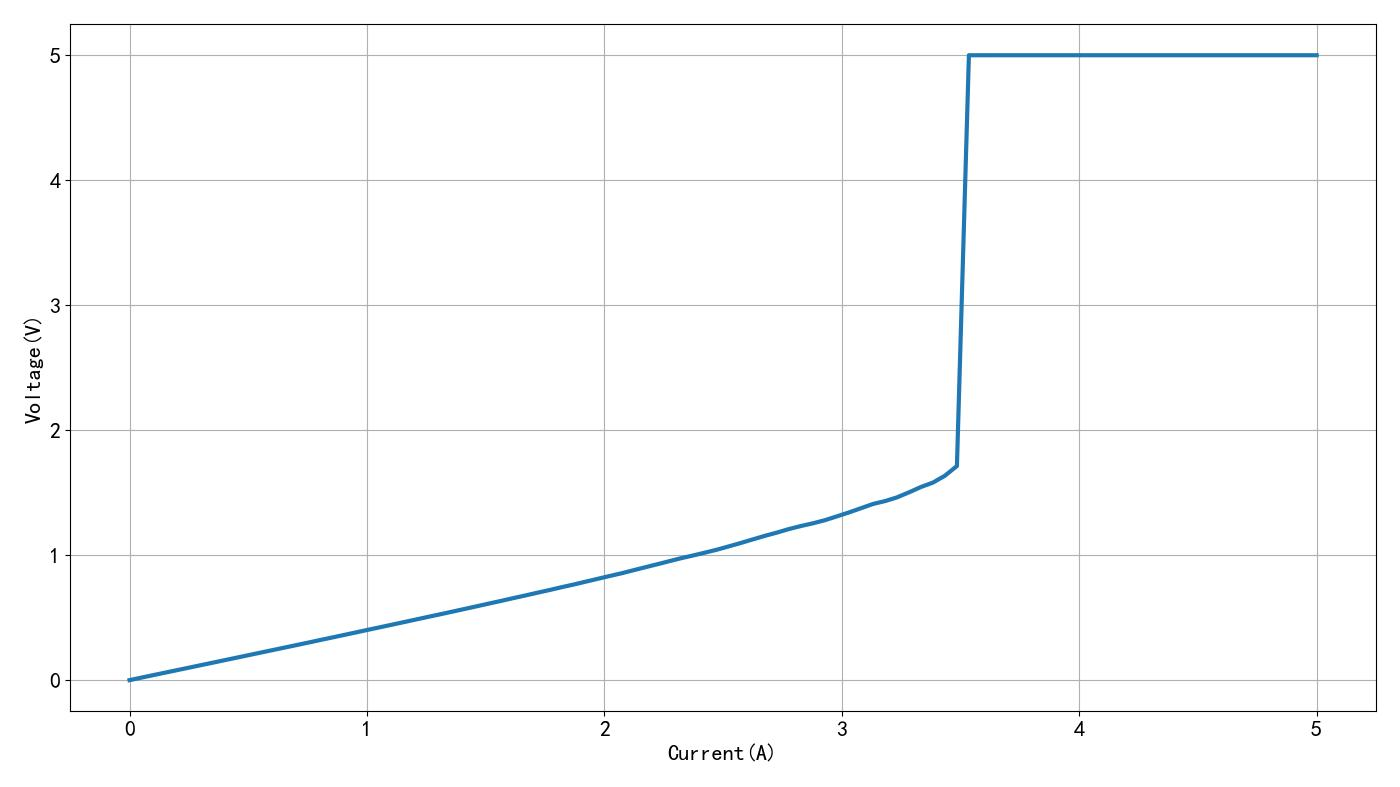

这是另外一只保险丝的熔断电流曲线。它的熔断电流大约为 3.5A。与刚才的保险丝相比，略微降低了一些。
GM1715944212_1920_1080.MP4|_-3

▲ 图1.2.2 另外一只保险丝的熔断电流

▲ 图1.2.2 另外一只保险丝的熔断电流

idim=[0.00,0.05,0.10,0.15,0.20,0.25,0.30,0.35,0.40,0.45,0.51,0.56,0.61,0.66,0.71,0.76,0.81,0.86,0.91,0.96,1.01,1.06,1.11,1.16,1.21,1.26,1.31,1.36,1.41,1.46,1.52,1.57,1.62,1.67,1.72,1.77,1.82,1.87,1.92,1.97,2.02,2.07,2.12,2.17,2.22,2.27,2.32,2.37,2.42,2.47,2.53,2.58,2.63,2.68,2.73,2.78,2.83,2.88,2.93,2.98,3.03,3.08,3.13,3.18,3.23,3.28,3.33,3.38,3.43,3.48,3.54,3.59,3.64,3.69,3.74,3.79,3.84,3.89,3.94,3.99,4.04,4.09,4.14,4.19,4.24,4.29,4.34,4.39,4.44,4.49,4.55,4.60,4.65,4.70,4.75,4.80,4.85,4.90,4.95,5.00]
vdim=[0.00,0.02,0.04,0.06,0.08,0.10,0.12,0.14,0.16,0.18,0.20,0.22,0.24,0.26,0.28,0.30,0.32,0.34,0.36,0.38,0.41,0.43,0.45,0.47,0.49,0.51,0.53,0.55,0.57,0.59,0.61,0.63,0.66,0.68,0.70,0.72,0.74,0.76,0.79,0.81,0.83,0.85,0.88,0.90,0.93,0.95,0.98,1.00,1.02,1.04,1.07,1.10,1.13,1.16,1.18,1.21,1.23,1.26,1.28,1.31,1.34,1.38,1.41,1.43,1.46,1.50,1.55,1.58,1.64,1.71,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00,5.00]
