AMS1117地线电阻

普通的AMS1117的输出特性

01 AMS1117输出特性

一、前言

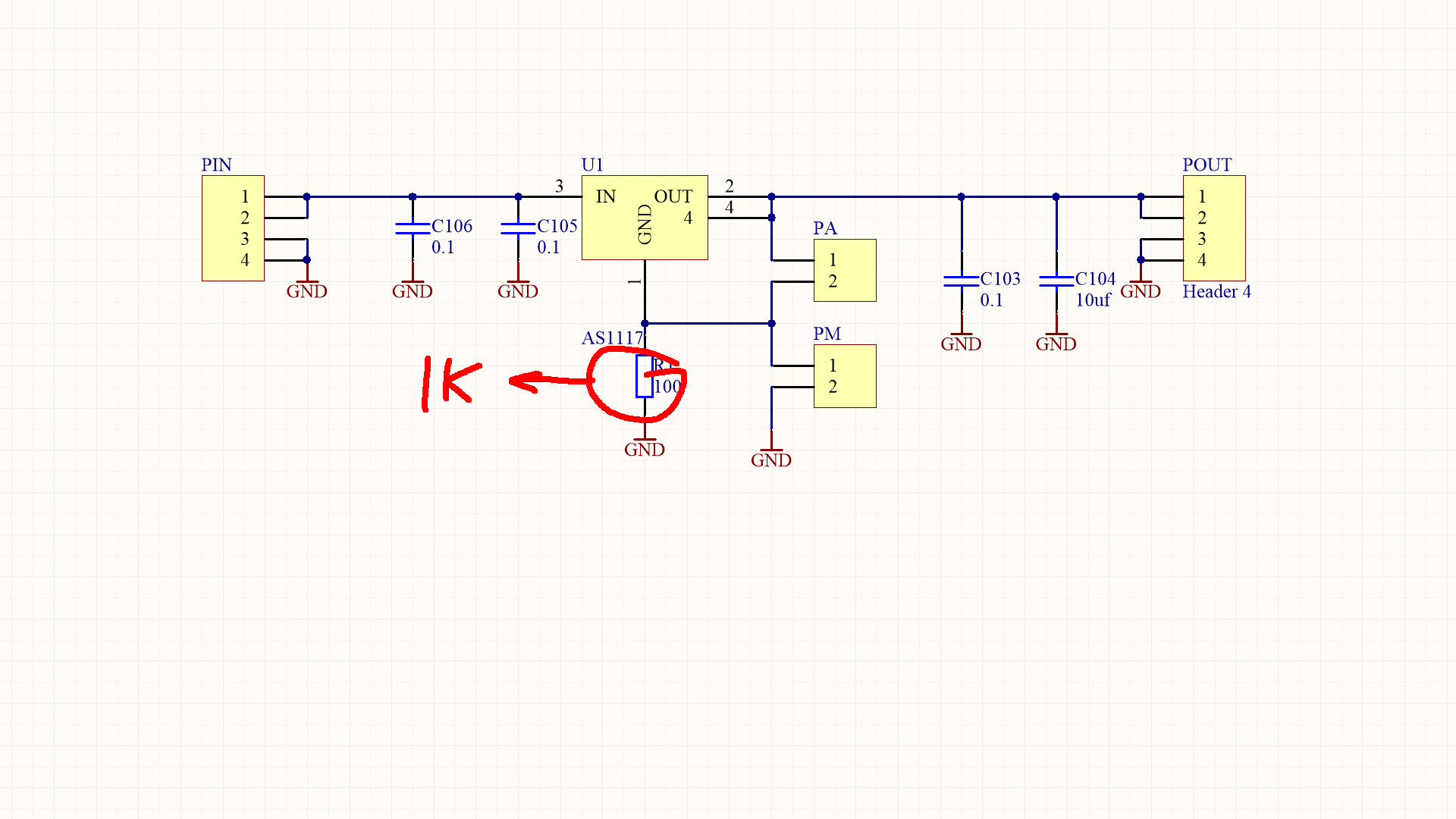

串联稳压芯片 AMS1117被广泛应用在电路中进行电源稳压。下面测量一下，它的地线电阻对于输出电压的影响。分别取20欧姆和1k欧姆，看对于输出电压的影响。这样也为之后应用反馈电阻实现输出电压可调做些准备。

G5M1740132336_1920_1080.MP4|_-5

二、输出电压特性

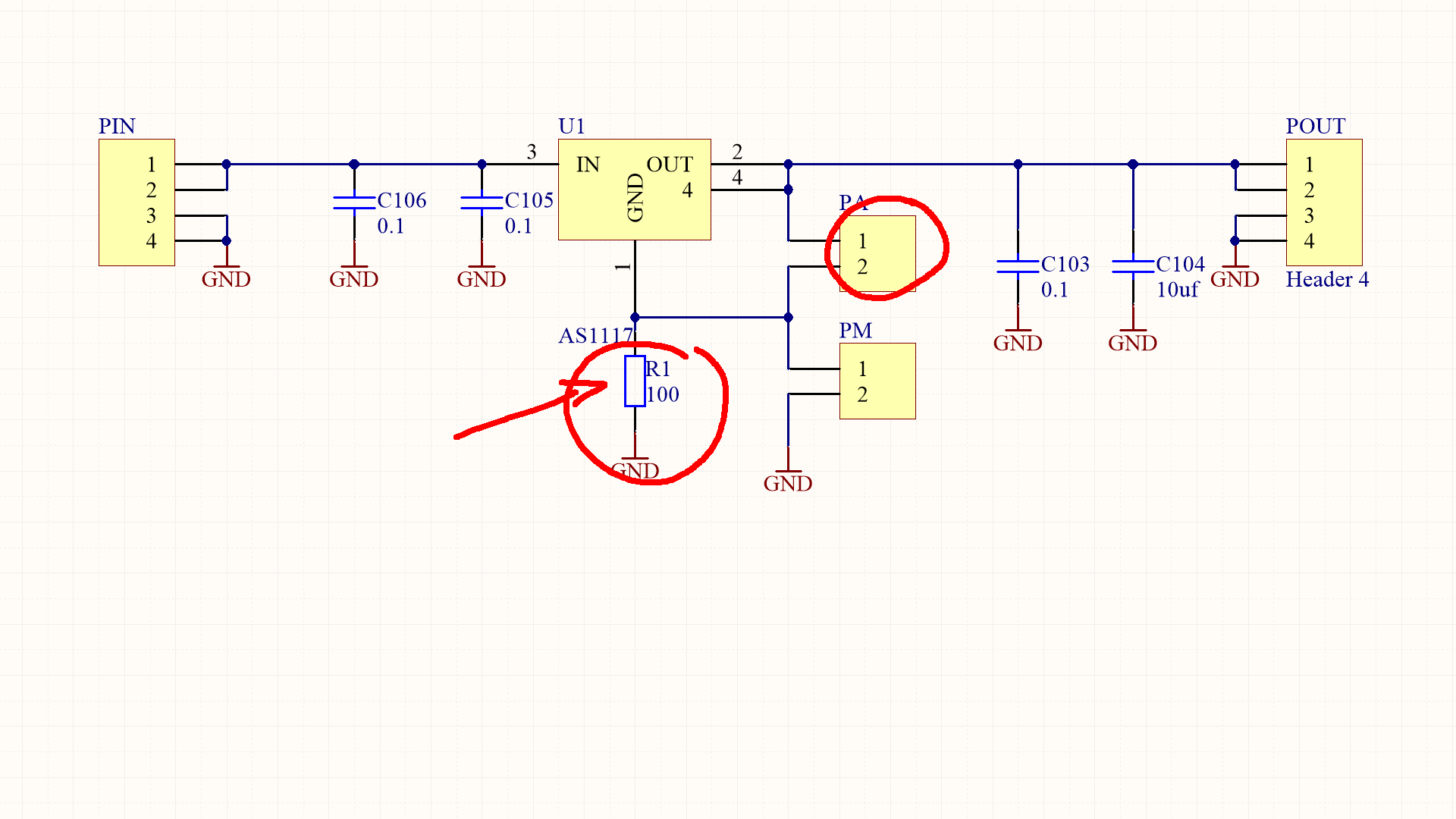

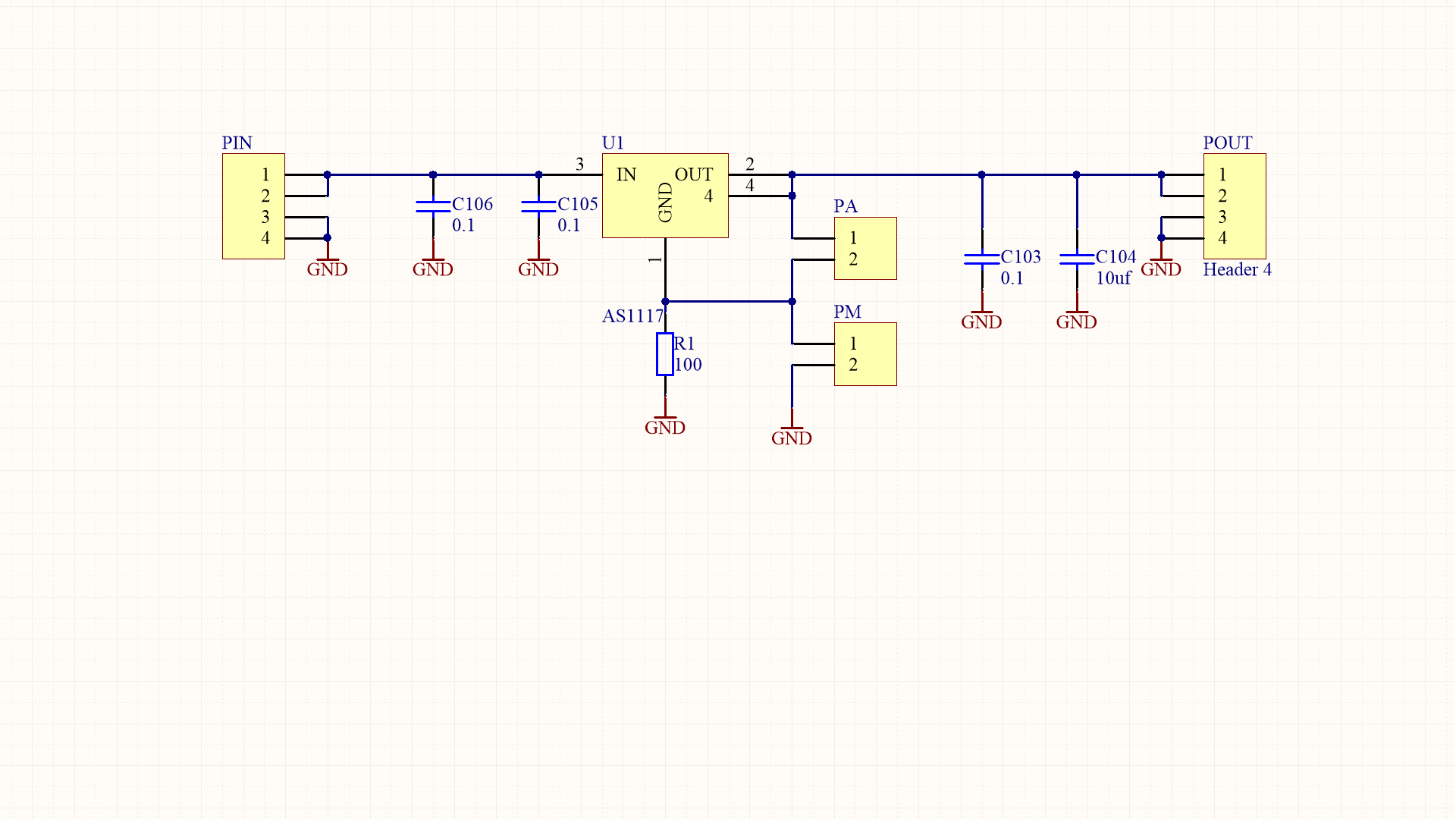

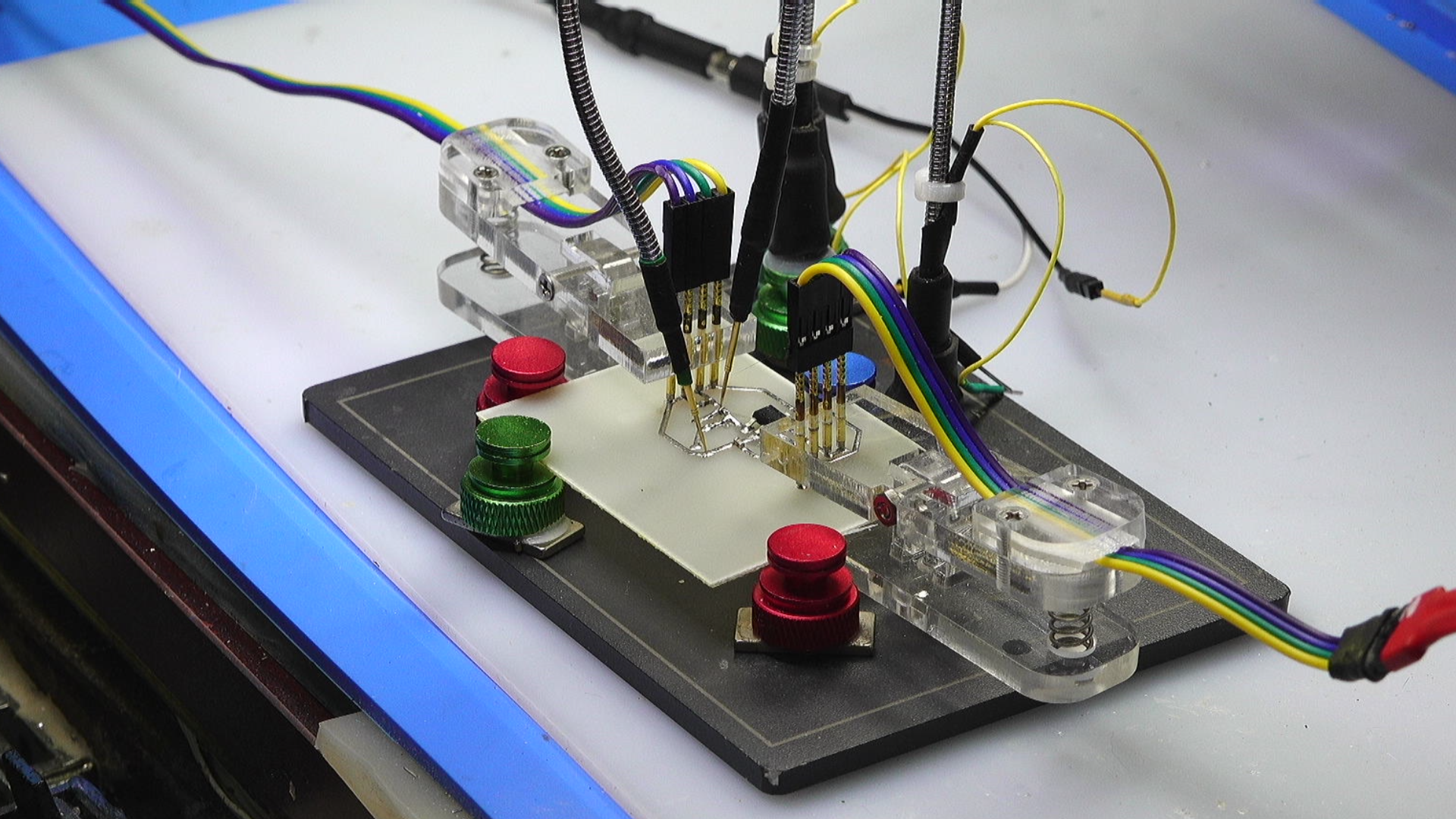

在基本的电路基础上，利用电子负载给出50mA的负载电流。下面连接的电阻设置为20欧姆。输入电压从5V上升到10V，测量输出电压的变化。

G4M1740131234_1920_1080.MP4|_-4

测量结果显示，随着输入电压的升高，输出电压反而下降？这很奇怪，输出电压减小了大约 10mV。
G2M1740131573_1920_1080.MP4|_-2

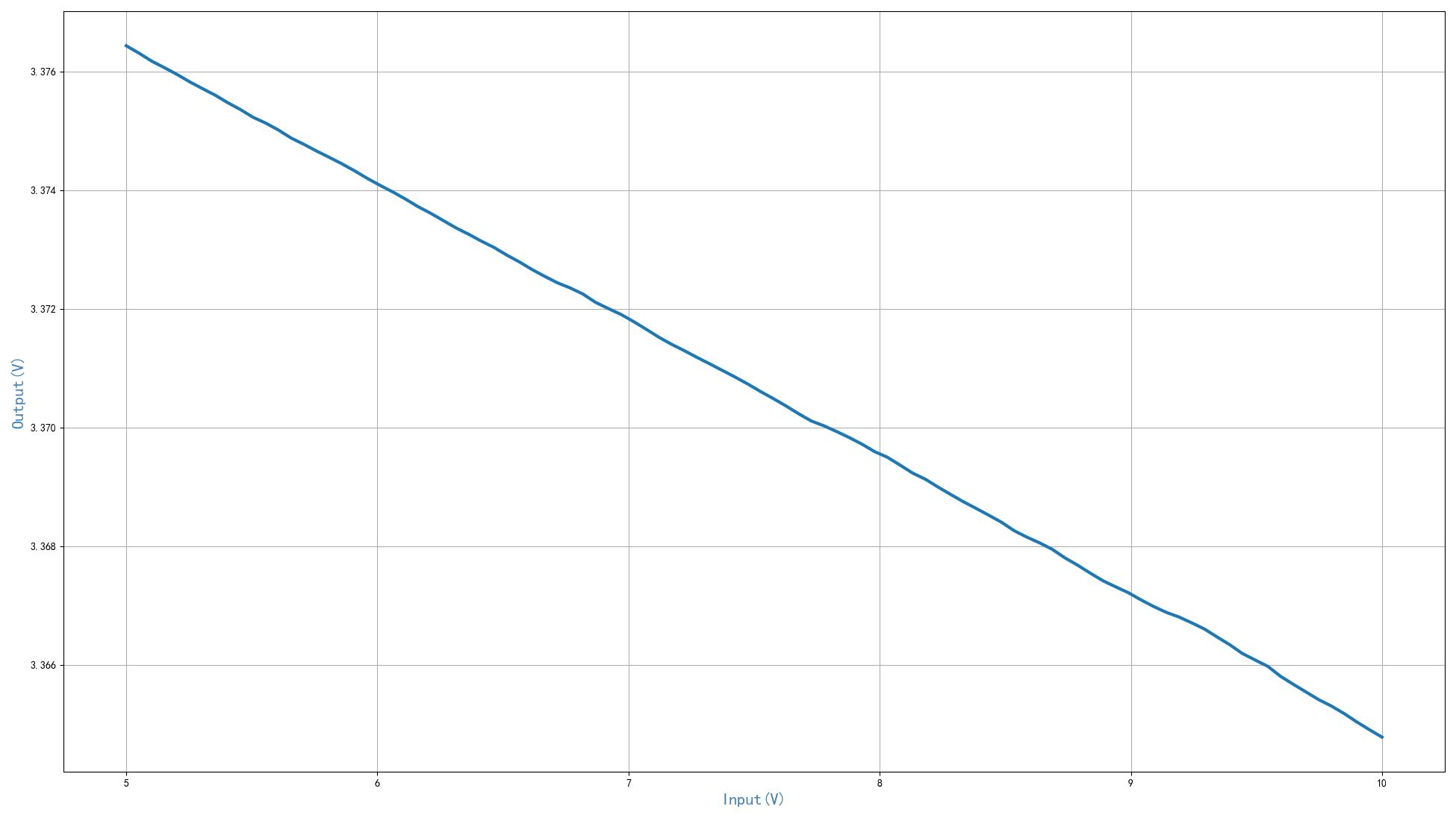

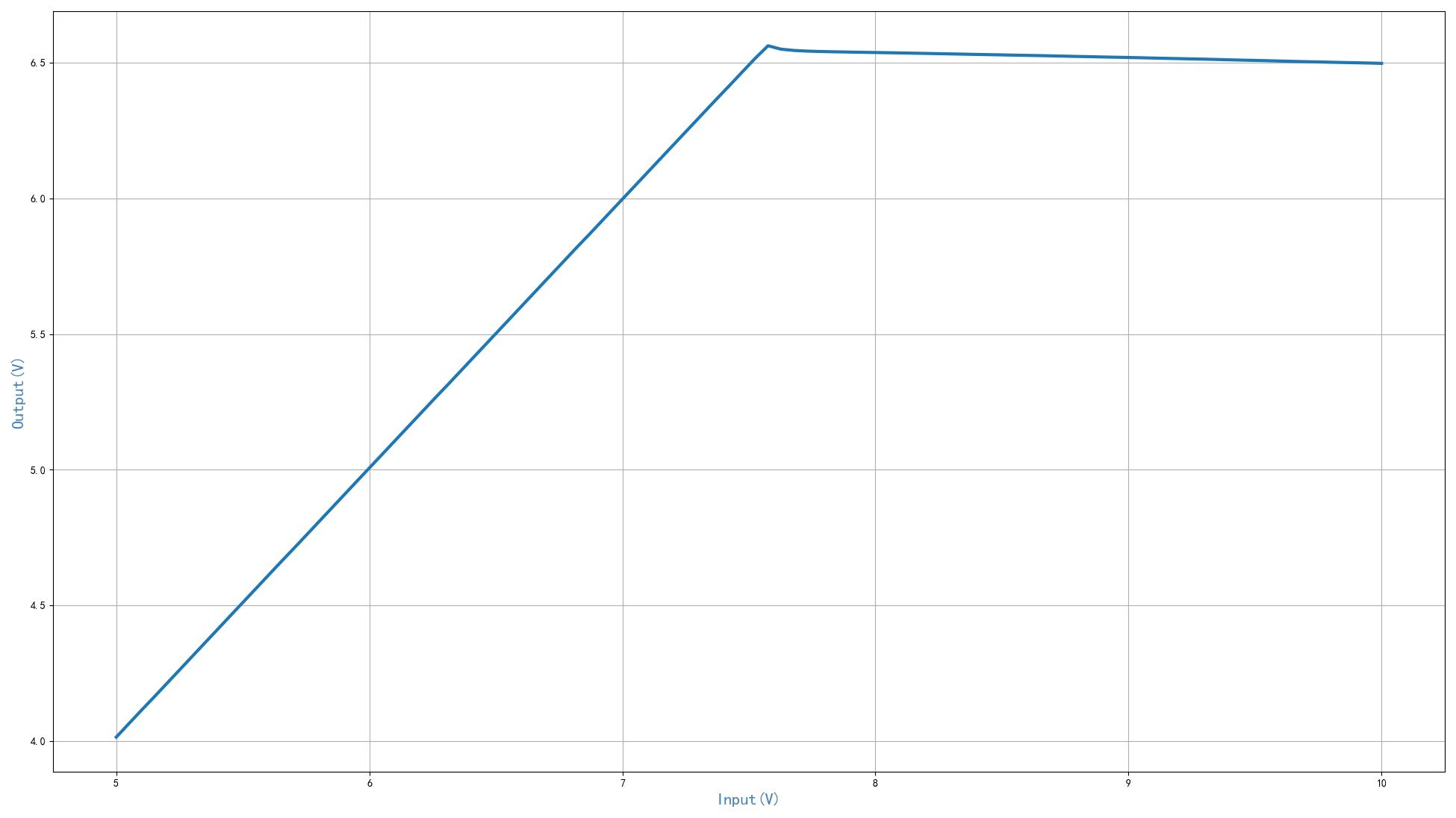

▲ 图1.2.1 输入电压与输出电压

▲ 图1.2.1 输入电压与输出电压

vdim=[5.0000,5.0505,5.1010,5.1515,5.2020,5.2525,5.3030,5.3535,5.4040,5.4545,5.5051,5.5556,5.6061,5.6566,5.7071,5.7576,5.8081,5.8586,5.9091,5.9596,6.0101,6.0606,6.1111,6.1616,6.2121,6.2626,6.3131,6.3636,6.4141,6.4646,6.5152,6.5657,6.6162,6.6667,6.7172,6.7677,6.8182,6.8687,6.9192,6.9697,7.0202,7.0707,7.1212,7.1717,7.2222,7.2727,7.3232,7.3737,7.4242,7.4747,7.5253,7.5758,7.6263,7.6768,7.7273,7.7778,7.8283,7.8788,7.9293,7.9798,8.0303,8.0808,8.1313,8.1818,8.2323,8.2828,8.3333,8.3838,8.4343,8.4848,8.5354,8.5859,8.6364,8.6869,8.7374,8.7879,8.8384,8.8889,8.9394,8.9899,9.0404,9.0909,9.1414,9.1919,9.2424,9.2929,9.3434,9.3939,9.4444,9.4949,9.5455,9.5960,9.6465,9.6970,9.7475,9.7980,9.8485,9.8990,9.9495,10.0000]
odim=[3.3764,3.3763,3.3762,3.3761,3.3760,3.3758,3.3757,3.3756,3.3755,3.3754,3.3752,3.3751,3.3750,3.3749,3.3748,3.3747,3.3746,3.3744,3.3743,3.3742,3.3741,3.3740,3.3739,3.3737,3.3736,3.3735,3.3734,3.3733,3.3731,3.3730,3.3729,3.3728,3.3727,3.3725,3.3724,3.3724,3.3723,3.3721,3.3720,3.3719,3.3718,3.3717,3.3715,3.3714,3.3713,3.3712,3.3711,3.3710,3.3709,3.3707,3.3706,3.3705,3.3704,3.3702,3.3701,3.3700,3.3699,3.3698,3.3697,3.3696,3.3695,3.3694,3.3692,3.3691,3.3690,3.3689,3.3688,3.3686,3.3685,3.3684,3.3683,3.3682,3.3681,3.3679,3.3678,3.3677,3.3675,3.3674,3.3673,3.3672,3.3671,3.3670,3.3669,3.3668,3.3667,3.3666,3.3665,3.3663,3.3662,3.3661,3.3660,3.3658,3.3657,3.3655,3.3654,3.3653,3.3652,3.3650,3.3649,3.3648]
