本篇文章都是基于之前的两篇文章所配置的环境开始，如果是还未跑通YOLOv8的纯小白可以参考我之前的文章先配置跑通YOLOv8。如果已经成功跑通YOLOv8，那就直接参考这篇文章即可。之后博主也会更新更多的相关改进教程和目标分割的一些源码复现，希望大家多多关注！！！

1.Ghost Conv

1.1 Ghost卷积简介

1.2 Ghost Conv在YOLOv8中的改进应用

1.2.1 Ghost卷积的核心思想

1.2.2 Ghost卷积的数学优势

1.2.3 Ghost Conv的适用场景

2. 融合Ghost Conv模块

2.1 Ghost Conv核心代码

2.2 在YOLOv8中添加Ghost Conv模块

2.3配置对应yaml文件

2.4运行代码

3. 总结

1.Ghost Conv

1.1 Ghost卷积简介

Ghost卷积是一种轻量化模型设计技术，通过“本征特征+廉价线性变换”策略，以少量标准卷积生成核心特征，再通过简单操作（如深度卷积）扩展出相似“幽灵特征”，从而大幅降低计算量与参数量（减少30%-50%）。在YOLOv8中应用后，模型体积大幅度缩小，推理速度也会提升，尤其适用于移动端、边缘设备等高实时、低资源场景，兼顾效率与性能平衡。

具体相关内容可以参考原文Ghost原文链接

1.2 Ghost Conv在YOLOv8中的改进应用

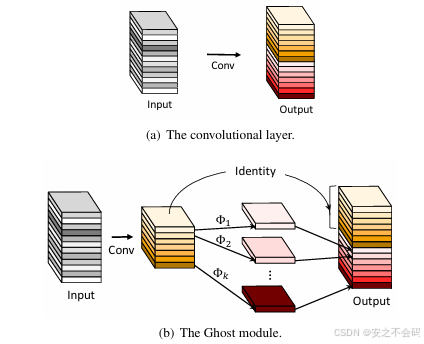

1.2.1 Ghost卷积的核心思想

Ghost卷积通过以下两步解决这一问题：

（1）先用少量标准卷积生成部分核心特征图（称为“本征特征图”）。

（2）生成幽灵特征图：对每个本征特征图进行廉价线性操作（如深度卷积、仿射变换等），生成额外的“幽灵特征图”（Ghost Features）。

最终，本征特征图与幽灵特征图拼接，形成与传统卷积同等数量的特征图，但计算成本显著降低。

1.2.2 Ghost卷积的数学优势

1.2.3 Ghost Conv的适用场景

1）移动端/嵌入式设备部署

2）实时检测任务（如无人机、监控摄像头）

3）资源受限的边缘计算场景

2. 融合Ghost Conv模块

2.1 Ghost Conv核心代码


from functools import partial
import torch
import torch.nn as nn
import torch.nn.functional as F
from timm.models.layers import drop_path, SqueezeExcite
from timm.models.layers import CondConv2d, hard_sigmoid, DropPath

__all__ = ['C2f_GhostConv']

_SE_LAYER = partial(SqueezeExcite, gate_fn=hard_sigmoid, divisor=4)


class DynamicConv(nn.Module):
    def __init__(self, in_features, out_features, kernel_size=1, stride=1, padding='', dilation=1,
                 groups=1, bias=False, num_experts=4):
        super().__init__()
        self.routing = nn.Linear(in_features, num_experts)
        self.cond_conv = CondConv2d(in_features, out_features, kernel_size, stride, padding, dilation,
                                    groups, bias, num_experts)

    def forward(self, x):
        pooled_inputs = F.adaptive_avg_pool2d(x, 1).flatten(1)  # CondConv routing
        routing_weights = torch.sigmoid(self.routing(pooled_inputs))
        x = self.cond_conv(x, routing_weights)
        return x


class ConvBnAct(nn.Module):
    """ Conv + Norm Layer + Activation w/ optional skip connection
    """

    def __init__(
            self, in_chs, out_chs, kernel_size, stride=1, dilation=1, pad_type='',
            skip=False, act_layer=nn.ReLU, norm_layer=nn.BatchNorm2d, drop_path_rate=0., num_experts=4):
        super(ConvBnAct, self).__init__()
        self.has_residual = skip and stride == 1 and in_chs == out_chs
        self.drop_path_rate = drop_path_rate
        # self.conv = create_conv2d(in_chs, out_chs, kernel_size, stride=stride, dilation=dilation, padding=pad_type)
        self.conv = DynamicConv(in_chs, out_chs, kernel_size, stride, dilation=dilation, padding=pad_type,
                                num_experts=num_experts)
        self.bn1 = norm_layer(out_chs)
        self.act1 = act_layer()

    def feature_info(self, location):
        if location == 'expansion':  # output of conv after act, same as block coutput
            info = dict(module='act1', hook_type='forward', num_chs=self.conv.out_channels)
        else:  # location == 'bottleneck', block output
            info = dict(module='', hook_type='', num_chs=self.conv.out_channels)
        return info

    def forward(self, x):
        shortcut = x
        x = self.conv(x)
        x = self.bn1(x)
        x = self.act1(x)
        if self.has_residual:
            if self.drop_path_rate > 0.:
                x = drop_path(x, self.drop_path_rate, self.training)
            x += shortcut
        return x


class GhostModule(nn.Module):
    def __init__(self, inp, oup, kernel_size=1, ratio=2, dw_size=3, stride=1, act_layer=nn.ReLU, num_experts=4):
        super(GhostModule, self).__init__()
        self.oup = oup
        init_channels = math.ceil(oup / ratio)
        new_channels = init_channels * (ratio - 1)

        self.primary_conv = nn.Sequential(
            DynamicConv(inp, init_channels, kernel_size, stride, kernel_size // 2, bias=False, num_experts=num_experts),
            nn.BatchNorm2d(init_channels),
            act_layer() if act_layer is not None else nn.Sequential(),
        )

        self.cheap_operation = nn.Sequential(
            DynamicConv(init_channels, new_channels, dw_size, 1, dw_size // 2, groups=init_channels, bias=False,
                        num_experts=num_experts),
            nn.BatchNorm2d(new_channels),
            act_layer() if act_layer is not None else nn.Sequential(),
        )

    def forward(self, x):
        x1 = self.primary_conv(x)
        x2 = self.cheap_operation(x1)
        out = torch.cat([x1, x2], dim=1)
        return out[:, :self.oup, :, :]


class GhostBottleneck(nn.Module):
    """ Ghost bottleneck w/ optional SE"""

    def __init__(self, in_chs, out_chs, dw_kernel_size=3,
                 stride=1, act_layer=nn.ReLU, se_ratio=0., drop_path=0., num_experts=4):
        super(GhostBottleneck, self).__init__()
        has_se = se_ratio is not None and se_ratio > 0.
        self.stride = stride
        mid_chs = in_chs * 2
        # Point-wise expansion
        self.ghost1 = GhostModule(in_chs, mid_chs, act_layer=act_layer, num_experts=num_experts)

        # Depth-wise convolution
        if self.stride > 1:
            self.conv_dw = nn.Conv2d(
                mid_chs, mid_chs, dw_kernel_size, stride=stride,
                padding=(dw_kernel_size - 1) // 2, groups=mid_chs, bias=False)
            self.bn_dw = nn.BatchNorm2d(mid_chs)
        else:
            self.conv_dw = None
            self.bn_dw = None

        # Squeeze-and-excitation
        self.se = _SE_LAYER(mid_chs, se_ratio=se_ratio,
                            act_layer=act_layer if act_layer is not nn.GELU else nn.ReLU) if has_se else None

        # Point-wise linear projection
        self.ghost2 = GhostModule(mid_chs, out_chs, act_layer=None, num_experts=num_experts)

        # shortcut
        if in_chs == out_chs and self.stride == 1:
            self.shortcut = nn.Sequential()
        else:
            self.shortcut = nn.Sequential(
                DynamicConv(
                    in_chs, in_chs, dw_kernel_size, stride=stride,
                    padding=(dw_kernel_size - 1) // 2, groups=in_chs, bias=False, num_experts=num_experts),
                nn.BatchNorm2d(in_chs),
                DynamicConv(in_chs, out_chs, 1, stride=1, padding=0, bias=False, num_experts=num_experts),
                nn.BatchNorm2d(out_chs),
            )

        self.drop_path = DropPath(drop_path) if drop_path > 0. else nn.Identity()

    def forward(self, x):
        shortcut = x

        # 1st ghost bottleneck
        x = self.ghost1(x)

        # Depth-wise convolution
        if self.conv_dw is not None:
            x = self.conv_dw(x)
            x = self.bn_dw(x)

        # Squeeze-and-excitation
        if self.se is not None:
            x = self.se(x)

        # 2nd ghost bottleneck
        x = self.ghost2(x)

        x = self.shortcut(shortcut) + self.drop_path(x)
        return x


def autopad(k, p=None, d=1):  # kernel, padding, dilation
    """Pad to 'same' shape outputs."""
    if d > 1:
        k = d * (k - 1) + 1 if isinstance(k, int) else [d * (x - 1) + 1 for x in k]  # actual kernel-size
    if p is None:
        p = k // 2 if isinstance(k, int) else [x // 2 for x in k]  # auto-pad
    return p



class Conv(nn.Module):
    """Standard convolution with args(ch_in, ch_out, kernel, stride, padding, groups, dilation, activation)."""
    default_act = nn.SiLU()  # default activation

    def __init__(self, c1, c2, k=1, s=1, p=None, g=1, d=1, act=True):
        """Initialize Conv layer with given arguments including activation."""
        super().__init__()
        self.conv = nn.Conv2d(c1, c2, k, s, autopad(k, p, d), groups=g, dilation=d, bias=False)
        self.bn = nn.BatchNorm2d(c2)
        self.act = self.default_act if act is True else act if isinstance(act, nn.Module) else nn.Identity()

    def forward(self, x):
        """Apply convolution, batch normalization and activation to input tensor."""
        return self.act(self.bn(self.conv(x)))

    def forward_fuse(self, x):
        """Perform transposed convolution of 2D data."""
        return self.act(self.conv(x))

class C2f_GhostConv(nn.Module):
    # CSP Bottleneck with 2 convolutions
    def __init__(self, c1, c2, n=1, shortcut=False, g=1, e=0.5):  # ch_in, ch_out, number, shortcut, groups, expansion
        super().__init__()
        self.c = int(c2 * e)  # hidden channels
        self.cv1 = Conv(c1, 2 * self.c, 1, 1)
        self.cv2 = Conv((2 + n) * self.c, c2, 1)  # optional act=FReLU(c2)
        self.m = nn.ModuleList(GhostModule(self.c, self.c) for _ in range(n))

    def forward(self, x):
        y = list(self.cv1(x).split((self.c, self.c), 1))
        y.extend(m(y[-1]) for m in self.m)
        return self.cv2(torch.cat(y, 1))

2.2 在YOLOv8中添加Ghost Conv模块

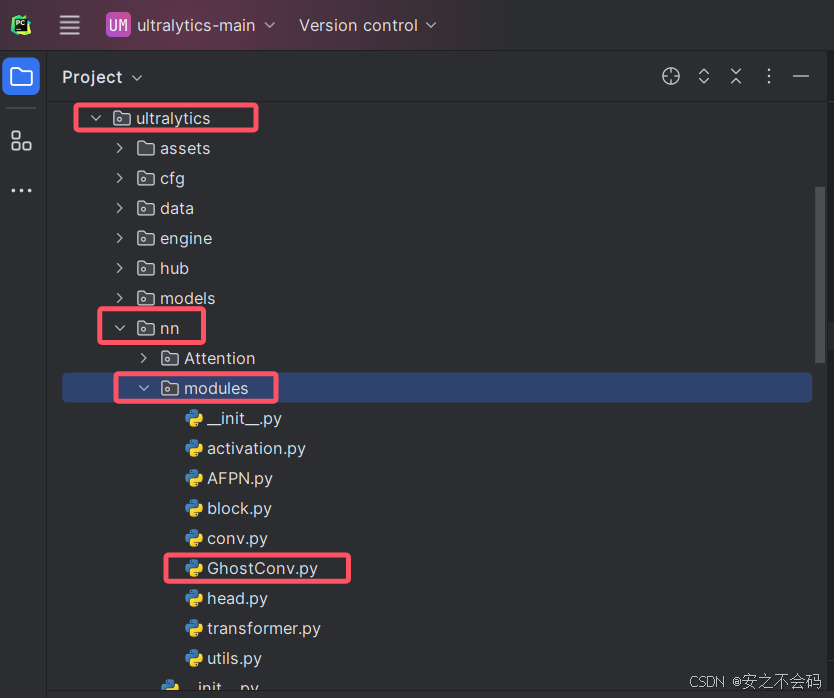

首先在ultralytics\nn\modules文件夹中创建一个名为GhostConv的python文件，具体位置如下所示

然后将上面的代码部分进行复制后粘贴在GhostConv.py文件中，如下所示

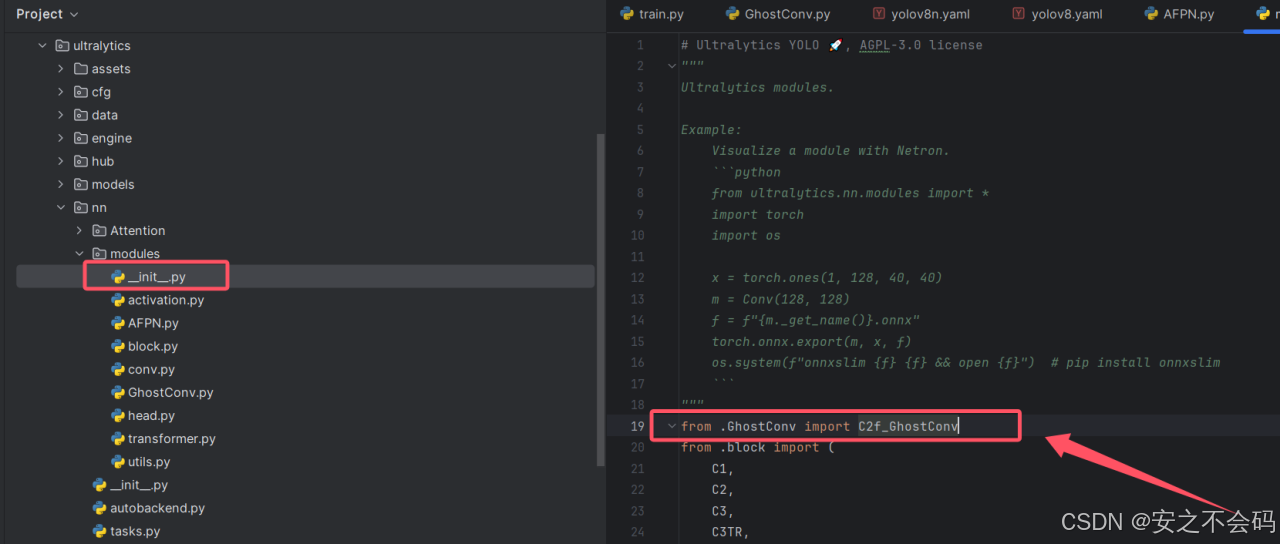

然后打开modules文件夹中的__init__.py文件，找到如图所示位置之后，添加以下代码

from .GhostConv import C2f_GhostConv

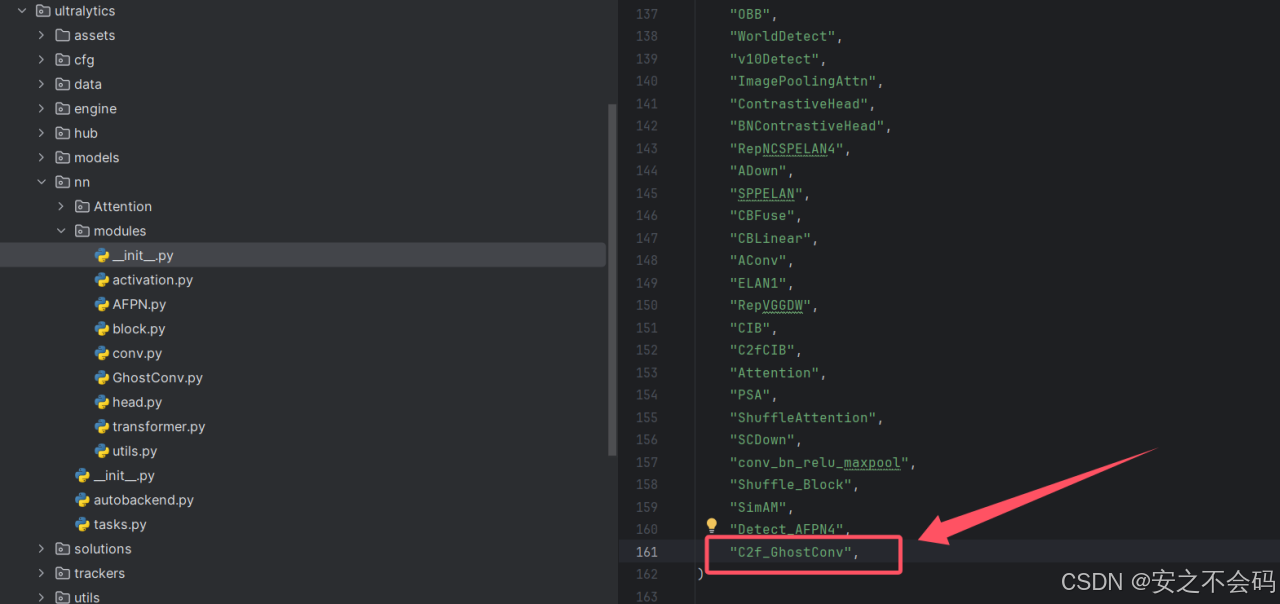

然后还是在该文件当中，找到以下位置，并将名称添加，这个就是在下面的__all__中，在里面按要求添加上即可

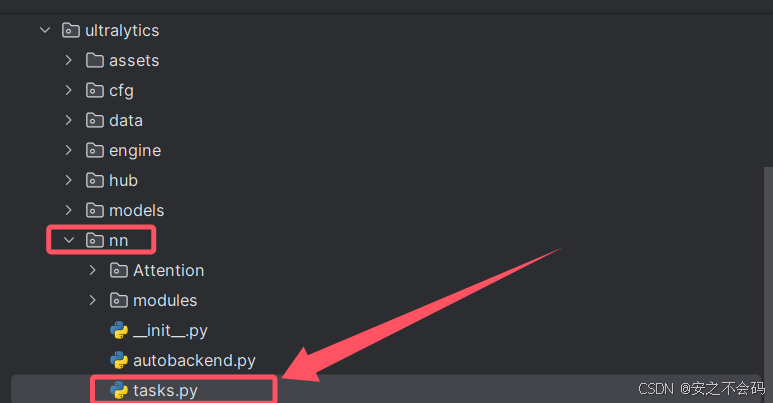

然后打开nn文件夹中的task.py文件

在该文件中需要修改以下几个地方，大家根据上下文ctrl+f搜索查找到相关位置，有的地方就直接添加上就行，没有的就自己敲一下代码然后添加一下

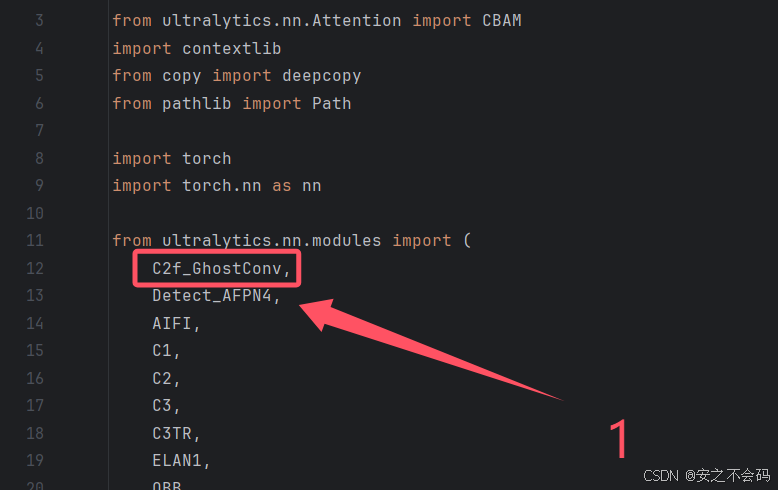

1.在task文件的开始部分添加C2f_GhostConv

2.搜索 def parse_model，然后在下面位置进行相应修改

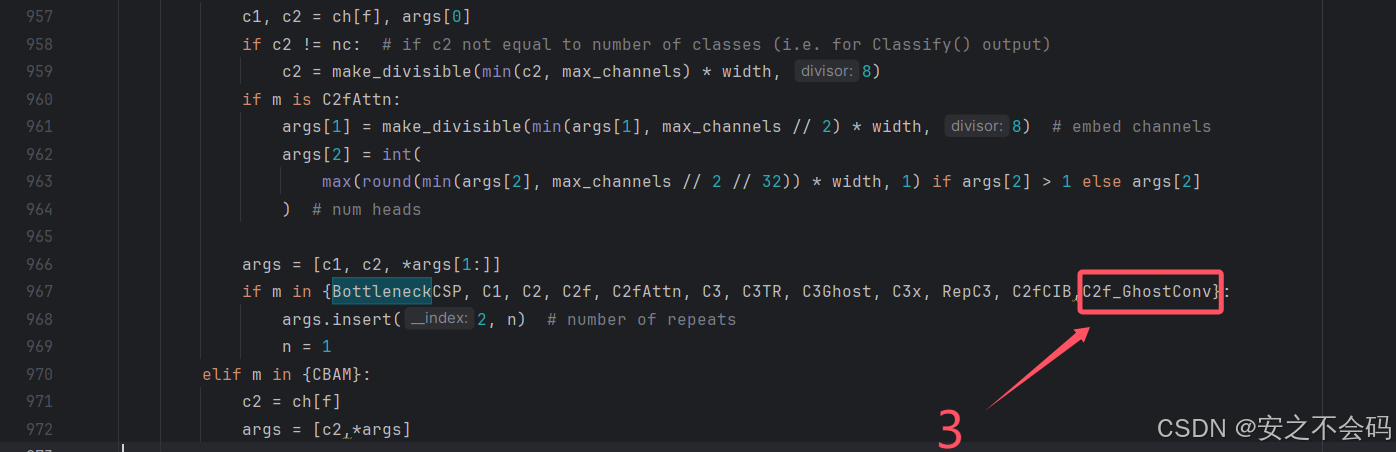

3.大家可以搜索Bottleneck，然后在以下位置进行添加修改

2.3配置对应yaml文件

依次打开以下文件夹ultralytics\cfg\models\v8，然后在该文件夹中任意复制一个.yaml文件，并粘贴在该文件夹中，将文件名命名为yolov8n-GhostConv。创建完成后将内容全部删除，然后将以下内容粘贴在里面

# YOLOv8 object detection model with P3-P5 outputs. For Usage examples see https://docs.ultralytics.com/tasks/detect

# Parameters
nc: 80  # number of classes
scales: # model compound scaling constants, i.e. 'model=yolov8n.yaml' will call yolov8.yaml with scale 'n'
  # [depth, width, max_channels]
  n: [0.33, 0.25, 1024]  # YOLOv8n summary: 225 layers,  3157200 parameters,  3157184 gradients,   8.9 GFLOPs
  s: [0.33, 0.50, 1024]  # YOLOv8s summary: 225 layers, 11166560 parameters, 11166544 gradients,  28.8 GFLOPs
  m: [0.67, 0.75, 768]   # YOLOv8m summary: 295 layers, 25902640 parameters, 25902624 gradients,  79.3 GFLOPs
  l: [1.00, 1.00, 512]   # YOLOv8l summary: 365 layers, 43691520 parameters, 43691504 gradients, 165.7 GFLOPs
  x: [1.00, 1.25, 512]   # YOLOv8x summary: 365 layers, 68229648 parameters, 68229632 gradients, 258.5 GFLOP

# YOLOv8.0n backbone
backbone:
  # [from, repeats, module, args]
  - [-1, 1, Conv, [64, 3, 2]]  # 0-P1/2
  - [-1, 1, Conv, [128, 3, 2]]  # 1-P2/4
  - [-1, 3, C2f_GhostConv, [128, True]]
  - [-1, 1, Conv, [256, 3, 2]]  # 3-P3/8
  - [-1, 6, C2f_GhostConv, [256, True]]
  - [-1, 1, Conv, [512, 3, 2]]  # 5-P4/16
  - [-1, 6, C2f_GhostConv, [512, True]]
  - [-1, 1, Conv, [1024, 3, 2]]  # 7-P5/32
  - [-1, 3, C2f_GhostConv, [1024, True]]
  - [-1, 1, SPPF, [1024, 5]]  # 9

# YOLOv8.0n head
head:
  - [-1, 1, nn.Upsample, [None, 2, 'nearest']]
  - [[-1, 6], 1, Concat, [1]]  # cat backbone P4
  - [-1, 3, C2f_GhostConv, [512]]  # 12

  - [-1, 1, nn.Upsample, [None, 2, 'nearest']]
  - [[-1, 4], 1, Concat, [1]]  # cat backbone P3
  - [-1, 3, C2f_GhostConv, [256]]  # 15 (P3/8-small)

  - [-1, 1, Conv, [256, 3, 2]]
  - [[-1, 12], 1, Concat, [1]]  # cat head P4
  - [-1, 3, C2f_GhostConv, [512]]  # 18 (P4/16-medium)

  - [-1, 1, Conv, [512, 3, 2]]
  - [[-1, 9], 1, Concat, [1]]  # cat head P5
  - [-1, 3, C2f_GhostConv, [1024]]  # 21 (P5/32-large)

  - [[15, 18, 21], 1, Detect, [nc]]  # Detect(P3, P4, P5)

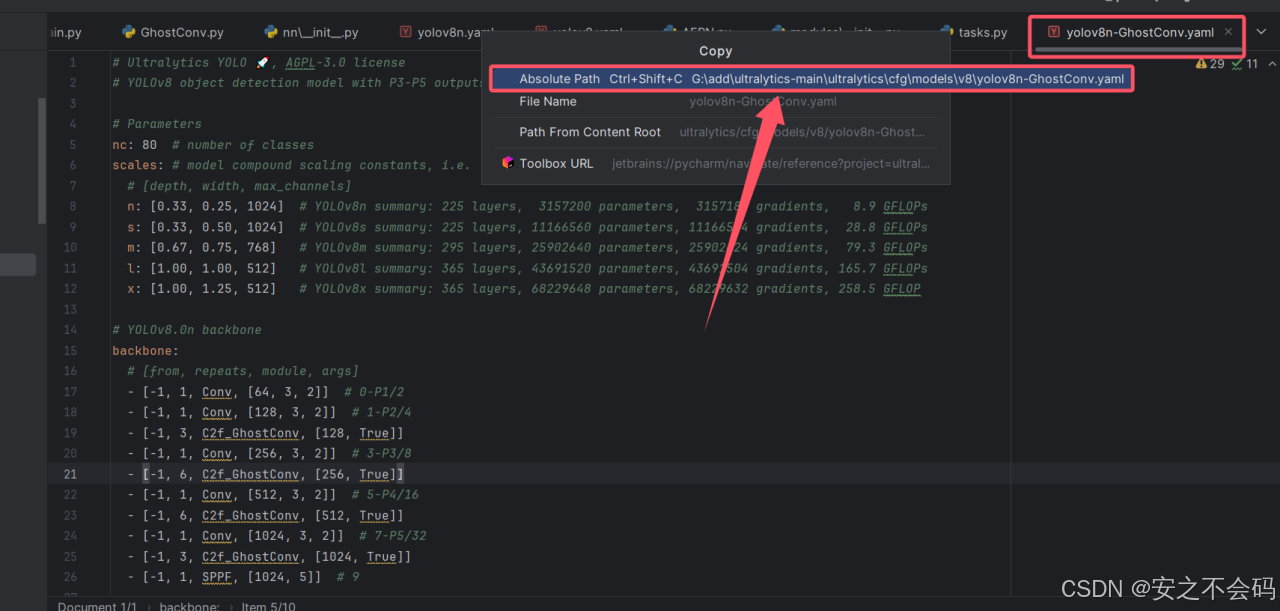

将上述代码复制在yaml文件后，复制该yaml文件的绝对路径

2.4运行代码

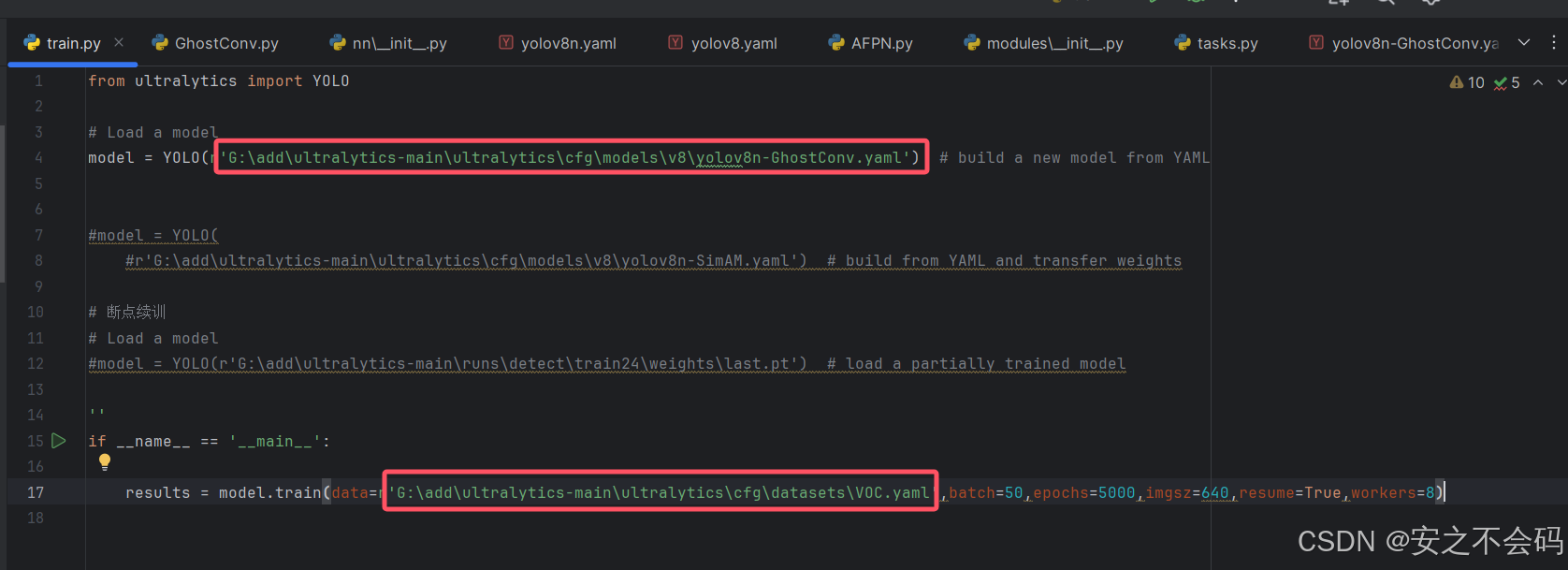

创建一个名为train的python训练脚本，首先新建一个空白的python文件，然后将以下内容复制进去（如果看过我上个博客的就不需要进行这一步了，直接将yaml文件的绝对路径粘贴进去后运行就行）ps：大家注意把相关路径换成自己对应的

from ultralytics import YOLO

# Load a model
model = YOLO(r'G:\add\ultralytics-main\ultralytics\cfg\models\v8\yolov8n-GhostConv.yaml')  # build a new model from YAML


#model = YOLO(
    #r'G:\add\ultralytics-main\ultralytics\cfg\models\v8\yolov8n-SimAM.yaml')  # build from YAML and transfer weights

# 断点续训
# Load a model
#model = YOLO(r'G:\add\ultralytics-main\runs\detect\train24\weights\last.pt')  # load a partially trained model

''
if __name__ == '__main__':

    results = model.train(data=r'G:\add\ultralytics-main\ultralytics\cfg\datasets\VOC.yaml',batch=50,epochs=5000,imgsz=640,resume=True,workers=8)

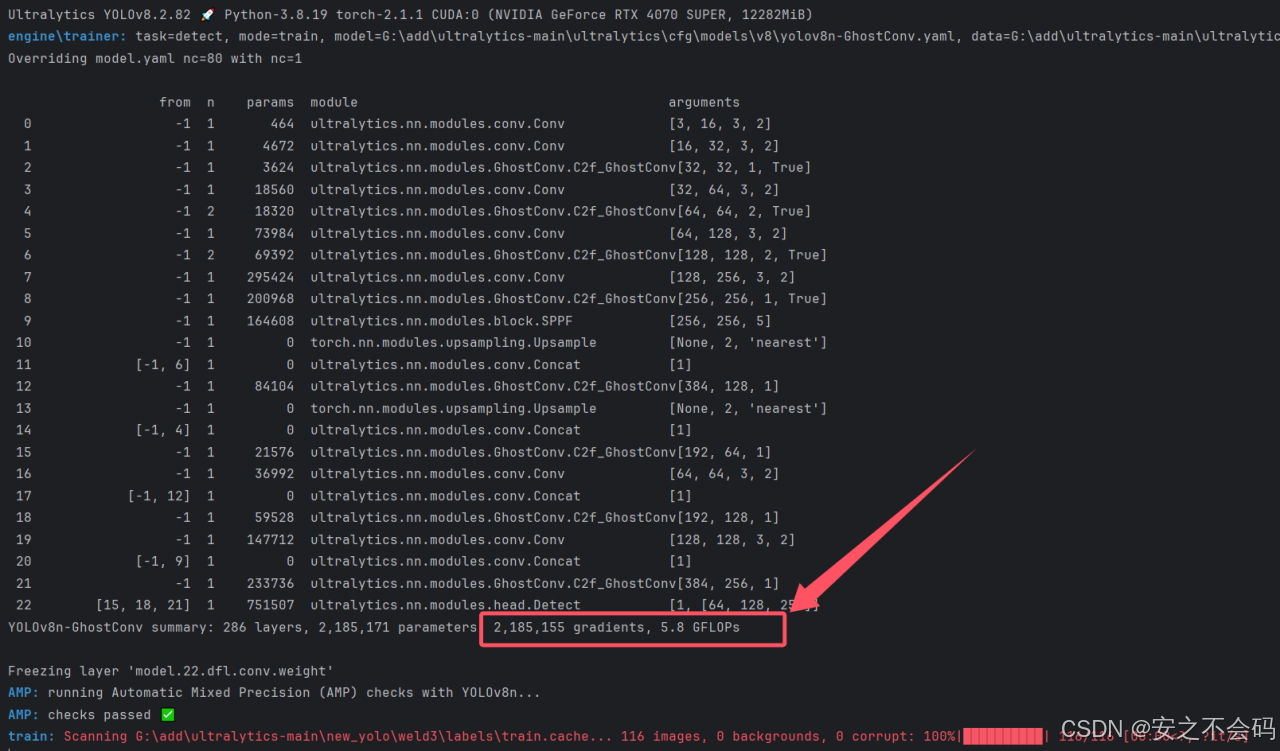

全部改好之后大家直接运行这个代码即可，添加成功会出现以下界面，大家可以看到，参数量确实降低了很多，大家也可以试试不同组合！

3. 总结

博客主要详细教学了在YOLOv8中替换GhostConv的超详细步骤，基本大家只要按步骤来就肯定可以复现成功，后续博主也会再更新一些关于YOLOv8的其他改进方法，期待大家多多关注！！！大家有想看的内容也可以在评论区留言！
