在各类3D大屏的应用中,播放流媒体(例如监控视频)是比较常见的需求，本文会提供以内嵌浏览器的方案来解决该需求。

首先，功能基于插件3D WebView-Windows-macOS-Web Browser v4.2（官方下载地址：3D WebView: the ultimate cross-platform web browser for Unity | Vuplex Store）

并感谢Unity3d windows平台基于3D WebView for Windows and macOS (Web Browser)插件打开内嵌网页支持AR/VR功能实现_unity3d 内嵌网页_小张不爱写代码的博客-CSDN博客

文章提供的干货。

代码如下

HTML：

<body>
    <div>
        <button onclick="sendMessageToCSharp()">网页向Unity发消息</button>
    </div>
  <div id="mapDiv" style="position: absolute; width: 100vw; height: 100vh"></div>
    <script>
        //Unity向网页发消息
        if (window.vuplex) {
            addMessageListener();
        } else {
            window.addEventListener('vuplexready', addMessageListener);
        }
        function addMessageListener() {
            window.vuplex.addEventListener('message', function (event) {
                let json = event.data;
                // > JSON received: { "type": "greeting", "message": "Hello from C#!" }
                // alert('JSON received: ' + json);
                json = JSON.parse(json)
                DrawLine(json.data);
            });
        }


        //网页向Unity发消息
        if (window.vuplex) {
            sendMessageToCSharp();
        } else {
            window.addEventListener('vuplexready', sendMessageToCSharp);
        }
        function sendMessageToCSharp() {
            console.log("发送消息到Unity");
            window.vuplex.postMessage({ type: 'greeting', message: 'Hello from JavaScript!' });
        }
    </script>
</body>

C#:

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using Vuplex.WebView;

[HelpURL("https://blog.csdn.net/qq_41973169/article/details/129179855")]
public class Demo : MonoBehaviour
{
    public CanvasWebViewPrefab canvasWebView;
    // Start is called before the first frame update
   async void Start()
    {
        if (!canvasWebView) canvasWebView = GetComponent<CanvasWebViewPrefab>();

        await canvasWebView.WaitUntilInitialized();

        canvasWebView.WebView.LoadUrl("http://127.0.0.1:5500/%E8%BD%A6%E8%BE%86%E8%B7%AF%E7%BA%BF.html");
        await canvasWebView.WaitUntilInitialized();
        await canvasWebView.WebView.WaitForNextPageLoadToFinish();
        //var headerText = await canvasWebView.WebView.ExecuteJavaScript("alert('111111')");
        Debug.Log("Unity执行页面JS.");


         Send a message after the page has loaded.
        //await canvasWebView.WebView.WaitForNextPageLoadToFinish();
        canvasWebView.WebView.PostMessage("{\"type\": \"greeting\", \"message\": \"http://http://127.0.0.1:5500/rtp/bfe3ecb51e4ff5166554e.live.flv\"}");

        canvasWebView.WebView.MessageEmitted += MessageEmittedCallback;
    }

    private void MessageEmittedCallback(object sender, EventArgs<string> e)
    {
        Debug.LogWarning("JSON received: " + e.Value);
    }
}

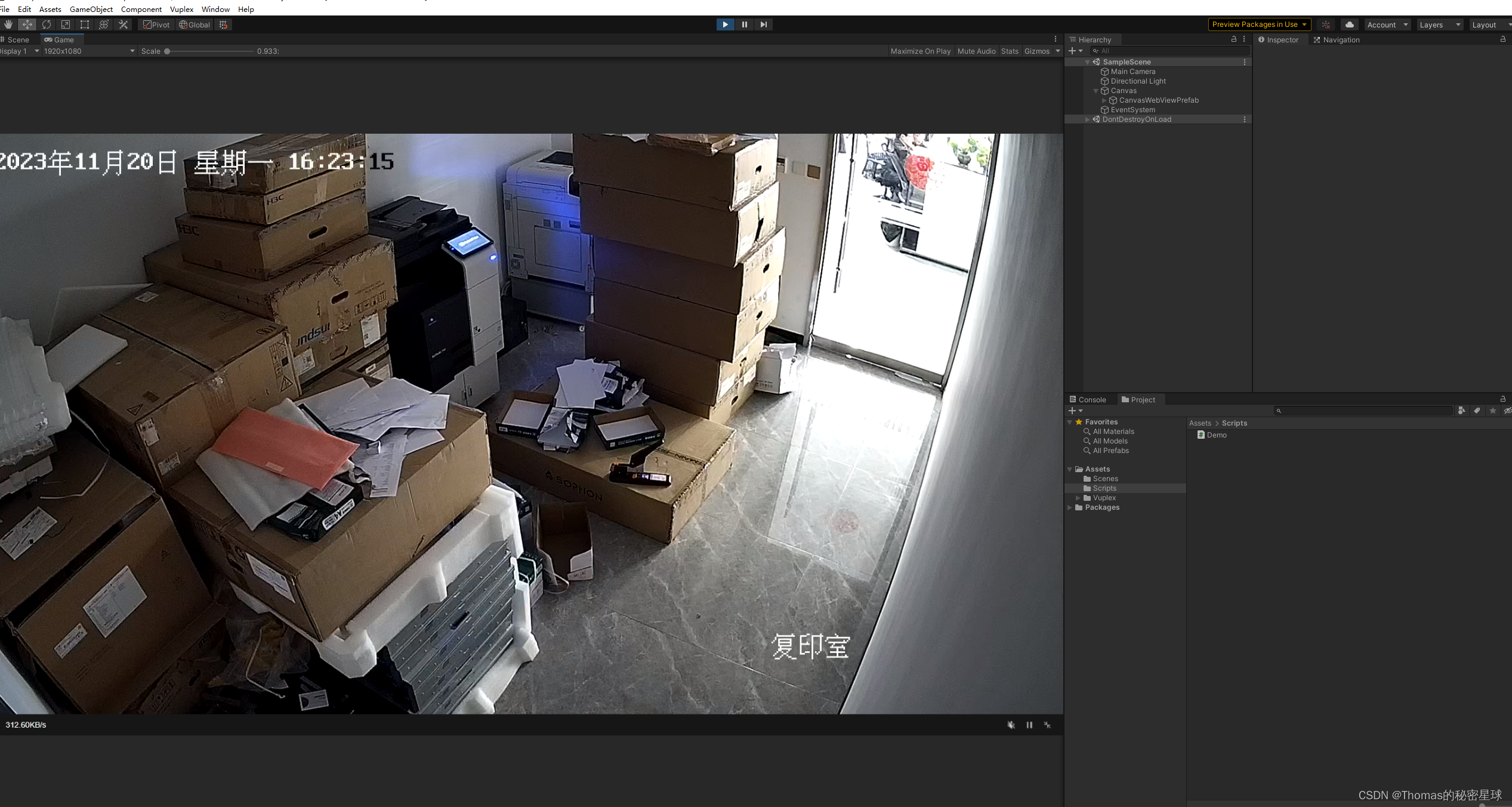

最后视频运行效果：
