unity2020中timeline使用自定义轨道和PlayableTrack,PlayableGraph

一.Playable Track入门

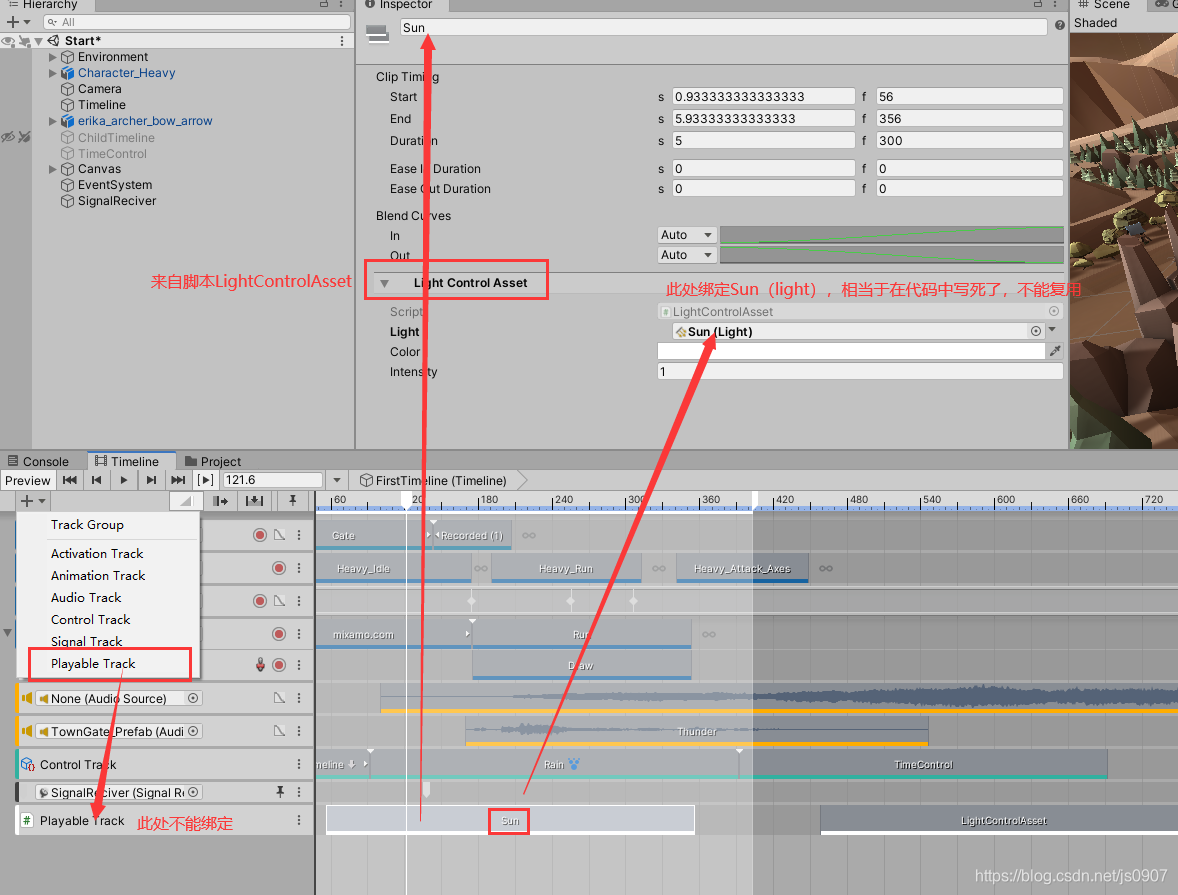

下面是一个小例子能够实现自定义Playable Track 中控制灯光的颜色：

实现上面的效果先添加脚本：

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Playables;

public class LightControlBehaviour : PlayableBehaviour
{

    public Light light;
    public Color color = Color.white;
    public float intensity = 1;
    /// <summary>
    /// timeLine 每次更新都会执行此方法
    /// </summary>
    /// <param name="playable"></param>
    /// <param name="info"></param>
    /// <param name="playerData"></param>
    public override void ProcessFrame(Playable playable, FrameData info, object playerData)
    {
        if (light != null)
        {
            light.color = color;
            light.intensity = intensity;

        }
    }
}

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Playables;

public class LightControlAsset : PlayableAsset
{
    // 在clip中的light对象
    public ExposedReference<Light> light;
    public Color color = Color.white;
    public float intensity = 1;
    public override Playable CreatePlayable(PlayableGraph graph, GameObject owner)
    {
        // 把逻辑和资源联系起来
        var playable = ScriptPlayable<LightControlBehaviour>.Create(graph);
        var lightControlBehavliur = playable.GetBehaviour();
        // 获取到light的对象
        lightControlBehavliur.light = light.Resolve(graph.GetResolver());
        lightControlBehavliur.color = color;
        lightControlBehavliur.intensity = intensity;

        return playable;
    }
}

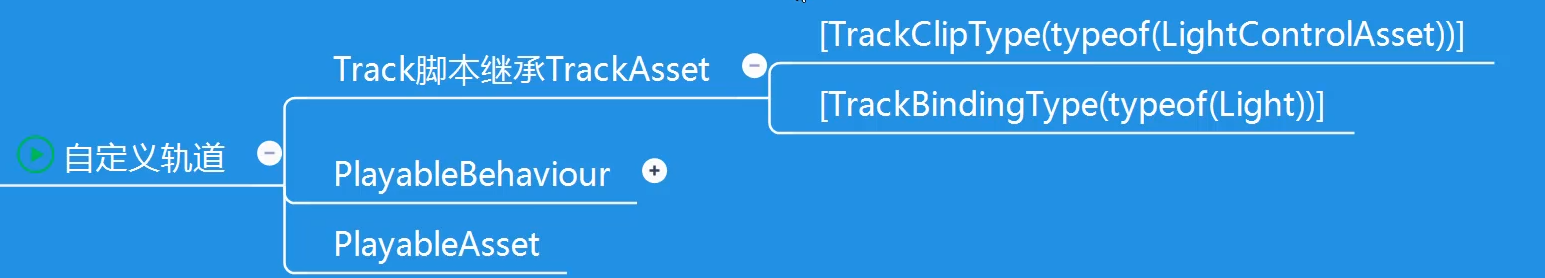

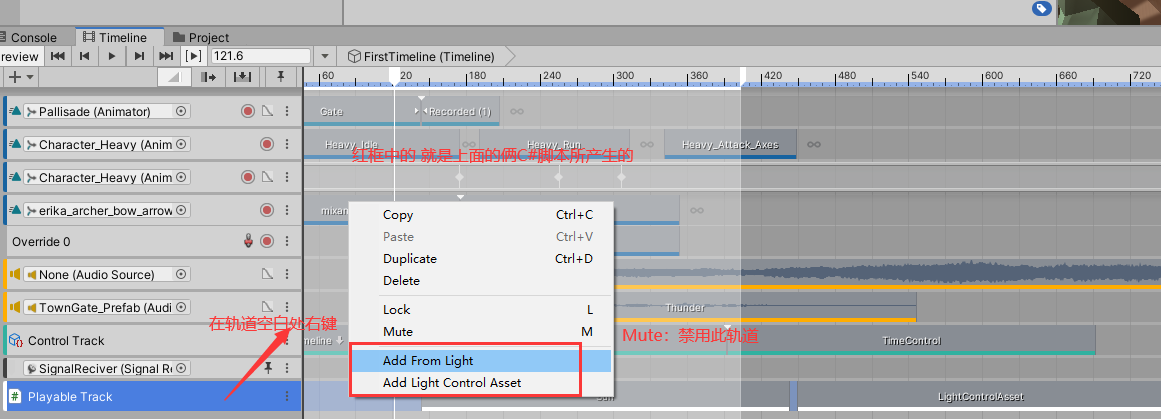

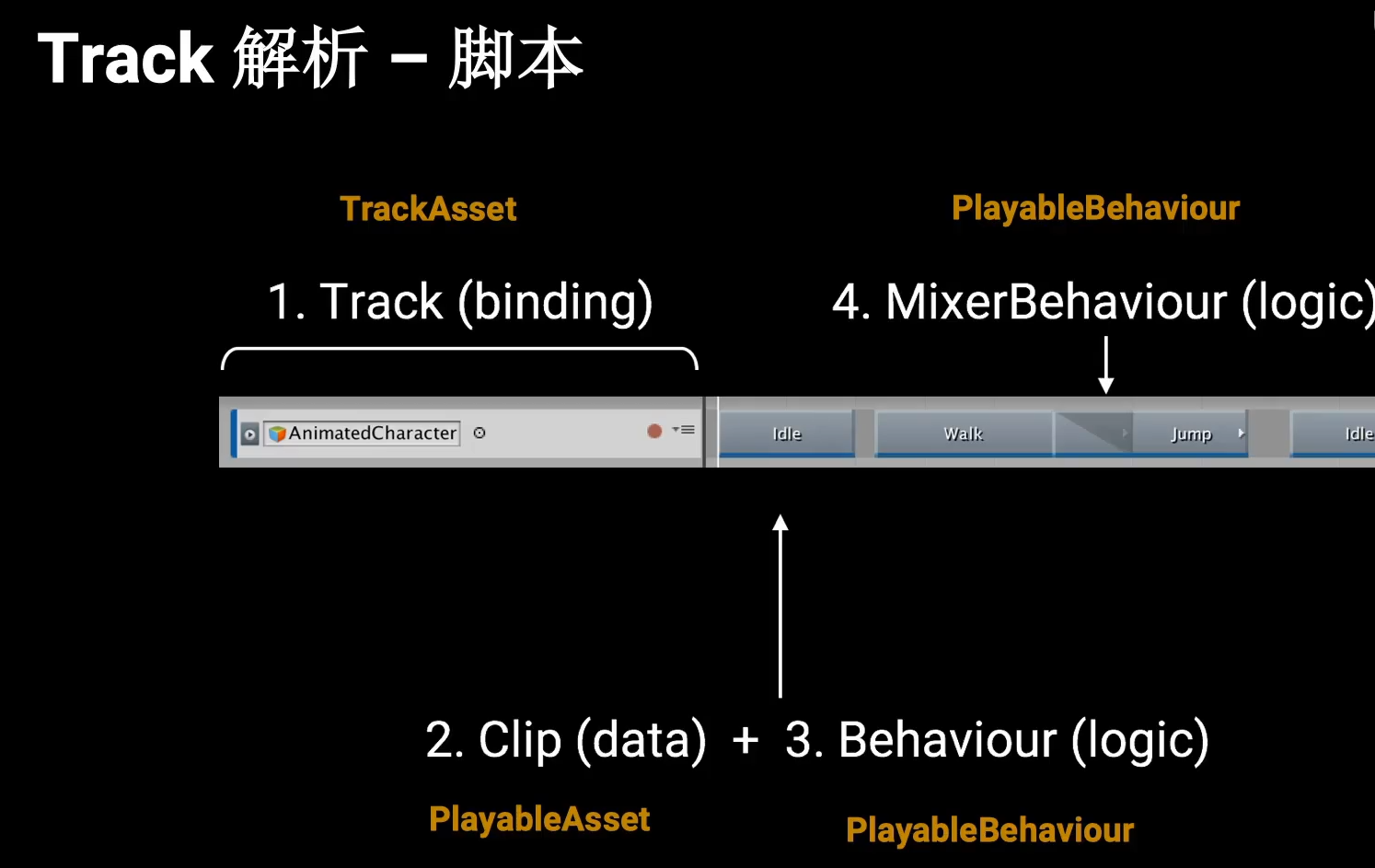

二 timeline自定义轨道

（由于PlayableTrack不能复用，不能更换绑定的数据源，所以PlayableTrack并不实用，自定义轨道更实用）

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Timeline;
//绑定的Clip的类型(可以是定义的，也可以是AudioClip等)
[TrackClipType(typeof(LightControlAsset))]
// 绑定的Track对象的类型
[TrackBindingType(typeof(Light))]
public class LightControlTrack : TrackAsset
{

}

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Playables;

public class LightControlAsset : PlayableAsset
{
    // 在clip中的light对象
    //public ExposedReference<Light> light;
    public Color color = Color.white;
    public float intensity = 1;
    public override Playable CreatePlayable(PlayableGraph graph, GameObject owner)
    {
        // 把逻辑和资源联系起来
        var playable = ScriptPlayable<LightControlBehaviour>.Create(graph);
        var lightControlBehavliur = playable.GetBehaviour();
        // 获取到light的对象
        //lightControlBehavliur.light = light.Resolve(graph.GetResolver());
        lightControlBehavliur.color = color;
        lightControlBehavliur.intensity = intensity;

        return playable;
    }
}
---------------------------------
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Playables;

public class LightControlBehaviour : PlayableBehaviour
{

    //public Light light;
    public Color color = Color.white;
    public float intensity = 1;
    /// <summary>
    /// timeLine 每次更新都会执行此方法
    /// </summary>
    /// <param name="playable"></param>
    /// <param name="info"></param>
    /// <param name="playerData">就是Track中绑定的物体本身</param>
    public override void ProcessFrame(Playable playable, FrameData info, object playerData)
    {
        Light light = playerData as Light;
        if (light != null)
        {
            light.color = color;
            light.intensity = intensity;

        }
    }
}

三 Playable API相关介绍

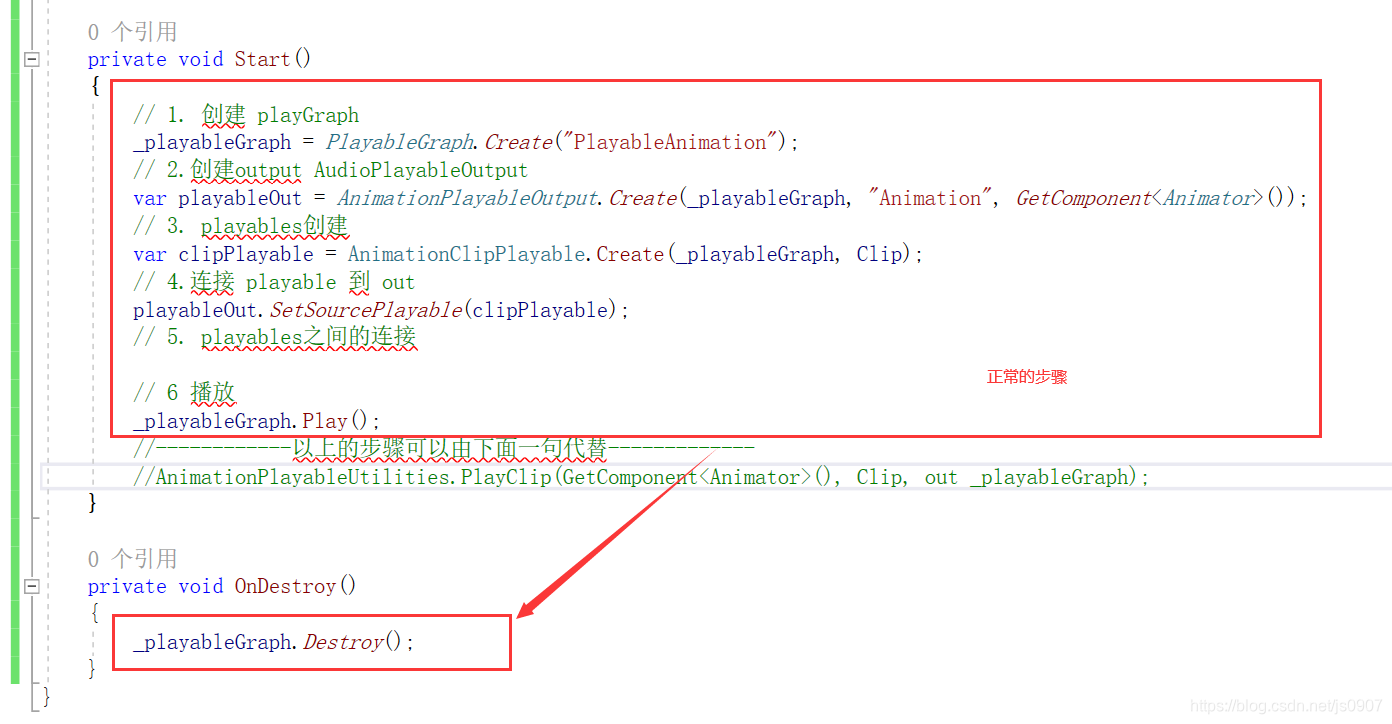

四Playable创建一个简单的动画（不用Controller状态机播放）

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Animations;
using UnityEngine.Playables;

[RequireComponent(typeof(Animator))]
public class PlayableAnimation : MonoBehaviour
{
    public AnimationClip Clip;

    private PlayableGraph _playableGraph;

    private void Start()
    {
         1. 创建 playGraph
        //_playableGraph = PlayableGraph.Create("PlayableAnimation");
         2.创建output AudioPlayableOutput
        //var playableOut = AnimationPlayableOutput.Create(_playableGraph,"Animation",GetComponent<Animator>());
         3. playables创建
        //var clipPlayable = AnimationClipPlayable.Create(_playableGraph, Clip);
         4.连接 playable 到 out
        //playableOut.SetSourcePlayable(clipPlayable);
         5. playables之间的连接

         6 播放
        //_playableGraph.Play();
        //------------以上的步骤可以由下面一句代替-------------
        AnimationPlayableUtilities.PlayClip(GetComponent<Animator>(), Clip, out _playableGraph);
    }

    private void OnDestroy()
    {
        _playableGraph.Destroy();
    }
}

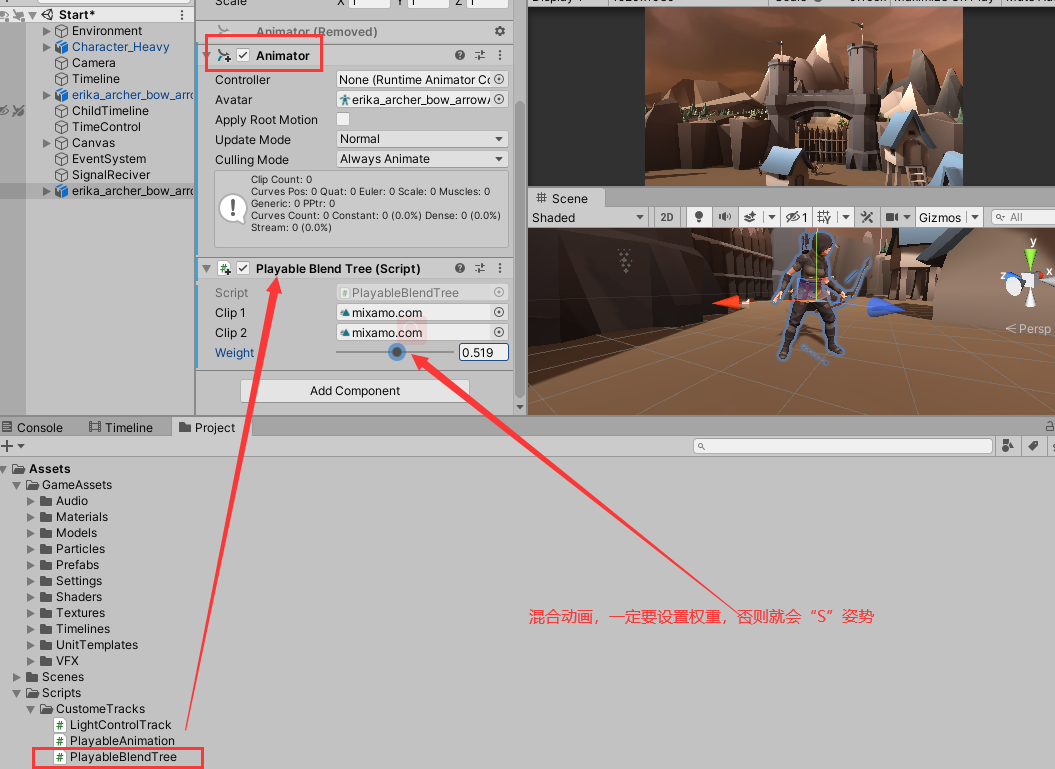

五Playable创建混合动画

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Animations;
using UnityEngine.Playables;

public class PlayableBlendTree : MonoBehaviour
{
    public AnimationClip Clip1;
    public AnimationClip Clip2;
    private PlayableGraph _playableGraph;
    private AnimationMixerPlayable _mixPlayable;
    [Range(0,1)]
    public float weight = 0.5f;
    void Start()
    {
        // 创建 graph
        _playableGraph = PlayableGraph.Create("PlayableBlendTree");
        // 创建 out
        var playableOut = AnimationPlayableOutput.Create(_playableGraph,"Animation",GetComponent<Animator>());
        // 创建 mixPlayable
        _mixPlayable = AnimationMixerPlayable.Create(_playableGraph, 2);
        // 将graph 和 playable 绑定
        playableOut.SetSourcePlayable(_mixPlayable);
        // 创建clipPlayable
        var clipPlayable0 = AnimationClipPlayable.Create(_playableGraph, Clip1);
        var clipPlayable1 = AnimationClipPlayable.Create(_playableGraph, Clip2);

        _playableGraph.Connect(clipPlayable0,0,_mixPlayable,0);
        _playableGraph.Connect(clipPlayable1, 0, _mixPlayable, 1);
        // 播放
        _playableGraph.Play();
    }

    // Update is called once per frame
    void Update()
    {
        _mixPlayable.SetInputWeight(0, weight);
        _mixPlayable.SetInputWeight(1, 1 - weight);
    }
    private void OnDestroy()
    {
        _playableGraph.Destroy();
    }
}

六 PlayableGraph 运行时动态修改（添加或删除clip）

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Animations;
using UnityEngine.Playables;

public class PlayableBlendTree : MonoBehaviour
{
    public AnimationClip Clip1;
    public AnimationClip Clip2;
    private PlayableGraph _playableGraph;
    private AnimationMixerPlayable _mixPlayable;
    [Range(0,1)]
    public float weight = 0.5f;
    void Start()
    {
        // 创建 graph
        _playableGraph = PlayableGraph.Create("PlayableBlendTree");
        // 创建 out
        var playableOut = AnimationPlayableOutput.Create(_playableGraph,"Animation",GetComponent<Animator>());
        // 创建 mixPlayable
        _mixPlayable = AnimationMixerPlayable.Create(_playableGraph, 2);
        // 将graph 和 playable 绑定
        playableOut.SetSourcePlayable(_mixPlayable);
         创建clipPlayable
        //var clipPlayable0 = AnimationClipPlayable.Create(_playableGraph, Clip1);
        //var clipPlayable1 = AnimationClipPlayable.Create(_playableGraph, Clip2);
         playable之间的连接
        //_playableGraph.Connect(clipPlayable0,0,_mixPlayable,0);
        //_playableGraph.Connect(clipPlayable1, 0, _mixPlayable, 1);
        // 播放
        _playableGraph.Play();
    }

    // Update is called once per frame
    void Update()
    {
        _mixPlayable.SetInputWeight(0, weight);
        _mixPlayable.SetInputWeight(1, 1 - weight);

        if (Input.GetKeyDown(KeyCode.A))
        {
             创建clipPlayable
            var clipPlayable0 = AnimationClipPlayable.Create(_playableGraph, Clip1);
            var clipPlayable1 = AnimationClipPlayable.Create(_playableGraph, Clip2);
            // playable之间的连接
            _playableGraph.Connect(clipPlayable0, 0, _mixPlayable, 0);
            _playableGraph.Connect(clipPlayable1, 0, _mixPlayable, 1);
        }
        if (Input.GetKeyDown(KeyCode.D))
        {
            // 1. 先断开连接
            _playableGraph.Disconnect(_mixPlayable, 0);
            _playableGraph.Disconnect(_mixPlayable, 1);
            // 2.后销毁
            _mixPlayable.Destroy();
            _playableGraph.DestroyPlayable(_mixPlayable);
            // 最后销毁output       如果只有一个Graph，默认是 0
            _playableGraph.DestroyOutput(_playableGraph.GetOutput(0));

        }
    }
    private void OnDestroy()
    {
        _playableGraph.Destroy();
    }
}
