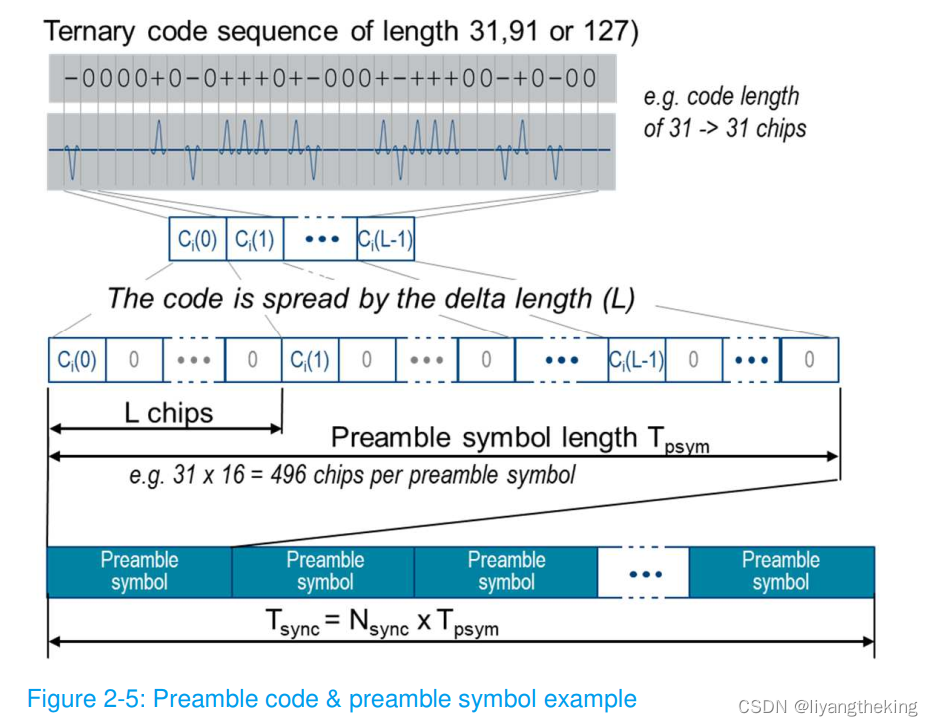

Each preamble code is a sequence of pulses representing -1, 0, and +1. The preamble code is spread to
construct a preamble symbol, and this preamble symbol is then repeated to constitute the SYNC field portion
of the SHR as shown in the example in Figure 2-5. The SYNC field contains simple repetitions of the
preamble symbol and the number of preamble symbol repetitions are 16, 64, 1024 and 4096 as defined in
IEEE 802.15.4-2020. In HPRF mode (PRF > 64 MHz), the HRP-ERDEV shall support 32 and 64 preamble
symbol repetitions with optional values being 16, 24, 48, 96, 128 and 256 as defined in IEEE 802.15.4z-2020
chapter 15.2.6.
