C++多线程的生产者消费者问题: Queue(队列)和环形缓存(RingBuffer)的效率对比

游戏引擎中的多线程

在游戏引擎开发中, 多线程渲染是经常采用的线程模型, 大名鼎鼎的虚幻4引擎就是采用了多线程渲染,三条与渲染有关线程，如GameThread(游戏线程), RenderThread(渲染线程)，RHIThread(RHI线程)

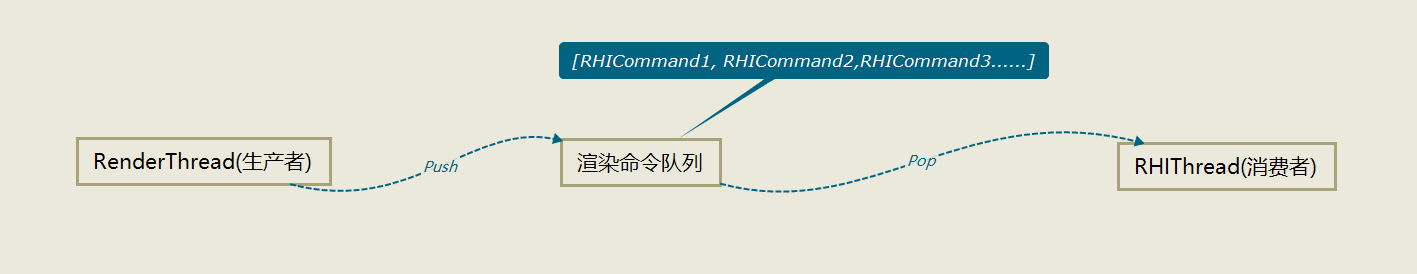

其中RenderThread 和 RHIThread构成了经典的生成者和消费者模式(一对一)



问题设计

对比在“生产者消费者问题下” Queue和RingBuffer的效率问题

实验：在 4000000 次数中在相应数据结构的不断进行数据的读取和写入

(1)单线程中的链式结构Queue的效率

(2)一写线程和一读线程在链式结构Queue的效率

(3)一写线程和一读线程在RingBuffer的效率

队列(Queue链式结构)

这里用的stl queue, 采用链表的实现方式， 数据结构具体实现就不说了。stl queue是线程不安全的，不加锁的情况的直接很容易崩溃。



#include <iostream>
#include<thread>
#include<time.h>
#include<windows.h>
#include<mutex>
#define ARRAY_MAX_SIZE 4000000
using namespace std;


template<typename DataType, int Length = 200000>
class RingBuffer
{
private:
	DataType datas[Length];
	int head = 0;
	int tail = 0;

public:
	bool IsFull()
	{
		return (tail + 1) % Length == head;
	}

	bool IsEmpty()
	{
		return tail == head;
	}

	bool Push(DataType data)
	{
		if (IsFull())
			return false;

		datas[tail] = data;
		tail = (tail + 1) % Length;
		return true;
	}

	bool Pop(DataType& data)
	{
		if (IsEmpty())
			return false;

		data = datas[head];
		head = (head + 1) % Length;
		return true;
	}

	int Size()
	{
		if (tail >= head)
			return tail - head;
		else
			return tail + Length - head;
	}

};

clock_t start = 0;
int b = 0;
mutex mt;
bool isFinish = false;
RingBuffer<int> ringbuffer;


void WriteThread()
{
	for (int index = 0; index < ARRAY_MAX_SIZE; ++index)
	{
		//mt.lock();
		if (!ringbuffer.Push(index))
		{
			index = index - 1;
		}
		//mt.unlock();
	}

	isFinish = true;
	clock_t end = clock();
	printf("Write DataQueue Num = %d\n ", ringbuffer.Size());
	printf("time = %f b = %d\n ", (double)(end - start) / CLOCKS_PER_SEC, b);
}

void ReadThread()
{
	while (1)
	{
		if (isFinish && ringbuffer.IsEmpty())
		{
			break;
		}
		else
		{
			if (!ringbuffer.IsEmpty())
			{
				//mt.lock();
				ringbuffer.Pop(b);
				//mt.unlock();
			}
		}
	}

	clock_t end = clock();
	printf("Read DataQueue Num = %d\n ", ringbuffer.Size());
	printf("finish time = %f b = %d\n ", (double)(end - start) / CLOCKS_PER_SEC, b);
}

单线程链式Queue

int main()
{
	WriteThread();
	ReadThread();;
	system("Pause");
	return 0;
}

一写线程和一读线程

int main()
{
	thread t1(WriteThread);
	thread t2(ReadThread);
	t1.join();
	t2.join();
	system("Pause");
	return 0;
}

上面的代码中注释的删除注释号 得lock相关代码



Ringbuffer(环形缓存)

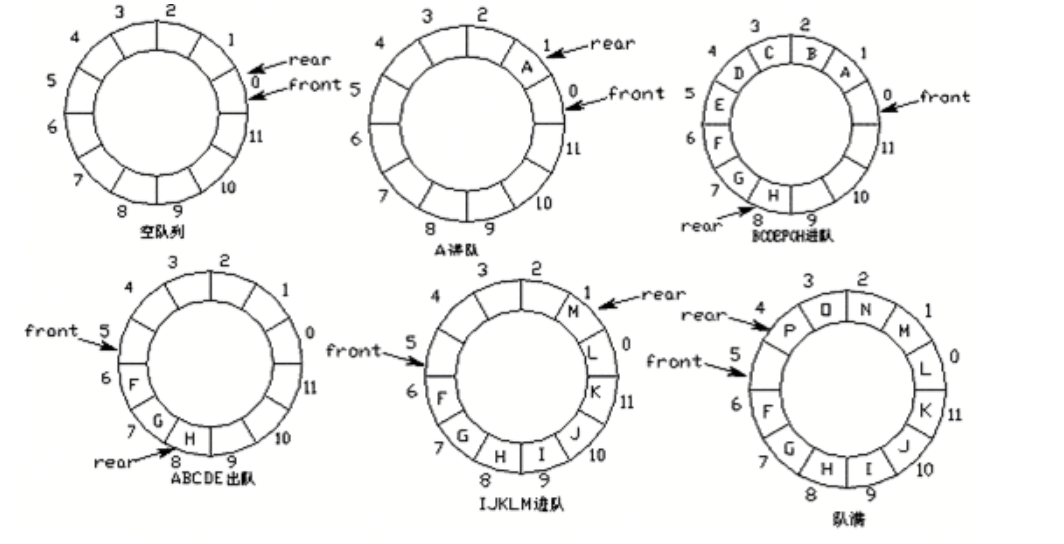

环形缓存作用其实是队列，只不过内部实现远远比链式队列简单很多。数据存储采用数组，有个head索引头(front)和tail尾索引(rear)

当数据进队: rear前移 rear = (rear + 1) % size

当数据出队: front前移 front = (front + 1) % size

template<typename DataType, int Length = 200000>
class RingBuffer
{
private:
	DataType datas[Length];
	int head = 0;
	int tail = 0;

public:
	bool IsFull()
	{
		return (tail + 1) % Length == head;
	}

	bool IsEmpty()
	{
		return tail == head;
	}

	bool Push(DataType data)
	{
		if (IsFull())
			return false;

		datas[tail] = data;
		tail = (tail + 1) % Length;
		return true;
	}

	bool Pop(DataType& data)
	{
		if (IsEmpty())
			return false;

		data = datas[head];
		head = (head + 1) % Length;
		return true;
	}

	int Size()
	{
		if (tail >= head)
			return tail - head;
		else
			return tail + Length - head;
	}

};

单写线程和单读线程的ringbuffer

#include <iostream>
#include<thread>
#include<time.h>
#include<windows.h>
#include<mutex>
#define ARRAY_MAX_SIZE 4000000
using namespace std;


template<typename DataType, int Length = 200000>
class RingBuffer
{
private:
	DataType datas[Length];
	int head = 0;
	int tail = 0;

public:
	bool IsFull()
	{
		return (tail + 1) % Length == head;
	}

	bool IsEmpty()
	{
		return tail == head;
	}

	bool Push(DataType data)
	{
		if (IsFull())
			return false;

		datas[tail] = data;
		tail = (tail + 1) % Length;
		return true;
	}

	bool Pop(DataType& data)
	{
		if (IsEmpty())
			return false;

		data = datas[head];
		head = (head + 1) % Length;
		return true;
	}

	int Size()
	{
		if (tail >= head)
			return tail - head;
		else
			return tail + Length - head;
	}

};

clock_t start = 0;
int b = 0;
mutex mt;
bool isFinish = false;
RingBuffer<int> ringbuffer;


void WriteThread()
{
	for (int index = 0; index < ARRAY_MAX_SIZE; ++index)
	{
		if (!ringbuffer.Push(index))
		{
			index = index - 1;
		}
	}

	isFinish = true;
	clock_t end = clock();
	printf("Write DataQueue Num = %d\n ", ringbuffer.Size());
	printf("time = %f b = %d\n ", (double)(end - start) / CLOCKS_PER_SEC, b);
}

void ReadThread()
{
	while (1)
	{
		if (isFinish && ringbuffer.IsEmpty())
		{
			break;
		}
		else
		{
			if (!ringbuffer.IsEmpty())
			{
				ringbuffer.Pop(b);
			}
		}
	}

	clock_t end = clock();
	printf("Read DataQueue Num = %d\n ", ringbuffer.Size());
	printf("finish time = %f b = %d\n ", (double)(end - start) / CLOCKS_PER_SEC, b);
}

int main()
{
	thread t1(WriteThread);
	thread t2(ReadThread);
	t1.join();
	t2.join();
	system("Pause");
	return 0;
}

测试效率对比:

链式Queue单线程	9.9s~10.5s
链式Queue单写线程和单读线程	11.0 ~ 11.3s
RingBuffer单写线程和单读线程	0.45s~0.75s

很显然 RingBuffer在解决单写线程和单读线程的问题性能好很多，数组连续的内存结构对读取写入的友好,加上Push和Pop仅仅是由两个整数索引改变能实现，也没有lock，因此RingBuffer比链式Queue速度快太多了。

但是请注意这里是单读线程和单写线程下，上面代码的RingBuffer实现才是线程安全的。多个读线程和多个写线程下也是不安全的,。并且考虑有溢满的情况，上面的RingBuffer实现在溢满的情况得小心，会有数据覆盖问题
