MOD08_M3V6.1和MYD08_M3V6.1是NASA的两个大气全球产品，分别提供每月1×1度网格的平均大气参数，包括气溶胶、臭氧、水汽、云和大气稳定性的数据。这些产品包含了平均值、标准偏差、统计分布等信息，并可用于气候研究和环境监测。通过示例代码展示了如何使用这些数据来可视化气溶胶光学厚度。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

MOD08_M3 V6.1 is an atmosphere global product that contains monthly 1 x 1 degree grid average values of atmospheric parameters. These parameters are related to atmospheric aerosol particle properties, total ozone burden, atmospheric water vapor, cloud optical and physical properties, and atmospheric stability indices. The product also provides means, standard deviations, QA weighted statistics, log-normal distributions, uncertainty estimates, and statistics for fractions of pixels that satisfy some condition. Below is a subset of the bands, for a complete list see the MOD08 Band List.

MOD08_M3 V6.1是一个大气全球产品，包含大气参数的每月1×1度网格平均值。这些参数与大气气溶胶颗粒特性、臭氧总负荷、大气水汽、云的光学和物理特性以及大气稳定性指数有关。该产品还提供平均值、标准偏差、QA加权统计、对数正态分布、不确定性估计，以及满足某些条件的像素比例的统计。下面是一个波段的子集，完整的列表见MOD08波段列表。

Dataset Availability

2000-03-01T00:00:00 - 2021-08-01T00:00:00

Dataset Provider

NASA LAADS DAAC at NASA Goddard Space Flight Center

Collection Snippet

ee.ImageCollection("MODIS/061/MOD08_M3")

Resolution

111320 meters

Bands Table

Name	Description	Min	Max	Scale
Aerosol_Optical_Depth_Land_Ocean_Mean_Mean	Aerosol optical thickness at 0.55 microns for both ocean (best) and land (corrected): mean of daily mean	-100	5000	0.001
Aerosol_Optical_Depth_Land_Ocean_Std_Deviation_Mean	Aerosol optical thickness at 0.55 microns for both ocean (best) and land (corrected): mean of daily standard deviation	-100	5000	0.001
Aerosol_Optical_Depth_Land_QA_Mean_Mean_470	Corrected aerosol optical depth (land) at 0.47 microns: mean of level-3 QA weighted mean	-100	5000	0.001
Aerosol_Optical_Depth_Land_QA_Std_Deviation_Mean_470	Corrected aerosol optical depth (land) at 0.47 microns: mean of level-3 weighted QA standard deviation	-100	5000	0.001
Cirrus_Fraction_SWIR_FMean	Cirrus area fraction: mean of daily fraction	0	10000	0.0001
Cirrus_Fraction_SWIR_FStd	Cirrus area fraction: standard deviation of daily fraction	0	10000	0.0001
Cloud_Optical_Thickness_Liquid_Log_Mean_Mean	Liquid water cloud optical thickness: mean of daily log mean	0	4176	0.001
Cloud_Optical_Thickness_Liquid_Log_Std_Deviation_Mean	Liquid water cloud optical thickness: mean of daily log standard deviation	0	4176	0.001
Cloud_Optical_Thickness_Liquid_Mean_Uncertainty	Liquid water cloud optical thickness: multi-day absolute uncertainty estimate derived from the daily absolute uncertainty estimate	0	2000	0.01
Cloud_Optical_Thickness_Liquid_Log_Mean_Uncertainty	Liquid water cloud optical thickness: multi-day absolute log uncertainty estimate derived from the daily absolute log uncertainty estimate	0	4477	0.001

使用说明：

This dataset is in the public domain and is available without restriction on use and distribution. See NASA’s Earth Science Data & Information Policy for additional information.

引用：

Platnick, S., M. King, P. Hubanks, 2015. MODIS Atmosphere L3 Monthly Product. NASA MODIS Adaptive Processing System, Goddard Space Flight Center, doi:10.5067/MODIS/MOD08_M3.061

代码：

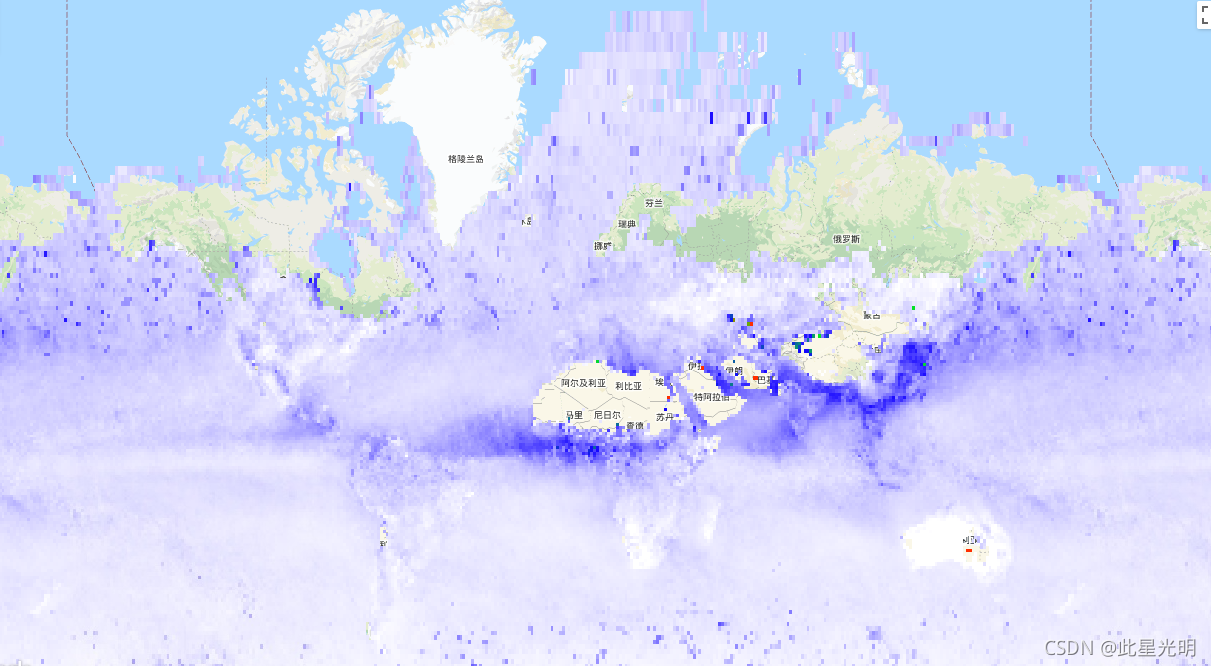

var dataset = ee.ImageCollection('MODIS/061/MOD08_M3')
                  .filter(ee.Filter.date('2018-01-01', '2018-05-01'));
var aerosolOpticalDepth =
    dataset.select('Aerosol_Optical_Depth_Land_Ocean_Mean_Mean');
var aerosolOpticalDepthVis = {
  min: 0.0,
  max: 3000.0,
  palette: ['ffffff', '1303ff', '01ff09', 'ff2f00'],
};
Map.setCenter(6.746, 46.529, 2);
Map.addLayer(
    aerosolOpticalDepth, aerosolOpticalDepthVis, 'Aerosol Optical Depth');

MYD08_M3 V6.1 is an atmosphere global product that contains monthly 1 x 1 degree grid average values of atmospheric parameters. These parameters are related to atmospheric aerosol particle properties, total ozone burden, atmospheric water vapor, cloud optical and physical properties, and atmospheric stability indices. The product also provides means, standard deviations, QA weighted statistics, log-normal distributions, uncertainty estimates, and statistics for fractions of pixels that satisfy some condition. Below is a subset of the bands, for a complete list see the MOD08 Band List.

MYD08_M3 V6.1是一个大气全球产品，包含每月1×1度网格的大气参数平均值。这些参数与大气气溶胶颗粒特性、臭氧总负荷、大气水汽、云的光学和物理特性以及大气稳定性指数有关。该产品还提供平均值、标准偏差、QA加权统计、对数正态分布、不确定性估计，以及满足某些条件的像素比例的统计。下面是一个波段的子集，完整的列表见MOD08波段列表。

Dataset Availability

2002-07-04T00:00:00 - 2021-08-01T00:00:00

Dataset Provider

NASA LAADS DAAC at NASA Goddard Space Flight Center

Collection Snippet

ee.ImageCollection("MODIS/061/MYD08_M3")

代码：

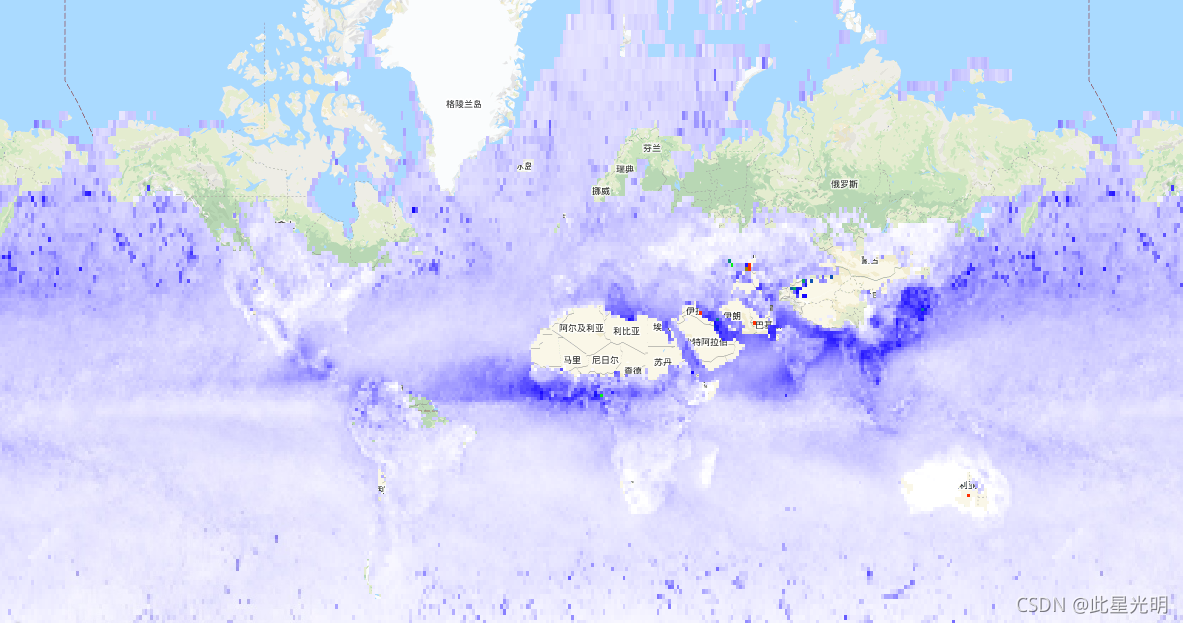

var dataset = ee.ImageCollection('MODIS/006/MYD08_M3')
                  .filter(ee.Filter.date('2018-01-01', '2018-05-01'));
var aerosolOpticalDepth =
    dataset.select('Aerosol_Optical_Depth_Land_Ocean_Mean_Mean');
var aerosolOpticalDepthVis = {
  min: 0.0,
  max: 3000.0,
  palette: ['ffffff', '1303ff', '01ff09', 'ff2f00'],
};
Map.setCenter(6.746, 46.529, 2);
Map.addLayer(
    aerosolOpticalDepth, aerosolOpticalDepthVis, 'Aerosol Optical Depth');
