Google Earth Engine——全球土壤6个标准深度（0、10、30、60、100和200厘米）的土壤pH值（H2O），分辨率为250米

最新推荐文章于 2023-08-23 10:00:00 发布

此星光明

最新推荐文章于 2023-08-23 10:00:00 发布

阅读量1.2k

点赞数

分类专栏： GEE数据集专栏文章标签： html ph 土壤酸碱含量

本文链接：https://blog.csdn.net/qq_31988139/article/details/120602221

版权

GEE数据集专栏专栏收录该内容

858 篇文章

订阅专栏

Soil pH in H2O at 6 standard depths (0, 10, 30, 60, 100 and 200 cm) at 250 m resolution

Processing steps are described in detail here . Antartica is not included.

To access and visualize maps outside of Earth Engine, use this page.

If you discover a bug, artifact or inconsistency in the LandGIS maps or if you have a question please use the following channels:

6个标准深度（0、10、30、60、100和200厘米）的土壤pH值（H2O），分辨率为250米

这里详细描述了处理步骤。南极洲不包括在内。

要访问和可视化地球引擎以外的地图，请使用这个页面。

如果您在LandGIS地图中发现了错误、人工制品或不一致的地方，或者您有问题，请使用以下渠道。

关于代码的技术问题和疑问
一般问题和评论

Dataset Availability

1950-01-01T00:00:00 - 2018-01-01T00:00:00

Dataset Provider

EnvirometriX Ltd

Collection Snippet

ee.Image("OpenLandMap/SOL/SOL_PH-H2O_USDA-4C1A2A_M/v02")

Resolution

250 meters

Bands Table

Name	Description	Min*	Max*	Scale
b0	Soil pH in H2O at 0 cm depth	42	110	10
b10	Soil pH in H2O at 10 cm depth	42	110	10
b30	Soil pH in H2O at 30 cm depth	42	110	10
b60	Soil pH in H2O at 60 cm depth	42	110	10
b100	Soil pH in H2O at 100 cm depth	42	110	10
b200	Soil pH in H2O at 200 cm depth	42	110	10

* = Values are estimated

数据引用：

Tomislav Hengl. (2018). Soil pH in H2O at 6 standard depths (0, 10, 30, 60, 100 and 200 cm) at 250 m resolution (Version v02) [Data set]. Zenodo. 10.5281/zenodo.1475459

Soil pH in H2O at 6 standard depths (0, 10, 30, 60, 100 and 200 cm) at 250 m resolution | Zenodo

代码：

var dataset = ee.Image("OpenLandMap/SOL/SOL_PH-H2O_USDA-4C1A2A_M/v02");

var visualization = {
  bands: ['b0'],
  min: 42.0,
  max: 110.0,
  palette: [
    "FF0000","FF1C00","FF3900","FF5500","FF7100","FF8E00",
    "FFAA00","FFC600","FFE200","FFFF00","E3FF00","C7FF00",
    "AAFF00","8EFF00","72FF00","55FF00","39FF00","1DFF00",
    "01FF00","00FF1C","00FF38","00FF54","00FF71","00FF8D",
    "00FFA9","00FFC6","00FFE2","00FFFE","00E3FF","00C7FF",
    "00ABFF","008FFF","0072FF","0056FF","003AFF","001DFF",
    "0001FF","1B00FF","3800FF","5400FF",
  ]
};

Map.centerObject(dataset);

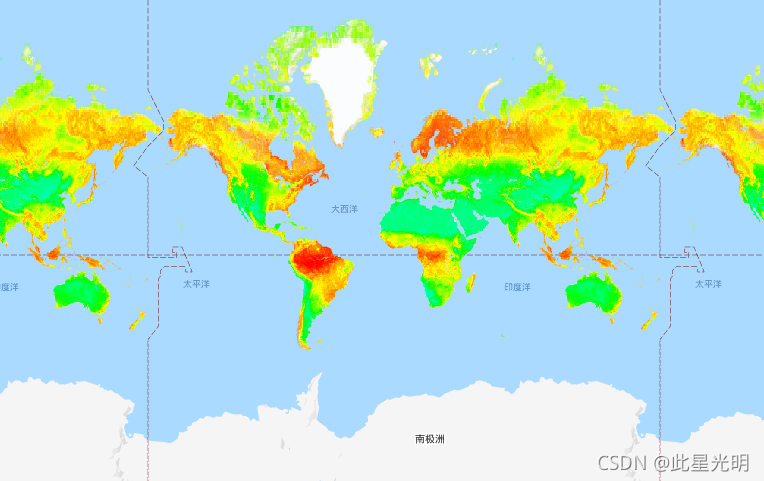

Map.addLayer(dataset, visualization, "Soil pH x 10 in H2O");
