Google Earth Engine（GEE）——全球钢铁生产基地数据库生产类型、工厂类型、产能和生产起始年

全球钢铁生产基地数据库¶。
全球钢铁生产资产数据库提供目前正在运行的全球钢铁生产厂的信息。该数据库包含1,598家生产厂，有确切的地理位置，并提供有关所有权、生产类型、工厂类型、产能和生产起始年（如有）的信息。



一级钢铁生产过程（高炉、碱性氧气炉或露天炉），通常使用煤炭作为能源，在大型综合设施中进行。而二级钢铁生产过程（电弧炉）通常使用电力作为能源，在所谓的 "小型工厂 "中进行。该数据库涵盖了整个钢铁生产过程中的各种资产，包括原材料的采购和加工（特别是焦化和球团化工厂）、粗钢生产（综合工厂和小型工厂）和钢铁成品的生产（下游工厂）。

前言 – 床长人工智能教程

Citation¶

McCarten, M., Bayaraa, M., Caldecott, B., Christiaen, C., Foster, P., Hickey, C., Kampmann, D.,
Layman, C., Rossi, C., Scott, K., Tang, K., Tkachenko, N., and Yoken, D., 2021.
Global Database of Iron and Steel Production Assets. Spatial Finance Initiative

Additional Information about the Spatial Finance Initiative can be found here

SNo	Field	Field_Description	GEE_Field
1	uid	Unique identifier for the plant	uid
2	city	City in which the plant is located	city
3	state	State or province in which the plant is located	state
4	country	Country in which the plant is located	country
5	iso3	Three-letter country code defined in ISO 3166-1 alpha 3	iso3
6	country_code	Three-digit country code defined in ISO 3166-1 numeric	country_code
7	region	Region in which the plant is located	region
8	sub_region	Subregion in which the plant is located	sub_region
9	latitude	Latitude for the geolocation of the plant (based on WGS84 (EPSG:4326))	latitude
10	longitude	Longitude for the geolocation of the plant (based on WGS84 (EPSG:4326))	longitude
11	accuracy	The accuracy of the latitude and longitude	accuracy
12	status	Current plant operating status	status
13	plant_type	The type of iron and steel production facility. Plant types include: Integrated, Mini-Mill, DRI, Downstream, Coke, and Pelletisation plants.	plant_type
14	primary_production_type	The primary production type used at the plant	prprod_typ
15	primary_product	The primary product that is produced at the plant. Product types include: Crude Steel, Finished Steel, Iron, Coke and Pellets.	primary_product
16	capacity	Total steel production capacity (millions of tons) of the primary product	cap
17	capacity_source	Source used to obtain capacity information	cap_sr
18	year	Year the plant started production	year
19	owner_permid	PermID of the primary owner of the plant*	ow_pid
20	owner_name	Name of the primary owner of the plant	ow_name
21	owner_source	Source reporting the ownership link between the plant and owner	ow_sr
22	parent_permid	PermID of the ultimate parent of the owner of the plant*	pr_pid
23	parent_name	Name of the ultimate parent of the owner of the plant	pr_name
24	ownership_stake	The percentage ownership attributed to the parent company if the plant is a joint venture. If the plant is majority owned by a single parent company then this column will be blank	ow_stake
25	parent_lei	Legal Entity Identifier (LEI) of the ultimate parent of the owner of the plant	pr_lei
26	parent_holding_status	The holding status of the ultimate parent (Private or Public)	pr_hstat
27	parent_ticker	The primary ticker for the ultimate parent, if the company is publicly traded	pr_tkr
28	parent_exchange	The primary exchange for the ultimate parent, if the company is publicly traded	pr_exc
29	parent_permid_2	PermID of the 2nd ultimate parent of the owner of the plant*	pr_pid2
30	parent_name_2	Name of the 2nd ultimate parent of the owner of the plant	pr_name2
31	ownership_stake_2	The percentage ownership attributed to the 2nd parent company if the plant is a joint venture	ow_stake2
32	parent_lei_2	Legal Entity Identifier (LEI) of the 2nd ultimate parent	pr_lei2
33	parent_holding_status_2	The holding status of the 2nd ultimate parent (Private or Public)	pr_hstat2
34	parent_ticker_2	The primary ticker for the 2nd ultimate parent, if the company is publicly traded	pr_tkr2
35	parent_exchange_2	The primary exchange for the 2nd ultimate parent, if the company is publicly traded	pr_exc2

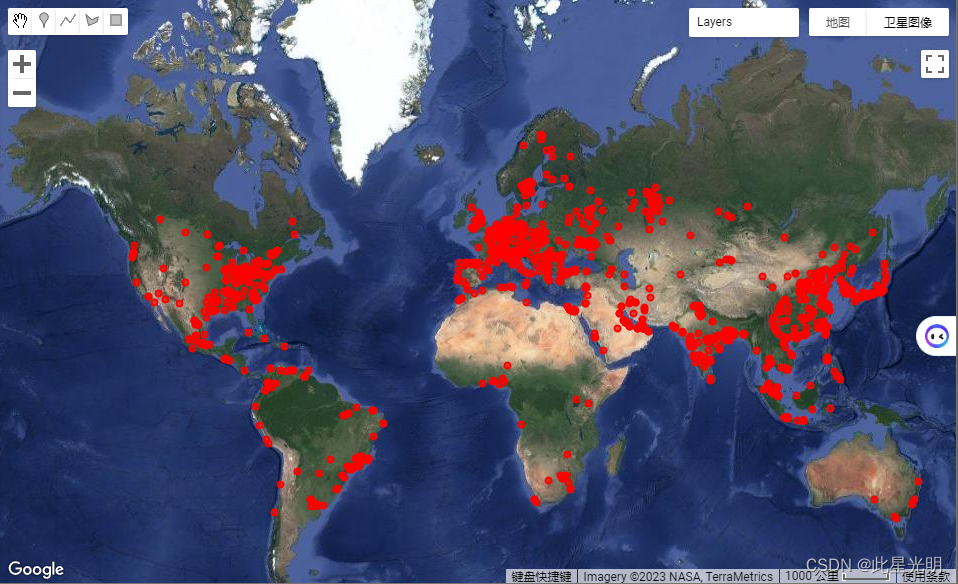

Earth Engine Snippet¶

var global_steel = ee.FeatureCollection("projects/sat-io/open-datasets/SFI/global_steel_database_20210701")

Sample Code: https://code.earthengine.google.com/?scriptPath=users/sat-io/awesome-gee-catalog-examples:global-utilities-assets-amenities/GLOBAL-IRON-STEEL-PRODUCTION-ASSETS

Acknowledgements¶

Both databases have been developed by the Oxford Sustainable Finance Programme, Satellite Applications Catapult, and The Alan Turing Institute as part of the Spatial Finance Initiative ‘s GeoAsset Project. Project FAQ's can be found here

License¶

The Global Database of Iron and Steel Production Assets can be used by others and is available under a CC BY 4.0 license

Data download page: Download Request Form

Curated in GEE by: Samapriya Roy

Keywords: : GeoAsset Project, Oxford Sustainable Finance Programme, Satellite Applications Catapult, Alan Turing Institute, McCarten et al , Iron, Steel , Global database

Last updated: 2021-07-16
