CARVE: L1 Spectral Radiances from Airborne FTS, Alaska, 2012-2015

简介

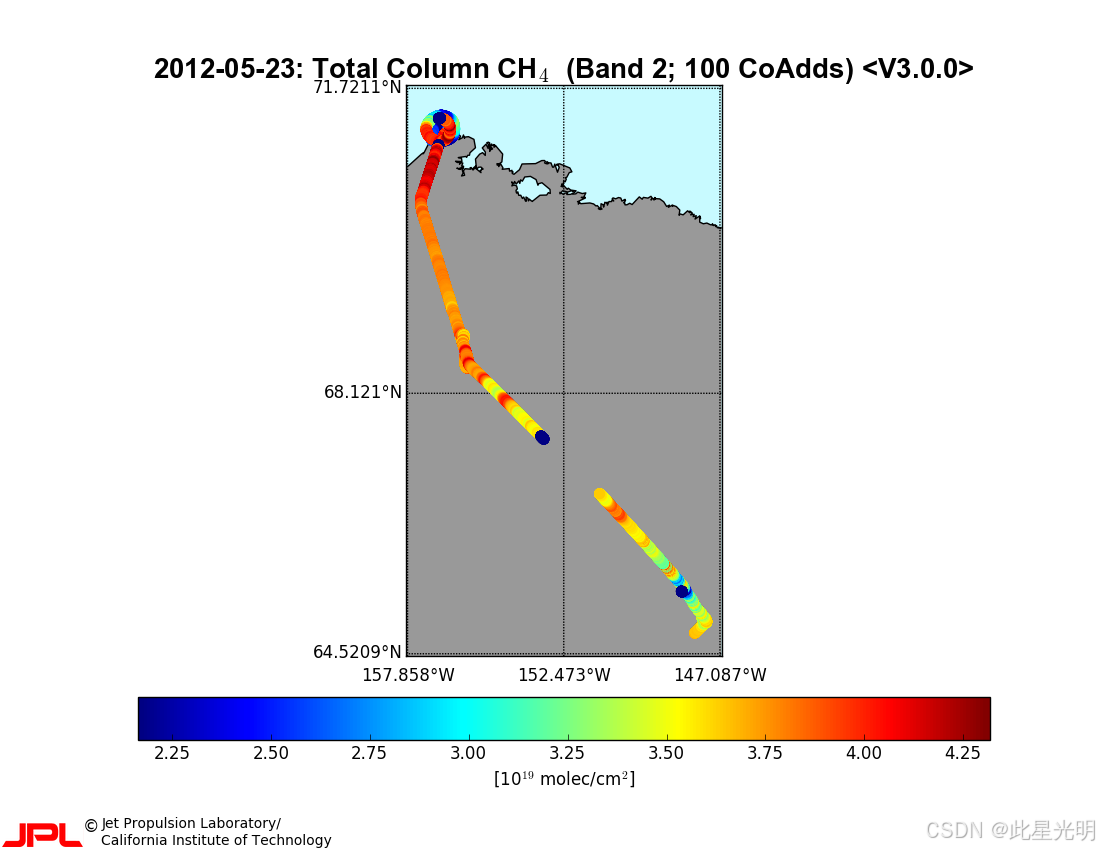

该数据集包含一级光谱辐射数据，这些数据是在北极水库碳脆弱性实验（CARVE）的阿拉斯加和加拿大北极地区空中飞行期间使用傅里叶变换光谱仪 (FTS) 收集的。飞行飞行于 2012 年至 2015 年 3 月至 11 月期间进行，旨在研究大气气体含量的季节和年际变化。该数据集中包含的测量数据对于理解北极碳循环的变化以及北极永久冻土融化带来的潜在威胁至关重要。

摘要

Table 1. CARVE file naming convention. Example file name: carve_FTS_L1_b23_20120511_160419_20150915171127.nc

Name element	Example value	Units
Project name	carve
Instrument	FTS
Processing level	L1
Build ID	b23
Flight date	20120511	yyyymmdd
Acquisition time	160419	hhmmss
Processing date and time	20150915171127	yyyymmddhhmmss

Data variables

Each file contains four variable groups: aviation_housekeeping, geolocation, measurement_ancillary_info, and science_measurement. The variables contained within each variable group are described in Tables 2 to 5.

Table 2. aviation_housekeeping group in the NetCDF files

Data variable	Units	Description
platform_latitude_low_precision	degree_north	platform latitude low precision
platform_longitude_low_precision	degree_east	platform longitude low precision

Table 3. geolocation group in the NetCDF files

Data variable	Units	Description
azimuth	degree	azimuth angle
center_lat	degree_north	latitude of footprint center
center_lat_standard_error	degree_north	standard error of latitude of footprint center
center_lon	degree_east	longitude of footprint center
center_lon_standard_error	degree_east	standard error of longitude of footprint center
geolocation_qc	N/A	geolocation calculations status
ground_speed	m s-1	ground speed
heading	degree	heading
height	meters	height
height_bnds	meters	height of footprint vertex
height_standard_error	meters	standard error of height
lat_bnds	degree_north	latitude of footprint vertex
lon_bnds	degree_east	longitude of footprint vertex
measurement_time	seconds	seconds since 1980-01-06 0:0:0
pitch	degree	pitch
platform_geolocation_qc	N/A	platform geolocation status
platform_height	meters	instrument height
platform_height_standard_error	meters	uncertainty of platform height
platform_latitude	degree_north	platform latitude
platform_latitude_standard_error	degree_north	uncertainty of platform latitude
platform_longitude	degree_east	platform longitude
platform_longitude_standard_error	degree_east	uncertainty of platform longitude
roll	degree	roll
solar_azimuth	degree	solar azimuth angle
solar_zenith	degree	solar zenith angle
stokes_coefficients	N/A	stokes polarization coefficients
TAI93	N/A	seconds since 1993-01-01 0:0:0
temperature_time	seconds	seconds since 1980-01-06 0:0:0
time	seconds	seconds since 1980-01-06 0:0:0
zenith	degree	zenith angle

Table 4. measurement_ancillary_info group in the NetCDF files

Data variable	Units	Description
beamsplitter_temperature	degrees_celsius	beamsplitter temperature
delta_opd_abo2	cm-1	delta opd abo2
delta_opd_sco2	cm-1	delta opd sco2
delta_opd_wco2	cm-1	delta opd wco2
detector_enclosure_temperature	degrees_celsius	detector enclosure temperature
detector_saturation_abo2	N/A	detector saturation abo2
detector_saturation_sco2	N/A	detector saturation sco2
detector_saturation_wco2	N/A	detector saturation wco2
detector_temp_abo2	degrees_celsius	abo2 detector temperature
detector_temp_sco2	degrees_celsius	sco2 detector temperature
detector_temp_wco2	degrees_celsius	wco2 detector temperature
electronic_box_temperature	degrees_celsius	electronic box temperature
instrument_mode *	N/A	instrument mode during data acquisition
interferometer_if_temperature	degrees_celsius	interferometer if temperature
internal_pressure	pascals	internal pressure
laser_temperature	degrees_celsius	laser temperature
maximum_opd_abo2	cm-1	maximum optical path difference abo2
maximum_opd_sco2	cm-1	maximum optical path difference sco2
maximum_opd_wco2	cm-1	maximum optical path difference wco2
minimum_opd_abo2	cm-1	minimum optical path difference abo2
minimum_opd_sco2	cm-1	minimum optical path difference sco2
minimum_opd_wco2	cm-1	minimum optical path difference wco2
number_of_interferogram_points_abo2	N/A	number of interferogram points abo2
number_of_interferogram_points_sco2	N/A	number of interferogram points sco2
number_of_interferogram_points_wco2	N/A	number of interferogram points wco2
outside_air_temperature	kelvins	outside air temperature
phase_correction_abo2	N/A	phase correction abo2
phase_correction_sco2	N/A	phase correction sco2
phase_correction_wco2	N/A	phase correction wco2
phase_residual_abo2	N/A	phase residual abo2
phase_residual_sco2	N/A	phase residual sco2
phase_residual_wco2	N/A	phase residual wco2
preamp_adc_enclosure_temperature	degrees_celsius	preamp adc enclosure temperature
spectral_sampling_abo2	cm-1	spectral sampling abo2
spectral_sampling_sco2	cm-1	spectral sampling sco2
spectral_sampling_wco2	cm-1	spectral sampling wco2
start_wavenumber_abo2	cm-1	start wavenumber abo2
start_wavenumber_sco2	cm-1	start wavenumber sco2
start_wavenumber_wco2	cm-1	start wavenumber wco2
sweep_direction **	N/A	sweep direction
zero_opd_abo2	cm-1	zero optical path difference abo2
zero_opd_sco2	cm-1	zero optical path difference sco2
zero_opd_wco2	cm-1	zero optical path difference wco2

* instrument_mode: 0 --- Off; 1 --- Science; 2 --- Calibration; 3 --- Unknown

** sweep_direction: 0 --- Forward; 1 --- Reverse; 2 --- Both

Table 5. science_measurement group in the NetCDF files

Data variable	Units	Description
spectral_radiance_imaginary_abo2	N/A	upwelling spectral radiance in air abo2 band status
spectral_radiance_imaginary_sco2	N/A	upwelling spectral radiance in air sco2 band status
spectral_radiance_imaginary_wco2	N/A	upwelling spectral radiance in air wco2 band status
spectral_radiance_real_abo2	W cm-2 cm-1 sr-1	upwelling spectral radiance in air abo2 band real part
spectral_radiance_real_sco2	W cm-2 cm-1 sr-1	upwelling spectral radiance in air sco2 band real part
spectral_radiance_real_wco2	W cm-2 cm-1 sr-1	upwelling spectral radiance in air wco2 band real part
spectral_radiance_abo2_qc	W cm-2 cm-1 sr-1	upwelling spectral radiance in air abo2 band imaginary part
spectral_radiance_sco2_qc	W cm-2 cm-1 sr-1	upwelling spectral radiance in air sco2 band imaginary part
spectral_radiance_wco2_qc	W cm-2 cm-1 sr-1	upwelling spectral radiance in air wco2 band imaginary part

代码

!pip install leafmap
!pip install pandas
!pip install folium
!pip install matplotlib
!pip install mapclassify

import pandas as pd
import leafmap

url = "https://github.com/opengeos/NASA-Earth-Data"
df = pd.read_csv(url, sep="\t")
df

leafmap.nasa_data_login()


results, gdf = leafmap.nasa_data_search(
    short_name="CARVE_L1_FTS_Spectra_1426",
    cloud_hosted=True,
    bounding_box=(-168.11, 58.84, -131.75, 71.43),
    temporal=("2012-05-23", "2015-11-13"),
    count=-1,  # use -1 to return all datasets
    return_gdf=True,
)


gdf.explore()

#leafmap.nasa_data_download(results[:5], out_dir="data")

引用

Kurosu, T.P., C.E. Miller, S.J. Dinardo, and CARVE Science Team . 2017. CARVE: L1 Spectral Radiances from Airborne FTS, Alaska, 2012-2015. ORNL DAAC, Oak Ridge, Tennessee, USA.
