yolov8实战第三天——yolov8TensorRT部署（python推理）（保姆教学）

在上一篇中我们使用自己的数据集训练了一个yolov8检测模型，best.py。

yolov8实战第一天——yolov8部署并训练自己的数据集（保姆式教程）-CSDN博客

yolov8实战第二天——yolov8训练结果分析（保姆式解读）-CSDN博客

接下要对best.py进行TensorRT优化并部署。

TensorRT是一种高性能深度学习推理优化器和运行时加速库，可以为深度学习应用提供低延迟、高吞吐率的部署推理。

TensorRT可用于对超大规模数据中心、嵌入式平台或自动驾驶平台进行推理加速。

TensorRT现已能支持TensorFlow、Caffe、Mxnet、Pytorch等几乎所有的深度学习框架，将TensorRT和NVIDIA的GPU结合起来，能在几乎所有的框架中进行快速和高效的部署推理。

一般的深度学习项目，训练时为了加快速度，会使用多GPU分布式训练。但在部署推理时，为了降低成本，往往使用单个GPU机器甚至嵌入式平台（比如 NVIDIA Jetson）进行部署，部署端也要有与训练时相同的深度学习环境，如caffe，TensorFlow等。

由于训练的网络模型可能会很大（比如，inception，resnet等），参数很多，而且部署端的机器性能存在差异，就会导致推理速度慢，延迟高。这对于那些高实时性的应用场合是致命的，比如自动驾驶要求实时目标检测，目标追踪等。

为了提高部署推理的速度，出现了很多模型优化的方法，如：模型压缩、剪枝、量化、知识蒸馏等，这些一般都是在训练阶段实现优化。

而TensorRT 则是对训练好的模型进行优化，通过优化网络计算图提高模型效率。

一、安装TensorRT

Log in | NVIDIA Developer

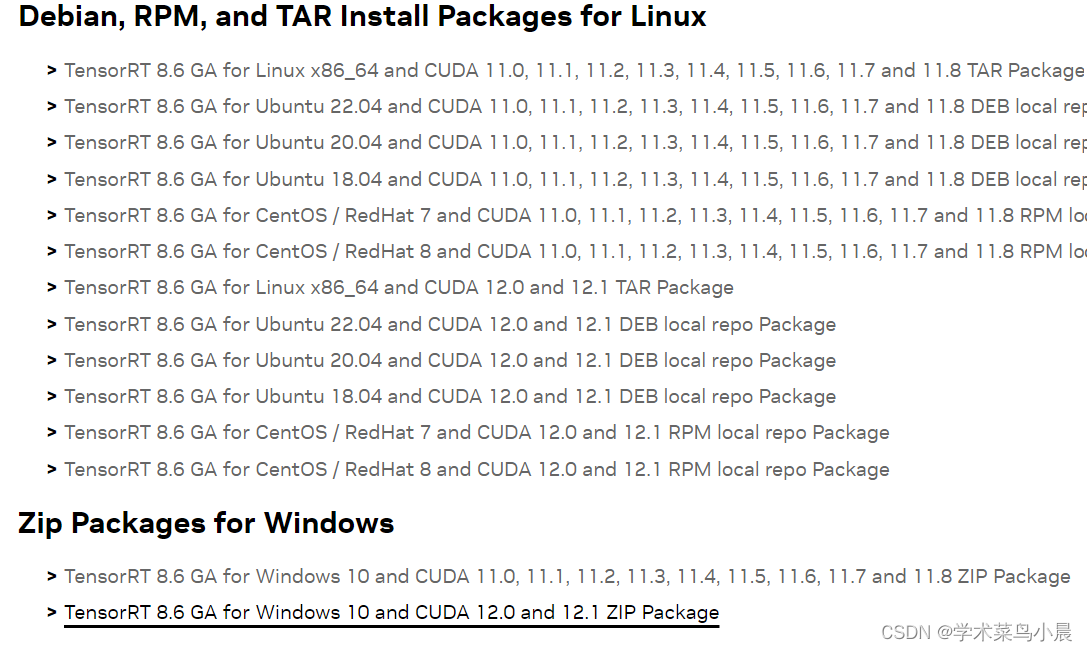

下载TensorRT 。

我下载的是8.6里画黑线的那个。

将 TensorRT-8.6.1.6\include中头文件 copy 到C:\Program Files\NVIDIA GPU Computing Toolkit\CUDA\v11.7\include
将TensorRT-8.6.1.6\lib 中所有lib文件 copy 到C:\Program Files\NVIDIA GPU Computing Toolkit\CUDA\v11.7\lib\x64
将TensorRT-8.6.1.6\lib 中所有dll文件copy 到C:\Program Files\NVIDIA GPU Computing Toolkit\CUDA\v11.7\bin

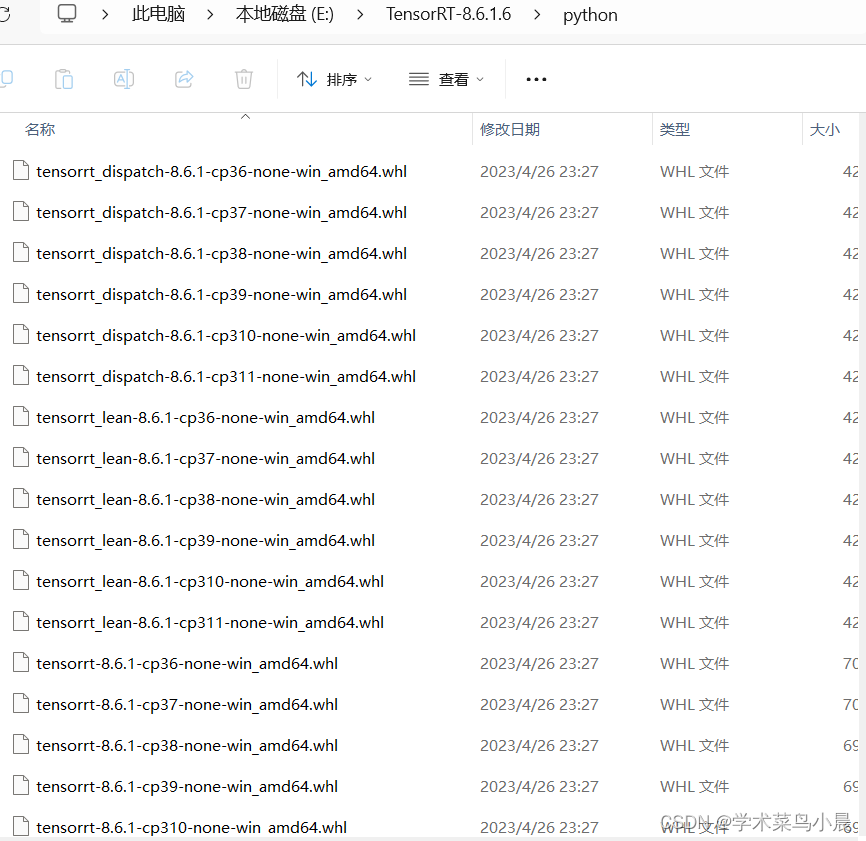

在python文件夹中找到适合自己的。

pip install tensorrt-8.6.1-cp310-none-win_amd64.whl

 至此TensorRT安装完成。

这里可能会报错：

FileNotFoundError: Could not find: cublasLt64_12.dll. Is it on your PATH?

解决办法：C:\Program Files\NVIDIA GPU Computing Toolkit\CUDA\v11.8\bin

将这个文件 cublasLt64_11.dll 复制一份，并保存为 cublasLt64_12.dll

 二、pt转onnx：

GitHub - triple-Mu/YOLOv8-TensorRT: YOLOv8 using TensorRT accelerate !

参考着这个，下载，安装环境后。

安装onnx：

pip install onnx -i https://pypi.tuna.tsinghua.edu.cn/simple
pip install onnxsim -i https://pypi.tuna.tsinghua.edu.cn/simple
pip install onnxruntime -i https://pypi.tuna.tsinghua.edu.cn/simple

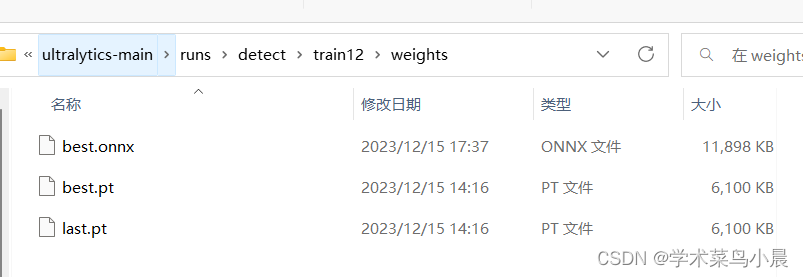

生成onnx：

python export-det.py --weights yolov8n.pt --iou-thres 0.65 --conf-thres 0.25 --topk 100 --opset 11 --sim --input-shape 1 3 640 640 --device cuda:0

使用上篇文章中的老鼠模型做了测试：

onnx的测试代码：

import onnxruntime as rt
import numpy as np
import cv2
import  matplotlib.pyplot as plt


def nms(pred, conf_thres, iou_thres):
    conf = pred[..., 4] > conf_thres
    box = pred[conf == True]
    cls_conf = box[..., 5:]
    cls = []
    for i in range(len(cls_conf)):
        cls.append(int(np.argmax(cls_conf[i])))
    total_cls = list(set(cls))
    output_box = []
    for i in range(len(total_cls)):
        clss = total_cls[i]
        cls_box = []
        for j in range(len(cls)):
            if cls[j] == clss:
                box[j][5] = clss
                cls_box.append(box[j][:6])
        cls_box = np.array(cls_box)
        box_conf = cls_box[..., 4]
        box_conf_sort = np.argsort(box_conf)
        max_conf_box = cls_box[box_conf_sort[len(box_conf) - 1]]
        output_box.append(max_conf_box)
        cls_box = np.delete(cls_box, 0, 0)
        while len(cls_box) > 0:
            max_conf_box = output_box[len(output_box) - 1]
            del_index = []
            for j in range(len(cls_box)):
                current_box = cls_box[j]
                interArea = getInter(max_conf_box, current_box)
                iou = getIou(max_conf_box, current_box, interArea)
                if iou > iou_thres:
                    del_index.append(j)
            cls_box = np.delete(cls_box, del_index, 0)
            if len(cls_box) > 0:
                output_box.append(cls_box[0])
                cls_box = np.delete(cls_box, 0, 0)
    return output_box


def getIou(box1, box2, inter_area):
    box1_area = box1[2] * box1[3]
    box2_area = box2[2] * box2[3]
    union = box1_area + box2_area - inter_area
    iou = inter_area / union
    return iou


def getInter(box1, box2):
    box1_x1, box1_y1, box1_x2, box1_y2 = box1[0] - box1[2] / 2, box1[1] - box1[3] / 2, \
                                         box1[0] + box1[2] / 2, box1[1] + box1[3] / 2
    box2_x1, box2_y1, box2_x2, box2_y2 = box2[0] - box2[2] / 2, box2[1] - box1[3] / 2, \
                                         box2[0] + box2[2] / 2, box2[1] + box2[3] / 2
    if box1_x1 > box2_x2 or box1_x2 < box2_x1:
        return 0
    if box1_y1 > box2_y2 or box1_y2 < box2_y1:
        return 0
    x_list = [box1_x1, box1_x2, box2_x1, box2_x2]
    x_list = np.sort(x_list)
    x_inter = x_list[2] - x_list[1]
    y_list = [box1_y1, box1_y2, box2_y1, box2_y2]
    y_list = np.sort(y_list)
    y_inter = y_list[2] - y_list[1]
    inter = x_inter * y_inter
    return inter


def draw(img, xscale, yscale, pred):
    img_ = img.copy()
    if len(pred):
        for detect in pred:
            detect = [int((detect[0] - detect[2] / 2) * xscale), int((detect[1] - detect[3] / 2) * yscale),
                      int((detect[0]+detect[2] / 2) * xscale), int((detect[1]+detect[3] / 2) * yscale)]
            img_ = cv2.rectangle(img, (detect[0], detect[1]), (detect[2], detect[3]), (0, 255, 0), 1)
    return img_


if __name__ == '__main__':
    height, width = 640, 640
    img0 = cv2.imread('mouse-4-6-0004.jpg')
    x_scale = img0.shape[1] / width
    y_scale = img0.shape[0] / height
    img = img0 / 255.
    img = cv2.resize(img, (width, height))
    img = np.transpose(img, (2, 0, 1))
    data = np.expand_dims(img, axis=0)
    sess = rt.InferenceSession('best.onnx')
    input_name = sess.get_inputs()[0].name
    label_name = sess.get_outputs()[0].name
    pred = sess.run([label_name], {input_name: data.astype(np.float32)})[0]
    pred = np.squeeze(pred)
    pred = np.transpose(pred, (1, 0))
    pred_class = pred[..., 4:]
    pred_conf = np.max(pred_class, axis=-1)
    pred = np.insert(pred, 4, pred_conf, axis=-1)
    result = nms(pred, 0.3, 0.45)
    ret_img = draw(img0, x_scale, y_scale, result)
    ret_img = ret_img[:, :, ::-1]
    plt.imshow(ret_img)
    plt.show()

三、TensorRT部署

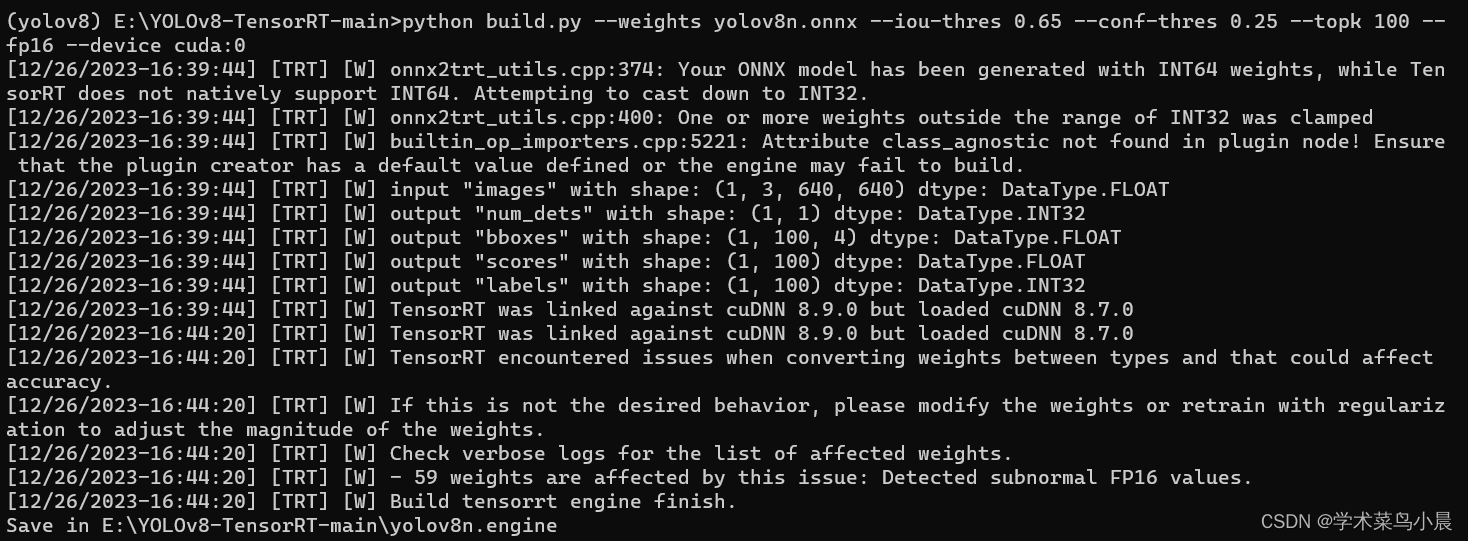

导出engine模型：

python build.py --weights yolov8n.onnx --iou-thres 0.65 --conf-thres 0.25 --topk 100 --fp16 --device cuda:0

等待一会，engine成功导出。



1.使用python脚本进行推理：

python infer-det.py --engine yolov8n.engine --imgs data --show --out-dir outputs --out-dir outputs --device cuda:0

infer-det.py:

from models import TRTModule  # isort:skip
import argparse
from pathlib import Path

import cv2
import torch

from config import CLASSES, COLORS
from models.torch_utils import det_postprocess
from models.utils import blob, letterbox, path_to_list


def main(args: argparse.Namespace) -> None:
    device = torch.device(args.device)
    Engine = TRTModule(args.engine, device)
    H, W = Engine.inp_info[0].shape[-2:]

    # set desired output names order
    Engine.set_desired(['num_dets', 'bboxes', 'scores', 'labels'])

    images = path_to_list(args.imgs)
    save_path = Path(args.out_dir)

    if not args.show and not save_path.exists():
        save_path.mkdir(parents=True, exist_ok=True)

    for image in images:
        save_image = save_path / image.name
        bgr = cv2.imread(str(image))
        draw = bgr.copy()
        bgr, ratio, dwdh = letterbox(bgr, (W, H))
        rgb = cv2.cvtColor(bgr, cv2.COLOR_BGR2RGB)
        tensor = blob(rgb, return_seg=False)
        dwdh = torch.asarray(dwdh * 2, dtype=torch.float32, device=device)
        tensor = torch.asarray(tensor, device=device)
        # inference
        data = Engine(tensor)

        bboxes, scores, labels = det_postprocess(data)
        if bboxes.numel() == 0:
            # if no bounding box
            print(f'{image}: no object!')
            continue
        bboxes -= dwdh
        bboxes /= ratio

        for (bbox, score, label) in zip(bboxes, scores, labels):
            bbox = bbox.round().int().tolist()
            cls_id = int(label)
            cls = CLASSES[cls_id]
            color = COLORS[cls]
            cv2.rectangle(draw, bbox[:2], bbox[2:], color, 2)
            cv2.putText(draw,
                        f'{cls}:{score:.3f}', (bbox[0], bbox[1] - 2),
                        cv2.FONT_HERSHEY_SIMPLEX,
                        0.75, [225, 255, 255],
                        thickness=2)
        if args.show:
            cv2.imshow('result', draw)
            cv2.waitKey(0)
        else:
            cv2.imwrite(str(save_image), draw)


def parse_args() -> argparse.Namespace:
    parser = argparse.ArgumentParser()
    parser.add_argument('--engine', type=str, help='Engine file')
    parser.add_argument('--imgs', type=str, help='Images file')
    parser.add_argument('--show',
                        action='store_true',
                        help='Show the detection results')
    parser.add_argument('--out-dir',
                        type=str,
                        default='./output',
                        help='Path to output file')
    parser.add_argument('--device',
                        type=str,
                        default='cuda:0',
                        help='TensorRT infer device')
    args = parser.parse_args()
    return args


if __name__ == '__main__':
    args = parse_args()
    main(args)

2.加入计算推理时间版本：

from models import TRTModule  # isort:skip
import argparse
from pathlib import Path
import time  # Import time module to measure inference time

import cv2
import torch

from config import CLASSES, COLORS
from models.torch_utils import det_postprocess
from models.utils import blob, letterbox, path_to_list


def main(args: argparse.Namespace) -> None:
    device = torch.device(args.device)
    Engine = TRTModule(args.engine, device)
    H, W = Engine.inp_info[0].shape[-2:]

    # set desired output names order
    Engine.set_desired(['num_dets', 'bboxes', 'scores', 'labels'])

    images = path_to_list(args.imgs)
    save_path = Path(args.out_dir)

    if not args.show and not save_path.exists():
        save_path.mkdir(parents=True, exist_ok=True)

    for image in images:
        save_image = save_path / image.name
        bgr = cv2.imread(str(image))
        draw = bgr.copy()
        bgr, ratio, dwdh = letterbox(bgr, (W, H))
        rgb = cv2.cvtColor(bgr, cv2.COLOR_BGR2RGB)
        tensor = blob(rgb, return_seg=False)
        dwdh = torch.asarray(dwdh * 2, dtype=torch.float32, device=device)
        tensor = torch.asarray(tensor, device=device)

        start_time = time.time()  # Start time for inference
        # inference
        data = Engine(tensor)
        end_time = time.time()  # End time for inference

        inference_time = end_time - start_time  # Calculate inference time
        print(f'Inference time for {image}: {inference_time:.3f} seconds')

        bboxes, scores, labels = det_postprocess(data)
        if bboxes.numel() == 0:
            # if no bounding box
            print(f'{image}: no object!')
            continue
        bboxes -= dwdh
        bboxes /= ratio

        for (bbox, score, label) in zip(bboxes, scores, labels):
            bbox = bbox.round().int().tolist()
            cls_id = int(label)
            cls = CLASSES[cls_id]
            color = COLORS[cls]
            cv2.rectangle(draw, bbox[:2], bbox[2:], color, 2)
            cv2.putText(draw,
                        f'{cls}:{score:.3f}', (bbox[0], bbox[1] - 2),
                        cv2.FONT_HERSHEY_SIMPLEX,
                        0.75, [225, 255, 255],
                        thickness=2)
        if args.show:
            cv2.imshow('result', draw)
            cv2.waitKey(0)
        else:
            cv2.imwrite(str(save_image), draw)


def parse_args() -> argparse.Namespace:
    parser = argparse.ArgumentParser()
    parser.add_argument('--engine', type=str, help='Engine file')
    parser.add_argument('--imgs', type=str, help='Images file')
    parser.add_argument('--show',
                        action='store_true',
                        help='Show the detection results')
    parser.add_argument('--out-dir',
                        type=str,
                        default='./output',
                        help='Path to output file')
    parser.add_argument('--device',
                        type=str,
                        default='cuda:0',
                        help='TensorRT infer device')
    args = parser.parse_args()
    return args


if __name__ == '__main__':
    args = parse_args()
    main(args)

 第一张图片由于加载模型耽误时间，以第二张图片检测耗时为准。

yolov8m的tensorrt  推理时间是0.004s，非常快。

四、对比yolov8m.pt

import cv2
from ultralytics import YOLO
import os

# 载入 YOLOv8 模型
model_path = 'yolov8m.pt'
model = YOLO(model_path)

# 指定输入文件夹和输出文件夹
input_folder = 'data'
output_folder = 'output1'

# 确保输出文件夹存在
if not os.path.exists(output_folder):
    os.makedirs(output_folder)

# 遍历输入文件夹中的所有文件
for filename in os.listdir(input_folder):
    if filename.lower().endswith(('.png', '.jpg', '.jpeg')):  # 只处理图像文件
        image_path = os.path.join(input_folder, filename)
        image = cv2.imread(image_path)  # 读取图像

        # 对图像运行 YOLOv8 推理
        results = model(image)

        # 在图像上可视化结果
        annotated_image = results[0].plot()  # 假设plot返回带标注的图像

        # 构建输出图像的路径
        output_image_path = os.path.join(output_folder, filename)

        # 保存带有标注的图像
        cv2.imwrite(output_image_path, annotated_image)
        print(f'Processed and saved: {output_image_path}')

1.速度对比

 推理速度在100ms，tensorrt 后速度提升非常多。

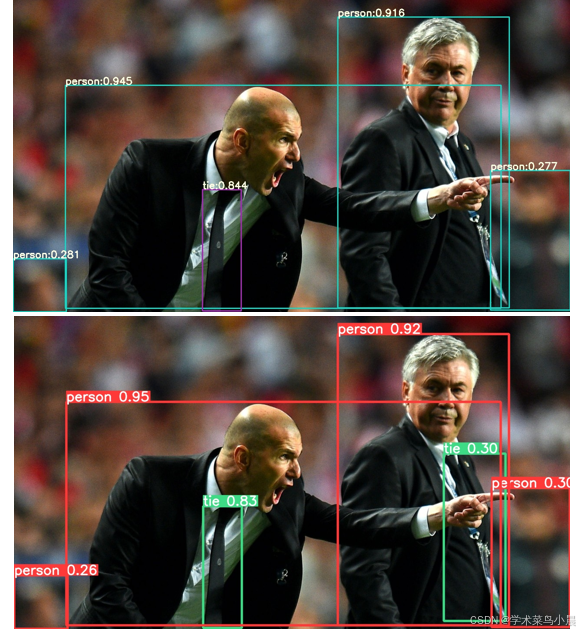

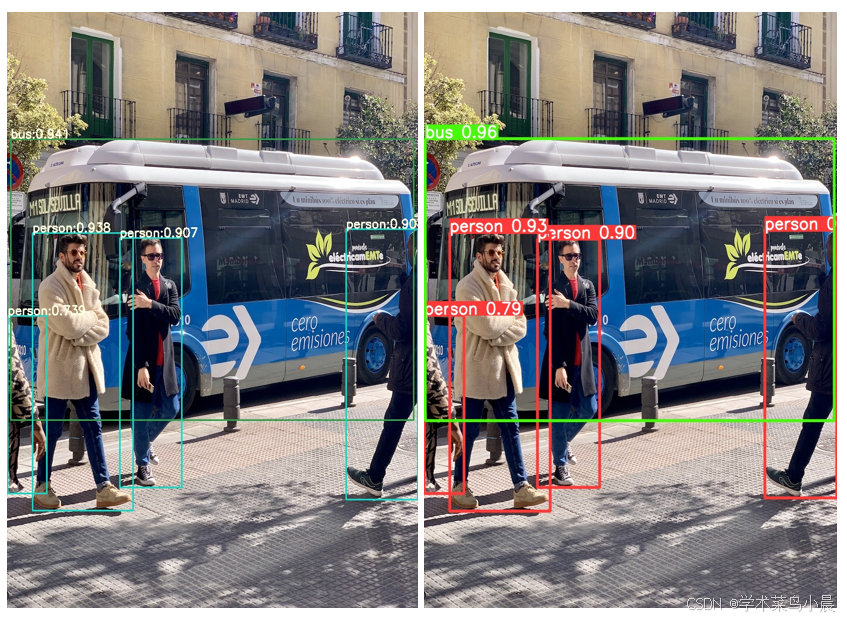

2.检测质量对比（左tensorrt，右原版）



3.对比总结 ：

检测后置信度会差1个点左右，速度快非常多。
