1. 基本思想
YOLOv5+LPRNet。先使用YOLOv5检测车牌，再把检测车牌送入LPRNet得到检测结果。
2. 基础知识
2.1 YOLOV5（参考鱼苗检测）
2.1.1 模型 省略
2.1.2 输入输出 省略
2.1.3 损失函数 省略
2.2 LPRNet
2.2.1 模型

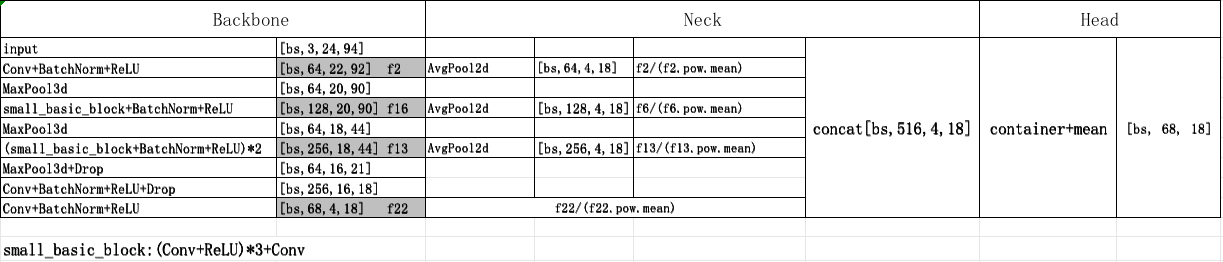

图像统一尺寸后输入到模型，先经过Backbone得到特征f2、f6、 f13、 f22，四个特征经过Neck处理后拼接在一起，最后经过检测头得到[bs,68,18]的结果，18表示模型输出18个字符，每个字符有68类。代码如下：
import torch.nn as nn
import torch
CHARS = ['京', '沪', '津', '渝', '冀', '晋', '蒙', '辽', '吉', '黑',
'苏', '浙', '皖', '闽', '赣', '鲁', '豫', '鄂', '湘', '粤',
'桂', '琼', '川', '贵', '云', '藏', '陕', '甘', '青', '宁',
'新',
'0', '1', '2', '3', '4', '5', '6', '7', '8', '9',
'A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'J', 'K',
'L', 'M', 'N', 'P', 'Q', 'R', 'S', 'T', 'U', 'V',
'W', 'X', 'Y', 'Z', 'I', 'O', '-'
]
class small_basic_block(nn.Module):
def __init__(self, ch_in, ch_out):
super(small_basic_block, self).__init__()
self.block = nn.Sequential(
nn.Conv2d(ch_in, ch_out // 4, kernel_size=1),
nn.ReLU(),
nn.Conv2d(ch_out // 4, ch_out // 4, kernel_size=(3, 1), padding=(1, 0)),
nn.ReLU(),
nn.Conv2d(ch_out // 4, ch_out // 4, kernel_size=(1, 3), padding=(0, 1)),
nn.ReLU(),
nn.Conv2d(ch_out // 4, ch_out, kernel_size=1),
)
def forward(self, x):
return self.block(x)
class LPRNet(nn.Module):
def __init__(self, lpr_max_len, phase, class_num, dropout_rate):
super(LPRNet, self).__init__()
self.phase = phase
self.lpr_max_len = lpr_max_len
self.class_num = class_num
self.backbone = nn.Sequential(
nn.Conv2d(in_channels=3, out_channels=64, kernel_size=3, stride=1), # 0 -> [bs,3,24,94] -> [bs,64,22,92]
nn.BatchNorm2d(num_features=64), # 1 -> [bs,64,22,92]
nn.ReLU(), # 2 -> [bs,64,22,92]
nn.MaxPool3d(kernel_size=(1, 3, 3), stride=(1, 1, 1)), # 3 -> [bs,64,20,90]
small_basic_block(ch_in=64, ch_out=128), # 4 -> [bs,128,20,90]
nn.BatchNorm2d(num_features=128), # 5 -> [bs,128,20,90]
nn.ReLU(), # 6 -> [bs,128,20,90]
nn.MaxPool3d(kernel_size=(1, 3, 3), stride=(2, 1, 2)), # 7 -> [bs,64,18,44]
small_basic_block(ch_in=64, ch_out=256), # 8 -> [bs,256,18,44]
nn.BatchNorm2d(num_features=256), # 9 -> [bs,256,18,44]
nn.ReLU(), # 10 -> [bs,256,18,44]
small_basic_block(ch_in=256, ch_out=256), # 11 -> [bs,256,18,44]
nn.BatchNorm2d(num_features=256), # 12 -> [bs,256,18,44]
nn.ReLU(), # 13 -> [bs,256,18,44]
nn.MaxPool3d(kernel_size=(1, 3, 3), stride=(4, 1, 2)), # 14 -> [bs,64,16,21]
nn.Dropout(dropout_rate), # 0.5 dropout rate # 15 -> [bs,64,16,21]
nn.Conv2d(in_channels=64, out_channels=256, kernel_size=(1, 4), stride=1), # 16 -> [bs,256,16,18]
nn.BatchNorm2d(num_features=256), # 17 -> [bs,256,16,18]
nn.ReLU(), # 18 -> [bs,256,16,18]
nn.Dropout(dropout_rate), # 0.5 dropout rate 19 -> [bs,256,16,18]
nn.Conv2d(in_channels=256, out_channels=class_num, kernel_size=(13, 1), stride=1), # class_num=68 20 -> [bs,68,4,18]
nn.BatchNorm2d(num_features=class_num), # 21 -> [bs,68,4,18]
nn.ReLU(), # 22 -> [bs,68,4,18]
)
self.container = nn.Sequential(
nn.Conv2d(in_channels=448+self.class_num, out_channels=self.class_num, kernel_size=(1, 1), stride=(1, 1)),
def forward(self, x):
keep_features = list()
for i, layer in enumerate(self.backbone.children()):
x = layer(x)
if i in [2, 6, 13, 22]:
keep_features.append(x)
global_context = list()
# keep_features: [bs,64,22,92] [bs,128,20,90] [bs,256,18,44] [bs,68,4,18]
for i, f in enumerate(keep_features):
if i in [0, 1]:
# [bs,64,22,92] -> [bs,64,4,18]
# [bs,128,20,90] -> [bs,128,4,18]
f = nn.AvgPool2d(kernel_size=5, stride=5)(f)
if i in [2]:
# [bs,256,18,44] -> [bs,256,4,18]
f = nn.AvgPool2d(kernel_size=(4, 10), stride=(4, 2))(f)
# 没看懂这是在干嘛？有上面的avg提取上下文信息不久可以了？
f_pow = torch.pow(f, 2) # [bs,64,4,18] 所有元素求平方
f_mean = torch.mean(f_pow) # 1 所有元素求平均
f = torch.div(f, f_mean) # [bs,64,4,18] 所有元素除以这个均值
global_context.append(f)
x = torch.cat(global_context, 1) # [bs,516,4,18]
x = self.container(x) # -> [bs, 68, 4, 18] head头
logits = torch.mean(x, dim=2) # -> [bs, 68, 18] # 68 字符类数 18字符
return logits
if __name__=="__main__":
lpr_max_len=18; phase=False; class_num=68; dropout_rate=0.5
i = torch.rand([6,3,24,94])
Net = LPRNet(lpr_max_len, phase, class_num, dropout_rate)
o = Net(i) # torch.Size([6, 68, 18])
2.2.2 输入输出
- 模型输入
图像处理步骤：
(1) 处理图片。读入图片，把图片的通道由BGR转换成RGB，统一图片尺寸为[94,24]，通过transform对图片归一化及改变通道位置。
(2) 生成标签。图片的地址是标签，去除地址后缀得到标签，把标签转换成数字，判断标签是否正确。
(3) 返回图片数组，标签及标签长度。标签长度在模型损失中使用。代码如下：
from imutils import paths
import numpy as np
import random
import cv2
import os
from torch.utils.data import Dataset
CHARS = ['京', '沪', '津', '渝', '冀', '晋', '蒙', '辽', '吉', '黑',
'苏', '浙', '皖', '闽', '赣', '鲁', '豫', '鄂', '湘', '粤',
'桂', '琼', '川', '贵', '云', '藏', '陕', '甘', '青', '宁',
'新',
'0', '1', '2', '3', '4', '5', '6', '7', '8', '9',
'A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'J', 'K',
'L', 'M', 'N', 'P', 'Q', 'R', 'S', 'T', 'U', 'V',
'W', 'X', 'Y', 'Z', 'I', 'O', '-'
]
CHARS_DICT = {
char:i for i, char in enumerate(CHARS)}
class LPRDataLoader(Dataset):
def __init__(self, img_dir, imgSize, lpr_max_len, PreprocFun=None):
self.img_dir = img_dir
self.img_paths = []
for i in range(len(img_dir)):
self.img_paths += [el for el in paths.list_images(img_dir[i])]
random.shuffle(self.img_paths)
self.img_size = imgSize # [94, 24]
self.lpr_max_len = lpr_max_len # 8
if PreprocFun is not None:
self.PreprocFun = PreprocFun
else:
self.PreprocFun = self.transform
def __len__(self):
return len(self.img_paths)
def __getitem__(self, index):
filename = self.img_paths[index]
Image = cv2.imdecode(np.fromfile(filename, dtype=np.uint8), -1)
Image = cv2.cvtColor(Image, cv2.COLOR_RGB2BGR)
height, width, _ = Image.shape
if height != self.img_size[1] or width != self.img_size[0]:
Image = cv2.resize(Image, self.img_size)
Image = self.PreprocFun(Image)
basename = os.path.basename(filename) # 'datasets/rec_images/train/沪A9B821.jpg'-->'沪A9B821.jpg'
imgname, suffix = os.path.splitext(basename) # '沪A9B821.jpg' --> ('沪A9B821', '.jpg')
imgname = imgname.split("-")[0].split("_")[0]
label = list()
for c in imgname:
label.append(CHARS_DICT[c])
if len(label) == 8:
if self.check(label) == False:
print(imgname)
assert 0, "Error label ^~^!!!"
return Image, label, len(label)
def transform(self, img):
img = img.astype('float32') # 图片由Uint8转换为float32类型
img -= 127.5 # 图片减均值乘方差倒数实现归一化，去除噪声影响
img *= 0.0078125
img = np.transpose(img, (2, 0, 1)) # [h,w,c]-->[c,h,w]
return img
def check(self, label): # 检测标签是否正确
if label[2] != CHARS_DICT['D'] and label[2] != CHARS_DICT['F'] \
and label[-1] != CHARS_DICT['D'] and label[-1] != CHARS_DICT['F']:
print("Error label, Please check!")
return False
else:
return True
if __name__ == "__main__":
train_img_dirs = "datasets/rec_images/train"
img_size = [94, 24]
lpr_max_len = 8
train_dataset = LPRDataLoader(train_img_dirs.split(','), img_size, lpr_max_len)
2.模型输出步骤:
（1） 图片输入模型得到logits。
（2）对logits转换通道[6, 68,18]–>[18, 6, 68]，
其中6是batch_size，68是一共68个类别，18是输出18个字符序列。
（3）用softmax把logits最后一维变成概率。代码如下：
logits = lprnet(images)
log_probs = logits.permute(2, 0, 1) # for ctc loss: T x N x C torch.Size([18, 6, 68])
log_probs = log_probs.log_softmax(2).requires_grad_() # [18, bs, 68]
2.2.3 损失函数
ctc_loss用来处理不等长序列的损失，用动态规划的方法找到有标签匹配的各种序列，通过使序列概率最大化来更新参数。代码如下：
loss = ctc_loss(log_probs, labels, input_lengths=input_lengths, target_lengths=target_lengths)
# input_lengths[18,18,18,...,18] 18是模型输出的字符数。target_lengths[7,7,7,...,7] 7是真实标签的的字符数，有些车牌是8个字符，依实际情况而定。
3. 流程
3.1 数据处理
3.1.1 YOLOV5数据处理
数据集 官方CCPD数据https://github.com/detectRecog/CCPD
- CCPD数据集中图片名称包含车牌框box的位置信息和车牌号，数据处理的目的是把获取车牌的中心点及高宽在图像中的相对位置并以txt格式保存。
- 代码
import shutil
import cv2
import os
def txt_translate(path, txt_path):
''' 根据图片的地址获取车牌的左上角和右下角坐标，把左上角和右下角坐标转成中心点和宽高格式，最后中心点和宽高格式除以图片的宽高以.txt格式保存在指定位置'''
for filename in os.listdir(path):
print(filename)
if not "-" in filename: # 对于np等无标签的图片，过滤
continue
subname = filename.split("-", 3)[2] # 第一次分割，以减号'-'做分割,提取车牌两角坐标. '231&522_405&574'
extension = filename.split(".", 1)[1] #判断车牌是否为图片
if not extension == 'jpg':
continue
lt, rb = subname.split("_", 1) # 第二次分割，以下划线'_'做分割
lx, ly = lt.split("&", 1) # 左上角坐标
rx, ry = rb.split("&", 1) # 右下角坐标
width = int(rx) - int(lx) # 车牌宽度
height = int(ry) - int(ly) # bounding box的宽和高
cx = float(lx) + width / 2
cy = float(ly) + height / 2 # bounding box中心点
img = cv2.imread(os.path.join(path , filename))
if img is None: # 自动删除失效图片（下载过程有的图片会存在无法读取的情况）
os.remove(os.path.join(path, filename))
continue
width = width / img.shape[1]
height = height / img.shape[0]
cx = cx / img.s
