数据集笔记 ：PEMS-BAY

数据地址：DCRNN - Google 云端硬盘

各station 位置：DCRNN/data/sensor_graph/graph_sensor_locations_bay.csv at master · liyaguang/DCRNN (github.com)

1 读取 数据

import h5py
file='Downloads/pems-bay.h5'

f=h5py.File(file,'r')
f.keys()

f['speed']
#<HDF5 group "/speed" (4 members)>
#说明speed是一个group，不是dataset

f['speed'].keys()
#<KeysViewHDF5 ['axis0', 'axis1', 'block0_items', 'block0_values']>

f['speed']['axis0'][:].shape,f['speed']['axis0'][:]
'''
((325,),
 array([400001, 400017, 400030, 400040, 400045, 400052, 400057, 400059,
        400065, 400069, 400073, 400084, 400085, 400088, 400096, 400097,
        400100, 400104, 400109, 400122, 400147, 400148, 400149, 400158,
'''

f['speed']['block0_items'][:].shape,f['speed']['axis0'][:]
'''
((325,),
 array([400001, 400017, 400030, 400040, 400045, 400052, 400057, 400059,
        400065, 400069, 400073, 400084, 400085, 400088, 400096, 400097,
        400100, 400104, 400109, 400122, 400147, 400148, 400149, 400158,
'''

#这两个是一样的，都是station的id

f['speed']['axis1'][:].shape,f['speed']['axis1'][:]
'''
((52116,),
 array([1483228800000000000, 1483229100000000000, 1483229400000000000, ...,
        1498866300000000000, 1498866600000000000, 1498866900000000000],
       dtype=int64))
'''

#时间


import pandas as pd

datetimes=pd.to_datetime(f['speed']['axis1'][:])
datetimes
'''
DatetimeIndex(['2017-01-01 00:00:00', '2017-01-01 00:05:00',
               '2017-01-01 00:10:00', '2017-01-01 00:15:00',
               '2017-01-01 00:20:00', '2017-01-01 00:25:00',
               '2017-01-01 00:30:00', '2017-01-01 00:35:00',
               '2017-01-01 00:40:00', '2017-01-01 00:45:00',
               ...
               '2017-06-30 23:10:00', '2017-06-30 23:15:00',
               '2017-06-30 23:20:00', '2017-06-30 23:25:00',
               '2017-06-30 23:30:00', '2017-06-30 23:35:00',
               '2017-06-30 23:40:00', '2017-06-30 23:45:00',
               '2017-06-30 23:50:00', '2017-06-30 23:55:00'],
              dtype='datetime64[ns]', length=52116, freq=None)
'''

f['speed']['block0_values'][:].shape,f['speed']['block0_values'][:]
'''
((52116, 325),
 array([[71.4, 67.8, 70.5, ..., 68.8, 71.1, 68. ],
        [71.6, 67.5, 70.6, ..., 68.4, 70.8, 67.4],
        [71.6, 67.6, 70.2, ..., 68.4, 70.5, 67.9],
        ...,
        [71.4, 66.9, 68.1, ..., 68.4, 71.6, 66.6],
        [72.2, 66.5, 68. , ..., 68.7, 71.6, 68.4],
        [71.5, 66.2, 68.4, ..., 68.7, 71.6, 68. ]]))
'''

每个时刻的速度了

2 station位置可视化

2.1 读取数据

import pandas as pd

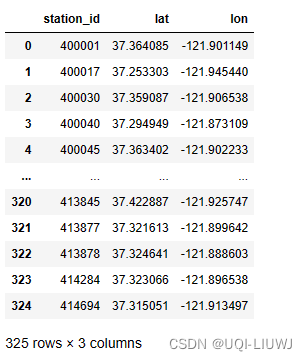

df=pd.read_csv('Downloads/graph_sensor_locations_bay.csv',names=['station_id','lat','lon'])
df

2.2 找到经纬度的平均点

mean_lat=df['lat'].mean()
mean_lon=df['lon'].mean()
mean_lat,mean_lon

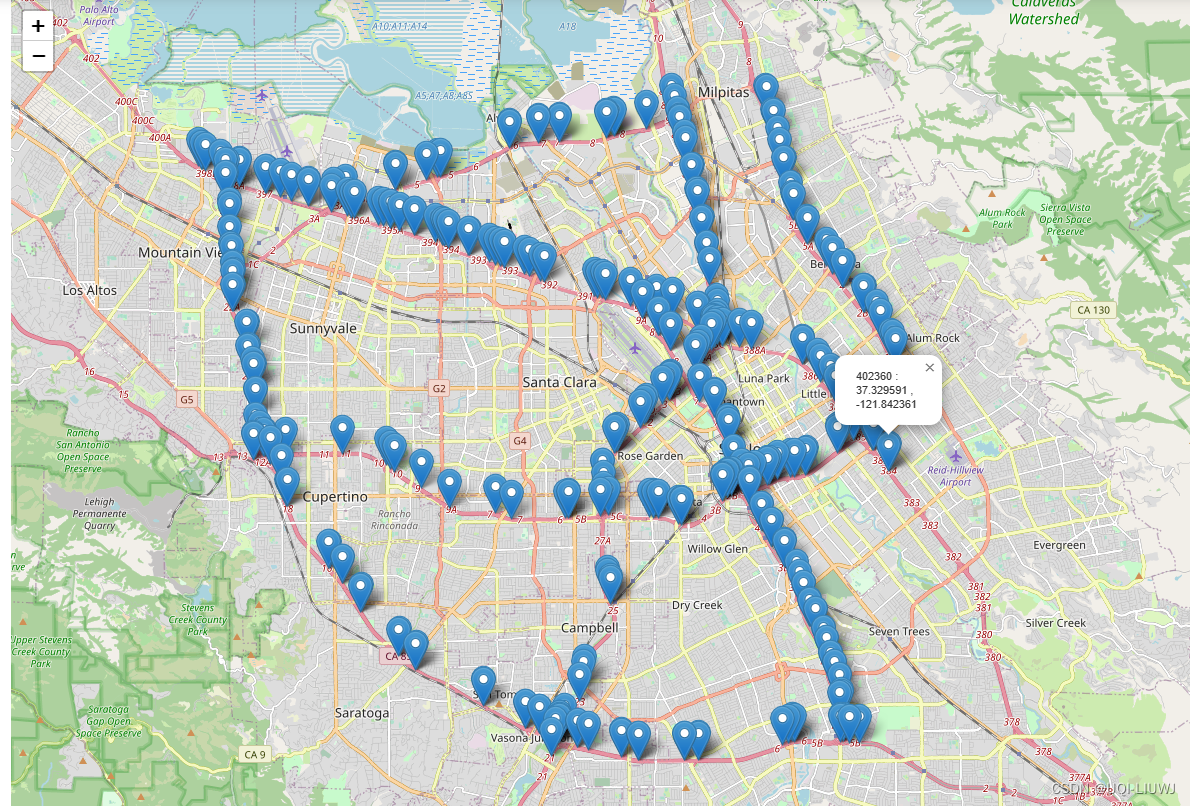

2.3 画图，每个station一个marker，同时点开这个station会弹出对应的station id，和经纬度

import folium


m=folium.Map(location=(mean_lat,mean_lon),zoom_start=12)

for i in df.iterrows():
    #print(i)
    tmp_lat=i[1]['lat']
    tmp_lon=i[1]['lon']
    tmp_id=i[1]['station_id']
    #print(tmp_lat,tmp_lon)
    folium.Marker(location=(tmp_lat,tmp_lon),
                 popup=str(int(tmp_id))+' : '+str(tmp_lat)+' , '+str(tmp_lon)).add_to(m)
m
