1. 一个比较规整,易懂的spynet 网络模型
"""
This code is based on Open-MMLab's one.
https://github.com/open-mmlab/mmediting
"""
import torch
import torch.nn as nn
import torch.nn.functional as F
from modules import flow_warp
class SPyNet(nn.Module):
"""SPyNet network structure.
The difference to the SPyNet in [tof.py] is that
1. more SPyNetBasicModule is used in this version, and
2. no batch normalization is used in this version.
Paper:
Optical Flow Estimation using a Spatial Pyramid Network, CVPR, 2017
Args:
pretrained (str): path for pre-trained SPyNet. Default: None.
"""
def __init__(self):
super().__init__()
self.basic_module = nn.ModuleList(
[SPyNetBasicModule() for _ in range(6)]
)
#self.load_state_dict(torch.load('spynet_20210409-c6c1bd09.pth'))
self.register_buffer(
'mean',
torch.Tensor([0.485, 0.456, 0.406]).view(1, 3, 1, 1))
self.register_buffer(
'std',
torch.Tensor([0.229, 0.224, 0.225]).view(1, 3, 1, 1))
def compute_flow(self, ref, supp):
"""Compute flow from ref to supp.
Note that in this function, the images are already resized to a
multiple of 32.
Args:
ref (Tensor): Reference image with shape of (n, 3, h, w).
supp (Tensor): Supporting image with shape of (n, 3, h, w).
Returns:
Tensor: Estimated optical flow: (n, 2, h, w).
"""
n, _, h, w = ref.size()
# normalize the input images
ref = [(ref - self.mean) / self.std]
supp = [(supp - self.mean) / self.std]
# generate downsampled frames
for level in range(5):
ref.append(
F.avg_pool2d(
input=ref[-1],
kernel_size=2,
stride=2,
count_include_pad=False
)
)
supp.append(
F.avg_pool2d(
input=supp[-1],
kernel_size=2,
stride=2,
count_include_pad=False
)
)
ref = ref[::-1]
supp = supp[::-1]
# flow computation
flow = ref[0].new_zeros(n, 2, h // 32, w // 32)
for level in range(len(ref)):
if level == 0:
flow_up = flow
else:
flow_up = F.interpolate(
input=flow,
scale_factor=2,
mode='bilinear',
align_corners=True) * 2.0
# add the residue to the upsampled flow
flow = flow_up + self.basic_module[level](
torch.cat([
ref[level],
flow_warp(
supp[level],
flow_up.permute(0, 2, 3, 1),
padding_mode='border'), flow_up
], 1))
return flow
def forward(self, ref, supp):
"""Forward function of SPyNet.
This function computes the optical flow from ref to supp.
Args:
ref (Tensor): Reference image with shape of (n, 3, h, w).
supp (Tensor): Supporting image with shape of (n, 3, h, w).
Returns:
Tensor: Estimated optical flow: (n, 2, h, w).
"""
# upsize to a multiple of 32
h, w = ref.shape[2:4]
w_up = w if (w % 32) == 0 else 32 * (w // 32 + 1)
h_up = h if (h % 32) == 0 else 32 * (h // 32 + 1)
ref = F.interpolate(
input=ref, size=(h_up, w_up), mode='bilinear', align_corners=False)
supp = F.interpolate(
input=supp,
size=(h_up, w_up),
mode='bilinear',
align_corners=False)
# compute flow, and resize back to the original resolution
flow = F.interpolate(
input=self.compute_flow(ref, supp),
size=(h, w),
mode='bilinear',
align_corners=False)
# adjust the flow values
flow[:, 0, :, :] *= float(w) / float(w_up)
flow[:, 1, :, :] *= float(h) / float(h_up)
return flow
class SPyNetBasicModule(nn.Module):
"""Basic Module for SPyNet.
Paper:
Optical Flow Estimation using a Spatial Pyramid Network, CVPR, 2017
"""
def __init__(self):
super().__init__()
self.basic_module = nn.Sequential(
nn.Conv2d(in_channels=8, out_channels=32, kernel_size=7, stride=1, padding=3),
nn.ReLU(),
nn.Conv2d(in_channels=32, out_channels=64, kernel_size=7, stride=1, padding=3),
nn.ReLU(),
nn.Conv2d(in_channels=64, out_channels=32, kernel_size=7, stride=1, padding=3),
nn.ReLU(),
nn.Conv2d(in_channels=32, out_channels=16, kernel_size=7, stride=1, padding=3),
nn.ReLU(),
nn.Conv2d(in_channels=16, out_channels=2, kernel_size=7, stride=1, padding=3)
)
def forward(self, tensor_input):
"""
Args:
tensor_input (Tensor): Input tensor with shape (b, 8, h, w).
8 channels contain:
[reference image (3), neighbor image (3), initial flow (2)].
Returns:
Tensor: Refined flow with shape (b, 2, h, w)
"""
return self.basic_module(tensor_input)

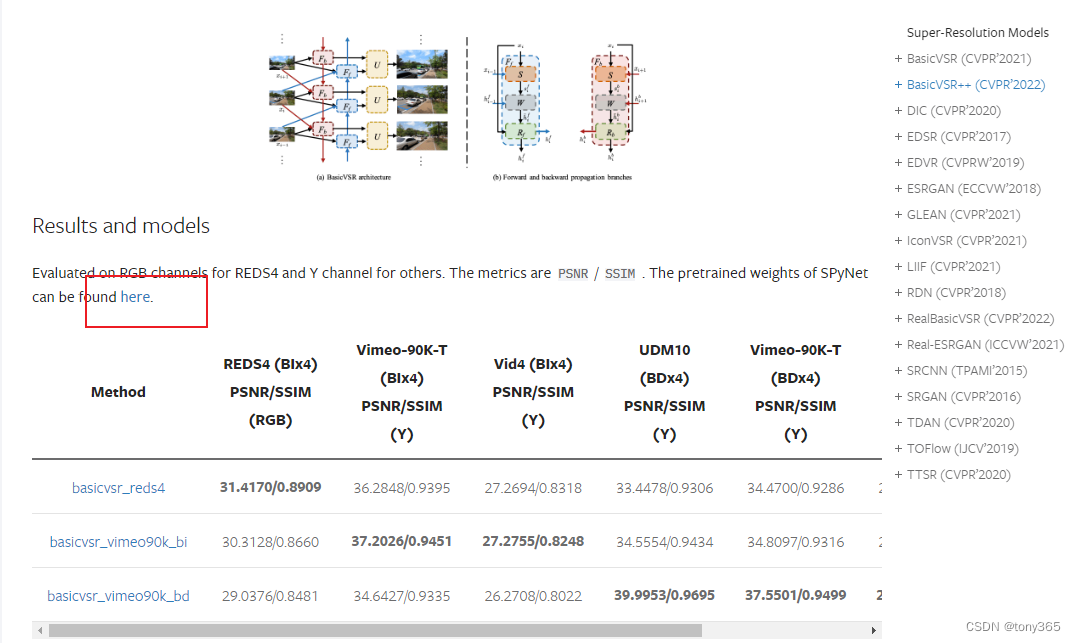

2. spynet的预训练模型下载地址
通过网址
或者点击下载
