DDR3 PHY:主要是用来实现串并转换，以及将controller的命令按照一定时序要求输出到DDR；
controller构架：
1、控制器频率100mhz；DDR3工作频率400mhz；传输速率800mhz；
2、AXI接口32bit，突发长度 8；DDR3使用容量为2048Mbit模型文件，数据宽度16bit；
3、具有一定的指令优化功能（暂时没写到那），这里很大；
4、PHY文件使用XLINX串并转换原语，将一次储存的128bit数据分为8次，每次16bit传输出去；使用并串语句将DDR每次的16bit数据转换8次变为128bit数据，然后这128bit数据传到AXI接口送出去；

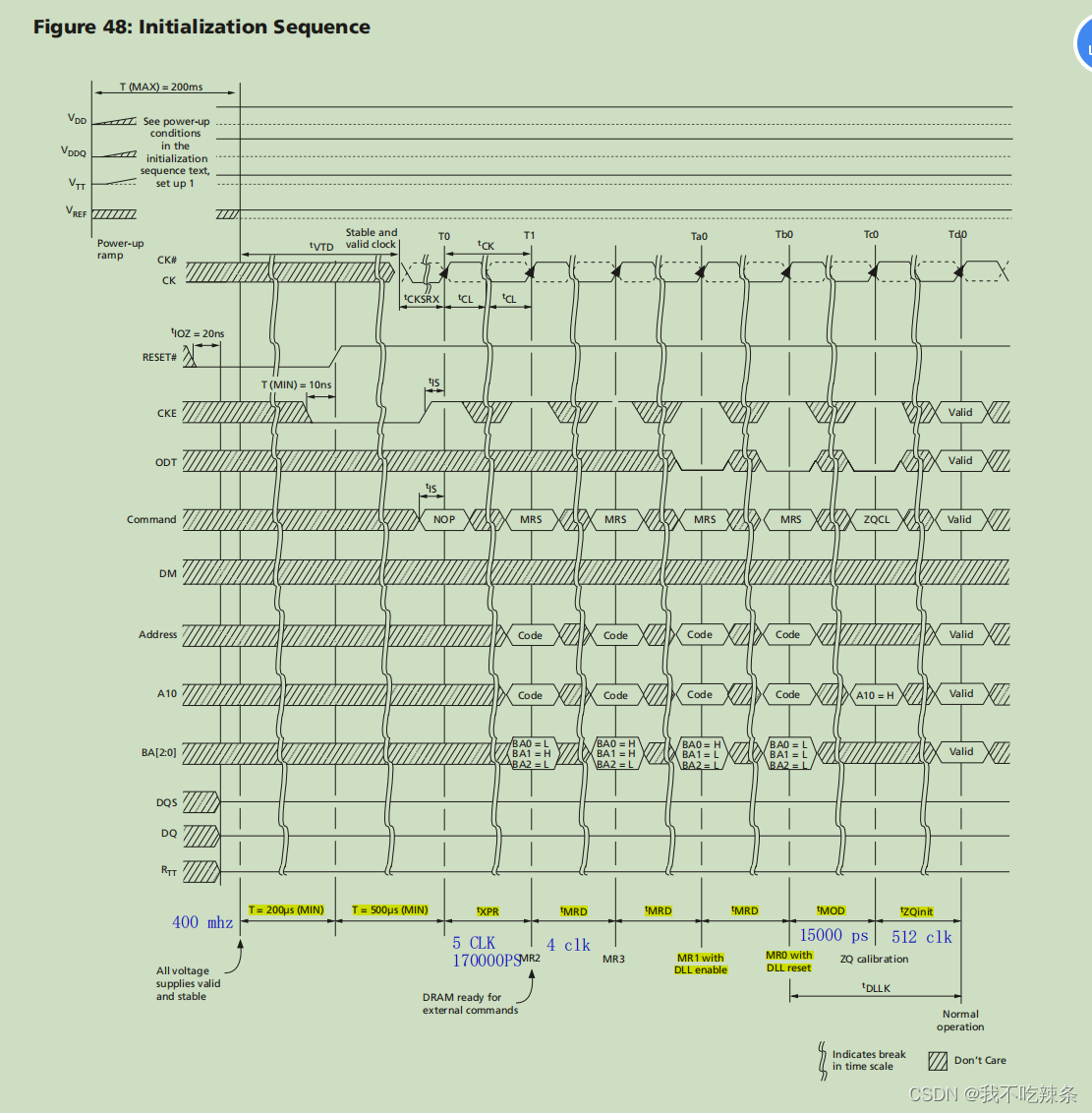

初始化时序图；

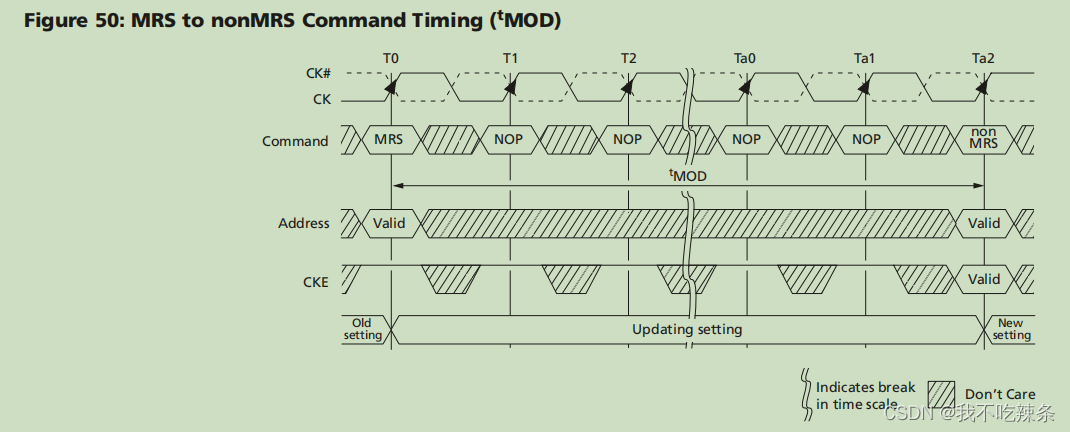

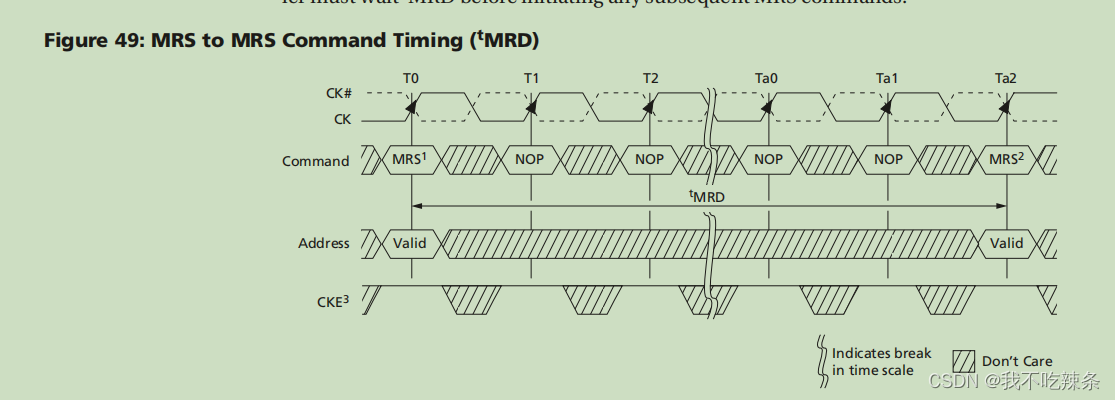

这里的时序要注意下，因为CONTROLLER是100 MHZ，DDR3 是400MHZ，controller 命令直接映射到DDR3的工作频率上将会持续4个周期，这会不符合时序要求，我在PHY中处理了一下；但这也会将导致以后读写效率下降；
使用vivado和modesim 联合编译仿真；

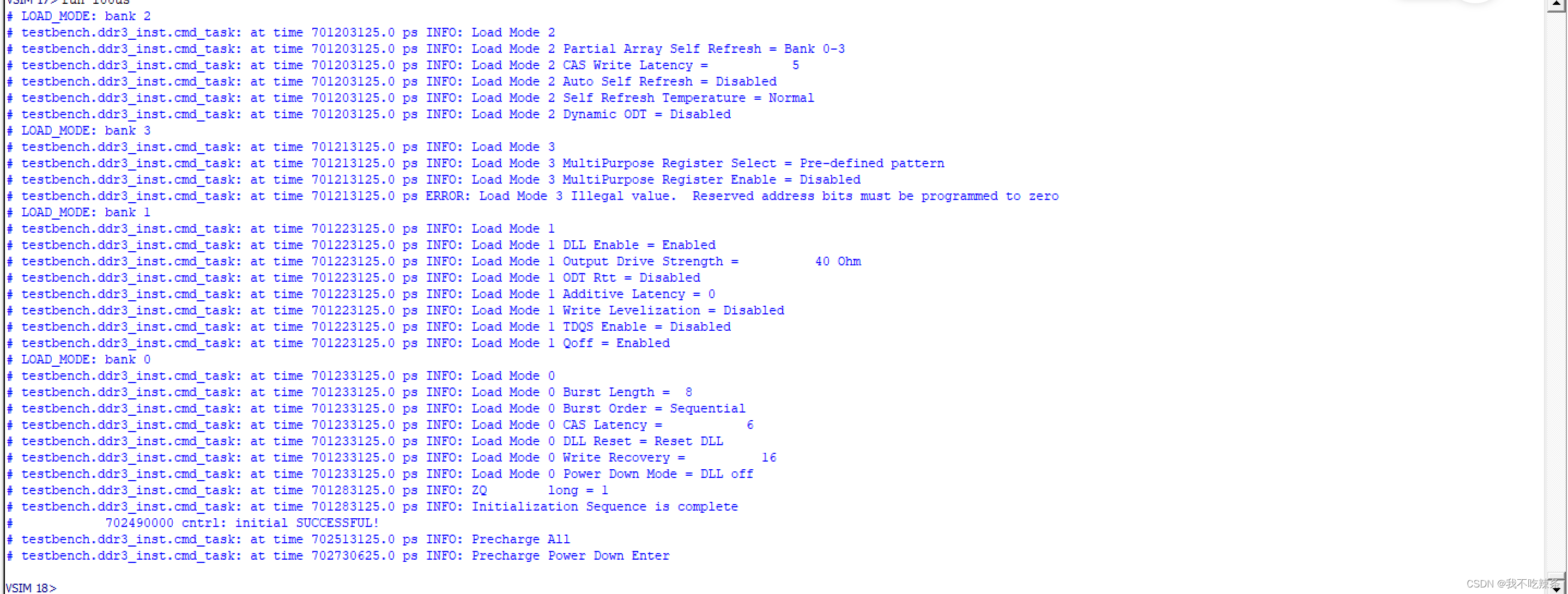

初始化成功；

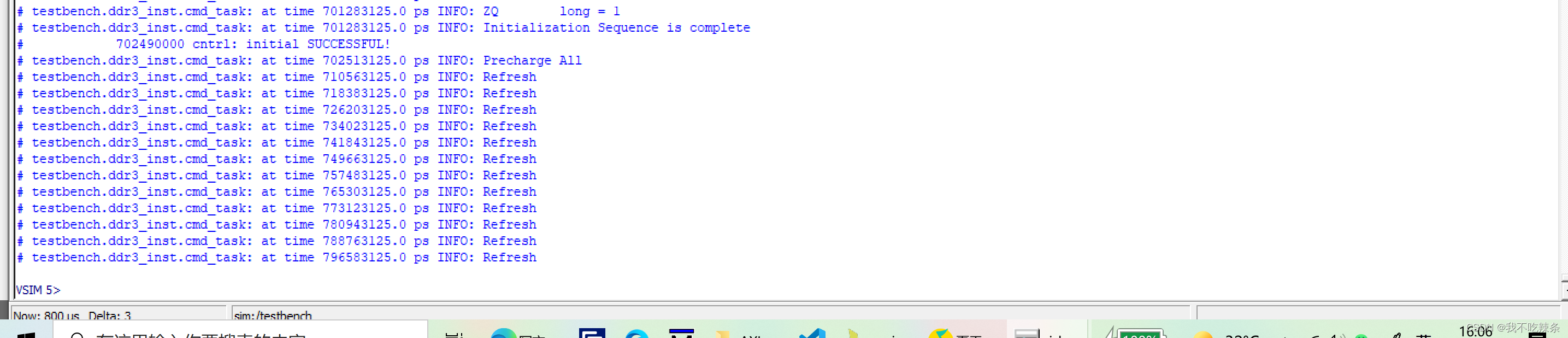

定时刷新成功：
这里的PHY只验证了命令输出，没有验证数据传输的正确性（这个到数据读写在验证）；
module ddr3_dfi_phy
//-----------------------------------------------------------------
// Params
//-----------------------------------------------------------------
#(
parameter REFCLK_FREQUENCY = 400
,parameter DQS_TAP_DELAY_INIT = 27
,parameter DQ_TAP_DELAY_INIT = 0
,parameter TPHY_RDLAT = 0 //在rl的基�??上在延时
,parameter TPHY_WRLAT = 3
,parameter TPHY_WRDATA = 0
)
//-----------------------------------------------------------------
// Ports
//-----------------------------------------------------------------
(
// Inputs
input clk_i
,input [3 :0 ] delay_command //以DDR 的工作频率为基准
,input [3 :0 ] delay_data
// ,input requre_command
,input clk_ddr_i
,input clk_ddr90_i
,input clk_ref_i
,input rst_i
,input cfg_valid_i
,input [ 31:0] cfg_i
,input [ 13:0] dfi_address_i
,input [ 2:0] dfi_bank_i
,input dfi_cas_n_i
,input dfi_cke_i
,input dfi_cs_n_i
,input dfi_odt_i
,input dfi_ras_n_i
,input dfi_reset_n_i
,input dfi_we_n_i
,input [ 127:0] dfi_wrdata_i
,input dfi_wrdata_en_i
,input [ 15:0] dfi_wrdata_mask_i
,input dfi_rddata_en_i
// Outputs
,output [ 127:0] dfi_rddata_o
,output dfi_rddata_valid_o
,output [ 1:0] dfi_rddata_dnv_o
,output ddr3_ck_p_o
,output ddr3_ck_n_o
,output ddr3_cke_o
,output ddr3_reset_n_o
,output ddr3_ras_n_o
,output ddr3_cas_n_o
,output ddr3_we_n_o
,output ddr3_cs_n_o
,output [ 2:0] ddr3_ba_o
,output [ 13:0] ddr3_addr_o
,output ddr3_odt_o
,output [ 1:0] ddr3_dm_o
,inout [ 1:0] ddr3_dqs_p_io
,inout [ 1:0] ddr3_dqs_n_io
,inout [ 15:0] ddr3_dq_io
);
//-----------------------------------------------------------------
// Configuration
//-----------------------------------------------------------------
`define DDR_PHY_CFG_RDSEL_R 3:0
`define DDR_PHY_CFG_RDLAT_R 10:8
`define DDR_PHY_CFG_DLY_DQS_RST_R 17:16
`define DDR_PHY_CFG_DLY_DQS_INC_R 19:18
`define DDR_PHY_CFG_DLY_DQ_RST_R 21:20
`define DDR_PHY_CFG_DLY_DQ_INC_R 23:22
reg cfg_valid_q;
always @ (posedge clk_i )
if (~rst_i)
cfg_valid_q <= 1'b0;
else
cfg_valid_q <= cfg_valid_i;
wire cfg_valid_pulse_w = cfg_valid_i & ~cfg_valid_q;
reg [2:0] rd_lat_q;
always @ (posedge clk_i )
if (~rst_i)
rd_lat_q <= TPHY_RDLAT;
else if (cfg_valid_i)
rd_lat_q <= cfg_i[`DDR_PHY_CFG_RDLAT_R];
reg [3:0] rd_sel_q;
always @ (posedge clk_i )
if (~rst_i)
rd_sel_q <= 4'hF;
else if (cfg_valid_i)
rd_sel_q <= cfg_i[`DDR_PHY_CFG_RDSEL_R];
reg [1:0] dqs_delay_rst_q;
reg [1:0] dqs_delay_inc_q;
reg [1:0] dq_delay_rst_q;
reg [1:0] dq_delay_inc_q;
always @ (posedge clk_i )
if (~rst_i)
dqs_delay_rst_q <= 2'b0;
else if (cfg_valid_pulse_w)
dqs_delay_rst_q <= cfg_i[`DDR_PHY_CFG_DLY_DQS_RST_R];
else
dqs_delay_rst_q <= 2'b0;
always @ (posedge clk_i )
if (~rst_i)
dqs_delay_inc_q <= 2'b0;
else if (cfg_valid_pulse_w)
dqs_delay_inc_q <= cfg_i[`DDR_PHY_CFG_DLY_DQS_INC_R];
else
dqs_delay_inc_q <= 2'b0;
always @ (posedge clk_i )
if (~rst_i)
dq_delay_rst_q <= 2'b0;
else if (cfg_valid_pulse_w)
dq_delay_rst_q <= cfg_i[`DDR_PHY_CFG_DLY_DQ_RST_R];
else
dq_delay_rst_q <= 2'b0;
always @ (posedge clk_i )
if (~rst_i)
dq_delay_inc_q <= 2'b0;
else if (cfg_valid_pulse_w)
dq_delay_inc_q <= cfg_i[`DDR_PHY_CFG_DLY_DQ_INC_R];
else
dq_delay_inc_q <= 2'b0;
//-----------------------------------------------------------------
// DDR Clock
//-----------------------------------------------------------------
// Differential clock output
OBUFDS
#(
.IOSTANDARD("DIFF_SSTL135")
)
u_pad_ck
(
.I(clk_ddr90_i)
,.O(ddr3_ck_p_o)
,.OB(ddr3_ck_n_o)
);
//-----------------------------------------------------------------
// Command
//-----------------------------------------------------------------
// Xilinx placement pragmas:
//synthesis attribute IOB of cke_q is "TRUE"
//synthesis attribute IOB of reset_n_q is "TRUE"
//synthesis attribute IOB of ras_n_q is "TRUE"
//synthesis attribute IOB of cas_n_q is "TRUE"
//synthesis attribute IOB of we_n_q is "TRUE"
//synthesis attribute IOB of cs_n_q is "TRUE"
//synthesis attribute IOB of ba_q is "TRUE"
//synthesis attribute IOB of addr_q is "TRUE"
//synthesis attribute IOB of odt_q is "TRUE"
reg cke_q;
reg [3:0] delay_command_r;
always @ (posedge clk_ddr_i )
if (~rst_i)
delay_command_r <= 'd0;
//else if(delay_command_r=='b0 && {ddr3_ras_n_o,ddr3_cas_n_o,ddr3_we_n_o,ddr3_cs_n_o}!=4'b1110)
else if(delay_command_r=='b0)
delay_command_r <= delay_command;
//else if(delay_command_r=='b0)
// delay_command_r <= 'b0;
else begin
delay_command_r <= delay_command_r-1'b1;
end
always @ (posedge clk_i )
if (~rst_i)
cke_q <= 1'b0;
else
cke_q <= dfi_cke_i;
assign ddr3_cke_o = cke_q;
reg reset_n_q;
always @ (posedge clk_i )
if (~rst_i)
reset_n_q <= 1'b0;
else
reset_n_q <= dfi_reset_n_i;
assign ddr3_reset_n_o = reset_n_q;
reg ras_n_q,ras_n_q_r;
always @ (posedge clk_i )
if (~rst_i)
ras_n_q_r <= 1'b1;
else
ras_n_q_r <= dfi_ras_n_i;
always @ (posedge clk_ddr_i )
if (~rst_i)
ras_n_q <= 1'b1;
else if(delay_command_r=='b0)
ras_n_q <= ras_n_q_r;
else begin
ras_n_q <= 1'b1;
end
assign ddr3_ras_n_o = ras_n_q;
reg cas_n_q,cas_n_q_r;
always @ (posedge clk_i )
if (~rst_i)
cas_n_q_r <= 1'b1;
else
cas_n_q_r <= dfi_cas_n_i;
always @ (posedge clk_ddr_i )
if (~rst_i)
cas_n_q <= 1'b1;
else if(delay_command_r=='b0)
cas_n_q <= cas_n_q_r;
else begin
cas_n_q <= 1'b1;
end
assign ddr3_cas_n_o = cas_n_q;
reg we_n_q,we_n_q_r;
always @ (posedge clk_i )
if (~rst_i)
we_n_q_r <= 1'b1;
else
we_n_q_r <= dfi_we_n_i;
always @ (posedge clk_ddr_i )
if (~rst_i)
we_n_q <= 1'b1;
else if(delay_command_r=='b0)
we_n_q <= we_n_q_r;
else begin
we_n_q <= 1'b1;
end
assign ddr3_we_n_o = we_n_q;
reg cs_n_q,cs_n_q_r;
always @ (posedge clk_i )
if (~rst_i)
cs_n_q_r <= 1'b0;
else
cs_n_q_r <= dfi_cs_n_i;
always @ (posedge clk_ddr_i )
if (~rst_i)
cs_n_q <= 1'b0;
else if(delay_command_r=='b0)
cs_n_q <= cs_n_q_r;
else begin
cs_n_q <= 1'b0;
end
assign ddr3_cs_n_o = cs_n_q;
reg [2:0] ba_q;
always @ (posedge clk_i )
if (~rst_i)
ba_q <= 3'b0;
else
ba_q <= dfi_bank_i;
assign ddr3_ba_o = ba_q;
reg [13:0] addr_q;
always @ (posedge clk_i )
if (~rst_i)
addr_q <= 14'b0;
else
addr_q <= dfi_address_i[13:0]; // TODO: Address bit...
assign ddr3_addr_o = addr_q;
reg odt_q;
always @ (posedge clk_i )
if (~rst_i)
odt_q <= 1'b0;
else
odt_q <= dfi_odt_i;
assign ddr3_odt_o = odt_q;
//-----------------------------------------------------------------
// Write Output Enable
//-----------------------------------------------------------------
reg wr_valid_q0;
always @ (posedge clk_i )
if (~rst_i)
wr_valid_q0 <= 1'b0;
else
wr_valid_q0 <= dfi_wrdata_en_i;
reg wr_valid_q1;
always @ (posedge clk_i )
if (~rst_i)
wr_valid_q1 <= 1'b0;
else
wr_valid_q1 <= wr_valid_q0;
reg dqs_out_en_n_q;
always @ (posedge clk_i )
if (~rst_i)
dqs_out_en_n_q <= 1'b0;
else
dqs_out_en_n_q <= ~wr_valid_q1;
//-----------------------------------------------------------------
// DQS I/O Buffers
//-----------------------------------------------------------------
wire [1:0] dqs_out_en_n_w;
wire [1:0] dqs_out_w;
wire [1:0] dqs_in_w;
IOBUFDS
#(
.IOSTANDARD("DIFF_SSTL135")
)
u_pad_dqs0
(
.I(dqs_out_w[0])
,.O(dqs_in_w[0])
,.T(dqs_out_en_n_w[0])
,.IO(ddr3_dqs_p_io[0])
,.IOB(ddr3_dqs_n_io[0])
);
IOBUFDS
#(
.IOSTANDARD("DIFF_SSTL135")
)
u_pad_dqs1
(
.I(dqs_out_w[1])
,.O(dqs_in_w[1])
,.T(dqs_out_en_n_w[1])
,.IO(ddr3_dqs_p_io[1])
,.IOB(ddr3_dqs_n_io[1])
);
//-----------------------------------------------------------------
// Write Data (DQ)
//-----------------------------------------------------------------
reg [127:0] dfi_wrdata_q;
always @ (posedge clk_i )
if (~rst_i)
dfi_wrdata_q <= 32'b0;
else
dfi_wrdata_q <= dfi_wrdata_i;
wire [15:0] dq_in_w;
wire [15:0] dq_out_w;
wire [15:0] dq_out_en_n_w;
OSERDESE2
#(
.SERDES_MODE("MASTER")
,.DATA_WIDTH(8)
,.TRISTATE_WIDTH(1)
,.DATA_RATE_OQ("DDR")
,.DATA_RATE_TQ("BUF")
)
u_serdes_dq0
(
.CLK(clk_ddr_i)
,.CLKDIV(clk_i)
,.D1(dfi_wrdata_q[0 ])
,.D2(dfi_wrdata_q[16 ])
,.D3(dfi_wrdata_q[32 ])
,.D4(dfi_wrdata_q[48 ])
,.D5(dfi_wrdata_q[64 ])
,.D6(dfi_wrdata_q[80 ])
,.D7(dfi_wrdata_q[96 ])
,.D8(dfi_wrdata_q[112])
,.OCE(1)
,.RST(~rst_i)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
,.T1(dqs_out_en_n_q)
,.T2(dqs_out_en_n_q)
,.T3(dqs_out_en_n_q)
,.T4(dqs_out_en_n_q)
,.TBYTEIN(0)
,.TCE(1)
,.OQ(dq_out_w[0])
,.OFB()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.TBYTEOUT()
,.TFB()
,.TQ(dq_out_en_n_w[0])
);
IOBUF
#(
.IOSTANDARD("SSTL135")
,.SLEW("FAST")
)
u_pad_dq0
(
.I(dq_out_w[0])
,.O(dq_in_w[0])
,.T(dq_out_en_n_w[0])
,.IO(ddr3_dq_io[0])
);
OSERDESE2
#(
.SERDES_MODE("MASTER")
,.DATA_WIDTH(8)
,.TRISTATE_WIDTH(1)
,.DATA_RATE_OQ("DDR")
,.DATA_RATE_TQ("BUF")
)
u_serdes_dq1
(
.CLK(clk_ddr_i)
,.CLKDIV(clk_i)
,.D1(dfi_wrdata_q[1+0 ])
,.D2(dfi_wrdata_q[1+16 ])
,.D3(dfi_wrdata_q[1+32 ])
,.D4(dfi_wrdata_q[1+48 ])
,.D5(dfi_wrdata_q[1+64 ])
,.D6(dfi_wrdata_q[1+80 ])
,.D7(dfi_wrdata_q[1+96 ])
,.D8(dfi_wrdata_q[1+112])
,.OCE(1)
,.RST(~rst_i)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
,.T1(dqs_out_en_n_q)
,.T2(dqs_out_en_n_q)
,.T3(dqs_out_en_n_q)
,.T4(dqs_out_en_n_q)
,.TBYTEIN(0)
,.TCE(1)
,.OQ(dq_out_w[1])
,.OFB()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.TBYTEOUT()
,.TFB()
,.TQ(dq_out_en_n_w[1])
);
IOBUF
#(
.IOSTANDARD("SSTL135")
,.SLEW("FAST")
)
u_pad_dq1
(
.I(dq_out_w[1])
,.O(dq_in_w[1])
,.T(dq_out_en_n_w[1])
,.IO(ddr3_dq_io[1])
);
OSERDESE2
#(
.SERDES_MODE("MASTER")
,.DATA_WIDTH(8)
,.TRISTATE_WIDTH(1)
,.DATA_RATE_OQ("DDR")
,.DATA_RATE_TQ("BUF")
)
u_serdes_dq2
(
.CLK(clk_ddr_i)
,.CLKDIV(clk_i)
,.D1(dfi_wrdata_q[2+0 ])
,.D2(dfi_wrdata_q[2+16 ])
,.D3(dfi_wrdata_q[2+32 ])
,.D4(dfi_wrdata_q[2+48 ])
,.D5(dfi_wrdata_q[2+64 ])
,.D6(dfi_wrdata_q[2+80 ])
,.D7(dfi_wrdata_q[2+96 ])
,.D8(dfi_wrdata_q[2+112])
,.OCE(1)
,.RST(~rst_i)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
,.T1(dqs_out_en_n_q)
,.T2(dqs_out_en_n_q)
,.T3(dqs_out_en_n_q)
,.T4(dqs_out_en_n_q)
,.TBYTEIN(0)
,.TCE(1)
,.OQ(dq_out_w[2])
,.OFB()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.TBYTEOUT()
,.TFB()
,.TQ(dq_out_en_n_w[2])
);
IOBUF
#(
.IOSTANDARD("SSTL135")
,.SLEW("FAST")
)
u_pad_dq2
(
.I(dq_out_w[2])
,.O(dq_in_w[2])
,.T(dq_out_en_n_w[2])
,.IO(ddr3_dq_io[2])
);
OSERDESE2
#(
.SERDES_MODE("MASTER")
,.DATA_WIDTH(8)
,.TRISTATE_WIDTH(1)
,.DATA_RATE_OQ("DDR")
,.DATA_RATE_TQ("BUF")
)
u_serdes_dq3
(
.CLK(clk_ddr_i)
,.CLKDIV(clk_i)
,.D1(dfi_wrdata_q[3+0 ])
,.D2(dfi_wrdata_q[3+16 ])
,.D3(dfi_wrdata_q[3+32 ])
,.D4(dfi_wrdata_q[3+48 ])
,.D5(dfi_wrdata_q[3+64 ])
,.D6(dfi_wrdata_q[3+80 ])
,.D7(dfi_wrdata_q[3+96 ])
,.D8(dfi_wrdata_q[3+112])
,.OCE(1)
,.RST(~rst_i)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
,.T1(dqs_out_en_n_q)
,.T2(dqs_out_en_n_q)
,.T3(dqs_out_en_n_q)
,.T4(dqs_out_en_n_q)
,.TBYTEIN(0)
,.TCE(1)
,.OQ(dq_out_w[3])
,.OFB()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.TBYTEOUT()
,.TFB()
,.TQ(dq_out_en_n_w[3])
);
IOBUF
#(
.IOSTANDARD("SSTL135")
,.SLEW("FAST")
)
u_pad_dq3
(
.I(dq_out_w[3])
,.O(dq_in_w[3])
,.T(dq_out_en_n_w[3])
,.IO(ddr3_dq_io[3])
);
OSERDESE2
#(
.SERDES_MODE("MASTER")
,.DATA_WIDTH(8)
,.TRISTATE_WIDTH(1)
,.DATA_RATE_OQ("DDR")
,.DATA_RATE_TQ("BUF")
)
u_serdes_dq4
(
.CLK(clk_ddr_i)
,.CLKDIV(clk_i)
,.D1(dfi_wrdata_q[4+0 ])
,.D2(dfi_wrdata_q[4+16 ])
,.D3(dfi_wrdata_q[4+32 ])
,.D4(dfi_wrdata_q[4+48 ])
,.D5(dfi_wrdata_q[4+64 ])
,.D6(dfi_wrdata_q[4+80 ])
,.D7(dfi_wrdata_q[4+96 ])
,.D8(dfi_wrdata_q[4+112])
,.OCE(1)
,.RST(~rst_i)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
,.T1(dqs_out_en_n_q)
,.T2(dqs_out_en_n_q)
,.T3(dqs_out_en_n_q)
,.T4(dqs_out_en_n_q)
,.TBYTEIN(0)
,.TCE(1)
,.OQ(dq_out_w[4])
,.OFB()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.TBYTEOUT()
,.TFB()
,.TQ(dq_out_en_n_w[4])
);
IOBUF
#(
.IOSTANDARD("SSTL135")
,.SLEW("FAST")
)
u_pad_dq4
(
.I(dq_out_w[4])
,.O(dq_in_w[4])
,.T(dq_out_en_n_w[4])
,.IO(ddr3_dq_io[4])
);
OSERDESE2
#(
.SERDES_MODE("MASTER")
,.DATA_WIDTH(8)
,.TRISTATE_WIDTH(1)
,.DATA_RATE_OQ("DDR")
,.DATA_RATE_TQ("BUF")
)
u_serdes_dq5
(
.CLK(clk_ddr_i)
,.CLKDIV(clk_i)
,.D1(dfi_wrdata_q[5+0 ])
,.D2(dfi_wrdata_q[5+16 ])
,.D3(dfi_wrdata_q[5+32 ])
,.D4(dfi_wrdata_q[5+48 ])
,.D5(dfi_wrdata_q[5+64 ])
,.D6(dfi_wrdata_q[5+80 ])
,.D7(dfi_wrdata_q[5+96 ])
,.D8(dfi_wrdata_q[5+112])
,.OCE(1)
,.RST(~rst_i)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
,.T1(dqs_out_en_n_q)
,.T2(dqs_out_en_n_q)
,.T3(dqs_out_en_n_q)
,.T4(dqs_out_en_n_q)
,.TBYTEIN(0)
,.TCE(1)
,.OQ(dq_out_w[5])
,.OFB()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.TBYTEOUT()
,.TFB()
,.TQ(dq_out_en_n_w[5])
);
IOBUF
#(
.IOSTANDARD("SSTL135")
,.SLEW("FAST")
)
u_pad_dq5
(
.I(dq_out_w[5])
,.O(dq_in_w[5])
,.T(dq_out_en_n_w[5])
,.IO(ddr3_dq_io[5])
);
OSERDESE2
#(
.SERDES_MODE("MASTER")
,.DATA_WIDTH(8)
,.TRISTATE_WIDTH(1)
,.DATA_RATE_OQ("DDR")
,.DATA_RATE_TQ("BUF")
)
u_serdes_dq6
(
.CLK(clk_ddr_i)
,.CLKDIV(clk_i)
,.D1(dfi_wrdata_q[6+0 ])
,.D2(dfi_wrdata_q[6+16 ])
,.D3(dfi_wrdata_q[6+32 ])
,.D4(dfi_wrdata_q[6+48 ])
,.D5(dfi_wrdata_q[6+64 ])
,.D6(dfi_wrdata_q[6+80 ])
,.D7(dfi_wrdata_q[6+96 ])
,.D8(dfi_wrdata_q[6+112])
,.OCE(1)
,.RST(~rst_i)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
,.T1(dqs_out_en_n_q)
,.T2(dqs_out_en_n_q)
,.T3(dqs_out_en_n_q)
,.T4(dqs_out_en_n_q)
,.TBYTEIN(0)
,.TCE(1)
,.OQ(dq_out_w[6])
,.OFB()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.TBYTEOUT()
,.TFB()
,.TQ(dq_out_en_n_w[6])
);
IOBUF
#(
.IOSTANDARD("SSTL135")
,.SLEW("FAST")
)
u_pad_dq6
(
.I(dq_out_w[6])
,.O(dq_in_w[6])
,.T(dq_out_en_n_w[6])
,.IO(ddr3_dq_io[6])
);
OSERDESE2
#(
.SERDES_MODE("MASTER")
,.DATA_WIDTH(8)
,.TRISTATE_WIDTH(1)
,.DATA_RATE_OQ("DDR")
,.DATA_RATE_TQ("BUF")
)
u_serdes_dq7
(
.CLK(clk_ddr_i)
,.CLKDIV(clk_i)
,.D1(dfi_wrdata_q[7+0 ])
,.D2(dfi_wrdata_q[7+16 ])
,.D3(dfi_wrdata_q[7+32 ])
,.D4(dfi_wrdata_q[7+48 ])
,.D5(dfi_wrdata_q[7+64 ])
,.D6(dfi_wrdata_q[7+80 ])
,.D7(dfi_wrdata_q[7+96 ])
,.D8(dfi_wrdata_q[7+112])
,.OCE(1)
,.RST(~rst_i)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
,.T1(dqs_out_en_n_q)
,.T2(dqs_out_en_n_q)
,.T3(dqs_out_en_n_q)
,.T4(dqs_out_en_n_q)
,.TBYTEIN(0)
,.TCE(1)
,.OQ(dq_out_w[7])
,.OFB()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.TBYTEOUT()
,.TFB()
,.TQ(dq_out_en_n_w[7])
);
IOBUF
#(
.IOSTANDARD("SSTL135")
,.SLEW("FAST")
)
u_pad_dq7
(
.I(dq_out_w[7])
,.O(dq_in_w[7])
,.T(dq_out_en_n_w[7])
,.IO(ddr3_dq_io[7])
);
OSERDESE2
#(
.SERDES_MODE("MASTER")
,.DATA_WIDTH(8)
,.TRISTATE_WIDTH(1)
,.DATA_RATE_OQ("DDR")
,.DATA_RATE_TQ("BUF")
)
u_serdes_dq8
(
.CLK(clk_ddr_i)
,.CLKDIV(clk_i)
,.D1(dfi_wrdata_q[8+0 ])
,.D2(dfi_wrdata_q[8+16 ])
,.D3(dfi_wrdata_q[8+32 ])
,.D4(dfi_wrdata_q[8+48 ])
,.D5(dfi_wrdata_q[8+64 ])
,.D6(dfi_wrdata_q[8+80 ])
,.D7(dfi_wrdata_q[8+96 ])
,.D8(dfi_wrdata_q[8+112])
,.OCE(1)
,.RST(~rst_i)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
,.T1(dqs_out_en_n_q)
,.T2(dqs_out_en_n_q)
,.T3(dqs_out_en_n_q)
,.T4(dqs_out_en_n_q)
,.TBYTEIN(0)
,.TCE(1)
,.OQ(dq_out_w[8])
,.OFB()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.TBYTEOUT()
,.TFB()
,.TQ(dq_out_en_n_w[8])
);
IOBUF
#(
.IOSTANDARD("SSTL135")
,.SLEW("FAST")
)
u_pad_dq8
(
.I(dq_out_w[8])
,.O(dq_in_w[8])
,.T(dq_out_en_n_w[8])
,.IO(ddr3_dq_io[8])
);
OSERDESE2
#(
.SERDES_MODE("MASTER")
,.DATA_WIDTH(8)
,.TRISTATE_WIDTH(1)
,.DATA_RATE_OQ("DDR")
,.DATA_RATE_TQ("BUF")
)
u_serdes_dq9
(
.CLK(clk_ddr_i)
,.CLKDIV(clk_i)
,.D1(dfi_wrdata_q[9+0 ])
,.D2(dfi_wrdata_q[9+16 ])
,.D3(dfi_wrdata_q[9+32 ])
,.D4(dfi_wrdata_q[9+48 ])
,.D5(dfi_wrdata_q[9+64 ])
,.D6(dfi_wrdata_q[9+80 ])
,.D7(dfi_wrdata_q[9+96 ])
,.D8(dfi_wrdata_q[9+112])
,.OCE(1)
,.RST(~rst_i)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
,.T1(dqs_out_en_n_q)
,.T2(dqs_out_en_n_q)
,.T3(dqs_out_en_n_q)
,.T4(dqs_out_en_n_q)
,.TBYTEIN(0)
,.TCE(1)
,.OQ(dq_out_w[9])
,.OFB()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.TBYTEOUT()
,.TFB()
,.TQ(dq_out_en_n_w[9])
);
IOBUF
#(
.IOSTANDARD("SSTL135")
,.SLEW("FAST")
)
u_pad_dq9
(
.I(dq_out_w[9])
,.O(dq_in_w[9])
,.T(dq_out_en_n_w[9])
,.IO(ddr3_dq_io[9])
);
OSERDESE2
#(
.SERDES_MODE("MASTER")
,.DATA_WIDTH(8)
,.TRISTATE_WIDTH(1)
,.DATA_RATE_OQ("DDR")
,.DATA_RATE_TQ("BUF")
)
u_serdes_dq10
(
.CLK(clk_ddr_i)
,.CLKDIV(clk_i)
,.D1(dfi_wrdata_q[10+0 ])
,.D2(dfi_wrdata_q[10+16 ])
,.D3(dfi_wrdata_q[10+32 ])
,.D4(dfi_wrdata_q[10+48 ])
,.D5(dfi_wrdata_q[10+64 ])
,.D6(dfi_wrdata_q[10+80 ])
,.D7(dfi_wrdata_q[10+96 ])
,.D8(dfi_wrdata_q[10+112])
,.OCE(1)
,.RST(~rst_i)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
,.T1(dqs_out_en_n_q)
,.T2(dqs_out_en_n_q)
,.T3(dqs_out_en_n_q)
,.T4(dqs_out_en_n_q)
,.TBYTEIN(0)
,.TCE(1)
,.OQ(dq_out_w[10])
,.OFB()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.TBYTEOUT()
,.TFB()
,.TQ(dq_out_en_n_w[10])
);
IOBUF
#(
.IOSTANDARD("SSTL135")
,.SLEW("FAST")
)
u_pad_dq10
(
.I(dq_out_w[10])
,.O(dq_in_w[10])
,.T(dq_out_en_n_w[10])
,.IO(ddr3_dq_io[10])
);
OSERDESE2
#(
.SERDES_MODE("MASTER")
,.DATA_WIDTH(8)
,.TRISTATE_WIDTH(1)
,.DATA_RATE_OQ("DDR")
,.DATA_RATE_TQ("BUF")
)
u_serdes_dq11
(
.CLK(clk_ddr_i)
,.CLKDIV(clk_i)
,.D1(dfi_wrdata_q[11+0 ])
,.D2(dfi_wrdata_q[11+16 ])
,.D3(dfi_wrdata_q[11+32 ])
,.D4(dfi_wrdata_q[11+48 ])
,.D5(dfi_wrdata_q[11+64 ])
,.D6(dfi_wrdata_q[11+80 ])
,.D7(dfi_wrdata_q[11+96 ])
,.D8(dfi_wrdata_q[11+112])
,.OCE(1)
,.RST(~rst_i)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
,.T1(dqs_out_en_n_q)
,.T2(dqs_out_en_n_q)
,.T3(dqs_out_en_n_q)
,.T4(dqs_out_en_n_q)
,.TBYTEIN(0)
,.TCE(1)
,.OQ(dq_out_w[11])
,.OFB()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.TBYTEOUT()
,.TFB()
,.TQ(dq_out_en_n_w[11])
);
IOBUF
#(
.IOSTANDARD("SSTL135")
,.SLEW("FAST")
)
u_pad_dq11
(
.I(dq_out_w[11])
,.O(dq_in_w[11])
,.T(dq_out_en_n_w[11])
,.IO(ddr3_dq_io[11])
);
OSERDESE2
#(
.SERDES_MODE("MASTER")
,.DATA_WIDTH(8)
,.TRISTATE_WIDTH(1)
,.DATA_RATE_OQ("DDR")
,.DATA_RATE_TQ("BUF")
)
u_serdes_dq12
(
.CLK(clk_ddr_i)
,.CLKDIV(clk_i)
,.D1(dfi_wrdata_q[12+0 ])
,.D2(dfi_wrdata_q[12+16 ])
,.D3(dfi_wrdata_q[12+32 ])
,.D4(dfi_wrdata_q[12+48 ])
,.D5(dfi_wrdata_q[12+64 ])
,.D6(dfi_wrdata_q[12+80 ])
,.D7(dfi_wrdata_q[12+96 ])
,.D8(dfi_wrdata_q[12+112])
,.OCE(1)
,.RST(~rst_i)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
,.T1(dqs_out_en_n_q)
,.T2(dqs_out_en_n_q)
,.T3(dqs_out_en_n_q)
,.T4(dqs_out_en_n_q)
,.TBYTEIN(0)
,.TCE(1)
,.OQ(dq_out_w[12])
,.OFB()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.TBYTEOUT()
,.TFB()
,.TQ(dq_out_en_n_w[12])
);
IOBUF
#(
.IOSTANDARD("SSTL135")
,.SLEW("FAST")
)
u_pad_dq12
(
.I(dq_out_w[12])
,.O(dq_in_w[12])
,.T(dq_out_en_n_w[12])
,.IO(ddr3_dq_io[12])
);
OSERDESE2
#(
.SERDES_MODE("MASTER")
,.DATA_WIDTH(8)
,.TRISTATE_WIDTH(1)
,.DATA_RATE_OQ("DDR")
,.DATA_RATE_TQ("BUF")
)
u_serdes_dq13
(
.CLK(clk_ddr_i)
,.CLKDIV(clk_i)
,.D1(dfi_wrdata_q[13+0 ])
,.D2(dfi_wrdata_q[13+16 ])
,.D3(dfi_wrdata_q[13+32 ])
,.D4(dfi_wrdata_q[13+48 ])
,.D5(dfi_wrdata_q[13+64 ])
,.D6(dfi_wrdata_q[13+80 ])
,.D7(dfi_wrdata_q[13+96 ])
,.D8(dfi_wrdata_q[13+112])
,.OCE(1)
,.RST(~rst_i)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
,.T1(dqs_out_en_n_q)
,.T2(dqs_out_en_n_q)
,.T3(dqs_out_en_n_q)
,.T4(dqs_out_en_n_q)
,.TBYTEIN(0)
,.TCE(1)
,.OQ(dq_out_w[13])
,.OFB()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.TBYTEOUT()
,.TFB()
,.TQ(dq_out_en_n_w[13])
);
IOBUF
#(
.IOSTANDARD("SSTL135")
,.SLEW("FAST")
)
u_pad_dq13
(
.I(dq_out_w[13])
,.O(dq_in_w[13])
,.T(dq_out_en_n_w[13])
,.IO(ddr3_dq_io[13])
);
OSERDESE2
#(
.SERDES_MODE("MASTER")
,.DATA_WIDTH(8)
,.TRISTATE_WIDTH(1)
,.DATA_RATE_OQ("DDR")
,.DATA_RATE_TQ("BUF")
)
u_serdes_dq14
(
.CLK(clk_ddr_i)
,.CLKDIV(clk_i)
,.D1(dfi_wrdata_q[14+0 ])
,.D2(dfi_wrdata_q[14+16 ])
,.D3(dfi_wrdata_q[14+32 ])
,.D4(dfi_wrdata_q[14+48 ])
,.D5(dfi_wrdata_q[14+64 ])
,.D6(dfi_wrdata_q[14+80 ])
,.D7(dfi_wrdata_q[14+96 ])
,.D8(dfi_wrdata_q[14+112])
,.OCE(1)
,.RST(~rst_i)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
,.T1(dqs_out_en_n_q)
,.T2(dqs_out_en_n_q)
,.T3(dqs_out_en_n_q)
,.T4(dqs_out_en_n_q)
,.TBYTEIN(0)
,.TCE(1)
,.OQ(dq_out_w[14])
,.OFB()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.TBYTEOUT()
,.TFB()
,.TQ(dq_out_en_n_w[14])
);
IOBUF
#(
.IOSTANDARD("SSTL135")
,.SLEW("FAST")
)
u_pad_dq14
(
.I(dq_out_w[14])
,.O(dq_in_w[14])
,.T(dq_out_en_n_w[14])
,.IO(ddr3_dq_io[14])
);
OSERDESE2
#(
.SERDES_MODE("MASTER")
,.DATA_WIDTH(8)
,.TRISTATE_WIDTH(1)
,.DATA_RATE_OQ("DDR")
,.DATA_RATE_TQ("BUF")
)
u_serdes_dq15
(
.CLK(clk_ddr_i)
,.CLKDIV(clk_i)
,.D1(dfi_wrdata_q[15+0 ])
,.D2(dfi_wrdata_q[15+16 ])
,.D3(dfi_wrdata_q[15+32 ])
,.D4(dfi_wrdata_q[15+48 ])
,.D5(dfi_wrdata_q[15+64 ])
,.D6(dfi_wrdata_q[15+80 ])
,.D7(dfi_wrdata_q[15+96 ])
,.D8(dfi_wrdata_q[15+112])
,.OCE(1)
,.RST(~rst_i)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
,.T1(dqs_out_en_n_q)
,.T2(dqs_out_en_n_q)
,.T3(dqs_out_en_n_q)
,.T4(dqs_out_en_n_q)
,.TBYTEIN(0)
,.TCE(1)
,.OQ(dq_out_w[15])
,.OFB()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.TBYTEOUT()
,.TFB()
,.TQ(dq_out_en_n_w[15])
);
IOBUF
#(
.IOSTANDARD("SSTL135")
,.SLEW("FAST")
)
u_pad_dq15
(
.I(dq_out_w[15])
,.O(dq_in_w[15])
,.T(dq_out_en_n_w[15])
,.IO(ddr3_dq_io[15])
);
//-----------------------------------------------------------------
// Data Mask (DM)
//-----------------------------------------------------------------
wire [1:0] dm_out_w;
reg [15:0] dfi_wr_mask_q;
always @ (posedge clk_i )
if (~rst_i)
dfi_wr_mask_q <= 4'b0;
else
dfi_wr_mask_q <= dfi_wrdata_mask_i;
OSERDESE2
#(
.SERDES_MODE("MASTER")
,.DATA_WIDTH(8)
,.TRISTATE_WIDTH(1)
,.DATA_RATE_OQ("DDR")
,.DATA_RATE_TQ("BUF")
)
u_serdes_dm0
(
.CLK(clk_ddr_i)
,.CLKDIV(clk_i)
,.D1(dfi_wr_mask_q[0])
,.D2(dfi_wr_mask_q[2])
,.D3(dfi_wr_mask_q[4])
,.D4(dfi_wr_mask_q[6])
,.D5(dfi_wr_mask_q[8])
,.D6(dfi_wr_mask_q[10])
,.D7(dfi_wr_mask_q[12])
,.D8(dfi_wr_mask_q[14])
,.OCE(1)
,.RST(~rst_i)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
,.T1(0)
,.T2(0)
,.T3(0)
,.T4(0)
,.TBYTEIN(0)
,.TCE(0)
,.OQ(dm_out_w[0])
,.OFB()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.TBYTEOUT()
,.TFB()
,.TQ()
);
OSERDESE2
#(
.SERDES_MODE("MASTER")
,.DATA_WIDTH(8)
,.TRISTATE_WIDTH(1)
,.DATA_RATE_OQ("DDR")
,.DATA_RATE_TQ("BUF")
)
u_serdes_dm1
(
.CLK(clk_ddr_i)
,.CLKDIV(clk_i)
,.D1(dfi_wr_mask_q[1])
,.D2(dfi_wr_mask_q[3])
,.D3(dfi_wr_mask_q[5])
,.D4(dfi_wr_mask_q[7])
,.D5(dfi_wr_mask_q[9])
,.D6(dfi_wr_mask_q[11])
,.D7(dfi_wr_mask_q[13])
,.D8(dfi_wr_mask_q[15])
,.OCE(1)
,.RST(~rst_i)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
,.T1(0)
,.T2(0)
,.T3(0)
,.T4(0)
,.TBYTEIN(0)
,.TCE(0)
,.OQ(dm_out_w[1])
,.OFB()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.TBYTEOUT()
,.TFB()
,.TQ()
);
assign ddr3_dm_o = dm_out_w;
//-----------------------------------------------------------------
// Write Data Strobe (DQS)
//-----------------------------------------------------------------
OSERDESE2
#(
.SERDES_MODE("MASTER")
,.DATA_WIDTH(8)
,.TRISTATE_WIDTH(1)
,.DATA_RATE_OQ("DDR")
,.DATA_RATE_TQ("BUF")
)
u_serdes_dqs0
(
.CLK(clk_ddr90_i)
,.CLKDIV(clk_i)
,.D1(0)
,.D2(1)
,.D3(0)
,.D4(1)
,.D5(0)
,.D6(1)
,.D7(0)
,.D8(1)
,.OCE(1)
,.RST(~rst_i)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
,.T1(dqs_out_en_n_q)
,.T2(dqs_out_en_n_q)
,.T3(dqs_out_en_n_q)
,.T4(dqs_out_en_n_q)
,.TBYTEIN(0)
,.TCE(1)
,.OQ(dqs_out_w[0])
,.OFB()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.TBYTEOUT()
,.TFB()
,.TQ(dqs_out_en_n_w[0])
);
OSERDESE2
#(
.SERDES_MODE("MASTER")
,.DATA_WIDTH(8)
,.TRISTATE_WIDTH(1)
,.DATA_RATE_OQ("DDR")
,.DATA_RATE_TQ("BUF")
)
u_serdes_dqs1
(
.CLK(clk_ddr90_i)
,.CLKDIV(clk_i)
,.D1(0)
,.D2(1)
,.D3(0)
,.D4(1)
,.D5(0)
,.D6(1)
,.D7(0)
,.D8(1)
,.OCE(1)
,.RST(~rst_i)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
,.T1(dqs_out_en_n_q)
,.T2(dqs_out_en_n_q)
,.T3(dqs_out_en_n_q)
,.T4(dqs_out_en_n_q)
,.TBYTEIN(0)
,.TCE(1)
,.OQ(dqs_out_w[1])
,.OFB()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.TBYTEOUT()
,.TFB()
,.TQ(dqs_out_en_n_w[1])
);
//-----------------------------------------------------------------
// Read Data Strobe (DQS)
//-----------------------------------------------------------------
wire [1:0] dqs_delayed_w;
IDELAYE2
#(
.IDELAY_TYPE("VARIABLE")
,.DELAY_SRC("IDATAIN")
,.CINVCTRL_SEL("FALSE")
,.IDELAY_VALUE(DQS_TAP_DELAY_INIT)
,.HIGH_PERFORMANCE_MODE ("TRUE")
,.REFCLK_FREQUENCY(REFCLK_FREQUENCY)
,.PIPE_SEL("FALSE")
,.SIGNAL_PATTERN("CLOCK")
)
u_dqs_delay0
(
.C(clk_i)
,.REGRST(1'b0)
,.CE(dqs_delay_inc_q[0])
,.INC(1'b1) // Increment/decrement number of tap delays.
,.DATAIN(1'b0)
,.IDATAIN(dqs_in_w[0]) // Data input for IDELAY from the IBUF.
,.LDPIPEEN(1'b0)
,.CINVCTRL(1'b0)
,.DATAOUT(dqs_delayed_w[0]) // Delayed data
,.LD(dqs_delay_rst_q[0]) // Set the IDELAYE2 delay to IDELAY_VALUE
,.CNTVALUEIN(5'b0)
,.CNTVALUEOUT()
);
IDELAYE2
#(
.IDELAY_TYPE("VARIABLE")
,.DELAY_SRC("IDATAIN")
,.CINVCTRL_SEL("FALSE")
,.IDELAY_VALUE(DQS_TAP_DELAY_INIT)
,.HIGH_PERFORMANCE_MODE ("TRUE")
,.REFCLK_FREQUENCY(REFCLK_FREQUENCY)
,.PIPE_SEL("FALSE")
,.SIGNAL_PATTERN("CLOCK")
)
u_dqs_delay1
(
.C(clk_i)
,.REGRST(1'b0)
,.CE(dqs_delay_inc_q[1])
,.INC(1'b1) // Increment/decrement number of tap delays.
,.DATAIN(1'b0)
,.IDATAIN(dqs_in_w[1]) // Data input for IDELAY from the IBUF.
,.LDPIPEEN(1'b0)
,.CINVCTRL(1'b0)
,.DATAOUT(dqs_delayed_w[1]) // Delayed data
,.LD(dqs_delay_rst_q[1]) // Set the IDELAYE2 delay to IDELAY_VALUE
,.CNTVALUEIN(5'b0)
,.CNTVALUEOUT()
);
//-----------------------------------------------------------------
// Read capture
//-----------------------------------------------------------------
wire delay_rdy_w;
IDELAYCTRL
#(.SIM_DEVICE ("7SERIES"))
u_dly_ref
(
.REFCLK(clk_ref_i)
,.RST(~rst_i)
,.RDY(delay_rdy_w)
);
wire [15:0] dq_delayed_w;
IDELAYE2
#(
.IDELAY_TYPE("VARIABLE")
,.DELAY_SRC("IDATAIN")
,.CINVCTRL_SEL("FALSE")
,.IDELAY_VALUE(DQ_TAP_DELAY_INIT)
,.HIGH_PERFORMANCE_MODE ("TRUE")
,.REFCLK_FREQUENCY(REFCLK_FREQUENCY)
,.PIPE_SEL("FALSE")
,.SIGNAL_PATTERN("DATA")
)
u_dq_delay0
(
.C(clk_i)
,.REGRST(1'b0)
,.CE(dq_delay_inc_q[0])
,.INC(1'b1) // Increment/decrement number of tap delays.
,.DATAIN(1'b0)
,.IDATAIN(dq_in_w[0]) // Data input for IDELAY from the IBUF.
,.LDPIPEEN(1'b0)
,.CINVCTRL(1'b0)
,.DATAOUT(dq_delayed_w[0]) // Delayed data
,.LD(dq_delay_rst_q[0]) // Set the IDELAYE2 delay to IDELAY_VALUE
,.CNTVALUEIN(5'b0)
,.CNTVALUEOUT()
);
wire [3:0] rd_dq0_in_w;
wire [127:0] rd_dq_in_w;
ISERDESE2
#(
.SERDES_MODE("MASTER")
,.INTERFACE_TYPE("MEMORY")
,.DATA_WIDTH(8)
,.DATA_RATE("DDR")
,.NUM_CE(1)
,.IOBDELAY("IFD")
)
u_serdes_dq_in0
(
// DQS input strobe
.CLK(dqs_delayed_w[0])
,.CLKB(~dqs_delayed_w[0])
// Fast clock
,.OCLK(clk_ddr_i)
,.OCLKB(~clk_ddr_i)
// Slow clock
,.CLKDIV(clk_i)
,.RST(~rst_i)
,.BITSLIP(0)
,.CE1(1'b1)
// TODO:
,.DDLY(dq_delayed_w[0])
,.D(1'b0)
// Parallel output
// ,.Q4(rd_dq0_in_w[3])
// ,.Q3(rd_dq0_in_w[2])
// ,.Q2(rd_dq0_in_w[1])
// ,.Q1(rd_dq0_in_w[0])
,.Q8(rd_dq_in_w[0 ])
,.Q7(rd_dq_in_w[16 ])
,.Q6(rd_dq_in_w[32 ])
,.Q5(rd_dq_in_w[48 ])
,.Q4(rd_dq_in_w[64 ])
,.Q3(rd_dq_in_w[80 ])
,.Q2(rd_dq_in_w[96 ])
,.Q1(rd_dq_in_w[112])
// Unused
,.O()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.CE2(1'b0)
,.CLKDIVP(0)
,.DYNCLKDIVSEL(0)
,.DYNCLKSEL(0)
,.OFB(0)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
);
IDELAYE2
#(
.IDELAY_TYPE("VARIABLE")
,.DELAY_SRC("IDATAIN")
,.CINVCTRL_SEL("FALSE")
,.IDELAY_VALUE(DQ_TAP_DELAY_INIT)
,.HIGH_PERFORMANCE_MODE ("TRUE")
,.REFCLK_FREQUENCY(REFCLK_FREQUENCY)
,.PIPE_SEL("FALSE")
,.SIGNAL_PATTERN("DATA")
)
u_dq_delay1
(
.C(clk_i)
,.REGRST(1'b0)
,.CE(dq_delay_inc_q[0])
,.INC(1'b1) // Increment/decrement number of tap delays.
,.DATAIN(1'b0)
,.IDATAIN(dq_in_w[1]) // Data input for IDELAY from the IBUF.
,.LDPIPEEN(1'b0)
,.CINVCTRL(1'b0)
,.DATAOUT(dq_delayed_w[1]) // Delayed data
,.LD(dq_delay_rst_q[0]) // Set the IDELAYE2 delay to IDELAY_VALUE
,.CNTVALUEIN(5'b0)
,.CNTVALUEOUT()
);
wire [3:0] rd_dq1_in_w;
ISERDESE2
#(
.SERDES_MODE("MASTER")
,.INTERFACE_TYPE("MEMORY")
,.DATA_WIDTH(8)
,.DATA_RATE("DDR")
,.NUM_CE(1)
,.IOBDELAY("IFD")
)
u_serdes_dq_in1
(
// DQS input strobe
.CLK(dqs_delayed_w[0])
,.CLKB(~dqs_delayed_w[0])
// Fast clock
,.OCLK(clk_ddr_i)
,.OCLKB(~clk_ddr_i)
// Slow clock
,.CLKDIV(clk_i)
,.RST(~rst_i)
,.BITSLIP(0)
,.CE1(1'b1)
// TODO:
,.DDLY(dq_delayed_w[1])
,.D(1'b0)
// Parallel output
// ,.Q4(rd_dq1_in_w[3])
// ,.Q3(rd_dq1_in_w[2])
// ,.Q2(rd_dq1_in_w[1])
// ,.Q1(rd_dq1_in_w[0])
,.Q8(rd_dq_in_w[1+0 ])
,.Q7(rd_dq_in_w[1+16 ])
,.Q6(rd_dq_in_w[1+32 ])
,.Q5(rd_dq_in_w[1+48 ])
,.Q4(rd_dq_in_w[1+64 ])
,.Q3(rd_dq_in_w[1+80 ])
,.Q2(rd_dq_in_w[1+96 ])
,.Q1(rd_dq_in_w[1+112])
// Unused
,.O()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.CE2(1'b0)
,.CLKDIVP(0)
,.DYNCLKDIVSEL(0)
,.DYNCLKSEL(0)
,.OFB(0)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
);
IDELAYE2
#(
.IDELAY_TYPE("VARIABLE")
,.DELAY_SRC("IDATAIN")
,.CINVCTRL_SEL("FALSE")
,.IDELAY_VALUE(DQ_TAP_DELAY_INIT)
,.HIGH_PERFORMANCE_MODE ("TRUE")
,.REFCLK_FREQUENCY(REFCLK_FREQUENCY)
,.PIPE_SEL("FALSE")
,.SIGNAL_PATTERN("DATA")
)
u_dq_delay2
(
.C(clk_i)
,.REGRST(1'b0)
,.CE(dq_delay_inc_q[0])
,.INC(1'b1) // Increment/decrement number of tap delays.
,.DATAIN(1'b0)
,.IDATAIN(dq_in_w[2]) // Data input for IDELAY from the IBUF.
,.LDPIPEEN(1'b0)
,.CINVCTRL(1'b0)
,.DATAOUT(dq_delayed_w[2]) // Delayed data
,.LD(dq_delay_rst_q[0]) // Set the IDELAYE2 delay to IDELAY_VALUE
,.CNTVALUEIN(5'b0)
,.CNTVALUEOUT()
);
wire [3:0] rd_dq2_in_w;
ISERDESE2
#(
.SERDES_MODE("MASTER")
,.INTERFACE_TYPE("MEMORY")
,.DATA_WIDTH(8)
,.DATA_RATE("DDR")
,.NUM_CE(1)
,.IOBDELAY("IFD")
)
u_serdes_dq_in2
(
// DQS input strobe
.CLK(dqs_delayed_w[0])
,.CLKB(~dqs_delayed_w[0])
// Fast clock
,.OCLK(clk_ddr_i)
,.OCLKB(~clk_ddr_i)
// Slow clock
,.CLKDIV(clk_i)
,.RST(~rst_i)
,.BITSLIP(0)
,.CE1(1'b1)
// TODO:
,.DDLY(dq_delayed_w[2])
,.D(1'b0)
// Parallel output
/*
,.Q4(rd_dq2_in_w[3])
,.Q3(rd_dq2_in_w[2])
,.Q2(rd_dq2_in_w[1])
,.Q1(rd_dq2_in_w[0])*/
,.Q8(rd_dq_in_w[2+0 ])
,.Q7(rd_dq_in_w[2+16 ])
,.Q6(rd_dq_in_w[2+32 ])
,.Q5(rd_dq_in_w[2+48 ])
,.Q4(rd_dq_in_w[2+64 ])
,.Q3(rd_dq_in_w[2+80 ])
,.Q2(rd_dq_in_w[2+96 ])
,.Q1(rd_dq_in_w[2+112])
// Unused
,.O()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.CE2(1'b0)
,.CLKDIVP(0)
,.DYNCLKDIVSEL(0)
,.DYNCLKSEL(0)
,.OFB(0)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
);
IDELAYE2
#(
.IDELAY_TYPE("VARIABLE")
,.DELAY_SRC("IDATAIN")
,.CINVCTRL_SEL("FALSE")
,.IDELAY_VALUE(DQ_TAP_DELAY_INIT)
,.HIGH_PERFORMANCE_MODE ("TRUE")
,.REFCLK_FREQUENCY(REFCLK_FREQUENCY)
,.PIPE_SEL("FALSE")
,.SIGNAL_PATTERN("DATA")
)
u_dq_delay3
(
.C(clk_i)
,.REGRST(1'b0)
,.CE(dq_delay_inc_q[0])
,.INC(1'b1) // Increment/decrement number of tap delays.
,.DATAIN(1'b0)
,.IDATAIN(dq_in_w[3]) // Data input for IDELAY from the IBUF.
,.LDPIPEEN(1'b0)
,.CINVCTRL(1'b0)
,.DATAOUT(dq_delayed_w[3]) // Delayed data
,.LD(dq_delay_rst_q[0]) // Set the IDELAYE2 delay to IDELAY_VALUE
,.CNTVALUEIN(5'b0)
,.CNTVALUEOUT()
);
wire [3:0] rd_dq3_in_w;
ISERDESE2
#(
.SERDES_MODE("MASTER")
,.INTERFACE_TYPE("MEMORY")
,.DATA_WIDTH(8)
,.DATA_RATE("DDR")
,.NUM_CE(1)
,.IOBDELAY("IFD")
)
u_serdes_dq_in3
(
// DQS input strobe
.CLK(dqs_delayed_w[0])
,.CLKB(~dqs_delayed_w[0])
// Fast clock
,.OCLK(clk_ddr_i)
,.OCLKB(~clk_ddr_i)
// Slow clock
,.CLKDIV(clk_i)
,.RST(~rst_i)
,.BITSLIP(0)
,.CE1(1'b1)
// TODO:
,.DDLY(dq_delayed_w[3])
,.D(1'b0)
// Parallel output
/*
,.Q4(rd_dq3_in_w[3])
,.Q3(rd_dq3_in_w[2])
,.Q2(rd_dq3_in_w[1])
,.Q1(rd_dq3_in_w[0])*/
,.Q8(rd_dq_in_w[3+0 ])
,.Q7(rd_dq_in_w[3+16 ])
,.Q6(rd_dq_in_w[3+32 ])
,.Q5(rd_dq_in_w[3+48 ])
,.Q4(rd_dq_in_w[3+64 ])
,.Q3(rd_dq_in_w[3+80 ])
,.Q2(rd_dq_in_w[3+96 ])
,.Q1(rd_dq_in_w[3+112])
// Unused
,.O()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.CE2(1'b0)
,.CLKDIVP(0)
,.DYNCLKDIVSEL(0)
,.DYNCLKSEL(0)
,.OFB(0)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
);
IDELAYE2
#(
.IDELAY_TYPE("VARIABLE")
,.DELAY_SRC("IDATAIN")
,.CINVCTRL_SEL("FALSE")
,.IDELAY_VALUE(DQ_TAP_DELAY_INIT)
,.HIGH_PERFORMANCE_MODE ("TRUE")
,.REFCLK_FREQUENCY(REFCLK_FREQUENCY)
,.PIPE_SEL("FALSE")
,.SIGNAL_PATTERN("DATA")
)
u_dq_delay4
(
.C(clk_i)
,.REGRST(1'b0)
,.CE(dq_delay_inc_q[0])
,.INC(1'b1) // Increment/decrement number of tap delays.
,.DATAIN(1'b0)
,.IDATAIN(dq_in_w[4]) // Data input for IDELAY from the IBUF.
,.LDPIPEEN(1'b0)
,.CINVCTRL(1'b0)
,.DATAOUT(dq_delayed_w[4]) // Delayed data
,.LD(dq_delay_rst_q[0]) // Set the IDELAYE2 delay to IDELAY_VALUE
,.CNTVALUEIN(5'b0)
,.CNTVALUEOUT()
);
wire [3:0] rd_dq4_in_w;
ISERDESE2
#(
.SERDES_MODE("MASTER")
,.INTERFACE_TYPE("MEMORY")
,.DATA_WIDTH(8)
,.DATA_RATE("DDR")
,.NUM_CE(1)
,.IOBDELAY("IFD")
)
u_serdes_dq_in4
(
// DQS input strobe
.CLK(dqs_delayed_w[0])
,.CLKB(~dqs_delayed_w[0])
// Fast clock
,.OCLK(clk_ddr_i)
,.OCLKB(~clk_ddr_i)
// Slow clock
,.CLKDIV(clk_i)
,.RST(~rst_i)
,.BITSLIP(0)
,.CE1(1'b1)
// TODO:
,.DDLY(dq_delayed_w[4])
,.D(1'b0)
// Parallel output
/*
,.Q4(rd_dq4_in_w[3])
,.Q3(rd_dq4_in_w[2])
,.Q2(rd_dq4_in_w[1])
,.Q1(rd_dq4_in_w[0])*/
,.Q8(rd_dq_in_w[4+0 ])
,.Q7(rd_dq_in_w[4+16 ])
,.Q6(rd_dq_in_w[4+32 ])
,.Q5(rd_dq_in_w[4+48 ])
,.Q4(rd_dq_in_w[4+64 ])
,.Q3(rd_dq_in_w[4+80 ])
,.Q2(rd_dq_in_w[4+96 ])
,.Q1(rd_dq_in_w[4+112])
// Unused
,.O()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.CE2(1'b0)
,.CLKDIVP(0)
,.DYNCLKDIVSEL(0)
,.DYNCLKSEL(0)
,.OFB(0)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
);
IDELAYE2
#(
.IDELAY_TYPE("VARIABLE")
,.DELAY_SRC("IDATAIN")
,.CINVCTRL_SEL("FALSE")
,.IDELAY_VALUE(DQ_TAP_DELAY_INIT)
,.HIGH_PERFORMANCE_MODE ("TRUE")
,.REFCLK_FREQUENCY(REFCLK_FREQUENCY)
,.PIPE_SEL("FALSE")
,.SIGNAL_PATTERN("DATA")
)
u_dq_delay5
(
.C(clk_i)
,.REGRST(1'b0)
,.CE(dq_delay_inc_q[0])
,.INC(1'b1) // Increment/decrement number of tap delays.
,.DATAIN(1'b0)
,.IDATAIN(dq_in_w[5]) // Data input for IDELAY from the IBUF.
,.LDPIPEEN(1'b0)
,.CINVCTRL(1'b0)
,.DATAOUT(dq_delayed_w[5]) // Delayed data
,.LD(dq_delay_rst_q[0]) // Set the IDELAYE2 delay to IDELAY_VALUE
,.CNTVALUEIN(5'b0)
,.CNTVALUEOUT()
);
wire [3:0] rd_dq5_in_w;
ISERDESE2
#(
.SERDES_MODE("MASTER")
,.INTERFACE_TYPE("MEMORY")
,.DATA_WIDTH(8)
,.DATA_RATE("DDR")
,.NUM_CE(1)
,.IOBDELAY("IFD")
)
u_serdes_dq_in5
(
// DQS input strobe
.CLK(dqs_delayed_w[0])
,.CLKB(~dqs_delayed_w[0])
// Fast clock
,.OCLK(clk_ddr_i)
,.OCLKB(~clk_ddr_i)
// Slow clock
,.CLKDIV(clk_i)
,.RST(~rst_i)
,.BITSLIP(0)
,.CE1(1'b1)
// TODO:
,.DDLY(dq_delayed_w[5])
,.D(1'b0)
// Parallel output
/*
,.Q4(rd_dq5_in_w[3])
,.Q3(rd_dq5_in_w[2])
,.Q2(rd_dq5_in_w[1])
,.Q1(rd_dq5_in_w[0])*/
,.Q8(rd_dq_in_w[5+0 ])
,.Q7(rd_dq_in_w[5+16 ])
,.Q6(rd_dq_in_w[5+32 ])
,.Q5(rd_dq_in_w[5+48 ])
,.Q4(rd_dq_in_w[5+64 ])
,.Q3(rd_dq_in_w[5+80 ])
,.Q2(rd_dq_in_w[5+96 ])
,.Q1(rd_dq_in_w[5+112])
// Unused
,.O()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.CE2(1'b0)
,.CLKDIVP(0)
,.DYNCLKDIVSEL(0)
,.DYNCLKSEL(0)
,.OFB(0)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
);
IDELAYE2
#(
.IDELAY_TYPE("VARIABLE")
,.DELAY_SRC("IDATAIN")
,.CINVCTRL_SEL("FALSE")
,.IDELAY_VALUE(DQ_TAP_DELAY_INIT)
,.HIGH_PERFORMANCE_MODE ("TRUE")
,.REFCLK_FREQUENCY(REFCLK_FREQUENCY)
,.PIPE_SEL("FALSE")
,.SIGNAL_PATTERN("DATA")
)
u_dq_delay6
(
.C(clk_i)
,.REGRST(1'b0)
,.CE(dq_delay_inc_q[0])
,.INC(1'b1) // Increment/decrement number of tap delays.
,.DATAIN(1'b0)
,.IDATAIN(dq_in_w[6]) // Data input for IDELAY from the IBUF.
,.LDPIPEEN(1'b0)
,.CINVCTRL(1'b0)
,.DATAOUT(dq_delayed_w[6]) // Delayed data
,.LD(dq_delay_rst_q[0]) // Set the IDELAYE2 delay to IDELAY_VALUE
,.CNTVALUEIN(5'b0)
,.CNTVALUEOUT()
);
wire [3:0] rd_dq6_in_w;
ISERDESE2
#(
.SERDES_MODE("MASTER")
,.INTERFACE_TYPE("MEMORY")
,.DATA_WIDTH(8)
,.DATA_RATE("DDR")
,.NUM_CE(1)
,.IOBDELAY("IFD")
)
u_serdes_dq_in6
(
// DQS input strobe
.CLK(dqs_delayed_w[0])
,.CLKB(~dqs_delayed_w[0])
// Fast clock
,.OCLK(clk_ddr_i)
,.OCLKB(~clk_ddr_i)
// Slow clock
,.CLKDIV(clk_i)
,.RST(~rst_i)
,.BITSLIP(0)
,.CE1(1'b1)
// TODO:
,.DDLY(dq_delayed_w[6])
,.D(1'b0)
// Parallel output
/*
,.Q4(rd_dq6_in_w[3])
,.Q3(rd_dq6_in_w[2])
,.Q2(rd_dq6_in_w[1])
,.Q1(rd_dq6_in_w[0])*/
,.Q8(rd_dq_in_w[6+0 ])
,.Q7(rd_dq_in_w[6+16 ])
,.Q6(rd_dq_in_w[6+32 ])
,.Q5(rd_dq_in_w[6+48 ])
,.Q4(rd_dq_in_w[6+64 ])
,.Q3(rd_dq_in_w[6+80 ])
,.Q2(rd_dq_in_w[6+96 ])
,.Q1(rd_dq_in_w[6+112])
// Unused
,.O()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.CE2(1'b0)
,.CLKDIVP(0)
,.DYNCLKDIVSEL(0)
,.DYNCLKSEL(0)
,.OFB(0)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
);
IDELAYE2
#(
.IDELAY_TYPE("VARIABLE")
,.DELAY_SRC("IDATAIN")
,.CINVCTRL_SEL("FALSE")
,.IDELAY_VALUE(DQ_TAP_DELAY_INIT)
,.HIGH_PERFORMANCE_MODE ("TRUE")
,.REFCLK_FREQUENCY(REFCLK_FREQUENCY)
,.PIPE_SEL("FALSE")
,.SIGNAL_PATTERN("DATA")
)
u_dq_delay7
(
.C(clk_i)
,.REGRST(1'b0)
,.CE(dq_delay_inc_q[0])
,.INC(1'b1) // Increment/decrement number of tap delays.
,.DATAIN(1'b0)
,.IDATAIN(dq_in_w[7]) // Data input for IDELAY from the IBUF.
,.LDPIPEEN(1'b0)
,.CINVCTRL(1'b0)
,.DATAOUT(dq_delayed_w[7]) // Delayed data
,.LD(dq_delay_rst_q[0]) // Set the IDELAYE2 delay to IDELAY_VALUE
,.CNTVALUEIN(5'b0)
,.CNTVALUEOUT()
);
wire [3:0] rd_dq7_in_w;
ISERDESE2
#(
.SERDES_MODE("MASTER")
,.INTERFACE_TYPE("MEMORY")
,.DATA_WIDTH(8)
,.DATA_RATE("DDR")
,.NUM_CE(1)
,.IOBDELAY("IFD")
)
u_serdes_dq_in7
(
// DQS input strobe
.CLK(dqs_delayed_w[0])
,.CLKB(~dqs_delayed_w[0])
// Fast clock
,.OCLK(clk_ddr_i)
,.OCLKB(~clk_ddr_i)
// Slow clock
,.CLKDIV(clk_i)
,.RST(~rst_i)
,.BITSLIP(0)
,.CE1(1'b1)
// TODO:
,.DDLY(dq_delayed_w[7])
,.D(1'b0)
// Parallel output
/*
,.Q4(rd_dq7_in_w[3])
,.Q3(rd_dq7_in_w[2])
,.Q2(rd_dq7_in_w[1])
,.Q1(rd_dq7_in_w[0])*/
,.Q8(rd_dq_in_w[7+0 ])
,.Q7(rd_dq_in_w[7+16 ])
,.Q6(rd_dq_in_w[7+32 ])
,.Q5(rd_dq_in_w[7+48 ])
,.Q4(rd_dq_in_w[7+64 ])
,.Q3(rd_dq_in_w[7+80 ])
,.Q2(rd_dq_in_w[7+96 ])
,.Q1(rd_dq_in_w[7+112])
// Unused
,.O()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.CE2(1'b0)
,.CLKDIVP(0)
,.DYNCLKDIVSEL(0)
,.DYNCLKSEL(0)
,.OFB(0)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
);
IDELAYE2
#(
.IDELAY_TYPE("VARIABLE")
,.DELAY_SRC("IDATAIN")
,.CINVCTRL_SEL("FALSE")
,.IDELAY_VALUE(DQ_TAP_DELAY_INIT)
,.HIGH_PERFORMANCE_MODE ("TRUE")
,.REFCLK_FREQUENCY(REFCLK_FREQUENCY)
,.PIPE_SEL("FALSE")
,.SIGNAL_PATTERN("DATA")
)
u_dq_delay8
(
.C(clk_i)
,.REGRST(1'b0)
,.CE(dq_delay_inc_q[1])
,.INC(1'b1) // Increment/decrement number of tap delays.
,.DATAIN(1'b0)
,.IDATAIN(dq_in_w[8]) // Data input for IDELAY from the IBUF.
,.LDPIPEEN(1'b0)
,.CINVCTRL(1'b0)
,.DATAOUT(dq_delayed_w[8]) // Delayed data
,.LD(dq_delay_rst_q[1]) // Set the IDELAYE2 delay to IDELAY_VALUE
,.CNTVALUEIN(5'b0)
,.CNTVALUEOUT()
);
wire [3:0] rd_dq8_in_w;
ISERDESE2
#(
.SERDES_MODE("MASTER")
,.INTERFACE_TYPE("MEMORY")
,.DATA_WIDTH(8)
,.DATA_RATE("DDR")
,.NUM_CE(1)
,.IOBDELAY("IFD")
)
u_serdes_dq_in8
(
// DQS input strobe
.CLK(dqs_delayed_w[1])
,.CLKB(~dqs_delayed_w[1])
// Fast clock
,.OCLK(clk_ddr_i)
,.OCLKB(~clk_ddr_i)
// Slow clock
,.CLKDIV(clk_i)
,.RST(~rst_i)
,.BITSLIP(0)
,.CE1(1'b1)
// TODO:
,.DDLY(dq_delayed_w[8])
,.D(1'b0)
// Parallel output
/*
,.Q4(rd_dq8_in_w[3])
,.Q3(rd_dq8_in_w[2])
,.Q2(rd_dq8_in_w[1])
,.Q1(rd_dq8_in_w[0])*/
,.Q8(rd_dq_in_w[8+0 ])
,.Q7(rd_dq_in_w[8+16 ])
,.Q6(rd_dq_in_w[8+32 ])
,.Q5(rd_dq_in_w[8+48 ])
,.Q4(rd_dq_in_w[8+64 ])
,.Q3(rd_dq_in_w[8+80 ])
,.Q2(rd_dq_in_w[8+96 ])
,.Q1(rd_dq_in_w[8+112])
// Unused
,.O()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.CE2(1'b0)
,.CLKDIVP(0)
,.DYNCLKDIVSEL(0)
,.DYNCLKSEL(0)
,.OFB(0)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
);
IDELAYE2
#(
.IDELAY_TYPE("VARIABLE")
,.DELAY_SRC("IDATAIN")
,.CINVCTRL_SEL("FALSE")
,.IDELAY_VALUE(DQ_TAP_DELAY_INIT)
,.HIGH_PERFORMANCE_MODE ("TRUE")
,.REFCLK_FREQUENCY(REFCLK_FREQUENCY)
,.PIPE_SEL("FALSE")
,.SIGNAL_PATTERN("DATA")
)
u_dq_delay9
(
.C(clk_i)
,.REGRST(1'b0)
,.CE(dq_delay_inc_q[1])
,.INC(1'b1) // Increment/decrement number of tap delays.
,.DATAIN(1'b0)
,.IDATAIN(dq_in_w[9]) // Data input for IDELAY from the IBUF.
,.LDPIPEEN(1'b0)
,.CINVCTRL(1'b0)
,.DATAOUT(dq_delayed_w[9]) // Delayed data
,.LD(dq_delay_rst_q[1]) // Set the IDELAYE2 delay to IDELAY_VALUE
,.CNTVALUEIN(5'b0)
,.CNTVALUEOUT()
);
wire [3:0] rd_dq9_in_w;
ISERDESE2
#(
.SERDES_MODE("MASTER")
,.INTERFACE_TYPE("MEMORY")
,.DATA_WIDTH(8)
,.DATA_RATE("DDR")
,.NUM_CE(1)
,.IOBDELAY("IFD")
)
u_serdes_dq_in9
(
// DQS input strobe
.CLK(dqs_delayed_w[1])
,.CLKB(~dqs_delayed_w[1])
// Fast clock
,.OCLK(clk_ddr_i)
,.OCLKB(~clk_ddr_i)
// Slow clock
,.CLKDIV(clk_i)
,.RST(~rst_i)
,.BITSLIP(0)
,.CE1(1'b1)
// TODO:
,.DDLY(dq_delayed_w[9])
,.D(1'b0)
// Parallel output
/*
,.Q4(rd_dq9_in_w[3])
,.Q3(rd_dq9_in_w[2])
,.Q2(rd_dq9_in_w[1])
,.Q1(rd_dq9_in_w[0])*/
,.Q8(rd_dq_in_w[9+0 ])
,.Q7(rd_dq_in_w[9+16 ])
,.Q6(rd_dq_in_w[9+32 ])
,.Q5(rd_dq_in_w[9+48 ])
,.Q4(rd_dq_in_w[9+64 ])
,.Q3(rd_dq_in_w[9+80 ])
,.Q2(rd_dq_in_w[9+96 ])
,.Q1(rd_dq_in_w[9+112])
// Unused
,.O()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.CE2(1'b0)
,.CLKDIVP(0)
,.DYNCLKDIVSEL(0)
,.DYNCLKSEL(0)
,.OFB(0)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
);
IDELAYE2
#(
.IDELAY_TYPE("VARIABLE")
,.DELAY_SRC("IDATAIN")
,.CINVCTRL_SEL("FALSE")
,.IDELAY_VALUE(DQ_TAP_DELAY_INIT)
,.HIGH_PERFORMANCE_MODE ("TRUE")
,.REFCLK_FREQUENCY(REFCLK_FREQUENCY)
,.PIPE_SEL("FALSE")
,.SIGNAL_PATTERN("DATA")
)
u_dq_delay10
(
.C(clk_i)
,.REGRST(1'b0)
,.CE(dq_delay_inc_q[1])
,.INC(1'b1) // Increment/decrement number of tap delays.
,.DATAIN(1'b0)
,.IDATAIN(dq_in_w[10]) // Data input for IDELAY from the IBUF.
,.LDPIPEEN(1'b0)
,.CINVCTRL(1'b0)
,.DATAOUT(dq_delayed_w[10]) // Delayed data
,.LD(dq_delay_rst_q[1]) // Set the IDELAYE2 delay to IDELAY_VALUE
,.CNTVALUEIN(5'b0)
,.CNTVALUEOUT()
);
wire [3:0] rd_dq10_in_w;
ISERDESE2
#(
.SERDES_MODE("MASTER")
,.INTERFACE_TYPE("MEMORY")
,.DATA_WIDTH(8)
,.DATA_RATE("DDR")
,.NUM_CE(1)
,.IOBDELAY("IFD")
)
u_serdes_dq_in10
(
// DQS input strobe
.CLK(dqs_delayed_w[1])
,.CLKB(~dqs_delayed_w[1])
// Fast clock
,.OCLK(clk_ddr_i)
,.OCLKB(~clk_ddr_i)
// Slow clock
,.CLKDIV(clk_i)
,.RST(~rst_i)
,.BITSLIP(0)
,.CE1(1'b1)
// TODO:
,.DDLY(dq_delayed_w[10])
,.D(1'b0)
// Parallel output
/*
,.Q4(rd_dq10_in_w[3])
,.Q3(rd_dq10_in_w[2])
,.Q2(rd_dq10_in_w[1])
,.Q1(rd_dq10_in_w[0])*/
,.Q8(rd_dq_in_w[10+0 ])
,.Q7(rd_dq_in_w[10+16 ])
,.Q6(rd_dq_in_w[10+32 ])
,.Q5(rd_dq_in_w[10+48 ])
,.Q4(rd_dq_in_w[10+64 ])
,.Q3(rd_dq_in_w[10+80 ])
,.Q2(rd_dq_in_w[10+96 ])
,.Q1(rd_dq_in_w[10+112])
// Unused
,.O()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.CE2(1'b0)
,.CLKDIVP(0)
,.DYNCLKDIVSEL(0)
,.DYNCLKSEL(0)
,.OFB(0)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
);
IDELAYE2
#(
.IDELAY_TYPE("VARIABLE")
,.DELAY_SRC("IDATAIN")
,.CINVCTRL_SEL("FALSE")
,.IDELAY_VALUE(DQ_TAP_DELAY_INIT)
,.HIGH_PERFORMANCE_MODE ("TRUE")
,.REFCLK_FREQUENCY(REFCLK_FREQUENCY)
,.PIPE_SEL("FALSE")
,.SIGNAL_PATTERN("DATA")
)
u_dq_delay11
(
.C(clk_i)
,.REGRST(1'b0)
,.CE(dq_delay_inc_q[1])
,.INC(1'b1) // Increment/decrement number of tap delays.
,.DATAIN(1'b0)
,.IDATAIN(dq_in_w[11]) // Data input for IDELAY from the IBUF.
,.LDPIPEEN(1'b0)
,.CINVCTRL(1'b0)
,.DATAOUT(dq_delayed_w[11]) // Delayed data
,.LD(dq_delay_rst_q[1]) // Set the IDELAYE2 delay to IDELAY_VALUE
,.CNTVALUEIN(5'b0)
,.CNTVALUEOUT()
);
wire [3:0] rd_dq11_in_w;
ISERDESE2
#(
.SERDES_MODE("MASTER")
,.INTERFACE_TYPE("MEMORY")
,.DATA_WIDTH(8)
,.DATA_RATE("DDR")
,.NUM_CE(1)
,.IOBDELAY("IFD")
)
u_serdes_dq_in11
(
// DQS input strobe
.CLK(dqs_delayed_w[1])
,.CLKB(~dqs_delayed_w[1])
// Fast clock
,.OCLK(clk_ddr_i)
,.OCLKB(~clk_ddr_i)
// Slow clock
,.CLKDIV(clk_i)
,.RST(~rst_i)
,.BITSLIP(0)
,.CE1(1'b1)
// TODO:
,.DDLY(dq_delayed_w[11])
,.D(1'b0)
// Parallel output
/* ,.Q4(rd_dq11_in_w[3])
,.Q3(rd_dq11_in_w[2])
,.Q2(rd_dq11_in_w[1])
,.Q1(rd_dq11_in_w[0]) */
,.Q8(rd_dq_in_w[11+0 ])
,.Q7(rd_dq_in_w[11+16 ])
,.Q6(rd_dq_in_w[11+32 ])
,.Q5(rd_dq_in_w[11+48 ])
,.Q4(rd_dq_in_w[11+64 ])
,.Q3(rd_dq_in_w[11+80 ])
,.Q2(rd_dq_in_w[11+96 ])
,.Q1(rd_dq_in_w[11+112])
// Unused
,.O()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.CE2(1'b0)
,.CLKDIVP(0)
,.DYNCLKDIVSEL(0)
,.DYNCLKSEL(0)
,.OFB(0)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
);
IDELAYE2
#(
.IDELAY_TYPE("VARIABLE")
,.DELAY_SRC("IDATAIN")
,.CINVCTRL_SEL("FALSE")
,.IDELAY_VALUE(DQ_TAP_DELAY_INIT)
,.HIGH_PERFORMANCE_MODE ("TRUE")
,.REFCLK_FREQUENCY(REFCLK_FREQUENCY)
,.PIPE_SEL("FALSE")
,.SIGNAL_PATTERN("DATA")
)
u_dq_delay12
(
.C(clk_i)
,.REGRST(1'b0)
,.CE(dq_delay_inc_q[1])
,.INC(1'b1) // Increment/decrement number of tap delays.
,.DATAIN(1'b0)
,.IDATAIN(dq_in_w[12]) // Data input for IDELAY from the IBUF.
,.LDPIPEEN(1'b0)
,.CINVCTRL(1'b0)
,.DATAOUT(dq_delayed_w[12]) // Delayed data
,.LD(dq_delay_rst_q[1]) // Set the IDELAYE2 delay to IDELAY_VALUE
,.CNTVALUEIN(5'b0)
,.CNTVALUEOUT()
);
wire [3:0] rd_dq12_in_w;
ISERDESE2
#(
.SERDES_MODE("MASTER")
,.INTERFACE_TYPE("MEMORY")
,.DATA_WIDTH(8)
,.DATA_RATE("DDR")
,.NUM_CE(1)
,.IOBDELAY("IFD")
)
u_serdes_dq_in12
(
// DQS input strobe
.CLK(dqs_delayed_w[1])
,.CLKB(~dqs_delayed_w[1])
// Fast clock
,.OCLK(clk_ddr_i)
,.OCLKB(~clk_ddr_i)
// Slow clock
,.CLKDIV(clk_i)
,.RST(~rst_i)
,.BITSLIP(0)
,.CE1(1'b1)
// TODO:
,.DDLY(dq_delayed_w[12])
,.D(1'b0)
// Parallel output
/* ,.Q4(rd_dq12_in_w[3])
,.Q3(rd_dq12_in_w[2])
,.Q2(rd_dq12_in_w[1])
,.Q1(rd_dq12_in_w[0]) */
,.Q8(rd_dq_in_w[12+0 ])
,.Q7(rd_dq_in_w[12+16 ])
,.Q6(rd_dq_in_w[12+32 ])
,.Q5(rd_dq_in_w[12+48 ])
,.Q4(rd_dq_in_w[12+64 ])
,.Q3(rd_dq_in_w[12+80 ])
,.Q2(rd_dq_in_w[12+96 ])
,.Q1(rd_dq_in_w[12+112])
// Unused
,.O()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.CE2(1'b0)
,.CLKDIVP(0)
,.DYNCLKDIVSEL(0)
,.DYNCLKSEL(0)
,.OFB(0)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
);
IDELAYE2
#(
.IDELAY_TYPE("VARIABLE")
,.DELAY_SRC("IDATAIN")
,.CINVCTRL_SEL("FALSE")
,.IDELAY_VALUE(DQ_TAP_DELAY_INIT)
,.HIGH_PERFORMANCE_MODE ("TRUE")
,.REFCLK_FREQUENCY(REFCLK_FREQUENCY)
,.PIPE_SEL("FALSE")
,.SIGNAL_PATTERN("DATA")
)
u_dq_delay13
(
.C(clk_i)
,.REGRST(1'b0)
,.CE(dq_delay_inc_q[1])
,.INC(1'b1) // Increment/decrement number of tap delays.
,.DATAIN(1'b0)
,.IDATAIN(dq_in_w[13]) // Data input for IDELAY from the IBUF.
,.LDPIPEEN(1'b0)
,.CINVCTRL(1'b0)
,.DATAOUT(dq_delayed_w[13]) // Delayed data
,.LD(dq_delay_rst_q[1]) // Set the IDELAYE2 delay to IDELAY_VALUE
,.CNTVALUEIN(5'b0)
,.CNTVALUEOUT()
);
wire [3:0] rd_dq13_in_w;
ISERDESE2
#(
.SERDES_MODE("MASTER")
,.INTERFACE_TYPE("MEMORY")
,.DATA_WIDTH(8)
,.DATA_RATE("DDR")
,.NUM_CE(1)
,.IOBDELAY("IFD")
)
u_serdes_dq_in13
(
// DQS input strobe
.CLK(dqs_delayed_w[1])
,.CLKB(~dqs_delayed_w[1])
// Fast clock
,.OCLK(clk_ddr_i)
,.OCLKB(~clk_ddr_i)
// Slow clock
,.CLKDIV(clk_i)
,.RST(~rst_i)
,.BITSLIP(0)
,.CE1(1'b1)
// TODO:
,.DDLY(dq_delayed_w[13])
,.D(1'b0)
// Parallel output
/* ,.Q4(rd_dq13_in_w[3])
,.Q3(rd_dq13_in_w[2])
,.Q2(rd_dq13_in_w[1])
,.Q1(rd_dq13_in_w[0]) */
,.Q8(rd_dq_in_w[13+0 ])
,.Q7(rd_dq_in_w[13+16 ])
,.Q6(rd_dq_in_w[13+32 ])
,.Q5(rd_dq_in_w[13+48 ])
,.Q4(rd_dq_in_w[13+64 ])
,.Q3(rd_dq_in_w[13+80 ])
,.Q2(rd_dq_in_w[13+96 ])
,.Q1(rd_dq_in_w[13+112])
// Unused
,.O()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.CE2(1'b0)
,.CLKDIVP(0)
,.DYNCLKDIVSEL(0)
,.DYNCLKSEL(0)
,.OFB(0)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
);
IDELAYE2
#(
.IDELAY_TYPE("VARIABLE")
,.DELAY_SRC("IDATAIN")
,.CINVCTRL_SEL("FALSE")
,.IDELAY_VALUE(DQ_TAP_DELAY_INIT)
,.HIGH_PERFORMANCE_MODE ("TRUE")
,.REFCLK_FREQUENCY(REFCLK_FREQUENCY)
,.PIPE_SEL("FALSE")
,.SIGNAL_PATTERN("DATA")
)
u_dq_delay14
(
.C(clk_i)
,.REGRST(1'b0)
,.CE(dq_delay_inc_q[1])
,.INC(1'b1) // Increment/decrement number of tap delays.
,.DATAIN(1'b0)
,.IDATAIN(dq_in_w[14]) // Data input for IDELAY from the IBUF.
,.LDPIPEEN(1'b0)
,.CINVCTRL(1'b0)
,.DATAOUT(dq_delayed_w[14]) // Delayed data
,.LD(dq_delay_rst_q[1]) // Set the IDELAYE2 delay to IDELAY_VALUE
,.CNTVALUEIN(5'b0)
,.CNTVALUEOUT()
);
wire [3:0] rd_dq14_in_w;
ISERDESE2
#(
.SERDES_MODE("MASTER")
,.INTERFACE_TYPE("MEMORY")
,.DATA_WIDTH(8)
,.DATA_RATE("DDR")
,.NUM_CE(1)
,.IOBDELAY("IFD")
)
u_serdes_dq_in14
(
// DQS input strobe
.CLK(dqs_delayed_w[1])
,.CLKB(~dqs_delayed_w[1])
// Fast clock
,.OCLK(clk_ddr_i)
,.OCLKB(~clk_ddr_i)
// Slow clock
,.CLKDIV(clk_i)
,.RST(~rst_i)
,.BITSLIP(0)
,.CE1(1'b1)
// TODO:
,.DDLY(dq_delayed_w[14])
,.D(1'b0)
// Parallel output
/* ,.Q4(rd_dq14_in_w[3])
,.Q3(rd_dq14_in_w[2])
,.Q2(rd_dq14_in_w[1])
,.Q1(rd_dq14_in_w[0]) */
,.Q8(rd_dq_in_w[14+0 ])
,.Q7(rd_dq_in_w[14+16 ])
,.Q6(rd_dq_in_w[14+32 ])
,.Q5(rd_dq_in_w[14+48 ])
,.Q4(rd_dq_in_w[14+64 ])
,.Q3(rd_dq_in_w[14+80 ])
,.Q2(rd_dq_in_w[14+96 ])
,.Q1(rd_dq_in_w[14+112])
// Unused
,.O()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.CE2(1'b0)
,.CLKDIVP(0)
,.DYNCLKDIVSEL(0)
,.DYNCLKSEL(0)
,.OFB(0)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
);
IDELAYE2
#(
.IDELAY_TYPE("VARIABLE")
,.DELAY_SRC("IDATAIN")
,.CINVCTRL_SEL("FALSE")
,.IDELAY_VALUE(DQ_TAP_DELAY_INIT)
,.HIGH_PERFORMANCE_MODE ("TRUE")
,.REFCLK_FREQUENCY(REFCLK_FREQUENCY)
,.PIPE_SEL("FALSE")
,.SIGNAL_PATTERN("DATA")
)
u_dq_delay15
(
.C(clk_i)
,.REGRST(1'b0)
,.CE(dq_delay_inc_q[1])
,.INC(1'b1) // Increment/decrement number of tap delays.
,.DATAIN(1'b0)
,.IDATAIN(dq_in_w[15]) // Data input for IDELAY from the IBUF.
,.LDPIPEEN(1'b0)
,.CINVCTRL(1'b0)
,.DATAOUT(dq_delayed_w[15]) // Delayed data
,.LD(dq_delay_rst_q[1]) // Set the IDELAYE2 delay to IDELAY_VALUE
,.CNTVALUEIN(5'b0)
,.CNTVALUEOUT()
);
wire [3:0] rd_dq15_in_w;
ISERDESE2
#(
.SERDES_MODE("MASTER")
,.INTERFACE_TYPE("MEMORY")
,.DATA_WIDTH(8)
,.DATA_RATE("DDR")
,.NUM_CE(1)
,.IOBDELAY("IFD")
)
u_serdes_dq_in15
(
// DQS input strobe
.CLK(dqs_delayed_w[1])
,.CLKB(~dqs_delayed_w[1])
// Fast clock
,.OCLK(clk_ddr_i)
,.OCLKB(~clk_ddr_i)
// Slow clock
,.CLKDIV(clk_i)
,.RST(~rst_i)
,.BITSLIP(0)
,.CE1(1'b1)
// TODO:
,.DDLY(dq_delayed_w[15])
,.D(1'b0)
// Parallel output
/* ,.Q4(rd_dq15_in_w[3])
,.Q3(rd_dq15_in_w[2])
,.Q2(rd_dq15_in_w[1])
,.Q1(rd_dq15_in_w[0]) */
,.Q8(rd_dq_in_w[15+0 ])
,.Q7(rd_dq_in_w[15+16 ])
,.Q6(rd_dq_in_w[15+32 ])
,.Q5(rd_dq_in_w[15+48 ])
,.Q4(rd_dq_in_w[15+64 ])
,.Q3(rd_dq_in_w[15+80 ])
,.Q2(rd_dq_in_w[15+96 ])
,.Q1(rd_dq_in_w[15+112])
// Unused
,.O()
,.SHIFTOUT1()
,.SHIFTOUT2()
,.CE2(1'b0)
,.CLKDIVP(0)
,.DYNCLKDIVSEL(0)
,.DYNCLKSEL(0)
,.OFB(0)
,.SHIFTIN1(0)
,.SHIFTIN2(0)
);
/*
wire [15:0] rd_data0_w;
wire [15:0] rd_data1_w;
wire [15:0] rd_data2_w;
wire [15:0] rd_data3_w;
assign rd_data0_w[0] = rd_dq0_in_w[0];
assign rd_data1_w[0] = rd_dq0_in_w[1];
assign rd_data2_w[0] = rd_dq0_in_w[2];
assign rd_data3_w[0] = rd_dq0_in_w[3];
assign rd_data0_w[1] = rd_dq1_in_w[0];
assign rd_data1_w[1] = rd_dq1_in_w[1];
assign rd_data2_w[1] = rd_dq1_in_w[2];
assign rd_data3_w[1] = rd_dq1_in_w[3];
assign rd_data0_w[2] = rd_dq2_in_w[0];
assign rd_data1_w[2] = rd_dq2_in_w[1];
assign rd_data2_w[2] = rd_dq2_in_w[2];
assign rd_data3_w[2] = rd_dq2_in_w[3];
assign rd_data0_w[3] = rd_dq3_in_w[0];
assign rd_data1_w[3] = rd_dq3_in_w[1];
assign rd_data2_w[3] = rd_dq3_in_w[2];
assign rd_data3_w[3] = rd_dq3_in_w[3];
assign rd_data0_w[4] = rd_dq4_in_w[0];
assign rd_data1_w[4] = rd_dq4_in_w[1];
assign rd_data2_w[4] = rd_dq4_in_w[2];
assign rd_data3_w[4] = rd_dq4_in_w[3];
assign rd_data0_w[5] = rd_dq5_in_w[0];
assign rd_data1_w[5] = rd_dq5_in_w[1];
assign rd_data2_w[5] = rd_dq5_in_w[2];
assign rd_data3_w[5] = rd_dq5_in_w[3];
assign rd_data0_w[6] = rd_dq6_in_w[0];
assign rd_data1_w[6] = rd_dq6_in_w[1];
assign rd_data2_w[6] = rd_dq6_in_w[2];
assign rd_data3_w[6] = rd_dq6_in_w[3];
assign rd_data0_w[7] = rd_dq7_in_w[0];
assign rd_data1_w[7] = rd_dq7_in_w[1];
assign rd_data2_w[7] = rd_dq7_in_w[2];
assign rd_data3_w[7] = rd_dq7_in_w[3];
assign rd_data0_w[8] = rd_dq8_in_w[0];
assign rd_data1_w[8] = rd_dq8_in_w[1];
assign rd_data2_w[8] = rd_dq8_in_w[2];
assign rd_data3_w[8] = rd_dq8_in_w[3];
assign rd_data0_w[9] = rd_dq9_in_w[0];
assign rd_data1_w[9] = rd_dq9_in_w[1];
assign rd_data2_w[9] = rd_dq9_in_w[2];
assign rd_data3_w[9] = rd_dq9_in_w[3];
assign rd_data0_w[10] = rd_dq10_in_w[0];
assign rd_data1_w[10] = rd_dq10_in_w[1];
assign rd_data2_w[10] = rd_dq10_in_w[2];
assign rd_data3_w[10] = rd_dq10_in_w[3];
assign rd_data0_w[11] = rd_dq11_in_w[0];
assign rd_data1_w[11] = rd_dq11_in_w[1];
assign rd_data2_w[11] = rd_dq11_in_w[2];
assign rd_data3_w[11] = rd_dq11_in_w[3];
assign rd_data0_w[12] = rd_dq12_in_w[0];
assign rd_data1_w[12] = rd_dq12_in_w[1];
assign rd_data2_w[12] = rd_dq12_in_w[2];
assign rd_data3_w[12] = rd_dq12_in_w[3];
assign rd_data0_w[13] = rd_dq13_in_w[0];
assign rd_data1_w[13] = rd_dq13_in_w[1];
assign rd_data2_w[13] = rd_dq13_in_w[2];
assign rd_data3_w[13] = rd_dq13_in_w[3];
assign rd_data0_w[14] = rd_dq14_in_w[0];
assign rd_data1_w[14] = rd_dq14_in_w[1];
assign rd_data2_w[14] = rd_dq14_in_w[2];
assign rd_data3_w[14] = rd_dq14_in_w[3];
assign rd_data0_w[15] = rd_dq15_in_w[0];
assign rd_data1_w[15] = rd_dq15_in_w[1];
assign rd_data2_w[15] = rd_dq15_in_w[2];
assign rd_data3_w[15] = rd_dq15_in_w[3];
*/
/*
reg [1:0] rd_capture_q;
always @ (posedge clk_i )
if (~rst_i)
rd_capture_q <= 32'b0;
else
begin
case (rd_sel_q)
4'd0: rd_capture_q <= {rd_data1_w, rd_data0_w};
4'd1: rd_capture_q <= {rd_data1_w, rd_data1_w};
4'd2: rd_capture_q <= {rd_data1_w, rd_data2_w};
4'd3: rd_capture_q <= {rd_data1_w, rd_data3_w};
4'd4: rd_capture_q <= {rd_data2_w, rd_data0_w};
4'd5: rd_capture_q <= {rd_data2_w, rd_data1_w};
4'd6: rd_capture_q <= {rd_data2_w, rd_data2_w};
4'd7: rd_capture_q <= {rd_data2_w, rd_data3_w};
4'd8: rd_capture_q <= {rd_data3_w, rd_data0_w};
4'd9: rd_capture_q <= {rd_data3_w, rd_data1_w};
4'd10: rd_capture_q <= {rd_data3_w, rd_data2_w};
4'd11: rd_capture_q <= {rd_data3_w, rd_data3_w};
4'd12: rd_capture_q <= {rd_data0_w, rd_data0_w};
4'd13: rd_capture_q <= {rd_data0_w, rd_data1_w};
4'd14: rd_capture_q <= {rd_data0_w, rd_data2_w};
4'd15: rd_capture_q <= {rd_data0_w, rd_data3_w};
endcase
end
*/
reg [127:0] rd_capture_q;
always @ (posedge clk_i )
if (~rst_i)
rd_capture_q <= 127'b0;
else
begin
rd_capture_q<=rd_dq_in_w;
end
assign dfi_rddata_o = rd_capture_q;
assign dfi_rddata_dnv_o = 2'b0;
//-----------------------------------------------------------------
// Read Valid
//-----------------------------------------------------------------
localparam RD_SHIFT_W = 8;
reg [RD_SHIFT_W-1:0] rd_en_q;
reg [RD_SHIFT_W-1:0] rd_en_r;
always @ *
begin
rd_en_r = {1'b0, rd_en_q[RD_SHIFT_W-1:1]};
rd_en_r[rd_lat_q] = dfi_rddata_en_i;
end
always @ (posedge clk_i )
if (~rst_i)
rd_en_q <= {(RD_SHIFT_W){1'b0}};
else
rd_en_q <= rd_en_r;
assign dfi_rddata_valid_o = rd_en_q[0];
endmodule
3464
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
