HDLbits day1

问题1

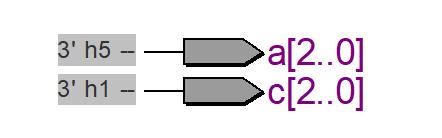

module aa(output [2:0] a,output [2:0] c);
//wire [2:0] a, c;   // Two vectors
assign a = 3'b101;  // a = 101
assign b = a;       // b =   1  implicitly-created wire
assign c = b;       // c = 001  <-- bug
endmodule

未定义b直接赋值并不会报错，只会报worning
Warning (10236): Verilog HDL Implicit Net warning at aa.v(4): created implicit net for “b”
Warning (10236): Verilog HDL Implicit Net warning at aa.v(4): created implicit net for “b”

但是Adding default_nettype none would make the bug more visible.然后就报错了。

问题2

assign out[7:0] = in[0:7]; does not work because Verilog does not allow vector bit ordering to be flipped.

问题3

记得位拼接运算，每一个原始数据需要用大括号，乘以倍数后还得再一个大括号。当然，最外层还得大括号。
assign out = {{24{in[7]}},in[7:0]};

问题4

always @（*） begin
case(sel)
2'b00:q=q1;
2'b01:q=q2;
default:q=q3;
endcase
end
