通过移动旋转使2个方块的面对齐

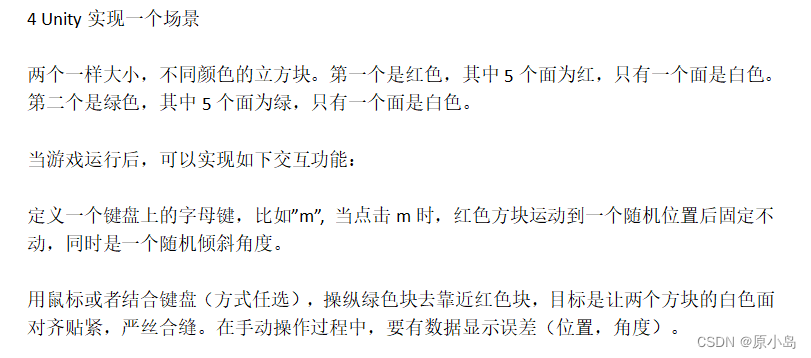

题目

思路

1. 一个方块多种颜色：可以通过建模贴不同颜色的材质，或者shader实现
2. 随机位置和角度：使用随机数，生成随机向量，赋给position和eulerAngles
3. 位置误差：两个面的中点的position的差值
4. 旋转误差：用自身各个轴和要对齐的平面的夹角表示。旋转顺序应该为将X轴转到要对齐的平面，再将Y轴转到要对其的平面，使得两个面在同一平面内；然后旋转Z轴，使两个面完全重合。

我的解答

1. 把方块作为Quad的子类，移动Quad吸附要对齐的面，得到面的位姿


2. 设定平移和旋转两种交互模式，勾选切换后，通过键盘操作平移和旋转，并且复用按钮减少操作复杂度

3. 强制设定了交互顺序，先平移再旋转

4. 绿方块按照自身轴旋转和平移，只需要将误差调到指定的数，即可对齐。

代码

1. 随机位置和角度

    public GameObject Cube;
    public float RandomRadius; //限制随机出现的范围，使红色方块一定出现在摄像机视野内

    void Start()
    {
        Cube.transform.position = RandomPosi(RandomRadius);
        Cube.transform.eulerAngles = RandomRot();
    }

    private Vector3 RandomPosi(float radius)//随机位置
    {
        Vector3 pos;
        float x= Random.Range(-radius, radius);
        float y= Random.Range(-radius, radius);
        float z= Random.Range(-radius, radius);
        return pos;
    }

    private Vector3 RandomRot()//随机角度
    {
        Vector3 rot;
        float x = Random.Range(0.0f, 360.0f);
        float y= Random.Range(0.0f, 360.0f);
        float z= Random.Range(0.0f, 360.0f);
        return rot;
    }

2. 平移、旋转、显示误差

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;

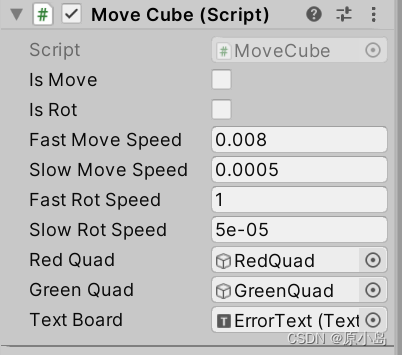

public class MoveCube : MonoBehaviour
{
    public bool IsMove = false ;//移动模式
    public bool IsRot = false ;//旋转模式
    //移动、旋转的速度
    private  float MoveXspeed;
    private float MoveYspeed;
    private float MoveZspeed;
    private float RotXspeed;
    private float RotYspeed;
    private float RotZspeed;
    //设置最快速度和最慢速度，接近对齐时使用慢速微调
    public float FastMoveSpeed;
    public float SlowMoveSpeed;
    public float FastRotSpeed;
    public float SlowRotSpeed;
    //显示误差
    public GameObject RedQuad;
    public GameObject GreenQuad;
    public Text TextBoard;


    void Update()
    {
        TextBoard.text = showError();
        if (IsMove) Move();
        if (IsRot) Rot();
    }

    //平移方法
    private void Move()
    {
        //Y轴,上下移动
        if (Input.GetKey(KeyCode.W)
            this.transform.Translate(Vector3.up * Time.fixedTime * MoveYspeed);

        if (Input.GetKey(KeyCode.S) )
            this.transform.Translate(-Vector3.up * Time.fixedTime * MoveYspeed);


        //X轴，左右移动
        if (Input.GetKey(KeyCode.A) )
            this.transform.Translate(Vector3.left * Time.fixedTime * MoveXspeed);

        if (Input.GetKey(KeyCode.D) )
            this.transform.Translate(-Vector3.left * Time.fixedTime * MoveXspeed);


        //Z轴，前后移动
        if (Input.GetKey(KeyCode.Q) )
            this.transform.Translate(Vector3.back * Time.fixedTime *MoveZspeed);

        if (Input.GetKey(KeyCode.E) )
            this.transform.Translate(-Vector3.back * Time.fixedTime * MoveZspeed);

    }

    //旋转方法
    private void Rot()
    {
        //绕Y轴
        if (Input.GetKey(KeyCode.W))
            this.transform.Rotate(Vector3.down * Time.fixedTime * RotYspeed);
        if (Input.GetKey(KeyCode.S))
            this.transform.Rotate(-Vector3.down * Time.fixedTime * RotYspeed);

        //绕X轴
        if (Input.GetKey(KeyCode.A))
            this.transform.Rotate(Vector3.left * Time.fixedTime * RotXspeed);
        if (Input.GetKey(KeyCode.D))
            this.transform.Rotate(-Vector3.left * Time.fixedTime * RotXspeed);

        //绕Z轴
        if (Input.GetKey(KeyCode.Q))
            this.transform.Rotate(Vector3.back * Time.fixedTime * RotZspeed);
        if (Input.GetKey(KeyCode.E))
            this.transform.Rotate(-Vector3.back * Time.fixedTime * RotZspeed);
    }


    //是否平移
    public void MoveGo()
    {
        IsMove = true;
        IsRot = false;
    }

    //是否旋转
    public void RotGo()
    {
        IsRot = true;
        IsMove = false;
    }

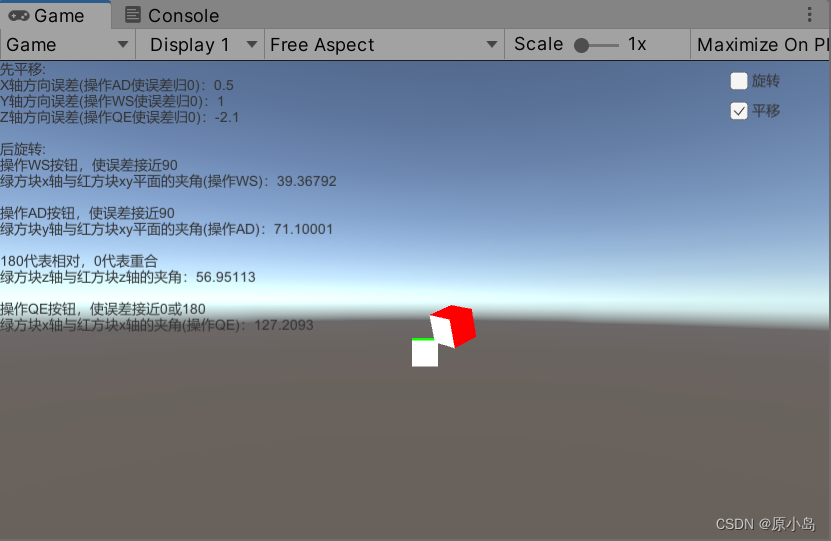

    //显示误差
    private string showError()
    {
        string posError = PosError();
        string rotError = RotError();
        return "先平移:"+"\r\n" + posError
            + "\r\n" + "后旋转:" + "\r\n" + rotError;
    }


    //位置误差
    private string PosError()
    {
        float GreenX = GreenQuad.transform.position.x;
        float GreenY = GreenQuad.transform.position.y;
        float GreenZ = GreenQuad.transform.position.z;

        float x = RedQuad.transform.position.x - GreenX;
        float y = RedQuad.transform.position.y - GreenY;
        float z = RedQuad.transform.position.z - GreenZ;


        //根据误差大小控制速度
        if (Mathf.Abs(y) > 1.0f)
            MoveYspeed = FastMoveSpeed;
        else MoveYspeed = SlowMoveSpeed;
        if (Mathf.Abs(x) > 1.0f)
            MoveXspeed = FastMoveSpeed;
        else MoveXspeed = SlowMoveSpeed;
        if (Mathf.Abs(z) > 1.0f)
            MoveZspeed = FastMoveSpeed;
        else MoveZspeed = SlowMoveSpeed;

        return "X轴方向误差(操作AD使误差归0)："+x+"\r\n"
            + "Y轴方向误差(操作WS使误差归0)：" + y+"\r\n"
            + "Z轴方向误差(操作QE使误差归0)：" + z+"\r\n";
    }

    //角度误差
    private string RotError()
    {
        float XZ = Angle(GreenQuad.transform.right,RedQuad.transform.forward);
        float YZ = Angle(GreenQuad.transform.up, RedQuad.transform.forward);
        float ZZ = Angle(GreenQuad.transform.forward, RedQuad.transform.forward);
        float XX = Angle(GreenQuad.transform.right, RedQuad.transform.right);

        根据误差大小控制速度
        if (YZ > 95.0f || YZ < 85.0f)
            RotXspeed = FastRotSpeed;
        else RotXspeed = SlowRotSpeed;
        if (XZ > 95.0f || XZ < 85.0f)
            RotYspeed = FastRotSpeed;
        else RotYspeed = SlowRotSpeed;
        if (0.0f <= XX && XX < 5.0f)
            RotZspeed = SlowRotSpeed;
        else if (175.0f <= XX && XX < 185.0f)
            RotZspeed = SlowRotSpeed;
        else RotZspeed = FastRotSpeed;


        return "操作WS按钮，使误差接近90\r\n"
            + "绿方块x轴与红方块xy平面的夹角(操作WS)：" +XZ+ "\r\n" + "\r\n"
            + "操作AD按钮，使误差接近90\r\n"
            + "绿方块y轴与红方块xy平面的夹角(操作AD)：" + YZ + "\r\n" + "\r\n"
            + "180代表相对，0代表重合\r\n"
            + "绿方块z轴与红方块z轴的夹角：" + ZZ + "\r\n" + "\r\n"
            + "操作QE按钮，使误差接近0或180\r\n"
            + "绿方块x轴与红方块x轴的夹角(操作QE)：" + XX + "\r\n";
    }

    //求两向量夹角
    private float Angle(Vector3 red, Vector3 green)
    {
        float dot = Vector3.Dot(red.normalized, green.normalized);
        float angle = Mathf.Acos(dot) * Mathf.Rad2Deg;
        return angle;
    }
}
