纹理贴图笔记

法线

获取方法：世界法线 = dot(从法线贴图采样法线（rgb）,世界TBN)

静态采样器：法线的采样方法各向异性是最好的

//Shader.hlsl
SamplerState TextureSampler: register(s0);
SamplerState AnisotropicSampler : register(s1);
SamplerComparisonState ShadowSampler : register(s2);




//对应C++    RootSign
void FStaticSamplerObject::BuildStaticSampler()
{
	SamplerDescs.push_back(
		CD3DX12_STATIC_SAMPLER_DESC(0,
			D3D12_FILTER_MIN_MAG_MIP_POINT));

	SamplerDescs.push_back(
		CD3DX12_STATIC_SAMPLER_DESC(1,
		D3D12_FILTER_ANISOTROPIC,
		D3D12_TEXTURE_ADDRESS_MODE_WRAP,
		D3D12_TEXTURE_ADDRESS_MODE_WRAP,
		D3D12_TEXTURE_ADDRESS_MODE_WRAP,0,8));

	//Shader
	SamplerDescs.push_back(
		CD3DX12_STATIC_SAMPLER_DESC(2,
			D3D12_FILTER_COMPARISON_MIN_MAG_LINEAR_MIP_POINT,
			D3D12_TEXTURE_ADDRESS_MODE_BORDER,
			D3D12_TEXTURE_ADDRESS_MODE_BORDER,
			D3D12_TEXTURE_ADDRESS_MODE_BORDER,
			0,
			16.f,
			D3D12_COMPARISON_FUNC_LESS_EQUAL,
			D3D12_STATIC_BORDER_COLOR_OPAQUE_BLACK));

}

高光Specular

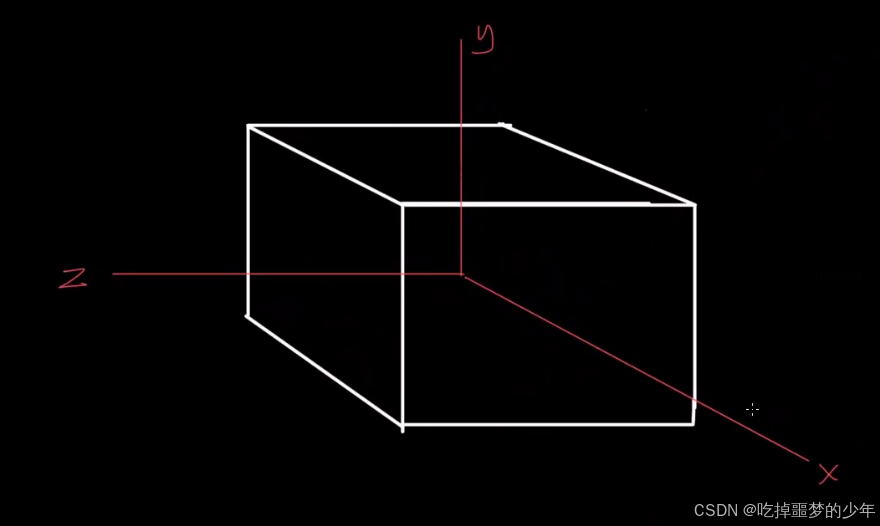

CubeMap：

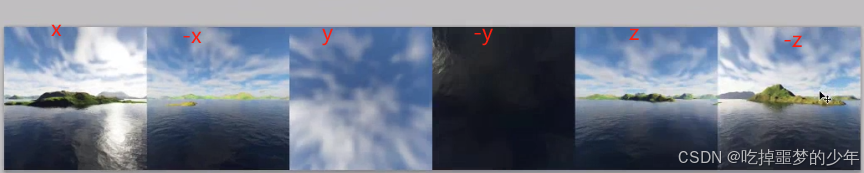

准备六张图片
