1 简介

由于飞蛾扑火优化（ＭＦＯ）算法收敛速度和计算精度还有待提高，提出一种改进的基于Ｌéｖｙ飞行轨迹的飞蛾扑火优化（ＬＭＦＯ）算法。增强局部搜索能力，大幅度提升收敛速度和求解精度。对１２个无约束基准函数进行实验测试，测试结果表明，改进后的ＬＭＦＯ是有效可行的。群智能算法一般来源于对自然界中一些生物群体行为的模仿，因其具有传统优化方法所不具有的优点，已发展成为优化问题中的研究热点。飞蛾扑火优化（ｍｏｔｈ－ｆｌａｍｅｏｐｔｉｍｉｚａｔｉｏｎ，ＭＦＯ算法是由Ｍｉｒｊａｌｉｌｉ提出的一种启发式优化算法，此算法的灵感来源于飞蛾在夜间一种奇特的导航方式。夜间飞蛾以月亮为参考物来辨别方向，当飞蛾迷失方向的时候，只需根据月光来自己调整身体的方位，便能找到之前的方向。因其与月亮相距甚远，所以此机制能确保沿直线运动。在现实世界里，飞蛾常常把人造光误认为是月亮所发出的光，于是飞蛾便会绕着人造光作螺旋状盘旋，这就是时常会看到飞蛾绕着人造光作螺旋形移动的原因，同时也说明了横向定位的低效性。

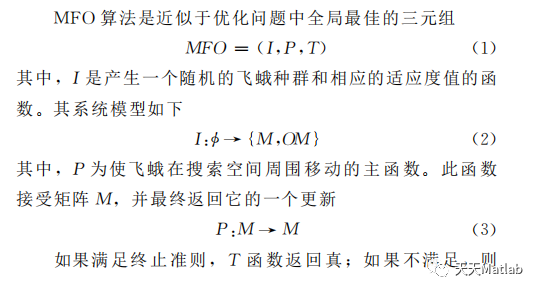

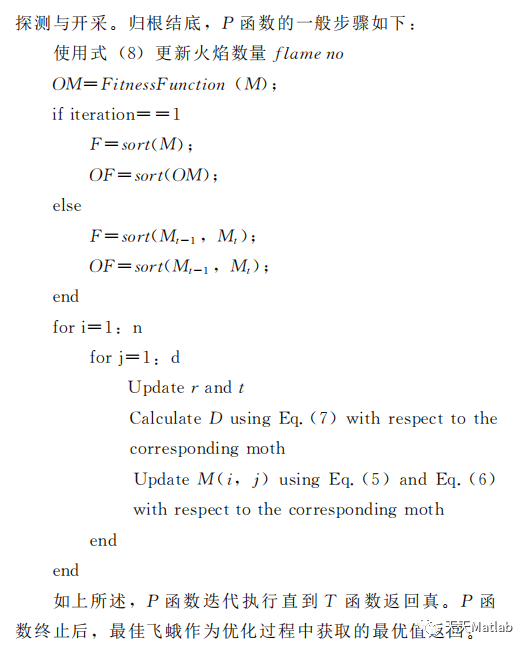

在基本ＭＦＯ算法中，假设飞蛾是候选解，矩阵Ｍ表示飞蛾的集合，数组ＯＭ用于存储相应的适应度值。该算法的另外一个核心组件是火焰，火焰矩阵用Ｆ表示，且数组Ｍ和Ｆ的维数相等，数组ＯＦ用来存储相应的适应度值。在这里，飞蛾和火焰都是解。它们之间不同之处就是在每一次迭代过程中对待和更新它们的方式不同。飞蛾是在搜索空间里移动的实际搜索主体，而火焰是飞蛾到目前为止获取的最佳位置。因此，倘若找到一个更好的解，每只飞蛾便在标记附近搜索并更新它。通过此机制，飞蛾永远不会错过它的最优解。

正在上传…重新上传取消

2 部分代码

%______________________________________________________________________________________________

% Moth-Flame Optimization Algorithm (MFO) toolbox

% Source codes demo version 1.0

% Developed in MATLAB R2011b(7.13)

% Author and programmer: Seyedali Mirjalili

% e-Mail: ali.mirjalili@gmail.com

% seyedali.mirjalili@griffithuni.edu.au

% Homepage: http://www.alimirjalili.com

% Main paper:

% S. Mirjalili, Moth-Flame Optimization Algorithm: A Novel Nature-inspired Heuristic Paradigm,

% Knowledge-Based Systems, DOI: http://dx.doi.org/10.1016/j.knosys.2015.07.006

%_______________________________________________________________________________________________

% You can simply define your cost in a seperate file and load its handle to fobj

% The initial parameters that you need are:

%__________________________________________

% fobj = @YourCostFunction

% dim = number of your variables

% Max_iteration = maximum number of generations

% SearchAgents_no = number of search agents

% lb=[lb1,lb2,...,lbn] where lbn is the lower bound of variable n

% ub=[ub1,ub2,...,ubn] where ubn is the upper bound of variable n

% If all the variables have equal lower bound you can just

% define lb and ub as two single number numbers

% To run MFO: [Best_score,Best_pos,cg_curve]=MFO(SearchAgents_no,Max_iteration,lb,ub,dim,fobj)

%______________________________________________________________________________________________

function [Best_flame_score,Best_flame_pos,Convergence_curve]=MFO(N,Max_iteration,lb,ub,dim,fobj,handles,value)

display('MFO is optimizing your problem');

%Initialize the positions of moths

Moth_pos=initialization(N,dim,ub,lb);

Convergence_curve=zeros(1,Max_iteration);

Iteration=1;

% Main loop

while Iteration<Max_iteration+1

% Number of flames Eq. (3.14) in the paper

Flame_no=round(N-Iteration*((N-1)/Max_iteration));

for i=1:size(Moth_pos,1)

% Check if moths go out of the search spaceand bring it back

Flag4ub=Moth_pos(i,:)>ub;

Flag4lb=Moth_pos(i,:)<lb;

Moth_pos(i,:)=(Moth_pos(i,:).*(~(Flag4ub+Flag4lb)))+ub.*Flag4ub+lb.*Flag4lb;

% Calculate the fitness of moths

Moth_fitness(1,i)=fobj(Moth_pos(i,:));

All_fitness(1,i)=Moth_fitness(1,i);

end

if Iteration==1

% Sort the first population of moths

[fitness_sorted I]=sort(Moth_fitness);

sorted_population=Moth_pos(I,:);

% Update the flames

best_flames=sorted_population;

best_flame_fitness=fitness_sorted;

else

% Sort the moths

double_population=[previous_population;best_flames];

double_fitness=[previous_fitness best_flame_fitness];

[double_fitness_sorted I]=sort(double_fitness);

double_sorted_population=double_population(I,:);

fitness_sorted=double_fitness_sorted(1:N);

sorted_population=double_sorted_population(1:N,:);

% Update the flames

best_flames=sorted_population;

best_flame_fitness=fitness_sorted;

end

% Update the position best flame obtained so far

Best_flame_score=fitness_sorted(1);

Best_flame_pos=sorted_population(1,:);

previous_population=Moth_pos;

previous_fitness=Moth_fitness;

% a linearly dicreases from -1 to -2 to calculate t in Eq. (3.12)

a=-1+Iteration*((-1)/Max_iteration);

for i=1:size(Moth_pos,1)

for j=1:size(Moth_pos,2)

if i<=Flame_no % Update the position of the moth with respect to its corresponsing flame

% D in Eq. (3.13)

distance_to_flame=abs(sorted_population(i,j)-Moth_pos(i,j));

b=1;

t=(a-1)*rand+1;

% Eq. (3.12)

Moth_pos(i,j)=distance_to_flame*exp(b.*t).*cos(t.*2*pi)+sorted_population(i,j);

end

if i>Flame_no % Upaate the position of the moth with respct to one flame

% Eq. (3.13)

distance_to_flame=abs(sorted_population(i,j)-Moth_pos(i,j));

b=1;

t=(a-1)*rand+1;

% Eq. (3.12)

Moth_pos(i,j)=distance_to_flame*exp(b.*t).*cos(t.*2*pi)+sorted_population(Flame_no,j);

end

Convergence_curve(Iteration)=Best_flame_score;

if Iteration>2

line([Iteration-1 Iteration], [Convergence_curve(Iteration-1) Convergence_curve(Iteration)],'Color','b')

xlabel('Iteration');

ylabel('Best score obtained so far');

drawnow

end

set(handles.itertext,'String', ['The current iteration is ', num2str(Iteration)])

set(handles.optimumtext,'String', ['The current optimal value is ', num2str(Best_flame_score)])

if value==1

hold on

scatter(Iteration*ones(1,N),All_fitness,'.','k')

end

Iteration=Iteration+1;

end

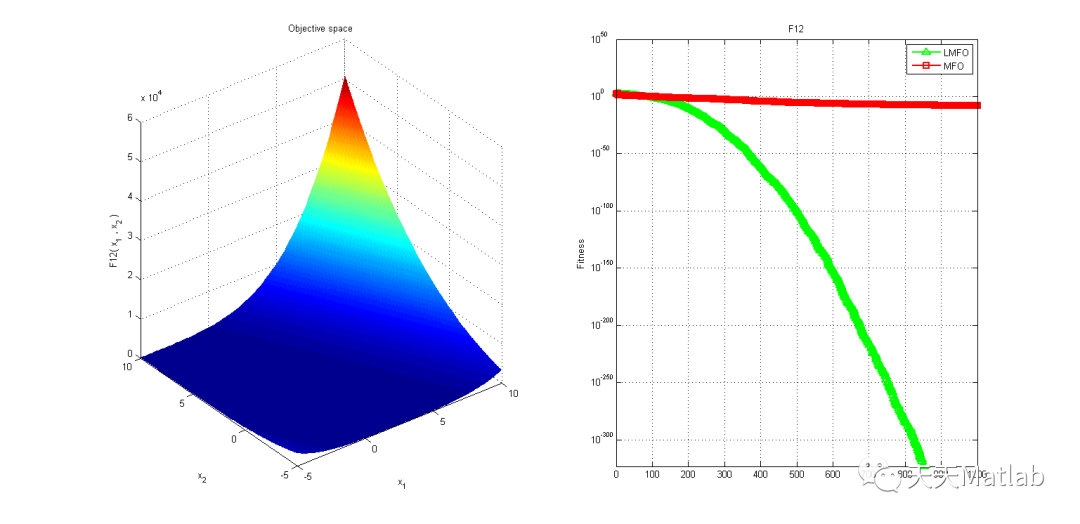

3 仿真结果

正在上传…重新上传取消

4 参考文献

[1]李志明,莫愿斌.基于Lévy飞行的飞蛾扑火优化算法[J].计算机工程与设计,2017,38(03):807-813.
