Fsm serial（Serial receiver ）

题目

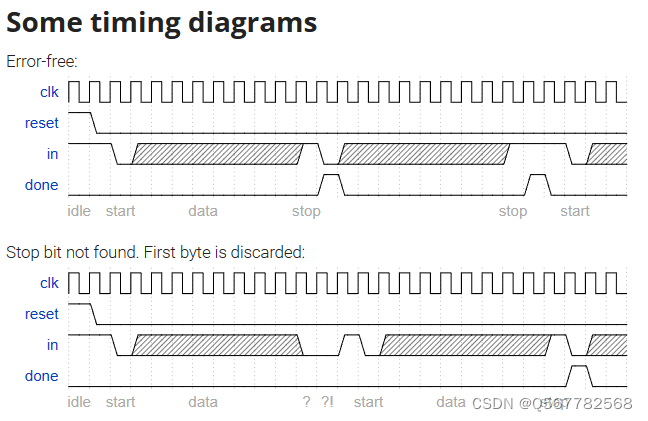

In many (older) serial communications protocols, each data byte is sent along with a start bit and a stop bit, to help the receiver delimit bytes from the stream of bits. One common scheme is to use one start bit (0), 8 data bits, and 1 stop bit (1). The line is also at logic 1 when nothing is being transmitted (idle).

Design a finite state machine that will identify when bytes have been correctly received when given a stream of bits. It needs to identify the start bit, wait for all 8 data bits, then verify that the stop bit was correct. If the stop bit does not appear when expected, the FSM must wait until it finds a stop bit before attempting to receive the next byte.

 题目解读：实现一个8bit数据的读取，当in=0时，表示开始位，这意味着下一个状态是读取数据；读取8bit数据，即计数8次，此外，无论读取成功与否都要将计数器置0，以便下次计数；8个数据读取完毕，当in=1时，表示停止位，即下一个状态done=1,当in=0时，状态未知直至in=1进入下一个状态时，done=1；

这里我定义4个状态，即开始START、读取数据DATA、停止STOP、未知IDLE。在START状态需要不断检测in的值，保证随时可以进入DATA状态；在DATA状态，需要计数9次，8个数据加1个停止位的检测，若in=1，则next_state=STOP，否则next_state=IDLE（未知态）；在STOP状态（不是停止位），若in=0，则表明这里是开始位，next_state=DATA（直接进入数据读取），否则next_state=START;在IDLE状态，若in=1，则next_state=START，否则保持原态。

代码

module top_module(
    input clk,
    input in,
    input reset,    // Synchronous reset
    output done
);

    parameter IDLE=2'b01;
    parameter START=2'b00;
    parameter DATA=2'b10;
    parameter STOP=2'b11;
    reg [1:0]state;
    reg [1:0]next_state;
    integer counter;//用于计数

    always @(*)begin
        case(state)
            IDLE:begin
                if(in==1)
                 	next_state=START;
                else
                    next_state=IDLE;
            end
            START:begin
                if(in==0)
                	next_state=DATA;
                else
                 	next_state=START;
            end
            DATA:begin
                if(counter==9)begin
                    if(in==1)
                    	next_state=STOP;
                    else
                    	next_state=IDLE;
                end else
                next_state=DATA;
            end
            STOP:begin
                if(in==0)
                 	next_state=DATA;
                else
                    next_state=START;
            end
        endcase
    end

    always @(posedge clk)begin
        if(reset)begin
            state=START;
            counter=0;
        end else begin
            state=next_state;
            if(state==DATA)begin
                counter=counter+1;
            end
            if(state!=DATA)begin//不管是否成功，置0，以便下次使用
                counter=0;
            end
        end
    end

    assign done=state[0]&state[1];

endmodule

总结

1.开始总是遇到常数有多个驱动的问题，原因是我把counter=counter+1放在了多个地方，一般只放在时许逻辑部分

2.在使用counter进行计数时，忘记重置counter，导致我运行多次都没有成功
