本文介绍了SystemVerilog中的动态数组，包括动态数组的声明、方法及实例。动态数组允许在运行时设置或更改大小，使用new[]进行空间分配，size()返回当前大小，delete()清空数组。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

Systemverilog动态数组

A dynamic array is one dimension of an unpacked array whose size can be set or changed at run-time. Dynamic array is Declared using an empty word subscript [ ].

The space for a dynamic array doesn’t exist until the array is explicitly created at run-time, space is allocated when new[number] is called. the number indicates the number of space/elements to be allocated.

一、Dynamic array Syntax

//data_type is the data type of the array elements.
data_type array_name [ ];

二、Dynamic array methods

new[ ] –> allocates the storage.

size( ) –> returns the current size of a dynamic array.

delete( ) –> empties the array, resulting in a zero-sized array.

2.1 Example:

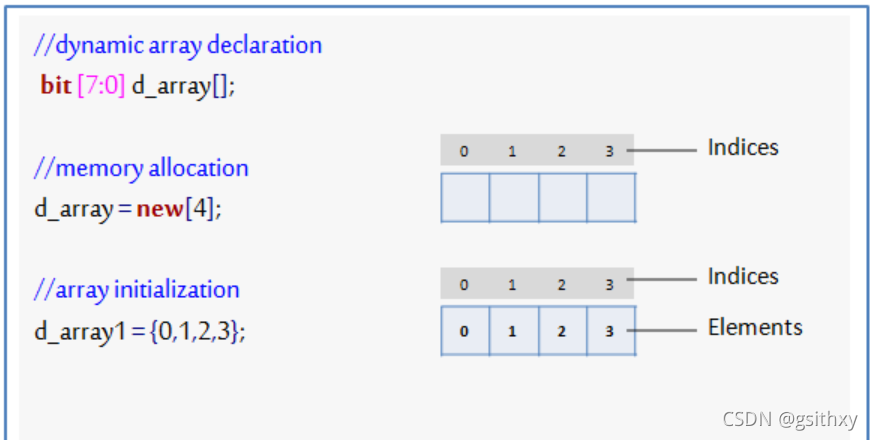

//declaration
bit [7:0] d_array1[ ];
int d_array2[ ];

//memory allocation
d_array1 = new[4]; //dynamic array of 4 elements
d_array2 = new[6]; //dynamic array of 6 elements

//array initialization
d_array1 = {0,1,2,3};
foreach(d_array2[j]) d_array2[j] = j;
