opencv gui之滑动窗口-03

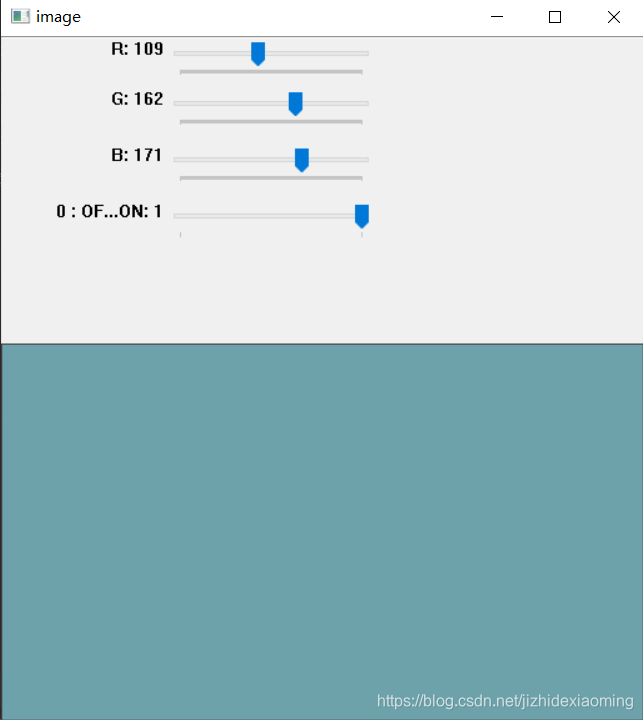

1. 效果

2. 代码

#!/usr/bin/env python
# -*- coding: utf-8 -*-
# Created by zxq on 2021/2/7

import cv2
import numpy as np


def nothing(x):
    pass


"""
窗口名字是image，这个窗口里面有4个滑动条，分别是R,G,B,switch.
"""
# 1, Create a black image, a window
img = np.zeros((300, 512, 3), np.uint8)
cv2.namedWindow('image')

"""
参数:
trackbarName:滑动条的名称
windowName:所在窗口的名称
value:     滑块起始值
count:     滑块最大值
onChange:  回调函数,即当滑块位置改变时就会调用的函数,并且回调函数第一个参数为滑块位置所对应的值
"""
# 2, create trackbars for color change
cv2.createTrackbar('R', 'image', 0, 255, nothing)
cv2.createTrackbar('G', 'image', 0, 255, nothing)
cv2.createTrackbar('B', 'image', 0, 255, nothing)

# create switch for ON/OFF functionality
switch = '0 : OFF \n1 : ON'
cv2.createTrackbar(switch, 'image', 0, 1, nothing)

while 1:
    cv2.imshow('image', img)
    k = cv2.waitKey(1) & 0xFF
    if k == 27:
        break

    # 3, get current positions of four trackbars
    r = cv2.getTrackbarPos('R', 'image')
    g = cv2.getTrackbarPos('G', 'image')
    b = cv2.getTrackbarPos('B', 'image')
    s = cv2.getTrackbarPos(switch, 'image')

    if s == 0:
        img[:] = 0
    else:
        img[:] = [b, g, r]

cv2.destroyAllWindows()
