Verilog HDLBits5 Circuits-combinational logic

Mux256to1&Mux256to1v

256选1数据选择器题目：

Create a 1-bit wide, 256-to-1 multiplexer. The 256 inputs are all packed into a single 256-bit input vector. sel=0 should select in[0], sel=1 selects bits in[1], sel=2 selects bits in[2], etc.

Expected solution length: Around 1 line.

 一行就能写出来，直接让sel作为in的索引

module top_module(
    input [255:0] in,
    input [7:0] sel,
    output out );
    assign out=in[sel];
endmodule

 256选1（数据位宽4）数据选择器题目：

Create a 4-bit wide, 256-to-1 multiplexer. The 256 4-bit inputs are all packed into a single 1024-bit input vector. sel=0 should select bits in[3:0], sel=1 selects bits in[7:4], sel=2 selects bits in[11:8], etc.

Expected solution length: Around 1–5 lines.

参照上面的，可以写成

 assign out=in[(sel*4+3):sel*4];

 但是编译不通过，则可采取下面3种写法：

assign out = {in[sel * 4 + 3], in[sel * 4 + 2], in[sel * 4 + 1], in[sel * 4]};


assign out = in[sel*4+:4];
//从sel*4开始，选择比特序号大于sel*4的4位bit，相当于[sel*4+3:sel*4]


assign out = in[sel*4+3-:4];
//从sel*4+3开始，选择比特序号小于sel*4+3的4位bit，相当于[sel*4+3:sel*4]

————————————————
版权声明：本文为CSDN博主「杰之行」的原创文章，遵循CC 4.0 BY-SA版权协议，转载请附上原文出处链接及本声明。
原文链接：https://blog.csdn.net/haojie_duan/article/details/113414855

Hadd

Create a half adder. A half adder adds two bits (with no carry-in) and produces a sum and carry-out.

Expected solution length: Around 2 lines.

设计一个半加器，没有下级输入的进位，只有进位输出和本位输出

可以直接把a+b赋给cout和sum，也可直接计算进位和本位：

module top_module(
    input a, b,
    output cout, sum );
    //assign {cout,sum}=a+b;
    // this is fine ,but the one below is better
    assign cout = a & b;
    assign sum = a ^ b;

endmodule

而全加器的进位和本位：

	assign cout=a&b||b&cin||a&cin;
    assign sum=a^b^cin;

Exams/ece241 2014 q1c 数据溢出提示

Assume that you have two 8-bit 2's complement numbers, a[7:0] and b[7:0]. These numbers are added to produce s[7:0]. Also compute whether a (signed) overflow has occurred.

module top_module (
    input [7:0] a,
    input [7:0] b,
    output [7:0] s,
    output overflow
);

A signed overflow occurs when adding two positive numbers produces a negative result, or adding two negative numbers produces a positive result. There are several methods to detect overflow: It could be computed by comparing the signs of the input and output numbers, or derived from the carry-out of bit n and n-1.

一个有符号数的最高位代表正负，最高位是0代表正数，最高位是1代表负数。

那什么时候会发生溢出（overflow）的情况？只有两个正数（负数）相加才会发生溢出，相减（即一正一负）是不会发生溢出的。
两个正数相加（符号位都为0），如果结果为负数，则发生溢出；两个负数相加（符号位都为1），如果结果为正数，则发生溢出，其他情况都为没有发生溢出。

module top_module (
    input [7:0] a,
    input [7:0] b,
    output [7:0] s,
    output overflow
); //

    assign s = a + b;
    assign overflow = a[7] & b[7] & ~s[7] | ~a[7] & ~b[7] & s[7];

endmodule

Adder100

Create a 100-bit binary adder. The adder adds two 100-bit numbers and a carry-in to produce a 100-bit sum and carry out.

Expected solution length: Around 1 line.

简单的加法器逻辑，直接得到最后的进位和本位：

assign {cout,sum}=a+b+cin;

Exams/ece241 2013 q2 关于卡诺图

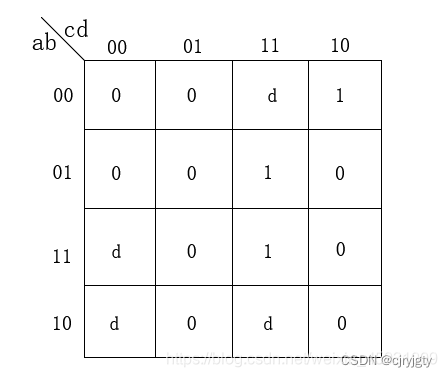

A single-output digital system with four inputs (a,b,c,d) generates a logic-1 when 2, 7, or 15 appears on the inputs, and a logic-0 when 0, 1, 4, 5, 6, 9, 10, 13, or 14 appears. The input conditions for the numbers 3, 8, 11, and 12 never occur in this system. For example, 7 corresponds to a,b,c,d being set to 0,1,1,1, respectively.

Determine the output out_sop in minimum SOP form, and the output out_pos in minimum POS form.

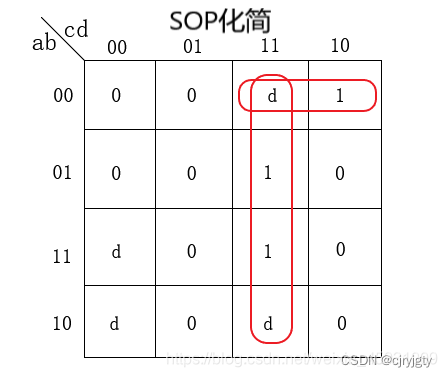

• SOP form 即与或式，对应于卡诺图就是圈1即可

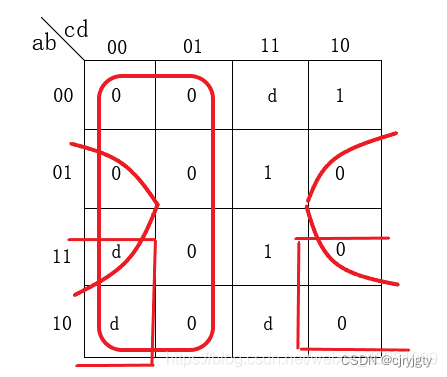

• POS form 即或与式, 对应于卡诺图就是圈0后，整体取反

module top_module (
    input a,
    input b,
    input c,
    input d,
    output out_sop,
    output out_pos
);
	assign out_sop = (~a & ~b & c) | (c & d);
    assign out_pos = ~((~c) | (b & ~d) | (a & ~d));
endmodule

 Exams/ece241 2014 q3

For the following Karnaugh map, give the circuit implementation using one 4-to-1 multiplexer and as many 2-to-1 multiplexers as required, but using as few as possible. You are not allowed to use any other logic gate and you must use a and b as the multiplexer selector inputs, as shown on the 4-to-1 multiplexer below.





You are implementing just the portion labelled top_module, such that the entire circuit (including the 4-to-1 mux) implements the K-map.

(The requirement to use only 2-to-1 multiplexers exists because the original exam question also wanted to test logic function simplification using K-maps and how to synthesize logic functions using only multiplexers. If you wish to treat this as purely a Verilog exercise, you may ignore this constraint and write the module any way you wish.)

不让用与或门了，让做成数据选择器的形式，ab不用管，只考虑输入cd的时候通过ab能得到怎样的输出，也就是只看卡诺图的列，可得：

①cd全0才输出0，②输出0，③cd全1才输出1，④ d=0才输出1

这种写法之前也没见过，需要注意

module top_module (
    input c,
    input d,
    output [3:0] mux_in
);
    assign mux_in[0] = c ? 1 :(d ? 1 : 0);  //这就表示说cd全为假时，结果才为0
    assign mux_in[1] = 1'b0 ; 			    //恒为0
    assign mux_in[2] = d ? 0 : 1;            //这表示说~d时，结果才为1
    assign mux_in[3] = c ? (d ? 1 : 0) : 0;//cd都为真时，取值为1

endmodule
