Google Earth Engine——NOAA气候数据记录（CDR）的AVHRR归一化植被指数（NDVI）包含从NOAA AVHRR表面反射产品中得到的网格化的每日NDVI-CSDN博客

本文链接：https://blog.csdn.net/qq_31988139/article/details/120587727

这篇博客介绍了NOAA的气候数据记录（CDR）中AVHRR归一化植被指数（NDVI）的数据集，该数据集提供全球陆地表面的植被覆盖活动测量，具有0.05°的分辨率。然而，数据存在TIMEOFDAY变量值过大、纬度和经度值与网格中心关联不准确等问题。数据集的时间范围为1981年到2019年，使用者应注意这些问题。同时，博客展示了如何使用Earth Engine API来访问和展示NDVI数据，并提供了数据的引用和访问政策。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

The NOAA Climate Data Record (CDR) of AVHRR Normalized Difference Vegetation Index (NDVI) contains gridded daily NDVI derived from the NOAA AVHRR Surface Reflectance product. It provides a measurement of surface vegetation coverage activity, gridded at a resolution of 0.05° and computed globally over land surfaces.

Known issues with this dataset include:

TIMEOFDAY variable contains values that are too large by 1 day
Latitude values are not correctly associated with the center of the grid cell, error is < 0.002 degrees
Longitude values are not correctly associated with the center of the grid cell, error is < 0.02 degrees

See technical note from the data provider.

NOAA气候数据记录（CDR）的AVHRR归一化植被指数（NDVI）包含从NOAA AVHRR表面反射产品中得到的网格化的每日NDVI。它提供了地表植被覆盖活动的测量，网格化的分辨率为0.05°，在全球范围内对陆地表面进行计算。

这个数据集的已知问题包括。

TIMEOFDAY变量包含的数值过大，超过1天。

纬度值与网格单元的中心没有正确关联，误差<0.002度

经度值与网格单元的中心没有正确关联，误差< 0.02度

见数据提供者的技术说明。

Dataset Availability

1981-06-24T00:00:00 - 2019-05-16T00:00:00

Dataset Provider

NOAA

Collection Snippet

ee.ImageCollection("NOAA/CDR/AVHRR/NDVI/V4")

Resolution

5566 meters

Bands Table

Name	Description	Min*	Max*	Units	Scale
NDVI	Normalized difference vegetation index	-9998	9998		0.0001
TIMEOFDAY	Hours since start of day	0	2400	hours	0.01
QA	Quality control bit flags				0
QA Bitmask	Bit 0: Unused 0: No 1: Yes Bit 1: Pixel is cloudy 0: No 1: Yes Bit 2: Pixel contains cloud shadow 0: No 1: Yes Bit 3: Pixel is over water 0: No 1: Yes Bit 4: Pixel is over sunglint 0: No 1: Yes Bit 5: Pixel is over dense dark vegetation 0: No 1: Yes Bit 6: Pixel is at night (high solar zenith) 0: No 1: Yes Bit 7: Channels 1-5 are valid 0: No 1: Yes Bit 8: Channel 1 value is invalid 0: No 1: Yes Bit 9: Channel 2 value is invalid 0: No 1: Yes Bit 10: Channel 3 value is invalid 0: No 1: Yes Bit 11: Channel 4 value is invalid 0: No 1: Yes Bit 12: Channel 5 value is invalid 0: No 1: Yes Bit 13: RHO3 value is invalid 0: No 1: Yes Bit 14: BRDF correction is invalid 0: No 1: Yes Bit 15: Polar flag, latitude over 60 degrees (land) or 50 degrees (ocean) 0: No 1: Yes

* = Values are estimated

影像属性：

Name	Type	Description
status	String	'provisional' or 'permanent'

使用说明：

The NOAA CDR Program’s official distribution point for CDRs is NOAA’s National Climatic Data Center which provides sustained, open access and active data management of the CDR packages and related information in keeping with the United States’ open data policies and practices as described in the President's Memorandum on "Open Data Policy" and pursuant to the Executive Order of May 9, 2013, "Making Open and Machine Readable the New Default for Government Information". In line with these policies, the CDR data sets are nonproprietary, publicly available, and no restrictions are placed upon their use. For more information, see the Fair Use of NOAA's CDR Data Sets, Algorithms and Documentation pdf

引用：

Eric Vermote, Chris Justice, Ivan Csiszar, Jeff Eidenshink, Ranga Myneni, Frederic Baret, Ed Masuoka, Robert Wolfe, Martin Claverie and NOAA CDR Program (2014): NOAA Climate Data Record (CDR) of Normalized Difference Vegetation Index (NDVI), Version 4. [indicate subset used]. NOAA National Climatic Data Center. doi:10.7289/V5PZ56R6

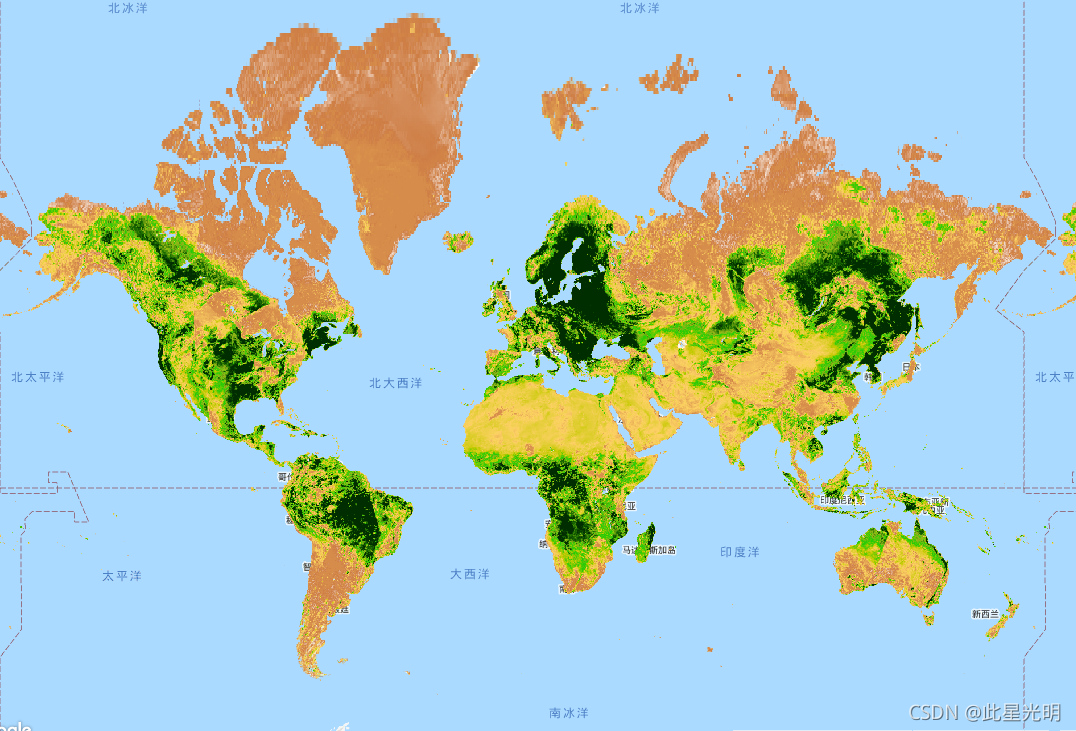

代码：

var dataset = ee.ImageCollection('NOAA/CDR/AVHRR/NDVI/V4')
                  .filter(ee.Filter.date('2018-05-01', '2018-06-01'));
var ndvi = dataset.select('NDVI');
var ndviVis = {
  min: -1000.0,
  max: 5000.0,
  palette: [
    'ffffff', 'ce7e45', 'fcd163', 'c6ca02', '22cc04', '99b718', '207401',
    '012e01'
  ],
};
Map.setCenter(7.71, 17.93, 2);
Map.addLayer(ndvi, ndviVis, 'NDVI');

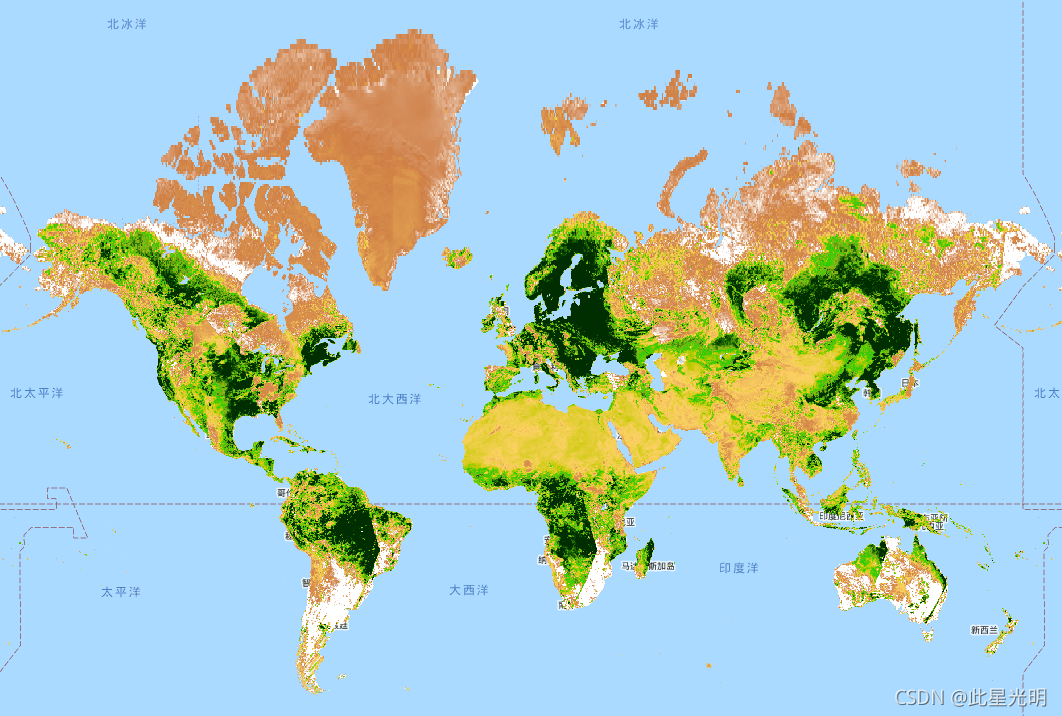

代码：

var dataset = ee.ImageCollection('NOAA/CDR/AVHRR/NDVI/V5')
                  .filter(ee.Filter.date('2018-05-01', '2018-06-01'));
var ndvi = dataset.select('NDVI');
var ndviVis = {
  min: -1000.0,
  max: 5000.0,
  palette: [
    'ffffff', 'ce7e45', 'fcd163', 'c6ca02', '22cc04', '99b718', '207401',
    '012e01'
  ],
};
Map.setCenter(7.71, 17.93, 2);
Map.addLayer(ndvi, ndviVis, 'NDVI');
