CARVE: L1 Airborne Forward Looking Infrared Radiance Counts, Alaska, 2013-2015

简介

该数据集提供了 2013 年 4 月至 2015 年 11 月期间 CARVE 飞机上的前视红外（FLIR）热像仪为北极碳库脆弱性实验（CARVE）测量的地球参考辐射计数。FLIR 热像仪记录地表温度图像，同时测量大气中的二氧化碳、甲烷和臭氧浓度。FLIR 热像仪的热图像将用于表征冻融循环特定阶段中永久冻土覆盖的地表。该数据集中包含的测量数据对于理解北极碳循环的变化以及北极永久冻土融化带来的潜在威胁至关重要。这些测量结果是 CARVE 活动所搭载的创新型多仪器遥感有效载荷的一部分。

摘要

Table 1. CARVE file naming convention. Example file name: carve_FLIR_L1A_b23_20130403_000011_20160304004404124.nc

Name element	Example value	Units
Project name	carve
Instrument	FLIR
Processing level	L1A
Build ID	b23
File date *	20130403	yyyymmdd
File number **	000011	######
Processing date and time	20160304004404124	yyyymmddhhmmss

* Data from a single flight is spread across multiple files.

** Files are numbered in order that the data were collected

Table 2. Global metadata attributes for NetCDF files

Attribute Name	Description
ancillary_file_source	List of ancillary data products used to generate the current product
build_id	Software build
collection_label	Collection label
comment	Miscellaneous information about the data or methods
conventions	Documents describing sets of discipline-specific conventions
data_start_time	Date and time of first data element in the file: yyyy-mm-ddThh:mm:ss.sssZ
data_stop_time	Date and time of last data element in the file: yyyy-mm-ddThh:mm:ss.sssZ
frequency_of_sampling	"1 second - < 1 minute"
history	Audit trail for modifications to the original data
institution	Specifies where the original data was produced
instrument	Instruments with data contained in the file
long_name	Long name of the product type
master_quality_flag	Succinct assessment of the quality of the data in the file: "Good", "Bad", or "UNK"
product_source	List of source data products used to generate the current product
production_date_time	Date and time when product was created: yyyy-mm-ddThh:mm:ss.sssZ
processing_level	Processing level of the data
references	References
sampling_interval	"Grab"
short_name	Short name of the product type
source	Method of production of original data
specification_name	The name of the document describing product contents
specification_version	Version of the document describing the product contents
title	Succinct description of data set contents

Data variables

Each file contains 14 geolocation variables and 1 science measurement variable described in Table 3. Metadata attributes for the radiance variable, including polynomial conversion coefficients for converting digital numbers to standard units, are described in Table 4.

Table 3. Data variables in each netCDF file. Fill value or missing data were set to -999.9 for all variables.

Variable	Units	Description
Geolocation measurements
center_lat	degrees_north	Latitude of footprint center
center_lat_standard_error	degrees_north	Standard error of latitude of footprint center
center_lon	degrees_east	Longitude of footprint center
center_lon_standard_error	degrees_east	Standard error of longitude of footprint center
geolocation_qc	0: Success; 1: Error	Geolocation calculations status
heading	degree	Aircraft heading
heading_qc	0: Valid; 1: OutOfRange; 2: Error	Aircraft heading status
height	meters	Aircraft height
height_standard_error	meters	Standard error of aircraft height
pitch	degree	Aircraft pitch angle
pitch_qc	0: Valid; 1: OutOfRange; 2: Error	Aircraft pitch angle status
roll	degree	Aircraft roll angle
roll_qc	0: Valid; 1: OutOfRange; 2: Error	Aircraft roll angle status
time	seconds since 1980-01-06 0:0:0	Measurement time UTC
Science measurements

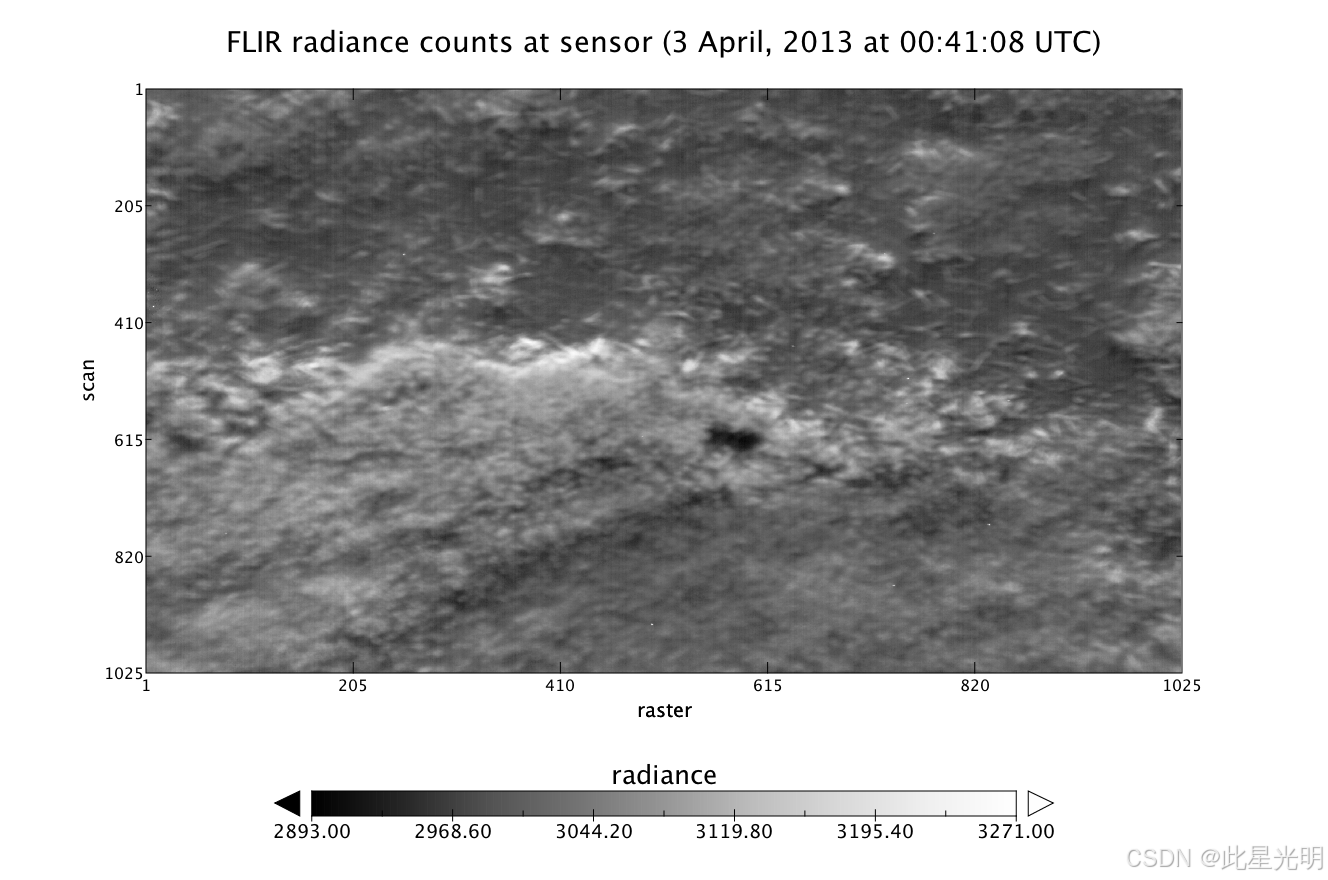

radiance	Counts	FLIR radiance counts at sensor

Table 4. Metadata attributes for the radiance variable in the NetCDF files.

Attribute Name	Description
long_name	Variable long name
_FillValue	Null data fill value
MinCounts	Minimum radiance value [digital number]
MaxCounts	Maximum radiance value [digital number]
MinRadiance	Minimum radiance value [W/(sr*cm2)]
MaxRadiance	Maximum radiance value [W/(sr*cm2)]
valid_min	Minimum valid radiance value [digital number]
valid_max	Maximum valid radiance value [digital number]
BandpassLow	Minimum integration wavelength [nm]
BandpassHigh	Maximum integration wavelength [nm]
units	Radiance units
C0	zero-degree polynomial conversion coefficient [DN to W/(sr*cm2)]
C1	first-degree polynomial conversion coefficient [DN to W/(sr*cm2)]
C2	second-degree polynomial conversion coefficient [DN to W/(sr*cm2)]
C3	third-degree polynomial conversion coefficient [DN to W/(sr*cm2)]
C4	fourth-degree polynomial conversion coefficient [DN to W/(sr*cm2)]
C5	fifth-degree polynomial conversion coefficient [DN to W/(sr*cm2)]
C6	sixth-degree polynomial conversion coefficient [DN to W/(sr*cm2)]
radiance_coefficients	non-zero radiance conversion polynomial coefficients
AtmA1	For internal use only
AtmA2	For internal use only
AtmB1	For internal use only
AtmX	For internal use only
PolynomialOrder	For internal use only
B	For internal use only
R	For internal use only
F	For internal use only
BGValue	For internal use only
FrameRate	For internal use only
MinTemperature	For internal use only
MaxTemperature	For internal use only
TempC0	For internal use only
TempC1	For internal use only
TempC2	For internal use only
IntegrationTime	For internal use only

代码

!pip install leafmap
!pip install pandas
!pip install folium
!pip install matplotlib
!pip install mapclassify

import pandas as pd
import leafmap

url = "https://github.com/opengeos/NASA-Earth-Data"
df = pd.read_csv(url, sep="\t")
df

leafmap.nasa_data_login()


results, gdf = leafmap.nasa_data_search(
    short_name="CARVE_L1_Infrared_1428",
    cloud_hosted=True,
    bounding_box=(-168.07, 58.84, -132.24, 71.36),
    temporal=("2013-04-03", "2015-11-13"),
    count=-1,  # use -1 to return all datasets
    return_gdf=True,
)


gdf.explore()

#leafmap.nasa_data_download(results[:5], out_dir="data")
