NVIDIA Isaac ROS
NVIDIA Isaac™ ROS (Robot Operating System) is a collection of NVIDIA® CUDA®-accelerated computing packages and AI models designed to streamline and expedite the development of advanced AI robotics applications.
NVIDIA Isaac™ ROS（机器人操作系统）是NVIDIA® CUDA®加速计算包和AI模型的集合，旨在简化和加快高级AI机器人应用程序的开发。
Download NowDocumentation
立即下载文档
Forums 论坛
How NVIDIA Isaac ROS Works
NVIDIA Isaac ROS的工作原理
Isaac ROS gives you a powerful toolkit for building robotic applications. It offers ready-to-use packages for common tasks like navigation and perception, uses NVIDIA frameworks for optimal performance, and can be deployed on both workstations and embedded systems like NVIDIA Jetson™.
Isaac ROS为您提供了构建机器人应用程序的强大工具包。它为导航和感知等常见任务提供了即用型软件包，使用NVIDIA框架实现最佳性能，并且可以部署在工作站和NVIDIA Jetson™等嵌入式系统上。
Quick Start Guide 快速入门指南
Learn what you need to get started and how to set up using the Isaac ROS suite to tap into the power of NVIDIA acceleration on NVIDIA Jetson.
了解入门所需的内容以及如何使用Isaac ROS套件进行设置，以充分利用NVIDIA Jetson上的NVIDIA加速功能。
Introductory Talk 介绍性演讲
Isaac ROS offers modular packages for robotic perception and easy integration into existing ROS 2-based applications. This talk covers Isaac ROS GEMs and how to use multiple GEMs in your robotics pipeline.
Isaac ROS提供了用于机器人感知的模块化软件包，并可轻松集成到现有的基于ROS 2的应用程序中。本讲座涵盖了Isaac ROS GEM以及如何在机器人管道中使用多个GEM。
Introductory Webinars 在线研讨会
Check out a series of Isaac ROS webinars covering various topics, from running your own ROS 2 benchmarks to harnessing the power of NVIDIA NITROS.
查看一系列Isaac ROS网络研讨会，涵盖各种主题，从运行您自己的ROS 2基准测试到利用NVIDIA NITROS的强大功能。
What’s New—Isaac ROS 3.2 新功能-Isaac ROS 3.2
Check out the latest Isaac ROS update to boost your robot’s capabilities with advanced AI-based perception and manipulation
查看最新的Isaac ROS更新，通过先进的基于AI的感知和操纵来提升机器人的能力
Key Features 关键特征
ROS is a trademark of Open Robotics
ROS是Open Robotics的商标
Open Ecosystem 开放生态
Built on ROS 基于ROS构建
NVIDIA Isaac ROS is built on the open-source ROS 2™ software framework. This means the millions of developers in the ROS community can easily take advantage of NVIDIA-accelerated libraries and AI models to fast track their AI robot development and deployment workflows.
NVIDIA Isaac ROS基于开源ROS 2™软件框架构建。这意味着ROS社区中的数百万开发人员可以轻松利用NVIDIA加速库和AI模型来快速跟踪他们的AI机器人开发和部署工作流程。
Hardware Acceleration 硬件加速

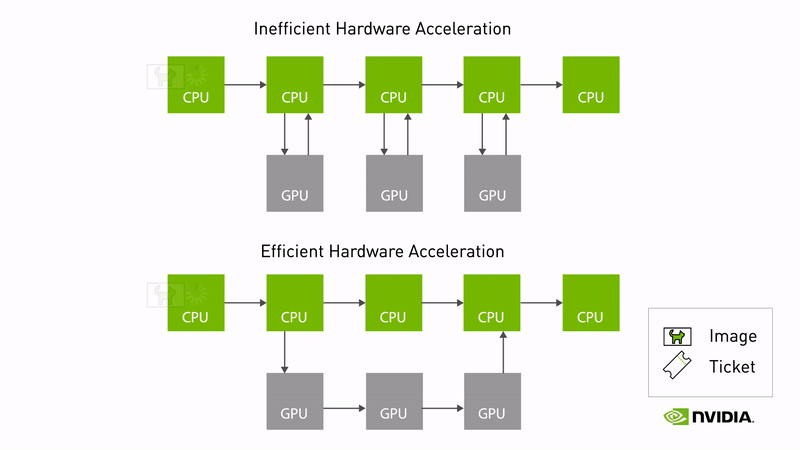

NVIDIA Isaac Transport for ROS
The NVIDIA implementation of type adaption and negotiation is called NITROS, which are ROS processing pipelines made up of Isaac ROS hardware-accelerated modules (a.k.a. GEMs). NITROS lets ROS 2 applications take full advantage of GPU hardware acceleration, potentially achieving higher performance and more efficient use of computing resources across the entire ROS 2 graph.
NVIDIA实现的类型适配和协商被称为NITROS，这是由Isaac ROS硬件加速模块（也称为Ros）组成的ROS处理管道。GEM）。NITROS让ROS 2应用程序充分利用GPU硬件加速，从而在整个ROS 2图形中实现更高的性能和更有效的计算资源使用。
High-Throughput Perception
高吞吐量感知
Isaac ROS delivers a rich collection of individual ROS packages (GEMs) and complete pipelines (NITROS) optimized for NVIDIA GPUs and NVIDIA Jetson™ platforms. This helps you achieve more with reduced development times.
Isaac ROS提供了丰富的单个ROS包（GEM）和完整的管道（NITROS），针对NVIDIA GPU和NVIDIA Jetson™平台进行了优化。这有助于您在缩短开发时间的同时实现更多目标。
Modular, Flexible Packages
模块化、灵活的封装
Plug and play with a selection of packages—for computer vision, image processing, robust object detection, collision detection, and trajectory optimization—and easily go to production.
一系列软件包即插即用-用于计算机视觉、图像处理、稳健的物体检测、碰撞检测和轨迹优化-并轻松投入生产。
The Power of NVIDIA AI
NVIDIA AI的力量
Isaac ROS is compatible with all ROS 2 nodes, making it easier to integrate into existing applications. Develop robotic applications using NVIDIA AI and pretrained models from robotics-specific datasets for faster development.
Isaac ROS与所有ROS 2节点兼容，使其更容易集成到现有应用程序中。使用NVIDIA AI和来自机器人特定数据集的预训练模型开发机器人应用程序，以加快开发速度。
Getting Started on NVIDIA Isaac ROS
NVIDIA Isaac ROS入门
System Setup 系统设置
Tap into NVIDIA-accelerated libraries and AI models to speed up your AI robot workflows. Check your system requirements and set up your system.
利用NVIDIA加速库和AI模型来加快您的AI机器人工作流程。检查系统要求并设置系统。
Plug-and-Play ROS Packages
即插即用ROS包
Read through the Isaac ROS concepts and easily move to production with a selection of advanced packages.
阅读Isaac ROS概念，并通过一系列高级软件包轻松进入生产环境。
Deploy at the Edge 在边缘部署
NVIDIA Jetson provides hardware acceleration, optimized AI software, a robust ecosystem, and energy efficiency, making it an ideal platform to deploy your Isaac ROS applications. Nova Carter and the Nova Orin™ developer platforms also help you accelerate AMR development.
NVIDIA Jetson提供硬件加速、优化的AI软件、强大的生态系统和高能效，使其成为部署Isaac ROS应用程序的理想平台。Nova Carter和Nova Orin™开发平台还可帮助您加快AMR开发。
NVIDIA Isaac Manipulator NVIDIA Isaac机械手
Isaac Manipulator, built on Isaac ROS, enables the development of AI-powered robotic arms that can seamlessly perceive, understand, and interact with their environments.
Isaac Manipulator基于Isaac ROS构建，能够开发出能够无缝感知、理解并与环境交互的AI驱动的机器人手臂。
NVIDIA Isaac Perceptor
Isaac Perceptor, built on Isaac ROS, enables rapid development of advanced autonomous mobile robots (AMRs) that can perceive, localize, and operate in unstructured environments like warehouses or factories.
Isaac Perceptor基于Isaac ROS构建，能够快速开发先进的自主移动的机器人（AMR），这些机器人可以在仓库或工厂等非结构化环境中进行感知、定位和操作。
High-Performance Perception With NITROS Pipelines
使用NITROS Pipelines实现高性能感知
ROS 2 graphs using NITROS-based, NVIDIA-accelerated Isaac ROS packages can significantly increase performance.
使用基于NITROS、NVIDIA加速的Isaac ROS软件包的ROS 2图形可以显著提高性能。
You can find a complete performance summary here.
您可以在这里找到完整的性能摘要。
|
Node 节点
|
Input Size 输入大小
|
AGX Orin AGX奥林
|
Orin NX
|
x86_64 w/ RTX 4090 x86_64，带RTX 4090
|
|---|---|---|---|---|
|
AprilTag Node AprilTag节点
|
720p
|
249 fps 249帧/秒 4.5ms @ 30Hz 4.5ms@30Hz |
116 fps 9.3ms @ 30Hz 9.3ms@30Hz |
596 fps 0.97ms @ 30Hz 0.97ms@30Hz |
|
Freespace Segmentation Node
自由空间分段节点 |
576p
|
2120 fps
1.7ms @ 30Hz 1.7ms@30Hz |
2490 fps
1.6ms @ 30Hz 1.6ms@30Hz |
3500 fps
0.52ms @ 30Hz 0.52ms@30Hz |
|
Depth Segmentation Node 深度分割节点
|
576p
|
45.8 fps 79 ms @ 30Hz 79 ms@30 Hz |
28.2 fps 99ms @ 30Hz 99ms@30Hz |
105 fps 25ms @ 30Hz 25ms@30Hz |
|
TensorRT Node TensorRT节点
PeopleSemSegNet |
544p
|
460 fps
4.1ms @ 30Hz 4.1ms@30Hz |
348 fps
6.1ms @ 30Hz 6.1ms@30Hz |
-
|
|
Triton Node Triton节点 PeopleSemSegNet |
544p
|
304 fps 4.8ms @ 30Hz 4.8ms@30Hz |
206 fps 6.5ms @ 30Hz 6.5ms@30Hz |
-
|
|
DNN Stereo Disparity Node
DNN立体视差节点 Full |
576p 576 P
|
103 fps 103 fps的
12ms @ 30Hz 12 ms @ 30 Hz的 |
42.1 fps
26ms @ 30Hz 26 ms @ 30 Hz（26 ms @ 30 Hz） |
350 fps 350 fps的
2.3ms @ 30Hz 2.3ms @ 30Hz（2.3ms @ 30Hz） |
|
H.264 Decoder Node H.264 Decoder Node协议
|
1080p 1080 P
|
197 fps 197 fps的 8.2ms @ 30Hz 8.2ms @ 30Hz的 |
-
|
596 fps 596 fps的 4.2ms @ 30Hz 4.2ms @ 30Hz（30 Hz） |
|
H.264 Encoder Node H.264 Encoder Node编码
I-frame Support I—Frame支持 |
1080p 1080 P
|
402 fps 402 fps的
13ms @ 30Hz 13 ms @ 30 Hz的 |
-
|
409 fps 409 fps的
3.4ms @ 30Hz 3.4ms @ 30Hz的 |
|
H.264 Encoder Node H.264 Encoder Node编码 P-frame Support P型支架 |
1080p
|
473 fps 11ms @ 30Hz 11ms@30Hz |
-
|
596 fps 2.1ms @ 30Hz 2.1ms@30Hz |
|
Nvblox Node Nvblox节点
|
-
|
4.87 fps
35.9ms |
4.95 fps
-1.43ms |
4.95 fps
195ms 195毫秒 |
Starter Kits 初学者工具包
Start developing your robotics and AI application with Isaac ROS with these forums, release notes, and comprehensive documentation.
开始使用Isaac ROS开发您的机器人和人工智能应用程序，包括这些论坛、发行说明和全面的文档。
Localization and Mapping 定位与地图构建
Isaac ROS Visual SLAM provides a high-performance, best-in-class ROS 2 package for VSLAM (visual simultaneous localization and mapping).
Isaac ROS Visual SLAM为VSLAM（视觉同步定位和地图绘制）提供了一个高性能、同类最佳的ROS 2包。
3D Scene Reconstruction 3D场景重建
Isaac ROS nvBlox uses RGB-D data to create a dense 3D map, including unforeseen obstacles, to generate a temporal costmap for navigation.
Isaac ROS nvBlox使用RGB-D数据创建密集的3D地图，包括不可预见的障碍物，以生成用于导航的时间成本图。
Pose Estimation and Tracking
姿态估计和跟踪
NVIDIA’s FoundationPose is a state-of-the-art foundation model for 6D pose estimation and tracking of novel objects.
NVIDIA的FoundationPose是最先进的基础模型，用于6D姿态估计和跟踪新对象。
Motion Planning 运动规划
Isaac ROS cuMotion is an NVIDIA CUDA-accelerated library for solving robot motion planning problems at scale by running multiple trajectory optimizations simultaneously to return the best solution.
Isaac ROS cuMotion是一个NVIDIA CUDA加速库，可通过同时运行多个轨迹优化来返回最佳解决方案，从而大规模解决机器人运动规划问题。
Testing and Validation in Simulation
仿真中的测试与验证
Virtually train, test, and validate robotics systems using NVIDIA Isaac Sim and NVIDIA Isaac Lab.
使用NVIDIA Isaac Sim和NVIDIA Isaac Lab虚拟训练、测试和验证机器人系统。
Isaac ROS Learning Library
Isaac ROS学习图书馆
NVIDIA Isaac ROS Release Notes
NVIDIA Isaac ROS发行说明
Get the comprehensive updates on the latest features, improvements, and bug fixes for Isaac ROS.
获取有关Isaac ROS最新功能、改进和错误修复的全面更新。
Advance Robot Learning, Perception, and Manipulation with the Latest NVIDIA Isaac Release
借助最新的NVIDIA Isaac版本，推进机器人学习、感知和操纵
Explore the latest Isaac release to enhance your robot learning, perception, manipulation, and environment mapping.
探索最新的Isaac版本，以增强您的机器人学习、感知、操纵和环境映射。
Isaac ROS Webinar Series Isaac ROS网络研讨会系列
Check out a series of Isaac ROS webinars covering various topics, from running your own ROS two benchmarks to harnessing the power of NITROS.
查看一系列Isaac ROS网络研讨会，涵盖各种主题，从运行自己的ROS两个基准到利用NITROS的力量。
