Unity中关于游戏制作的代码架构书写

本代码架构一个由四篇代码组成，用于单机小游戏的开发
首先是Message脚本 用于消息的存放，代码如下:

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class Message
 {
   //类型
  public byte Type;
    //命令
  public int Command;
       //参数
  public object Content;
  public Message()
   {
   }
  public Message(byte type,int command,object content)
  {
    Type = type;
    Command = command;
    Content = content;
  }
  }
  //消息类型
public class MessageType
{
public static byte Type_Audio = 1;
  public static byte Type_UI = 2;
  public static int Audio_playSound = 100;
  public static int Audio_PlayMusic = 101;
  public static int Audio_StopMusic = 102;
  public static int Audio_ChangeVolume = 103;
  public static int UI_ShowPanel = 200;
  //增加分数
  public static int UI_AddScore = 201;
  public static int UI_ShowShop = 202;
  }

然后是MonoBase脚本 用于用于控制组件发送消息，代码如下:

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class MonoBase : MonoBehaviour
{
 //发送消息
 public void SendCustomMessage(Message msg)
 {
 MessageCenter.SendMessage(msg);
 }
 public void SendCustomMessage(byte type,int command,object content)
{
    MessageCenter.SendMessage(type ,command,content);
}
   //接收消息
 public virtual void  ReceiveMessage(Message message)
  {
  }
 }

然后是 消息中心，用于接收monobase传来的消息，并且向下发给管理层脚本，代码如下:

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class MessageCenter
{
  //管理类集合
   public static List<MonoBase> Managers = new List<MonoBase>();
      //发送消息
  public static void SendMessage(Message msg)
  {
    foreach (MonoBase mb in Managers)
     {
    mb.ReceiveMessage(msg);
     }
  }
 public static void SendMessage(byte type,int command,object content)
 {
  Message msg = new Message(type ,command,content);
  SendMessage(msg);
  }
  }

然后再是管理层用于接收MassageCenter传下的消息和向monobase 发送消息，代码如下:

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class ManagerBase<T> : MonoBase where T :MonoBase
{
public static T Instance;
//管理的消息接收者
public List<MonoBase> ReceiveList = new List<MonoBase>();
//当前管理类接收的消息类型
protected byte messageType;
protected virtual void Awake()
 {
Instance = this as T;
   //设置消息类型
messageType = SetMessageType();
   //将当前的管理类添加到消息中心列表中
MessageCenter.Managers.Add(this);
}
//必须实现，返回当前管理类的类型
protected virtual byte SetMessageType()
{
  return MessageType.Type_UI;
}
//注册消息监听
public void RegisterReceiver(MonoBase mb)
{
if (!ReceiveList.Contains(mb))
{
ReceiveList.Add(mb);
}
}
 //接收到了消息，并向下分发消息
public override void ReceiveMessage(Message message)
{
base.ReceiveMessage(message);
//如果接收的消息类型不匹配，则不向下分发消息
if (message.Type != messageType)
{
return;
}
foreach (MonoBase mb in ReceiveList)
{
 mb.ReceiveMessage(message);
 }
 }
 }

下面是对于代码的实际使用:
ScoreControl ：这个脚本的大概意思就是 接收UIManager中发出的消息，然后判断是不是自己要接收的，如果是就获得message中Content的内容。

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;
public class ScoreControl :MonoBase{
public Text text;
 private int score = 0;
void Start()    {
 //将当前类注册到UI管理类中，接收消息
 UIManager.Instance.RegisterReceiver(this);
 }
 public override void ReceiveMessage(Message message)
 {
  base.ReceiveMessage(message);
  if (message.Command== MessageType.UI_AddScore)
  {
   //添加分数
    int add = (int)message.Content;
    score += add;
    text.text = score + "";
     }
     }
 }

然后就是上面提到的UIManager脚本了，这个脚本的大概作用就是接收MessageCenter发出的消息
给予判断是不是自己管辖的Monobase的，代码如下:

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class UIManager : ManagerBase<UIManager>
{
 //设定接收的消息类型
  protected override byte SetMessageType()
  {
   return MessageType.Type_UI;
  }
  }

然后就是要触发的脚本，这里大概意思就是，当玩家碰到金币时，就发送个消息让相关UI来执行，代码如下:

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class CoinControl :MonoBase
{
private void OnTriggerEnter(Collider other)
{
if (other.tag =="Player")
 {
  //加分
   SendCustomMessage(MessageType.Type_UI,MessageType.UI_AddScore,1);
    Destroy(gameObject );
 }
}
}

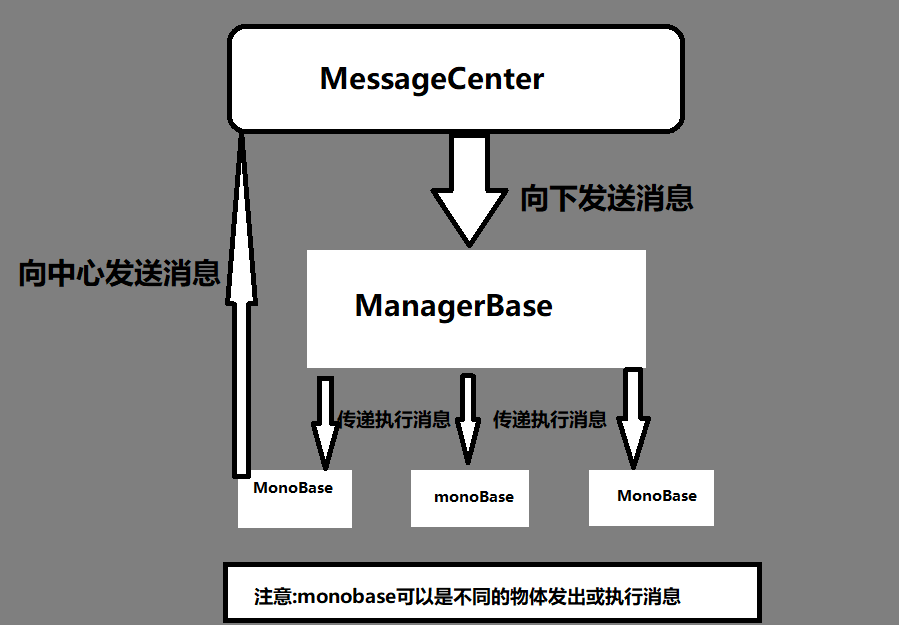

最后配上一副结构图，来方便理解:

好了，就写到这了！
