ISE中带有DDR3 的IP核，可以生成MIG，利用用户接口控制DDR3的读写，方便DDR3的使用，其自带的工程提供了例子以及仿真，但是其仿真程序比较复杂，可读性很差，不利用实际掌握DDR3的理解，因此在这里自己编写DDR的读写控制程序，实现DDR3的控制，便于掌握MIG的使用。

主要内容为：

利用ISE中的IP核工具产生DDR3MIG

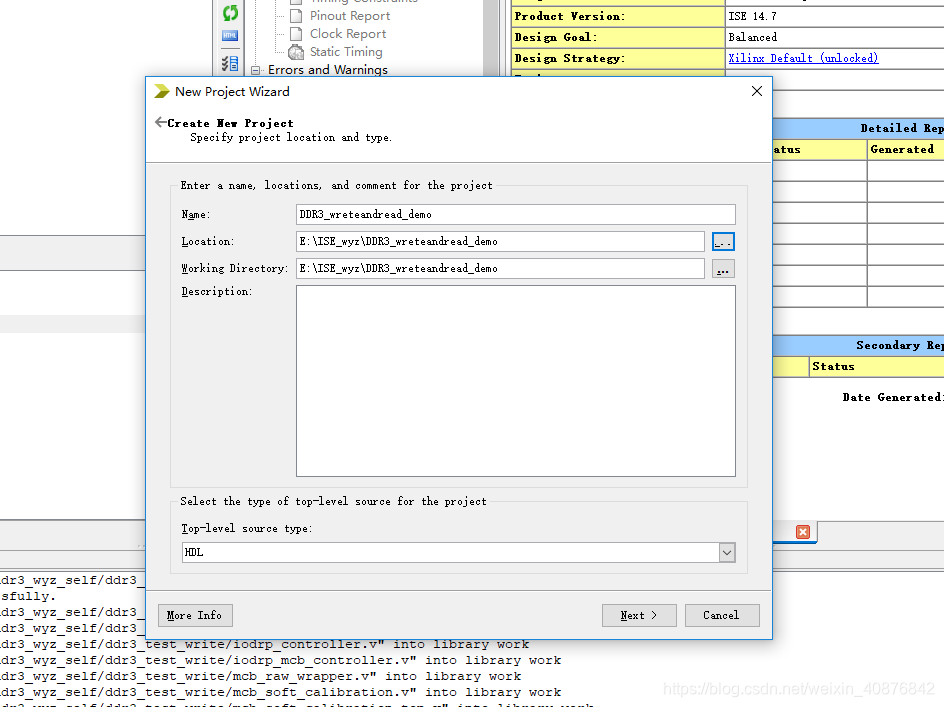

首先如下图所示，建立新的工程

由于有spatan6 开发板，因此工程参数设置如下：

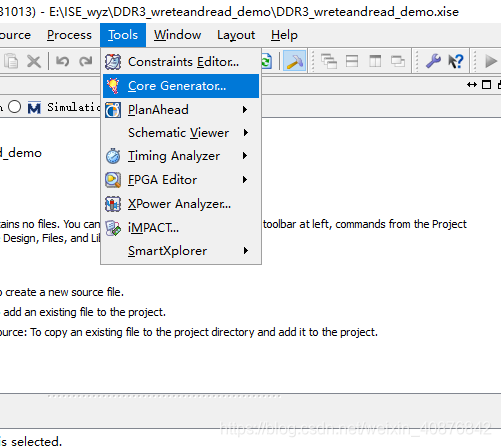

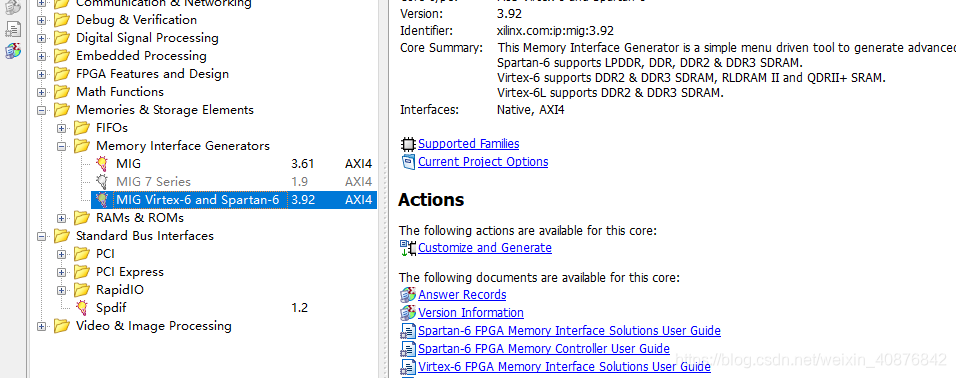

选择IP核产生工具

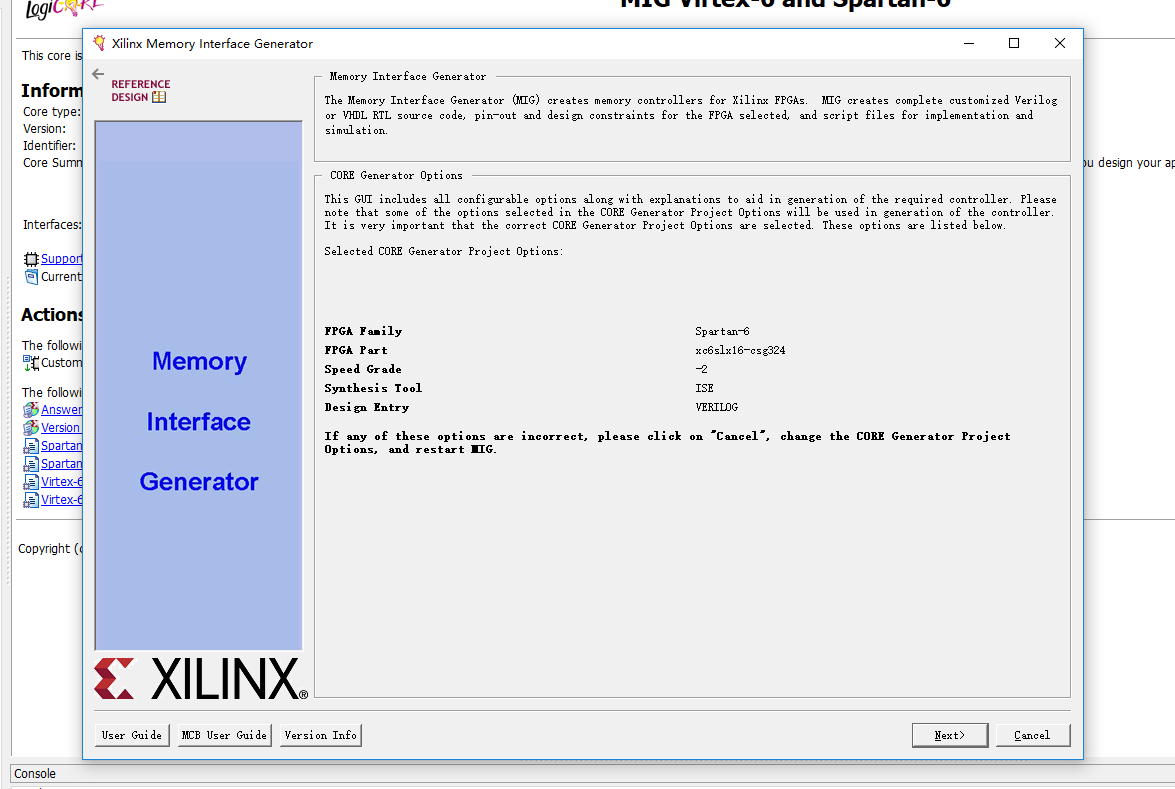

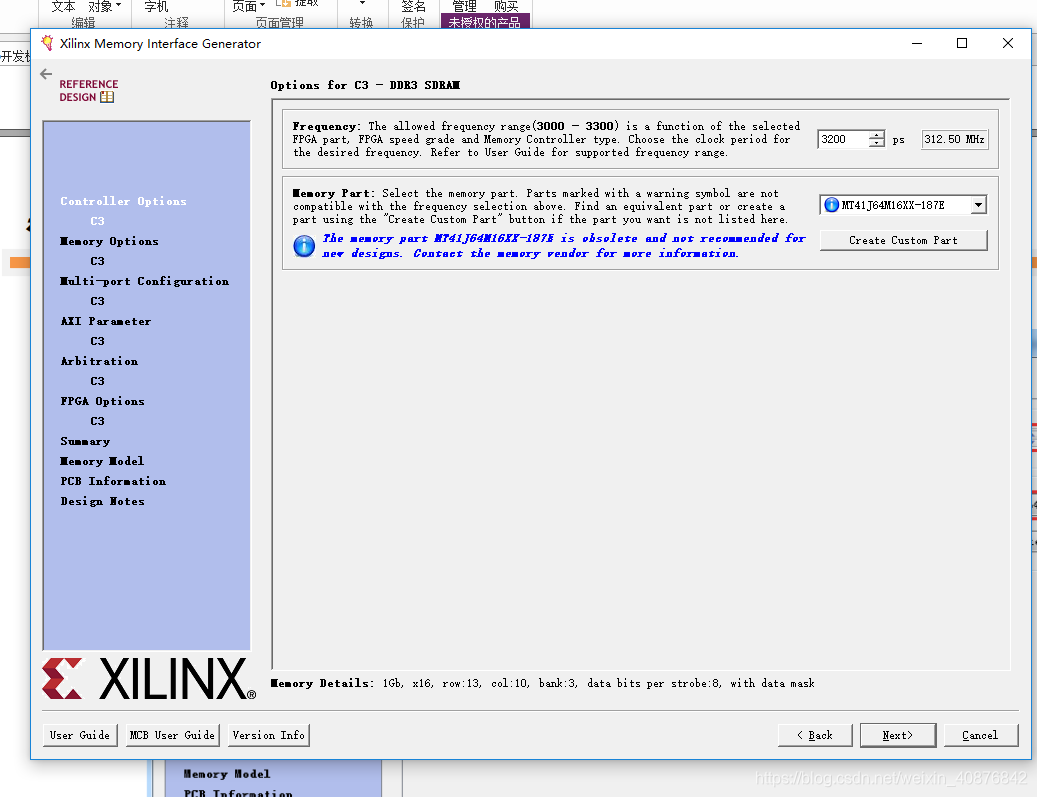

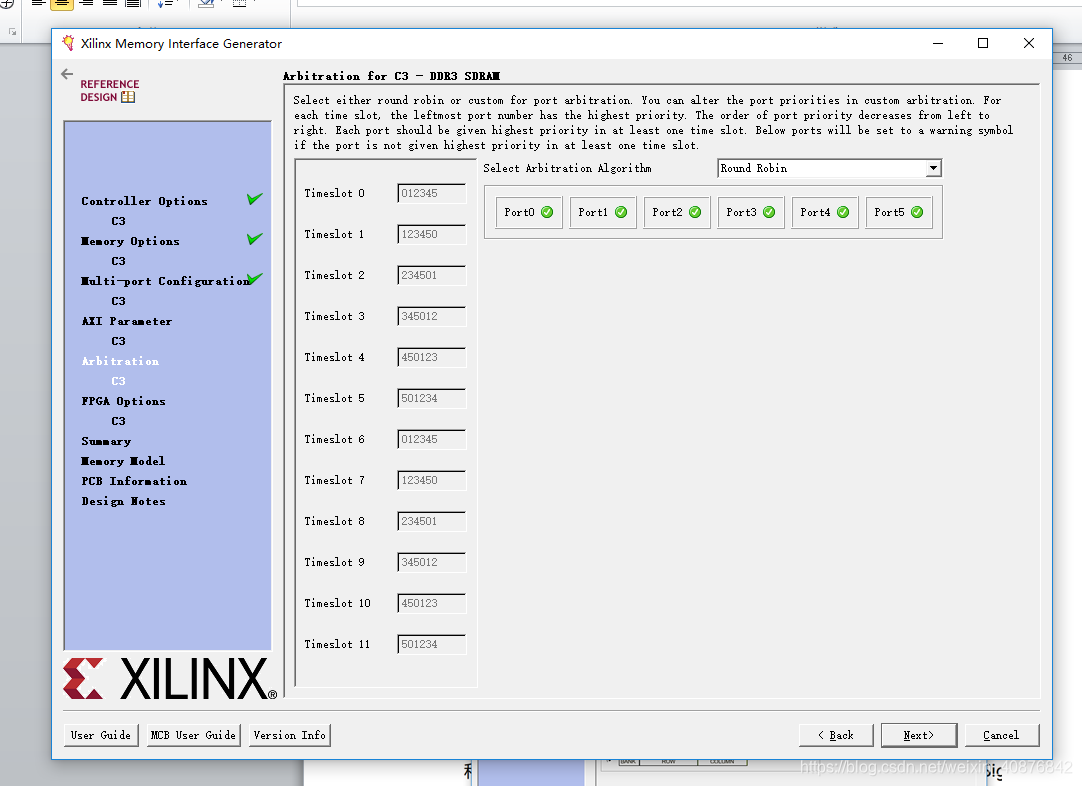

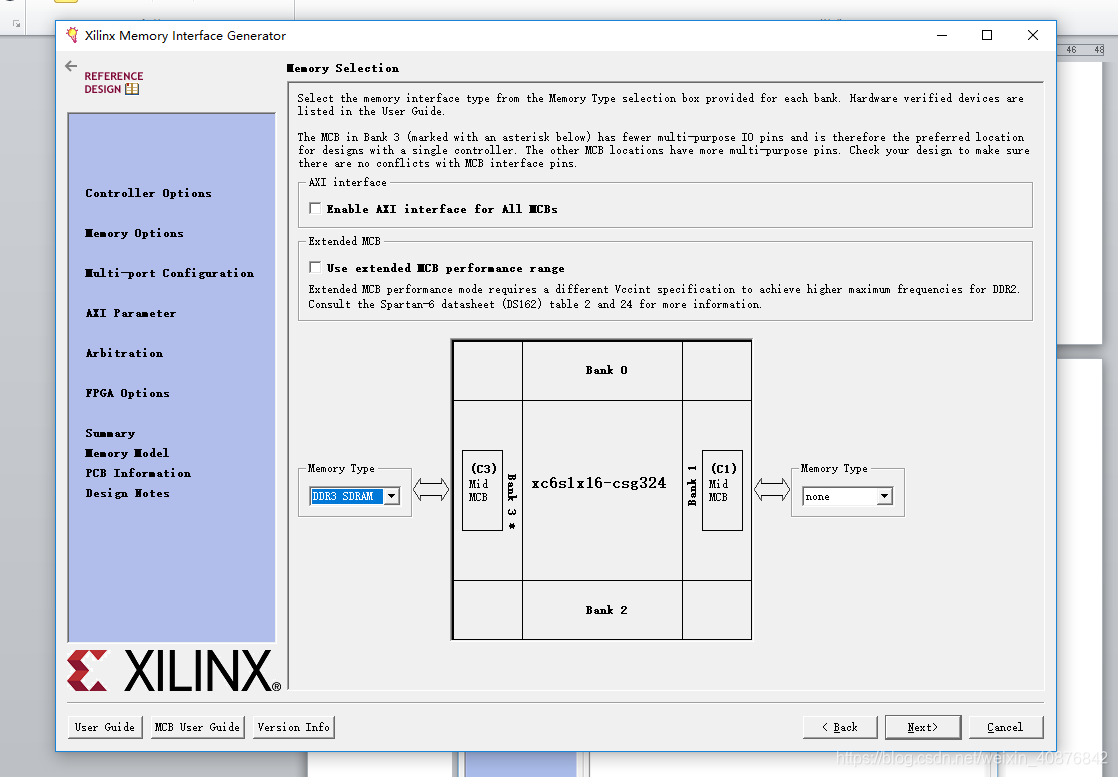

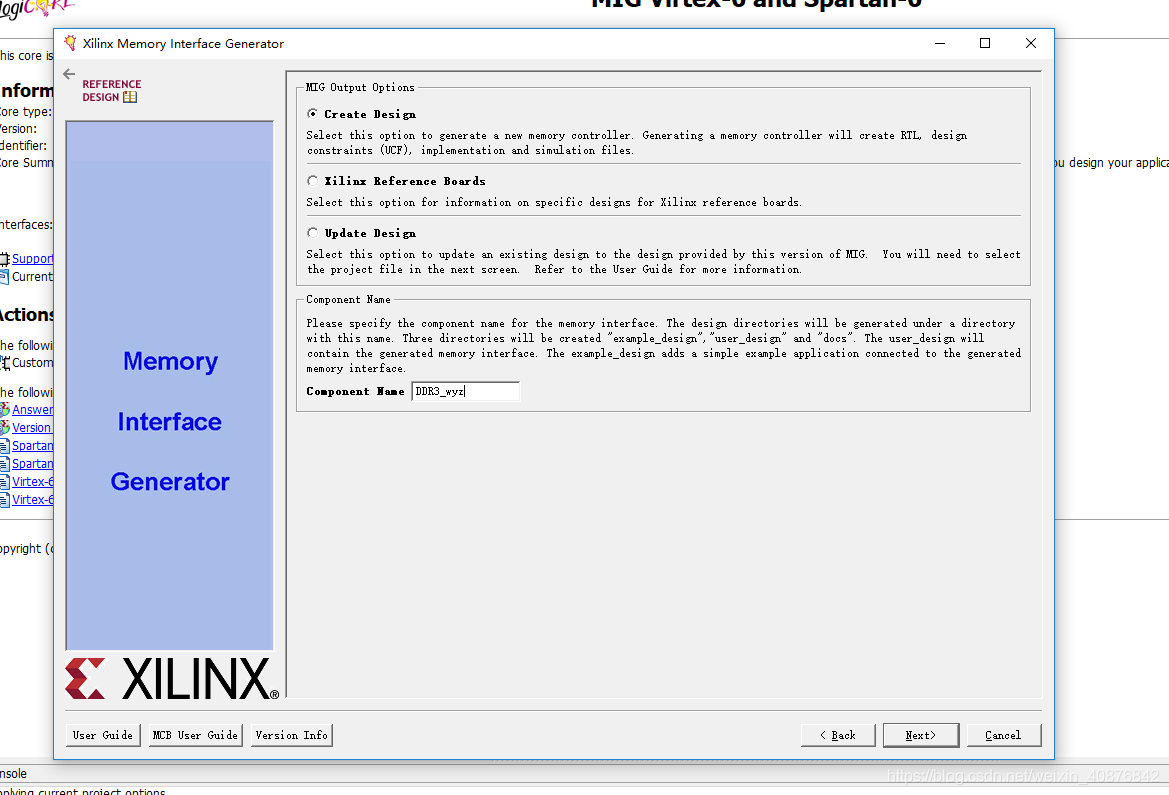

打开IP核产生工具之后，新建IP核工程，设置好参数之后，选择如下：

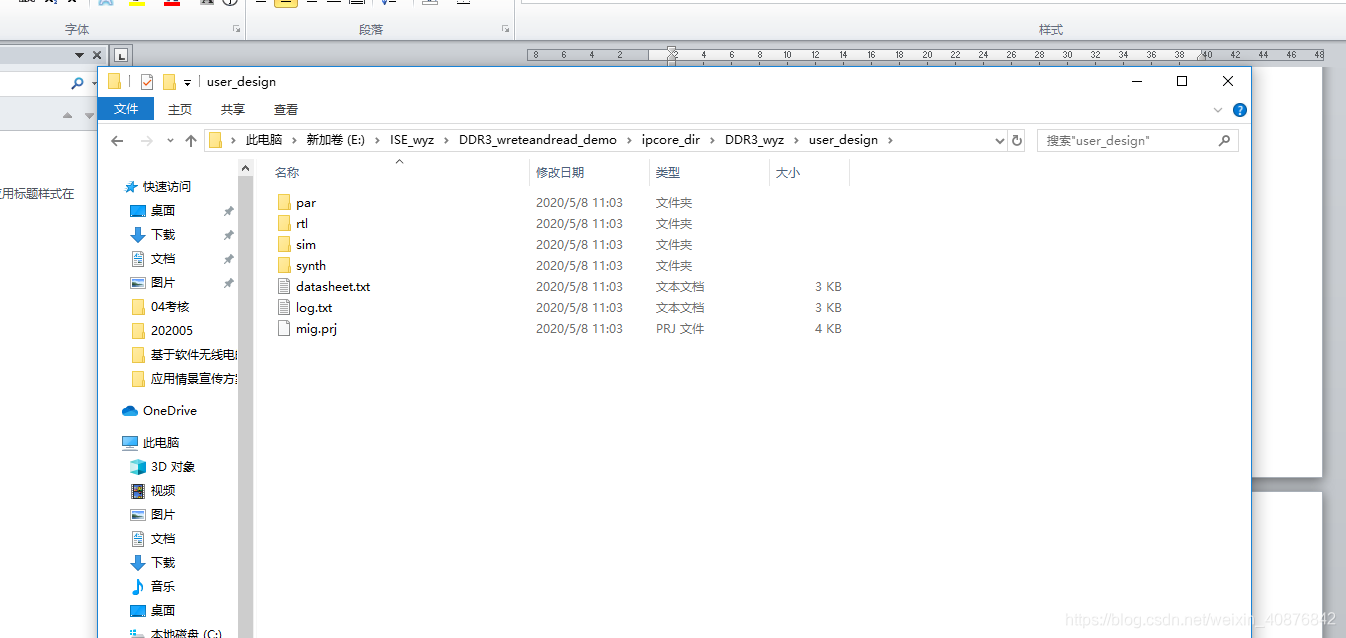

建立完成之后，关闭IP核工程。此时我们已经得到了利用IP核工具产生的IP核工程，在如下目录中

下面我们利用生成的代码，自己建立仿真工程对ddr3进行读写

仿真工程建立

用仿真分析DDR3的读写，需要有三个部分，DDR3存储单元仿真模型、MIG用户接口以及读写模块。

1. MIG接口文件

在本次仿真中MIG用户接口由IP核产生，将其导入到ISE工程即可如下图所示。由于改接口不但仿真中可以使用，在实际的工程中也可以使用，因此在immpitation中导入

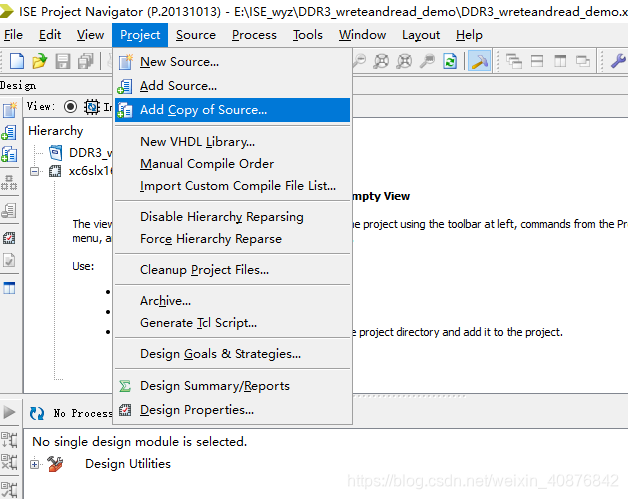

在之前的ISE工程当中，选择导入用户接口

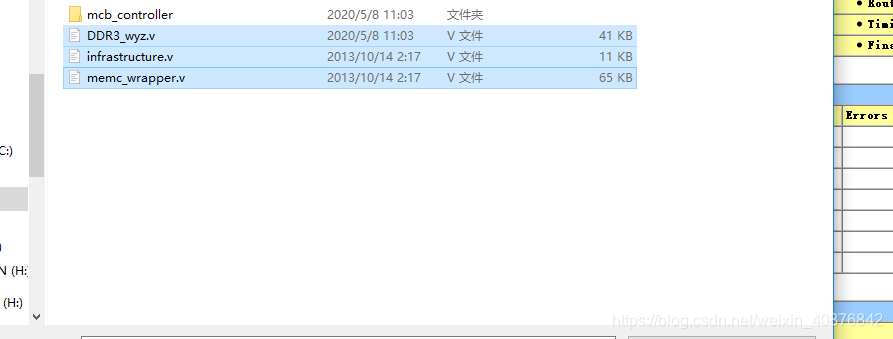

将该目录下的三个.v文件以及mcb_controller下面的文件导入ISE中的工程如下：

此时，DDR的用户接口以及完成导入。

1. DDR3 存储器模型文件

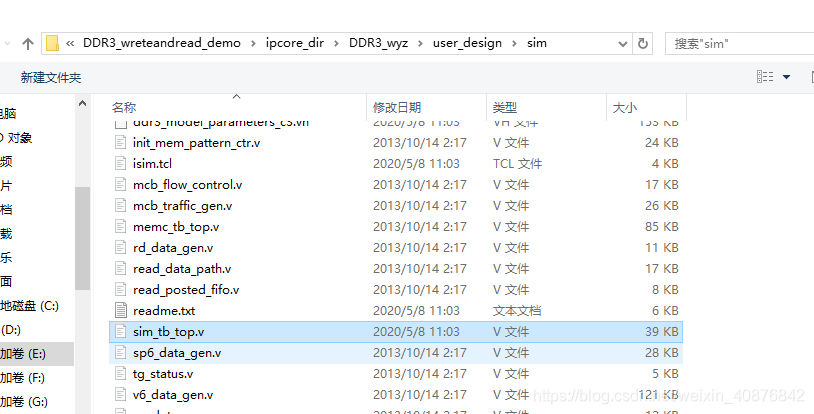

该文件也已经产生，在sim 目录下，将下图的两个文件导入即可。该文件仅仅供仿真使用，因此在sim中导入两个文件

1. DDR用户接口读写文件

`timescale 1ps/1ps

// Company:

// Engineer:

// Create Date: 10:00:35 04/26/2020

// Design Name:

// Module Name: ddr3_drive

// Project Name:

// Target Devices:

// Tool versions:

// Description:

// Dependencies:

// Revision:

// Revision 0.01 - File Created

// Additional Comments:

module ddr3_drive(

//system signal

input s_clk ,

input s_rst_n ,

//DDR3 User Interface

output wire p0_cmd_en ,

output wire [2:0] p0_cmd_instr ,

output wire[5:0] p0_cmd_bl ,

output wire [29:0] p0_cmd_addr ,

output reg p0_wr_en ,

output wire [7:0] p0_wr_mask ,

output reg [63:0] p0_wr_data ,

//Debug

input wr_trig

);

//========================================================================\

// =========== Define Parameter and Internal signals ===========

//========================================================================/

reg p0_wr_en_r1 ; //用于捕获wr_en的下降沿

//=============================================================================

//************** Main Code **************

//=============================================================================

always @(posedge s_clk or negedge s_rst_n) begin

if(s_rst_n == 1'b0)

p0_wr_en <= 'd0;

else if(p0_wr_data >= 'd15)

p0_wr_en <= 'd0;

else if(wr_trig == 1'b1)

p0_wr_en <= 1'b1;

end

always @(posedge s_clk or negedge s_rst_n) begin

if(s_rst_n == 1'b0)

p0_wr_data <= 'd0;

else if(p0_wr_en == 1'b1)

p0_wr_data <= p0_wr_data + 1'b1;

end

always @(posedge s_clk) begin

p0_wr_en_r1 <= p0_wr_en;

end

assign p0_cmd_en = ~p0_wr_en & p0_wr_en_r1;

assign p0_cmd_instr = 3'b000;//write 命令

assign p0_cmd_bl = 'd15; //突发长度

assign p0_cmd_addr = 29'b00000000000000000000001100000; //32位port 地址的后4位为0，表示内存中第几个32位的存储结构

assign p0_wr_mask = 8'b0;

endmodule

1. 顶层仿真文件

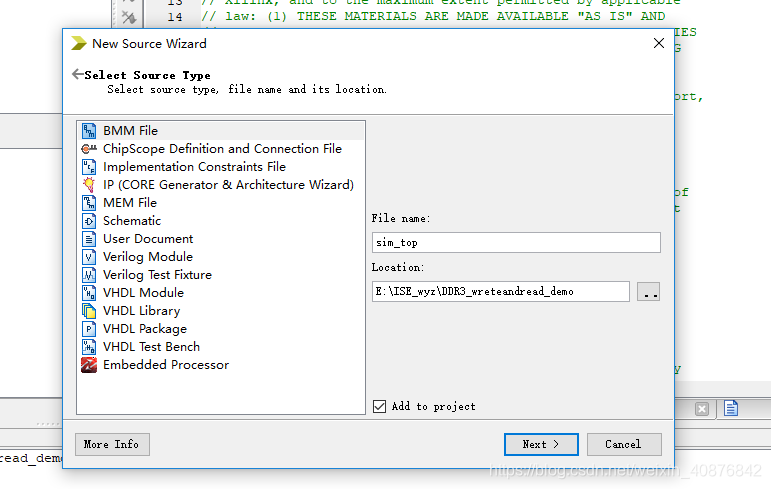

建立顶层仿真文件，如下图

1. 1. 仿真参数设置

建立之后，首先设置DDR3的仿真参数，该部分参数可以从IP核自带的仿真文件中拷贝，如下图

// ========================================================================== //

// Parameters //

// ========================================================================== //

parameter DEBUG_EN = 0;

localparam DBG_WR_STS_WIDTH = 32;

localparam DBG_RD_STS_WIDTH = 32;

localparam C3_P0_PORT_MODE = "BI_MODE";

localparam C3_P1_PORT_MODE = "BI_MODE";

localparam C3_P2_PORT_MODE = "RD_MODE";

localparam C3_P3_PORT_MODE = "RD_MODE";

localparam C3_P4_PORT_MODE = "RD_MODE";

localparam C3_P5_PORT_MODE = "RD_MODE";

localparam C3_PORT_ENABLE = 6'b111111;

localparam C3_PORT_CONFIG = "B32_B32_R32_R32_R32_R32";

parameter C3_MEMCLK_PERIOD = 3200;

parameter C3_RST_ACT_LOW = 0;

parameter C3_INPUT_CLK_TYPE = "SINGLE_ENDED";

parameter C3_NUM_DQ_PINS = 16;

parameter C3_MEM_ADDR_WIDTH = 13;

parameter C3_MEM_BANKADDR_WIDTH = 3;

parameter C3_MEM_ADDR_ORDER = "BANK_ROW_COLUMN";

parameter C3_P0_MASK_SIZE = 4;

parameter C3_P0_DATA_PORT_SIZE = 32;

parameter C3_P1_MASK_SIZE = 4;

parameter C3_P1_DATA_PORT_SIZE = 32;

parameter C3_MEM_BURST_LEN = 8;

parameter C3_MEM_NUM_COL_BITS = 10;

parameter C3_CALIB_SOFT_IP = "TRUE";

parameter C3_SIMULATION = "TRUE";

parameter C3_HW_TESTING = "FALSE";

parameter C3_SMALL_DEVICE = "FALSE";

localparam C3_p0_BEGIN_ADDRESS = (C3_HW_TESTING == "TRUE") ? 32'h01000000:32'h00000100;

localparam C3_p0_DATA_MODE = 4'b0010;

localparam C3_p0_END_ADDRESS = (C3_HW_TESTING == "TRUE") ? 32'h02ffffff:32'h000002ff;

localparam C3_p0_PRBS_EADDR_MASK_POS = (C3_HW_TESTING == "TRUE") ? 32'hfc000000:32'hfffffc00;

localparam C3_p0_PRBS_SADDR_MASK_POS = (C3_HW_TESTING == "TRUE") ? 32'h01000000:32'h00000100;

localparam C3_p1_BEGIN_ADDRESS = (C3_HW_TESTING == "TRUE") ? 32'h03000000:32'h00000300;

localparam C3_p1_DATA_MODE = 4'b0010;

localparam C3_p1_END_ADDRESS = (C3_HW_TESTING == "TRUE") ? 32'h04ffffff:32'h000004ff;

localparam C3_p1_PRBS_EADDR_MASK_POS = (C3_HW_TESTING == "TRUE") ? 32'hf8000000:32'hfffff800;

localparam C3_p1_PRBS_SADDR_MASK_POS = (C3_HW_TESTING == "TRUE") ? 32'h03000000:32'h00000300;

localparam C3_p2_BEGIN_ADDRESS = (C3_HW_TESTING == "TRUE") ? 32'h01000000:32'h00000100;

localparam C3_p2_DATA_MODE = 4'b0010;

localparam C3_p2_END_ADDRESS = (C3_HW_TESTING == "TRUE") ? 32'h02ffffff:32'h000002ff;

localparam C3_p2_PRBS_EADDR_MASK_POS = (C3_HW_TESTING == "TRUE") ? 32'hfc000000:32'hfffffc00;

localparam C3_p2_PRBS_SADDR_MASK_POS = (C3_HW_TESTING == "TRUE") ? 32'h01000000:32'h00000100;

localparam C3_p3_BEGIN_ADDRESS = (C3_HW_TESTING == "TRUE") ? 32'h01000000:32'h00000100;

localparam C3_p3_DATA_MODE = 4'b0010;

localparam C3_p3_END_ADDRESS = (C3_HW_TESTING == "TRUE") ? 32'h02ffffff:32'h000002ff;

localparam C3_p3_PRBS_EADDR_MASK_POS = (C3_HW_TESTING == "TRUE") ? 32'hfc000000:32'hfffffc00;

localparam C3_p3_PRBS_SADDR_MASK_POS = (C3_HW_TESTING == "TRUE") ? 32'h01000000:32'h00000100;

localparam C3_p4_BEGIN_ADDRESS = (C3_HW_TESTING == "TRUE") ? 32'h01000000:32'h00000100;

localparam C3_p4_DATA_MODE = 4'b0010;

localparam C3_p4_END_ADDRESS = (C3_HW_TESTING == "TRUE") ? 32'h02ffffff:32'h000002ff;

localparam C3_p4_PRBS_EADDR_MASK_POS = (C3_HW_TESTING == "TRUE") ? 32'hfc000000:32'hfffffc00;

localparam C3_p4_PRBS_SADDR_MASK_POS = (C3_HW_TESTING == "TRUE") ? 32'h01000000:32'h00000100;

localparam C3_p5_BEGIN_ADDRESS = (C3_HW_TESTING == "TRUE") ? 32'h01000000:32'h00000100;

localparam C3_p5_DATA_MODE = 4'b0010;

localparam C3_p5_END_ADDRESS = (C3_HW_TESTING == "TRUE") ? 32'h02ffffff:32'h000002ff;

localparam C3_p5_PRBS_EADDR_MASK_POS = (C3_HW_TESTING == "TRUE") ? 32'hfc000000:32'hfffffc00;

localparam C3_p5_PRBS_SADDR_MASK_POS = (C3_HW_TESTING == "TRUE") ? 32'h01000000:32'h00000100;

// ========================================================================== //

// Signal Declarations //

// ========================================================================== //

// Clocks

reg c3_sys_clk;

wire c3_sys_clk_p;

wire c3_sys_clk_n;

// System Reset

reg c3_sys_rst;

wire c3_sys_rst_i;

// Design-Top Port Map

wire c3_error;

wire c3_calib_done;

wire [31:0] c3_cmp_data;

wire c3_cmp_error;

wire [C3_MEM_ADDR_WIDTH-1:0] mcb3_dram_a;

wire [C3_MEM_BANKADDR_WIDTH-1:0] mcb3_dram_ba;

wire mcb3_dram_ck;

wire mcb3_dram_ck_n;

wire [C3_NUM_DQ_PINS-1:0] mcb3_dram_dq;

wire mcb3_dram_dqs;

wire mcb3_dram_dqs_n;

wire mcb3_dram_dm;

wire mcb3_dram_ras_n;

wire mcb3_dram_cas_n;

wire mcb3_dram_we_n;

wire mcb3_dram_cke;

wire mcb3_dram_odt;

wire mcb3_dram_reset_n;

wire [64 + (2*C3_P0_DATA_PORT_SIZE - 1):0] c3_p0_error_status;

wire [64 + (2*C3_P1_DATA_PORT_SIZE - 1):0] c3_p1_error_status;

wire [127 : 0] c3_p2_error_status;

wire [127 : 0] c3_p3_error_status;

wire [127 : 0] c3_p4_error_status;

wire [127 : 0] c3_p5_error_status;

wire mcb3_dram_udqs; // for X16 parts

wire mcb3_dram_udqs_n; // for X16 parts

wire mcb3_dram_udm; // for X16 parts

wire c3_vio_modify_enable = 1'b1;

wire [2:0] c3_vio_data_mode_value = 3'b010;

wire [2:0] c3_vio_addr_mode_value = 3'b011;

// User design Sim

wire c3_clk0;

wire c3_rst0;

reg c3_aresetn;

wire c3_wrap_en;

wire c3_cmd_err;

wire c3_data_msmatch_err;

wire c3_write_err;

wire c3_read_err;

wire c3_test_cmptd;

wire c3_dbg_wr_sts_vld;

wire c3_dbg_rd_sts_vld;

wire [DBG_WR_STS_WIDTH-1:0] c3_dbg_wr_sts;

wire [DBG_WR_STS_WIDTH-1:0] c3_dbg_rd_sts;

wire c3_p0_cmd_en;

wire [2:0] c3_p0_cmd_instr;

wire [5:0] c3_p0_cmd_bl;

wire [29:0] c3_p0_cmd_byte_addr;

wire c3_p0_cmd_empty;

wire c3_p0_cmd_full;

wire c3_p0_wr_en;

wire [C3_P0_MASK_SIZE - 1:0] c3_p0_wr_mask;

wire [C3_P0_DATA_PORT_SIZE - 1:0] c3_p0_wr_data;

wire c3_p0_wr_full;

wire c3_p0_wr_empty;

wire [6:0] c3_p0_wr_count;

wire c3_p0_wr_underrun;

wire c3_p0_wr_error;

wire c3_p0_rd_en;

wire [C3_P0_DATA_PORT_SIZE - 1:0] c3_p0_rd_data;

wire c3_p0_rd_full;

wire c3_p0_rd_empty;

wire [6:0] c3_p0_rd_count;

wire c3_p0_rd_overflow;

wire c3_p0_rd_error;

wire c3_p1_cmd_en;

wire [2:0] c3_p1_cmd_instr;

wire [5:0] c3_p1_cmd_bl;

wire [29:0] c3_p1_cmd_byte_addr;

wire c3_p1_cmd_empty;

wire c3_p1_cmd_full;

wire c3_p1_wr_en;

wire [C3_P1_MASK_SIZE - 1:0] c3_p1_wr_mask;

wire [C3_P1_DATA_PORT_SIZE - 1:0] c3_p1_wr_data;

wire c3_p1_wr_full;

wire c3_p1_wr_empty;

wire [6:0] c3_p1_wr_count;

wire c3_p1_wr_underrun;

wire c3_p1_wr_error;

wire c3_p1_rd_en;

wire [C3_P1_DATA_PORT_SIZE - 1:0] c3_p1_rd_data;

wire c3_p1_rd_full;

wire c3_p1_rd_empty;

wire [6:0] c3_p1_rd_count;

wire c3_p1_rd_overflow;

wire c3_p1_rd_error;

wire c3_p2_cmd_en;

wire [2:0] c3_p2_cmd_instr;

wire [5:0] c3_p2_cmd_bl;

wire [29:0] c3_p2_cmd_byte_addr;

wire c3_p2_cmd_empty;

wire c3_p2_cmd_full;

wire c3_p2_rd_en;

wire [31:0] c3_p2_rd_data;

wire c3_p2_rd_full;

wire c3_p2_rd_empty;

wire [6:0] c3_p2_rd_count;

wire c3_p2_rd_overflow;

wire c3_p2_rd_error;

wire c3_p3_cmd_en;

wire [2:0] c3_p3_cmd_instr;

wire [5:0] c3_p3_cmd_bl;

wire [29:0] c3_p3_cmd_byte_addr;

wire c3_p3_cmd_empty;

wire c3_p3_cmd_full;

wire c3_p3_rd_en;

wire [31:0] c3_p3_rd_data;

wire c3_p3_rd_full;

wire c3_p3_rd_empty;

wire [6:0] c3_p3_rd_count;

wire c3_p3_rd_overflow;

wire c3_p3_rd_error;

wire c3_p4_cmd_en;

wire [2:0] c3_p4_cmd_instr;

wire [5:0] c3_p4_cmd_bl;

wire [29:0] c3_p4_cmd_byte_addr;

wire c3_p4_cmd_empty;

wire c3_p4_cmd_full;

wire c3_p4_rd_en;

wire [31:0] c3_p4_rd_data;

wire c3_p4_rd_full;

wire c3_p4_rd_empty;

wire [6:0] c3_p4_rd_count;

wire c3_p4_rd_overflow;

wire c3_p4_rd_error;

wire c3_p5_cmd_en;

wire [2:0] c3_p5_cmd_instr;

wire [5:0] c3_p5_cmd_bl;

wire [29:0] c3_p5_cmd_byte_addr;

wire c3_p5_cmd_empty;

wire c3_p5_cmd_full;

wire c3_p5_rd_en;

wire [31:0] c3_p5_rd_data;

wire c3_p5_rd_full;

wire c3_p5_rd_empty;

wire [6:0] c3_p5_rd_count;

wire c3_p5_rd_overflow;

wire c3_p5_rd_error;

wire c3_p2_wr_clk;

wire c3_p2_wr_en;

wire[3:0] c3_p2_wr_mask;

wire[31:0] c3_p2_wr_data;

wire c3_p2_wr_full;

wire c3_p2_wr_empty;

wire[6:0] c3_p2_wr_count;

wire c3_p2_wr_underrun;

wire c3_p2_wr_error;

wire c3_p3_wr_clk;

wire c3_p3_wr_en;

wire[3:0] c3_p3_wr_mask;

wire[31:0] c3_p3_wr_data;

wire c3_p3_wr_full;

wire c3_p3_wr_empty;

wire[6:0] c3_p3_wr_count;

wire c3_p3_wr_underrun;

wire c3_p3_wr_error;

wire c3_p4_wr_clk;

wire c3_p4_wr_en;

wire[3:0] c3_p4_wr_mask;

wire[31:0] c3_p4_wr_data;

wire c3_p4_wr_full;

wire c3_p4_wr_empty;

wire[6:0] c3_p4_wr_count;

wire c3_p4_wr_underrun;

wire c3_p4_wr_error;

wire c3_p5_wr_clk;

wire c3_p5_wr_en;

wire[3:0] c3_p5_wr_mask;

wire[31:0] c3_p5_wr_data;

wire c3_p5_wr_full;

wire c3_p5_wr_empty;

wire[6:0] c3_p5_wr_count;

wire c3_p5_wr_underrun;

wire c3_p5_wr_error;

// Error & Calib Signals

wire error;

wire calib_done;

wire rzq3; wire zio3;

// ========================================================================== //

// Clocks Generation //

// ========================================================================== //

initial

c3_sys_clk = 1'b0;

always

#(C3_MEMCLK_PERIOD/2) c3_sys_clk = ~c3_sys_clk;

assign c3_sys_clk_p = c3_sys_clk;

assign c3_sys_clk_n = ~c3_sys_clk;

// ========================================================================== //

// Reset Generation //

// ========================================================================== //

initial begin

c3_sys_rst = 1'b0;

#20000;

c3_sys_rst = 1'b1;

end

assign c3_sys_rst_i = C3_RST_ACT_LOW ? c3_sys_rst : ~c3_sys_rst;

// ========================================================================== //

// Error Grouping //

// ========================================================================== //

assign error = c3_error;

assign calib_done = c3_calib_done;

// The PULLDOWN component is connected to the ZIO signal primarily to avoid the

// unknown state in simulation. In real hardware, ZIO should be a no connect(NC) pin.

PULLDOWN zio_pulldown3 (.O(zio3)); PULLDOWN rzq_pulldown3 (.O(rzq3));

// ========================================================================== //

// DESIGN TOP INSTANTIATION //

// ========================================================================== //

1. 1. 用户接口例化（DDR3_wyz）

DDR3_wyz #(

.C3_P0_MASK_SIZE (C3_P0_MASK_SIZE ),

.C3_P0_DATA_PORT_SIZE (C3_P0_DATA_PORT_SIZE ),

.C3_P1_MASK_SIZE (C3_P1_MASK_SIZE ),

.C3_P1_DATA_PORT_SIZE (C3_P1_DATA_PORT_SIZE ),

.C3_MEMCLK_PERIOD (C3_MEMCLK_PERIOD),

.C3_RST_ACT_LOW (C3_RST_ACT_LOW),

.C3_INPUT_CLK_TYPE (C3_INPUT_CLK_TYPE),

.DEBUG_EN (DEBUG_EN),

.C3_MEM_ADDR_ORDER (C3_MEM_ADDR_ORDER ),

.C3_NUM_DQ_PINS (C3_NUM_DQ_PINS ),

.C3_MEM_ADDR_WIDTH (C3_MEM_ADDR_WIDTH ),

.C3_MEM_BANKADDR_WIDTH (C3_MEM_BANKADDR_WIDTH),

.C3_SIMULATION (C3_SIMULATION),

.C3_CALIB_SOFT_IP (C3_CALIB_SOFT_IP )

)

design_top (

.c3_sys_clk (c3_sys_clk),

.c3_sys_rst_i (c3_sys_rst_i),

.mcb3_dram_dq (mcb3_dram_dq),

.mcb3_dram_a (mcb3_dram_a),

.mcb3_dram_ba (mcb3_dram_ba),

.mcb3_dram_ras_n (mcb3_dram_ras_n),

.mcb3_dram_cas_n (mcb3_dram_cas_n),

.mcb3_dram_we_n (mcb3_dram_we_n),

.mcb3_dram_odt (mcb3_dram_odt),

.mcb3_dram_cke (mcb3_dram_cke),

.mcb3_dram_ck (mcb3_dram_ck),

.mcb3_dram_ck_n (mcb3_dram_ck_n),

.mcb3_dram_dqs (mcb3_dram_dqs),

.mcb3_dram_dqs_n (mcb3_dram_dqs_n),

.mcb3_dram_udqs (mcb3_dram_udqs), // for X16 parts

.mcb3_dram_udqs_n (mcb3_dram_udqs_n), // for X16 parts

.mcb3_dram_udm (mcb3_dram_udm), // for X16 parts

.mcb3_dram_dm (mcb3_dram_dm),

.mcb3_dram_reset_n (mcb3_dram_reset_n),

.c3_clk0 (c3_clk0),

.c3_rst0 (c3_rst0),

.c3_calib_done (c3_calib_done),

.mcb3_rzq (rzq3),

.mcb3_zio (zio3),

.c3_p0_cmd_clk (c3_clk0),

.c3_p0_cmd_en (c3_p0_cmd_en),

.c3_p0_cmd_instr (c3_p0_cmd_instr),

.c3_p0_cmd_bl (c3_p0_cmd_bl),

.c3_p0_cmd_byte_addr (c3_p0_cmd_byte_addr),

.c3_p0_cmd_empty (c3_p0_cmd_empty),

.c3_p0_cmd_full (c3_p0_cmd_full),

.c3_p0_wr_clk (c3_clk0),

.c3_p0_wr_en (c3_p0_wr_en),

.c3_p0_wr_mask (c3_p0_wr_mask),

.c3_p0_wr_data (c3_p0_wr_data),

.c3_p0_wr_full (c3_p0_wr_full),

.c3_p0_wr_empty (c3_p0_wr_empty),

.c3_p0_wr_count (c3_p0_wr_count),

.c3_p0_wr_underrun (c3_p0_wr_underrun),

.c3_p0_wr_error (c3_p0_wr_error),

.c3_p0_rd_clk (c3_clk0),

.c3_p0_rd_en (c3_p0_rd_en),

.c3_p0_rd_data (c3_p0_rd_data),

.c3_p0_rd_full (c3_p0_rd_full),

.c3_p0_rd_empty (c3_p0_rd_empty),

.c3_p0_rd_count (c3_p0_rd_count),

.c3_p0_rd_overflow (c3_p0_rd_overflow),

.c3_p0_rd_error (c3_p0_rd_error),

.c3_p1_cmd_clk (c3_clk0),

.c3_p1_cmd_en (c3_p1_cmd_en),

.c3_p1_cmd_instr (c3_p1_cmd_instr),

.c3_p1_cmd_bl (c3_p1_cmd_bl),

.c3_p1_cmd_byte_addr (c3_p1_cmd_byte_addr),

.c3_p1_cmd_empty (c3_p1_cmd_empty),

.c3_p1_cmd_full (c3_p1_cmd_full),

.c3_p1_wr_clk (c3_clk0),

.c3_p1_wr_en (c3_p1_wr_en),

.c3_p1_wr_mask (c3_p1_wr_mask),

.c3_p1_wr_data (c3_p1_wr_data),

.c3_p1_wr_full (c3_p1_wr_full),

.c3_p1_wr_empty (c3_p1_wr_empty),

.c3_p1_wr_count (c3_p1_wr_count),

.c3_p1_wr_underrun (c3_p1_wr_underrun),

.c3_p1_wr_error (c3_p1_wr_error),

.c3_p1_rd_clk (c3_clk0),

.c3_p1_rd_en (c3_p1_rd_en),

.c3_p1_rd_data (c3_p1_rd_data),

.c3_p1_rd_full (c3_p1_rd_full),

.c3_p1_rd_empty (c3_p1_rd_empty),

.c3_p1_rd_count (c3_p1_rd_count),

.c3_p1_rd_overflow (c3_p1_rd_overflow),

.c3_p1_rd_error (c3_p1_rd_error),

.c3_p2_cmd_clk (c3_clk0),

.c3_p2_cmd_en (c3_p2_cmd_en),

.c3_p2_cmd_instr (c3_p2_cmd_instr),

.c3_p2_cmd_bl (c3_p2_cmd_bl),

.c3_p2_cmd_byte_addr (c3_p2_cmd_byte_addr),

.c3_p2_cmd_empty (c3_p2_cmd_empty),

.c3_p2_cmd_full (c3_p2_cmd_full),

.c3_p2_rd_clk (c3_clk0),

.c3_p2_rd_en (c3_p2_rd_en),

.c3_p2_rd_data (c3_p2_rd_data),

.c3_p2_rd_full (c3_p2_rd_full),

.c3_p2_rd_empty (c3_p2_rd_empty),

.c3_p2_rd_count (c3_p2_rd_count),

.c3_p2_rd_overflow (c3_p2_rd_overflow),

.c3_p2_rd_error (c3_p2_rd_error),

.c3_p3_cmd_clk (c3_clk0),

.c3_p3_cmd_en (c3_p3_cmd_en),

.c3_p3_cmd_instr (c3_p3_cmd_instr),

.c3_p3_cmd_bl (c3_p3_cmd_bl),

.c3_p3_cmd_byte_addr (c3_p3_cmd_byte_addr),

.c3_p3_cmd_empty (c3_p3_cmd_empty),

.c3_p3_cmd_full (c3_p3_cmd_full),

.c3_p3_rd_clk (c3_clk0),

.c3_p3_rd_en (c3_p3_rd_en),

.c3_p3_rd_data (c3_p3_rd_data),

.c3_p3_rd_full (c3_p3_rd_full),

.c3_p3_rd_empty (c3_p3_rd_empty),

.c3_p3_rd_count (c3_p3_rd_count),

.c3_p3_rd_overflow (c3_p3_rd_overflow),

.c3_p3_rd_error (c3_p3_rd_error),

.c3_p4_cmd_clk (c3_clk0),

.c3_p4_cmd_en (c3_p4_cmd_en),

.c3_p4_cmd_instr (c3_p4_cmd_instr),

.c3_p4_cmd_bl (c3_p4_cmd_bl),

.c3_p4_cmd_byte_addr (c3_p4_cmd_byte_addr),

.c3_p4_cmd_empty (c3_p4_cmd_empty),

.c3_p4_cmd_full (c3_p4_cmd_full),

.c3_p4_rd_clk (c3_clk0),

.c3_p4_rd_en (c3_p4_rd_en),

.c3_p4_rd_data (c3_p4_rd_data),

.c3_p4_rd_full (c3_p4_rd_full),

.c3_p4_rd_empty (c3_p4_rd_empty),

.c3_p4_rd_count (c3_p4_rd_count),

.c3_p4_rd_overflow (c3_p4_rd_overflow),

.c3_p4_rd_error (c3_p4_rd_error),

.c3_p5_cmd_clk (c3_clk0),

.c3_p5_cmd_en (c3_p5_cmd_en),

.c3_p5_cmd_instr (c3_p5_cmd_instr),

.c3_p5_cmd_bl (c3_p5_cmd_bl),

.c3_p5_cmd_byte_addr (c3_p5_cmd_byte_addr),

.c3_p5_cmd_empty (c3_p5_cmd_empty),

.c3_p5_cmd_full (c3_p5_cmd_full),

.c3_p5_rd_clk (c3_clk0),

.c3_p5_rd_en (c3_p5_rd_en),

.c3_p5_rd_data (c3_p5_rd_data),

.c3_p5_rd_full (c3_p5_rd_full),

.c3_p5_rd_empty (c3_p5_rd_empty),

.c3_p5_rd_count (c3_p5_rd_count),

.c3_p5_rd_overflow (c3_p5_rd_overflow),

.c3_p5_rd_error (c3_p5_rd_error)

);

1. 1. DDR3读写模块例化（DDR3_writeandread）

ddr3_writeandread ddr3_drive_inst(

.s_clk (c3_clk0),

.s_rst_n (~c3_rst0),

.p0_cmd_en (c3_p0_cmd_en),

.p0_cmd_instr (c3_p0_cmd_instr),

.p0_cmd_bl (c3_p0_cmd_bl),

.p0_cmd_addr (c3_p0_cmd_byte_addr),

///.p0_cmd_full (c3_p0_cmd_full),

// User Port-0 data write interface will be active only when the port is enabled in

// the port configurations Config-1, Config-2, Config-3, Config-4 and Config-5

.p0_wr_en (c3_p0_wr_en),

.p0_wr_mask (c3_p0_wr_mask),

.p0_wr_data (c3_p0_wr_data),

//.p0_wr_full (c3_p0_wr_full),

//.p0_wr_fifo_counts (c3_p0_wr_count),

.wr_trig (wr_trig)

);

DDR3存储器例化

该部分的例化参考官方的仿真文件，例化过程如下：

// ========================================================================== //

// Memory model instances //

// ========================================================================== //

generate

if(C3_NUM_DQ_PINS == 16) begin : MEM_INST3

ddr3_model_c3 u_mem_c3(

.ck (mcb3_dram_ck),

.ck_n (mcb3_dram_ck_n),

.cke (mcb3_dram_cke),

.cs_n (1'b0),

.ras_n (mcb3_dram_ras_n),

.cas_n (mcb3_dram_cas_n),

.we_n (mcb3_dram_we_n),

.dm_tdqs ({mcb3_dram_udm,mcb3_dram_dm}),

.ba (mcb3_dram_ba),

.addr (mcb3_dram_a),

.dq (mcb3_dram_dq),

.dqs ({mcb3_dram_udqs,mcb3_dram_dqs}),

.dqs_n ({mcb3_dram_udqs_n,mcb3_dram_dqs_n}),

.tdqs_n (),

.odt (mcb3_dram_odt),

.rst_n (mcb3_dram_reset_n)

);

end else begin

ddr3_model_c3 u_mem_c3(

.ck (mcb3_dram_ck),

.ck_n (mcb3_dram_ck_n),

.cke (mcb3_dram_cke),

.cs_n (1'b0),

.ras_n (mcb3_dram_ras_n),

.cas_n (mcb3_dram_cas_n),

.we_n (mcb3_dram_we_n),

.dm_tdqs (mcb3_dram_dm),

.ba (mcb3_dram_ba),

.addr (mcb3_dram_a),

.dq (mcb3_dram_dq),

.dqs (mcb3_dram_dqs),

.dqs_n (mcb3_dram_dqs_n),

.tdqs_n (),

.odt (mcb3_dram_odt),

.rst_n (mcb3_dram_reset_n)

);

End

1. 1. 仿真程序编写

initial begin

wr_trig = 0;

@(posedge c3_calib_done)//DDR3上电之后自检

#1000;//10ns

wr_trig = 1;//自检之后触发写使能信号，实际上该信号是wr_en的作用

#25600;

wr_trig = 0;

end

仿真结果分析
1. 地址数据分析

再用户读写程序中设置读写的地址以及读写的数据等参数，

assign p0_cmd_bl = 'd15; //突发长度

assign p0_cmd_addr = 29'b00000000000000000000011100000; //32位port 地址的后4位为0忽略，表示内存中第几个32位的存储结构，因为每次读写都是32位，因此地址总线的后4为忽略

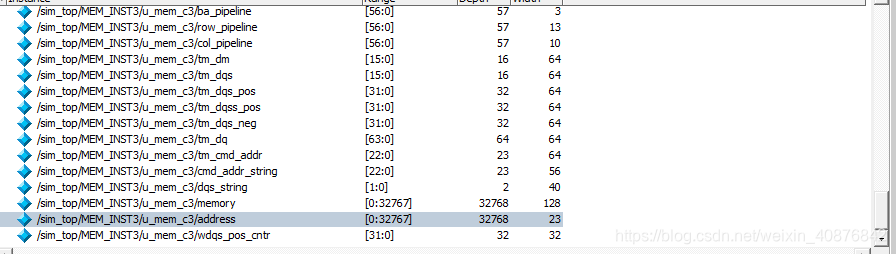

因此实际地址表示为70，与下图仿真结果一致。

再modelsim中的Memory list可以看出此时的数据分布为：128位为一组（2^7）,因此这个存储结果中的地址表示地址总线的前23位置（29-（7-1））=23

waightman

关注

0
点赞
踩
11

收藏

觉得还不错? 一键收藏
0
评论
DDR3 读写仿真

ISE中带有DDR3 的IP核，可以生成MIG，利用用户接口控制DDR3的读写，方便DDR3的使用，其自带的工程提供了例子以及仿真，但是其仿真程序比较复杂，可读性很差，不利用实际掌握DDR3的理解，因此在这里自己编写DDR的读写控制程序，实现DDR3的控制，便于掌握MIG的使用。主要内容为：利用ISE中的IP核工具产生DDR3MIG首先如下图所示，建立新的工程由于有spatan6 开发板，因此工程参数设置如下：选择IP核产生工具打开IP核产生工...
复制链接

扫一扫
