HGAT半监督短文本分类的异构图注意网络论文阅读笔记及代码复现

Heterogeneous Graph Attention Networks for Semi-supervised Short Text Classification. Linmei Hu,Tianchi Yang, Chuan Shi, Houye Ji, Xiaoli Li论文阅读笔记及代码复现

未经准许，禁止转载

在这里插入图片描述

代码

main.py

# -*- coding: utf-8 -*-
import torch
import numpy as np
from network import HGraphConvolutionNet
import torch.nn as nn
import torch.optim as optim
import os
import gc
import matplotlib.pyplot as plt
import time

#固定随机数种子，方便复现结果
np.random.seed(1)
torch.random.manual_seed(1)
torch.set_default_tensor_type(torch.FloatTensor)

#是否使用GPU
gpu = True

 默认数据路径和模型保存路径
fast_snippet_path = 'data/snippets.pt'
snippet_path = 'data/snippets.npz'
best_model_path = 'model/best_model.pt'

#如果训练时GPU不可用，则使用CPU
train_device = 'cuda' if (torch.cuda.is_available() and gpu) else 'cpu'
test_device = 'cpu' # 强制使用CPU进行测试

 训练参数
learning_rate = 0.005
weight_decay = 5e-6
max_epochs = 1000
num_per_class = 100 # 训练集和验证集中每一类别的样本总和，训练时训练集和验证集各占一半，如100的话，训练集每一类别有50个，验证集每一类别有50个

 网络参数
num_hiddens = [512]
num_layer = 2

def block_diag(dd, dt, de, tt, te, ee):
    """
    组合特征矩阵，输出 N*N矩阵

    """
    _num_document = len(dd)
    _num_topic = len(tt)
    _num_entity = len(ee)
    _part_1 = torch.cat([dd, dt, de], dim=1)
    _part_2 = torch.cat([dt.T, tt, te], dim=1)
    _part_3 = torch.cat([de.T, te.T, ee], dim=1)
    return torch.cat([_part_1, _part_2, _part_3])


def normalize_adj(adj, device):
    """
    计算归一化的邻接矩阵，具体内容参考论文中公式1

    """
    n_samples = adj.shape[0]
    adj_norm = adj + torch.eye(n_samples).to(device)
    m = torch.diag(torch.sqrt(torch.tensor(1).to(device) / torch.sum(adj_norm, dim=1)))
    adj_norm = torch.matmul(torch.matmul(m, adj_norm), m)
    return adj_norm


def block_split(num_document, num_topic, num_entity):
    """
    辅助函数，生成各类型节点在邻接矩阵中的索引

    """
    x_1 = num_document
    x_2 = num_document + num_topic
    x_3 = num_document + num_topic + num_entity
    return [torch.arange(0, x_1), torch.arange(x_1, x_2), torch.arange(x_2, x_3)]


def fast_load(path=fast_snippet_path):
    """
    载入Snippets数据（快速模式，数据占空间较大）。
    输出为主题特征、文档特征、实体特征、主题-主题关系、主题-文档关系、主题-实体关系、文档-文档关系、文档-实体关系、实体-实体关系和类别信息。

    """
    _data = torch.load(path)
    _all_document_x = _data['features'][0]
    _all_topic_x = _data['features'][1]
    _all_entity_x = _data['features'][2]
    _all_adj_document = _data['adj'][0][0]
    _all_adj_document_topic = _data['adj'][0][1]
    _all_adj_document_entity = _data['adj'][0][2]
    _all_adj_topic = _data['adj'][1][1]
    _all_adj_topic_entity = _data['adj'][1][2]
    _all_adj_entity = _data['adj'][2][2]
    _all_labels = torch.argmax(_data['labels'], dim=1)
    return _all_document_x, _all_topic_x, _all_entity_x, _all_adj_document, _all_adj_document_topic, \
           _all_adj_document_entity, _all_adj_topic, _all_adj_topic_entity, _all_adj_entity, _all_labels


def load(path=snippet_path):
    """
    载入Snippets数据（正常模式，数据占空间小，已压缩）
    输出为主题特征、文档特征、实体特征、主题-主题关系、主题-文档关系、主题-实体关系、文档-文档关系、文档-实体关系、实体-实体关系和类别信息。

    """
    _data = np.load(path)
    _all_document_x = torch.tensor(_data['d_x'])
    _all_topic_x = torch.tensor(_data['t_x'])
    _all_entity_x = torch.tensor(_data['e_x'])
    _all_adj_document = torch.tensor(_data['adj_dd'])
    _all_adj_document_topic = torch.tensor(_data['adj_dt'])
    _all_adj_document_entity = torch.tensor(_data['adj_de'])
    _all_adj_topic = torch.tensor(_data['adj_tt'])
    _all_adj_topic_entity = torch.tensor(_data['adj_te'])
    _all_adj_entity = torch.tensor(_data['adj_ee'])
    _all_labels = torch.tensor(_data['d_y'])
    return _all_document_x, _all_topic_x, _all_entity_x, _all_adj_document, _all_adj_document_topic, \
           _all_adj_document_entity, _all_adj_topic, _all_adj_topic_entity, _all_adj_entity, _all_labels

#加载数据集
if os.path.exists('data/snippets.pt'):
    all_document_x, all_topic_x, all_entity_x, all_adj_document, all_adj_document_topic, all_adj_document_entity, \
    all_adj_topic, all_adj_topic_entity, all_adj_entity, all_labels = fast_load()
else:
    all_document_x, all_topic_x, all_entity_x, all_adj_document, all_adj_document_topic, all_adj_document_entity, \
    all_adj_topic, all_adj_topic_entity, all_adj_entity, all_labels = load()

 获取样本类别总数
num_classes = len(torch.unique(all_labels))

np_labels = all_labels.detach().numpy()

 划分数据集为训练集、验证集和测试集
train_dict = []
for i in range(num_classes):
    class_indices = np.where(np_labels == i)[0]
    if len(class_indices) > num_per_class:
        train_dict.extend(np.random.choice(class_indices, num_per_class))
    else:
        train_dict.extend(class_indices)
train_dict = set(train_dict)

num_documents = len(all_document_x)
indices = set(np.arange(num_documents))
indices.difference_update(train_dict)

train_dict = list(train_dict)
np.random.shuffle(train_dict)

indices = list(indices)
np.random.shuffle(indices)

train_dict.extend(indices)
indices = train_dict

num_train = num_per_class * num_classes // 2
num_val = num_per_class * num_classes // 2

train_indices = indices[0:num_train]
val_indices = indices[num_train:num_train + num_val]
test_indices = indices[num_train + num_val::]

num_features = [all_document_x.shape[1], all_topic_x.shape[1], all_entity_x.shape[1]]

#建立HGAT网络
net = HGraphConvolutionNet(num_features, num_hiddens, num_classes, num_layer, bias=False, device=train_device,
                           allow_attention=True, dropout=0.80)

#L2正则化（weight decay），不包含输出层
net_params = []
for idx, layer in enumerate(net.layers):
    if idx == len(net.layers) - 1:
        net_params.append({
            'params': layer.parameters(),
            'weight_decay': 0.0
        })
    else:
        net_params.append({
            'params': layer.parameters(),
            'weight_decay': weight_decay
        })
net_params.append({
    'params': net.attentions.parameters(),
    'weight_decay': weight_decay
})

#Adam优化
optimizer = optim.Adam(net_params, lr=learning_rate)

 损失函数
loss_function = nn.CrossEntropyLoss()

 如果已训练过模型，则加载已有模型
if os.path.exists(best_model_path):
    net.load_state_dict(torch.load(best_model_path, map_location=torch.device(train_device)))
else:
    # 获取训练数据和验证数据
    train_y = all_labels[train_indices].to(train_device)
    val_y = all_labels[val_indices].to(train_device)

    train_document_x = all_document_x[train_indices]
    train_adj_document = all_adj_document[train_indices, :][:, train_indices]
    train_adj_document_topic = all_adj_document_topic[train_indices, :]
    train_adj_document_entity = all_adj_document_entity[train_indices, :]

    val_document_x = all_document_x[val_indices]
    val_adj_document = all_adj_document[val_indices, :][:, val_indices]
    val_adj_document_topic = all_adj_document_topic[val_indices, :]
    val_adj_document_entity = all_adj_document_entity[val_indices, :]

    train_adj = block_diag(train_adj_document, train_adj_document_topic, train_adj_document_entity, all_adj_topic,
                           all_adj_topic_entity, all_adj_entity).to(train_device)
    train_adj = normalize_adj(train_adj, train_device)
    val_adj = block_diag(val_adj_document, val_adj_document_topic, val_adj_document_entity, all_adj_topic,
                         all_adj_topic_entity, all_adj_entity).to(train_device)
    val_adj = normalize_adj(val_adj, train_device)

    train_features = [train_document_x.to(train_device), all_topic_x.to(train_device), all_entity_x.to(train_device)]
    val_features = [val_document_x.to(train_device), all_topic_x.to(train_device), all_entity_x.to(train_device)]
    train_split = block_split(len(train_document_x), len(all_topic_x), len(all_entity_x))
    val_split = block_split(len(val_document_x), len(all_topic_x), len(all_entity_x))

    # 初始化绘图数据
    plot_x_data = []
    plot_train_acc_data = []
    plot_train_loss_data = []
    plot_val_acc_data = []
    plot_val_loss_data = []

    # 训练网络
    for epoch in range(max_epochs):
        net.train()
        optimizer.zero_grad()

        train_output = net(train_features, train_adj, train_split, normalize=False)[0:len(train_y)]
        train_loss = loss_function(train_output, train_y)
        train_pred_y = torch.argmax(train_output, dim=1)
        train_acc = torch.sum(train_y == train_pred_y).item() / len(train_y)

        loss = loss_function(train_output, train_y)
        loss.backward()
        optimizer.step()
        with torch.no_grad():
            net.eval()
            val_output = net(val_features, val_adj, val_split, normalize=False)[0:len(val_y)]
            val_loss = loss_function(val_output, val_y)
            val_pred_y = torch.argmax(val_output, dim=1)
            val_acc = torch.sum(val_y == val_pred_y).item() / len(val_y)
            print(
                f'Epoch={epoch}, train_loss={train_loss.item()}, train_acc={train_acc}, val_loss={val_loss.item()}, val_acc={val_acc}')

            plot_val_acc_data.append(val_acc)
            plot_train_acc_data.append(train_acc)
            plot_train_loss_data.append(train_loss.item())
            plot_val_loss_data.append(val_loss.item())
            plot_x_data.append(epoch)

            if (train_acc > 0.85 and val_acc > 0.85) or train_acc > 0.995:
                torch.save(net.state_dict(), best_model_path)
                print(f'Early stopping(train_acc): save network parameters.')
                break
    torch.save(net.state_dict(), best_model_path)

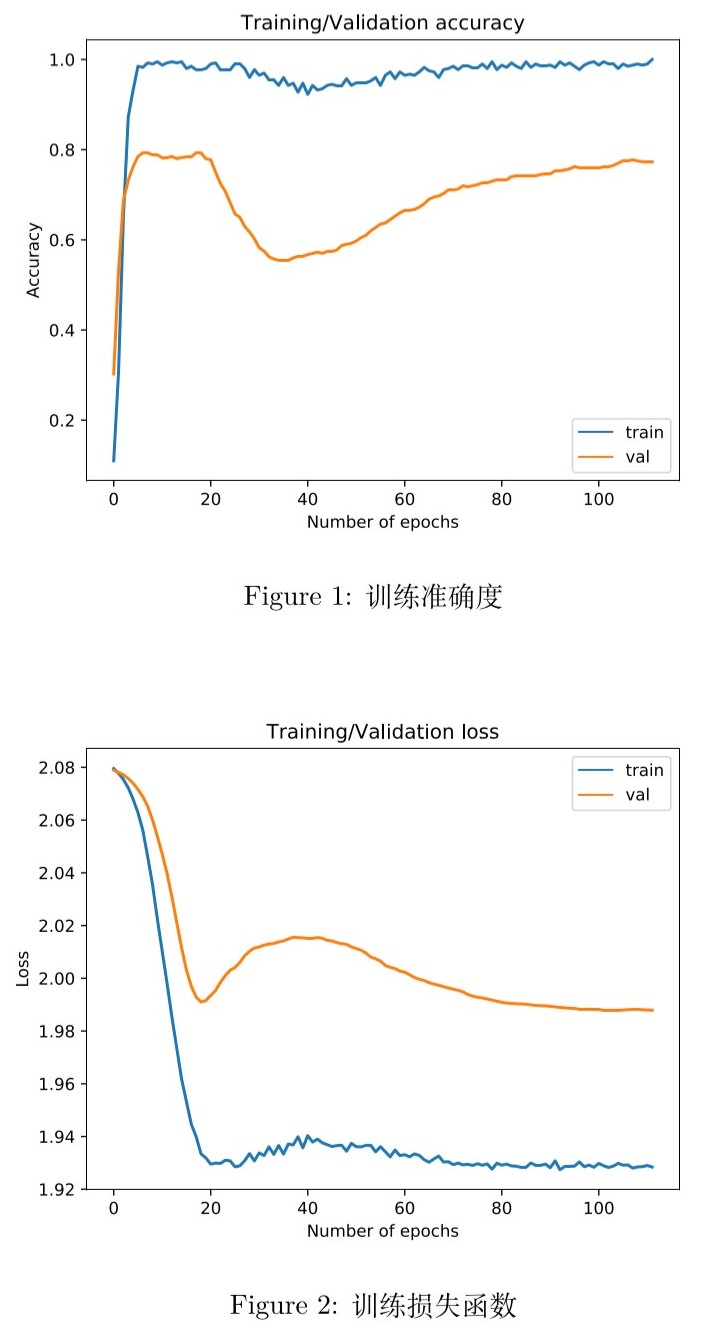

    plt.plot(plot_x_data, plot_train_acc_data, label='train')
    plt.plot(plot_x_data, plot_val_acc_data, label='val')
    plt.legend()
    plt.title('Training/Validation accuracy')
    plt.xlabel('Number of epochs')
    plt.ylabel('Accuracy')
    plt.savefig('figures/accuracy.pdf')
    plt.show()

    plt.plot(plot_x_data, plot_train_loss_data, label='train')
    plt.plot(plot_x_data, plot_val_loss_data, label='val')
    plt.legend()
    plt.xlabel('Number of epochs')
    plt.ylabel('Loss')
    plt.title('Training/Validation loss')
    plt.savefig('figures/loss.pdf')
    plt.show()

#测试集性能测试
gc.collect()
test_y = all_labels[test_indices].to(test_device)
test_document_x = all_document_x[test_indices]
test_adj_document = all_adj_document[test_indices, :][:, test_indices]
test_adj_document_topic = all_adj_document_topic[test_indices, :]
test_adj_document_entity = all_adj_document_entity[test_indices, :]
test_adj = block_diag(test_adj_document, test_adj_document_topic, test_adj_document_entity, all_adj_topic,
                      all_adj_topic_entity, all_adj_entity).to(test_device)

test_features = [test_document_x.to(test_device), all_topic_x.to(test_device), all_entity_x.to(test_device)]
test_split = block_split(len(test_document_x), len(all_topic_x), len(all_entity_x))
net.to(test_device)
net.device = test_device
for layer_attentions in net.attentions:
    for attention in layer_attentions:
        attention.device = test_device
test_output = net(test_features, test_adj, test_split)[0:len(test_y)]
test_loss = loss_function(test_output, test_y)
test_pred_y = torch.argmax(test_output, dim=1)
test_acc = torch.sum(test_y == test_pred_y).item() / len(test_y)
print(f'Test: test_loss={test_loss}, test_acc={test_acc}')

network.py

 -*- coding: utf-8 -*-
import torch
import torch.nn as nn
import torch.optim as optim
import math
from torch.distributions import uniform
import torch.nn.functional as F


class GraphConvolutionLayer(nn.Module):
    """
    GCN层

    """
    def __init__(self, in_features, out_features, bias=True, device='cpu'):
        super(GraphConvolutionLayer, self).__init__()
        self.device = device
        self.in_features = in_features
        self.out_features = out_features
        self.allow_bias = bias

        # 初始化网络权重
        std = 1.0 / math.sqrt(out_features)
        sampler = uniform.Uniform(-std, std)
        self.weight = nn.Parameter(sampler.sample([in_features, out_features]), requires_grad=True).to(device)
        if bias:
            self.bias = nn.Parameter(sampler.sample([out_features]), requires_grad=True).to(device)
        else:
            self.bias = None

    def forward(self, h, adj_norm):
        h_w = torch.matmul(h, self.weight)
        out = torch.matmul(adj_norm, h_w)
        if self.bias is not None:
            out = out + self.bias
        return out

    def __repr__(self):
        return f'GraphConvolutionLayer(in_features={self.in_features},out_features={self.out_features},bias={self.allow_bias},device="{self.device}")'


class GraphConvolutionNet(nn.Module):
    """
    GCN网络，本次实验没有用到

    """
    def __init__(self, n_feature, n_hidden, n_class, n_layer=0, bias=False, device='cpu'):
        super(GraphConvolutionNet, self).__init__()
        self.device = device

        # 建立网络 n_hidden为隐层节点数，n_layer为隐层数
        self.layers = nn.ModuleList()
        self.layers.append(GraphConvolutionLayer(n_feature, n_hidden, bias))
        for _ in range(n_layer):
            self.layers.append(GraphConvolutionLayer(n_hidden, n_hidden, bias))
        self.layers.append(GraphConvolutionLayer(n_hidden, n_class, bias))
        self.layers.to(device)

    def forward(self, h, adj):
        # 计算归一化邻接矩阵
        n_samples = adj.shape[0]
        adj_norm = adj + torch.eye(n_samples).to(self.device)
        m = torch.diag(torch.sqrt(torch.tensor(1).to(self.device) / torch.sum(adj_norm, dim=1)))
        adj_norm = torch.matmul(torch.matmul(m, adj_norm), m)

        # 逐层计算输出
        hs = []
        for layer in self.layers[0:-1]:
            h = layer(h, adj_norm)
            h = torch.relu(h)

        # 输出层使用sigmoid激活函数
        h = self.layers[-1](h, adj_norm)
        h = torch.sigmoid(h)
        return torch.softmax(h, dim=1)


class Attention(nn.Module):
    """
    注意力模型

    """
    def __init__(self, in_features, hidden_features, type_idx, device='cpu'):
        super(Attention, self).__init__()
        self.type_idx = type_idx
        self.hidden_layer = nn.Linear(in_features, hidden_features).to(device) # 隐层为普通的神经网络层
        self.device = device
        # 初始化注意力权重向量
        sampler = uniform.Uniform(-1.0, 1.0)
        self.attention = nn.Parameter(sampler.sample([2 * hidden_features, 1]), requires_grad=True).to(device)

    def forward(self, h_all):
        # 计算注意力矩阵
        h = self.hidden_layer(h_all).transpose(0, 1) # 由于h_all是3D张量，此次矩阵乘法在前两个维度broadcast
        depth = h.shape[0] # 节点类型数，本次实验depth=3
        h = torch.cat([h, torch.stack([h[self.type_idx]] * depth, dim=0)], dim=2)

        weights = torch.matmul(h, self.attention.to(self.device)).transpose(0, 1)
        weights = nn.LeakyReLU()(weights)
        weights = torch.log_softmax(weights, dim=1)

        # 根据论文公式7计算最终特征
        h_out = torch.matmul(weights.transpose(1, 2), h_all).squeeze(1)
        return weights, h_out


class HGraphConvolutionNet(nn.Module):
    def __init__(self, n_features, n_hidden, n_class, n_layer, bias, device='cpu', dropout=0.95, allow_attention=True):
        super(HGraphConvolutionNet, self).__init__()
        # Network parameters.
        self.device = device
        self.layers = nn.ModuleList() # 最终会有 n_layer * n_module 个GCN层
        self.allow_attention = allow_attention
        self.attentions = nn.ModuleList() # 最终会有 n_layer * n_module 个Attention模块
        self.n_class = n_class
        self.n_layer = n_layer
        self.n_hidden = n_hidden
        self.n_features = n_features
        self.n_modules = len(n_features)
        self.dropout = dropout

        for idx_i in range(self.n_modules):
            # 初始化子模块
            module = nn.ModuleList()
            attention = nn.ModuleList()

            # 新建输入层
            input_layer = GraphConvolutionLayer(n_features[idx_i], n_hidden[0], bias)
            module.append(input_layer)

            attention_input = Attention(in_features=n_hidden[0], hidden_features=50, type_idx=idx_i, device=device)
            attention.append(attention_input)

            # 新建隐层
            for idx_j in range(len(n_hidden) - 1):
                hidden_layer = GraphConvolutionLayer(in_features=n_hidden[idx_j], out_features=n_hidden[idx_j + 1],
                                                     bias=bias)
                module.append(hidden_layer)
                attention_hidden = Attention(in_features=n_hidden[idx_j + 1], hidden_features=50, type_idx=idx_i,
                                             device=device)
                attention.append(attention_hidden)
            # 新建输出层
            output_layer = GraphConvolutionLayer(in_features=n_hidden[-1], out_features=n_class, bias=bias)
            module.append(output_layer)
            attention_output = Attention(in_features=n_class, hidden_features=50, type_idx=idx_i, device=device)
            attention.append(attention_output)

            # 保存子模块
            self.layers.append(module)
            self.attentions.append(attention)

        # CPU or CUDA.
        self.layers.to(device)
        self.attentions.to(device)

    def forward(self, hs, adj, splits, normalize=True):
        h_out = None
        n_samples = adj.shape[0]
        # 如果没有归一化，则使用论文公式1进行归一化
        if normalize:
            adj_norm = adj + torch.eye(n_samples).to(self.device)
            m = torch.diag(torch.sqrt(torch.tensor(1).to(self.device) / torch.sum(adj_norm, dim=1)))
            adj_norm = torch.matmul(torch.matmul(m, adj_norm), m)
        else:
            adj_norm = adj
        if self.allow_attention:
            # 计算带注意力的网络，参考论文公式7
            for idx_layer in range(self.n_layer):
                h_out_list = []
                for idx_module_1 in range(self.n_modules):
                    h_layers = [] # 各类型间的特征
                    for idx_module_2 in range(self.n_modules):
                        A_r = adj_norm[splits[idx_module_1], :][:, splits[idx_module_2]] # 获取邻接矩阵的一部分
                        layer = self.layers[idx_module_2][idx_layer] # 计算隐层特征
                        if h_out is None:
                            h_r = hs[idx_module_2]
                        else:
                            h_r = h_out[splits[idx_module_2], :]
                        h_r_next = layer(h_r, A_r)
                        h_layers.append(h_r_next)
                    _, h_out_part = self.attentions[idx_module_1][idx_layer](torch.stack(h_layers, dim=1))
                    h_out_list.append(h_out_part)
                h_out = torch.cat(h_out_list)

                if idx_layer != self.n_layer - 1:
                    h_out = torch.relu(h_out)
                    h_out = F.dropout(h_out, self.dropout, self.training)
        else:
            # 计算不带注意力的网络，参考论文公式2
            h_next = None
            for idx_layer in range(self.n_layer):
                for idx_module in range(self.n_modules):
                    A_r = adj_norm[:, splits[idx_module]]
                    layer = self.layers[idx_module][idx_layer]
                    if h_out is None:
                        h_r = hs[idx_module]
                    else:
                        h_r = h_out[splits[idx_module], :]
                    h_r_next = layer(h_r, A_r)
                    if h_next is None:
                        h_next = h_r_next
                    else:
                        h_next = h_next + h_r_next
                h_out = h_next
                if idx_layer != self.n_layer - 1:
                    h_out = torch.relu(h_out)
                    h_out = F.dropout(h_out, self.dropout, self.training)
                h_next = None
        # 输出层使用sigmoid激活
        h_out = torch.sigmoid(h_out)
        return torch.softmax(h_out, dim=1)
