该服务用于Client请求ECU重启。在重启之后,ECU将处在Default Session。在给出肯定响应到重启完成的时间内,ISO 14229-1并未给出定义,只是建议ECU不接收任何请求且不发送任何响应。
举例如下:

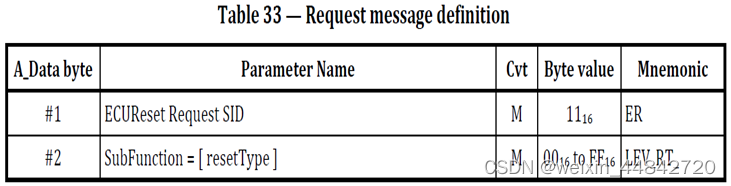

tester发送:

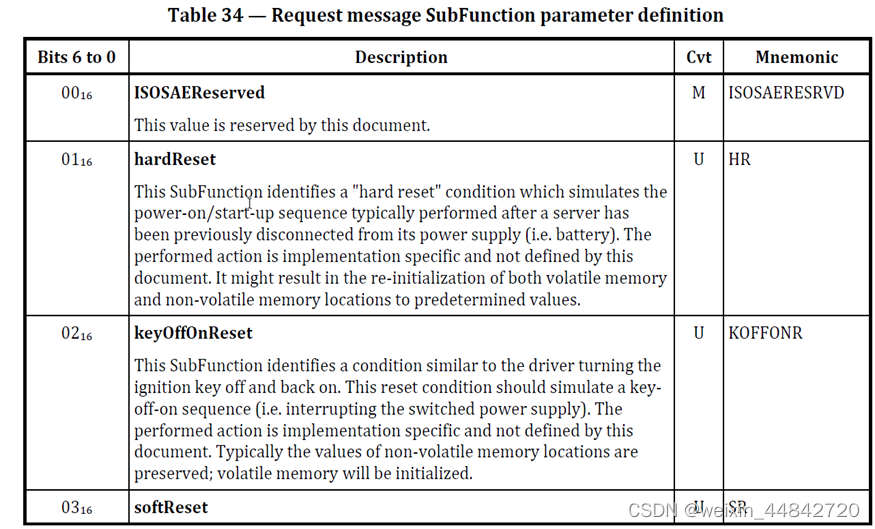

0x11 0x01 (ECUReset request for Subfuction 0x01)
ECU响应:

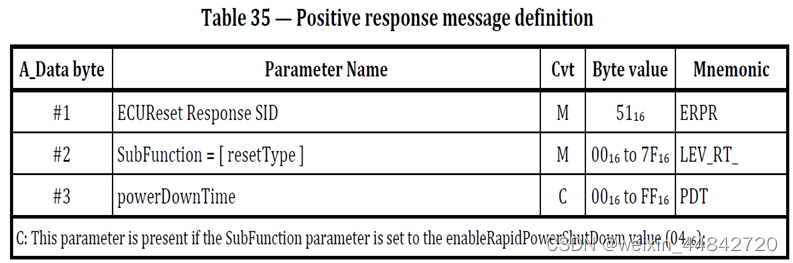

0x51 0x01 (Positive response starting with 0x11+ 0x40 = 0x51)
tester发送:
0x11 0x01 0x11 (ECUReset request for Subfuction 0x01)
ECU响应:
0x7F 0x11 0x13 (Negtive response starting with 0x7F, NRC is 0x13)
