xtion pro live 单目视觉半直接法(SVO)实践

svo的下载编译可以查看教程：https://github.com/uzh-rpg/rpg_svo/wiki
跑完下作者提供的数据集后，我就想用自己手边的摄像头来看下实际效果。
但要用自己的摄像头首先得对摄像头进行标定，获得相机的参数，这里我采用的是
ATAN模型，标定的是xtion_pro_live 的rgb摄像头。
(相机标定：https://github.com/uzh-rpg/rpg_svo/wiki/Camera-Calibration)

要标定它的话，首先我们要下载PTAM，用ptam的cameracalibrator来标定。
下载ptam包，编译之前安装依赖项：

sudo apt-get install freeglut3-dev
sudo apt-get install libblas-dev
sudo apt-get install liblapacke-dev

成功编译后，进入cameracalibrator.launch修改输入topic ：

<launch>
   <node name="cameracalibrator" pkg="ptam" type="cameracalibrator" clear_params="true" output="screen">
        <remap from="image" to="/mono_image" />
        <remap from="pose" to="pose"/>
    <rosparam file="$(find ptam)/PtamFixParams.yaml"/>
   </node>
</launch>

这里你会有疑问输入图像/mono_image从哪里来呢？
ptam的cameracalibrator需要的图像是单通道的灰度图像，而xtion_pro_live提供的/camera/rgb/image_raw是3通道的rgb图像，所以需要转换格式：/camera/rgb/image_raw –>/mono_image。所以/mono_image就是转换后的单通道灰度图像。
那怎么进行转换呢？不用担心，这里有转换程序：

    //rgb图像转换为灰度图像的程序
    #include <ros/ros.h>
    #include <opencv2/opencv.hpp>
    #include <opencv/cv.h>
    #include <opencv/highgui.h>
    #include <image_transport/image_transport.h>
    #include <cv_bridge/cv_bridge.h>
    #include <sensor_msgs/image_encodings.h>
    #include "ros/ros.h"
    #include "std_msgs/String.h"

    ros::Publisher image_pub ;

    void chatterCallback(const sensor_msgs::ImageConstPtr& msg)
    {
        cv_bridge::CvImagePtr  cv_ptr;
        cv_ptr = cv_bridge::toCvCopy(msg,sensor_msgs::image_encodings::BGR8);
        cv::Mat image_gray;
        cv::cvtColor(cv_ptr->image, image_gray,CV_BGR2GRAY);//灰度化

        cv_bridge::CvImage  cvi;
        sensor_msgs::Image  ros_img;
        ros::Time time=ros::Time::now();
        cvi.header.stamp = time;
        cvi.header.frame_id = "image";
        cvi.encoding = "mono8";
        cvi.image = image_gray;
        cvi.toImageMsg(ros_img);
        image_pub.publish(cvi.toImageMsg());
    }

    int main(int argc, char **argv)
    {
      ros::init(argc, argv, "img_tran");
      ros::NodeHandle n;

      ros::Subscriber sub = n.subscribe("/camera/rgb/image_raw", 1000, chatterCallback);
      image_pub = n.advertise<sensor_msgs::Image>("/mono_image", 1000);

      ros::spin();
      return 0;
    }

你需要把这个程序放入ros的空间的某个包中编译，我放到了自己的workspace空间下的imu_dep_fusion包中来编译，生成节点convertimage。
好麻烦啊，我不想编译代码，可以啊。来个现成的，在launch中加入这句，就ok了：

   <node name="image_proc" pkg="image_proc" type="image_proc" ns="camera">
       <remap from="camera_info" to="/camera/rgb/image_info" />
       <remap from="image_raw" to="/camera/rgb/image_raw" />
       <remap from="image_mono" to="/mono_image" />
   </node>

好了搞定了输入数据，下面需要对配置参数进行修改：进入PtamFixParams.yaml文件第2、3行修改xtion_pro_live的图像分辨率为：

ImageSizeX: 640
ImageSizeY: 480

做完了这些，你还需要把ptam中的calib_pattern.pdf打印出来作为标定棋盘，你就可以运行校准程序了，在终端中输入：

roslaunch ptam cameracalibrator.launch

cameracalibrator.launch具体内容：

<?xml version="1.0"?>

<launch>

   <include  file="$(find openni2_launch)/launch/openni2.launch" />

   <node pkg="imu_dep_fusion" type="convertimage" name="convertimage" output="screen"/>
   //或者这样：
   <!--<node name="image_proc" pkg="image_proc" type="image_proc" ns="camera">
       <remap from="camera_info" to="/camera/rgb/image_info" />
       <remap from="image_raw" to="/camera/rgb/image_raw" />
       <remap from="image_mono" to="/mono_image" />-->

   <node name="cameracalibrator" pkg="ptam" type="cameracalibrator" clear_params="true" output="screen">
   <!--     <remap from="image" to="bluefox_ros_node/image_raw" /> -->
        <remap from="image" to="/mono_image" />
        <remap from="pose" to="pose"/>
    <rosparam file="$(find ptam)/PtamFixParams.yaml"/>
   </node>
</launch>

效果如下：

校准的具体过程见Tutorials：
http://wiki.ros.org/ethzasl_ptam/Tutorials/camera_calibration

得到校准参数后，在 svo_ros 下的新建param/camera_xtion.yaml文件，将参数写如其中：

cam_model: ATAN
cam_width: 640
cam_height: 480
cam_fx: 0.832241
cam_fy: 1.10712
cam_cx: 0.488962
cam_cy: 0.492997
cam_d0: 0.066145

svo需要的灰度图像已经有了：/mono_image，svo需要的相机模型已经标定了：camera_xtion.yaml。下面就来用xtion_pro_live来运行下svo吧：
把svo下的live.launch运行起来：

roslaunch svo_ros live.launch

live.launch 具体内容：

<?xml version="1.0"?>
<launch>
   <include  file="$(find openni2_launch)/launch/openni2.launch" />

   <node pkg="imu_dep_fusion" type="convertimage" name="convertimage" output="screen"/>
   //或者这样：
   <!--<node name="image_proc" pkg="image_proc" type="image_proc" ns="camera">
       <remap from="camera_info" to="/camera/rgb/image_info" />
       <remap from="image_raw" to="/camera/rgb/image_raw" />
       <remap from="image_mono" to="/mono_image" />-->

   <node pkg="svo_ros" type="vo" name="svo" clear_params="true" output="screen">

        <!-- Camera topic to subscribe to -->
        <param name="cam_topic" value="/mono_image" type="str" />

        <!-- Camera calibration file -->
        <rosparam file="$(find svo_ros)/param/camera_xtion.yaml" />

        <!-- Default parameter settings: choose between vo_fast and vo_accurate -->
        <rosparam file="$(find svo_ros)/param/vo_fast.yaml" />

   </node>

   <node pkg="rqt_svo" type="rqt_svo" name="rqt_svo" />

   <node pkg="rviz" type="rviz" name="odometry_rviz" args="-d $(find svo_ros)/rviz_config.rviz"/>

</launch>

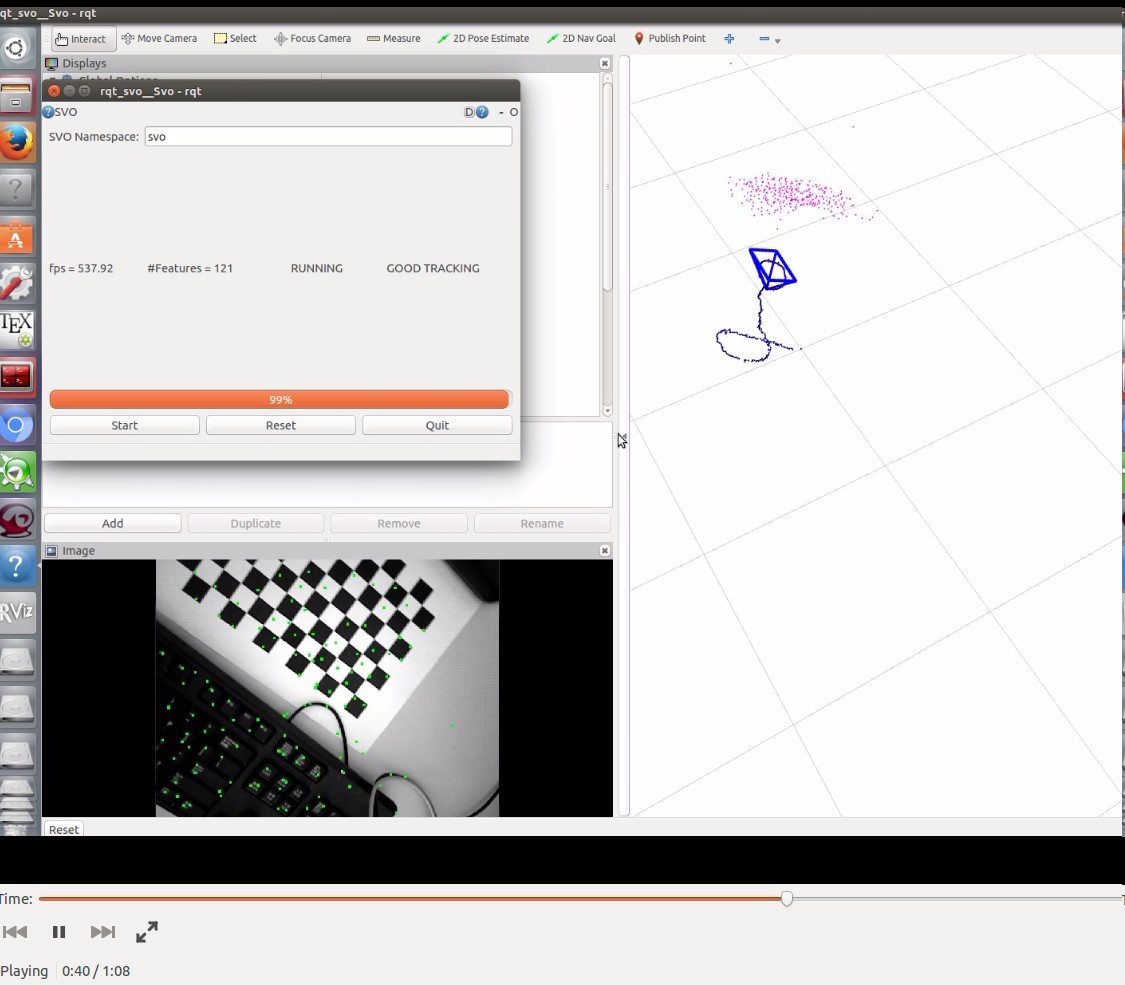

效果：

实验视频：
http://pan.baidu.com/s/1miuB0vu 密码：3rr6

进行到这里好像基本结束了，但有人可能会说xtion_pro_live不是针孔相机模型吗？( ⊙ o ⊙ )啊哦！好像是啊！这岂不是全错了？？？？其实用atan和pinhole模型标定好像都可以，只不过效果上看好像atan的更鲁棒些，所以上面讲的是atan模型，下面给出pinhole模型标定过程：
先把标定程序下载下来：

git clone https://github.com/ros-perception/image_pipeline.git

别着急编译，去把最新的依赖文件vision_opencv下载下来:

 git clone https://github.com/ros-perception/vision_opencv.git

扔到空间内的src下编译，然后开始标定吧：

roslaunch openni2_launch openni2.launch
rosrun camera_calibration cameracalibrator.py --size 11x7 --square   0.02 image:=/camera/rgb/image camera:=/my_camera --no-service-check

有人会问了不是12x8个方格吗？对啊，所以有11x7内点啊。
有人会问camera:=/my_camera这是什么东东？相机device。因为有–no-service-check所以/my_camera可以随便写！！不检查。但不可以省略。下面的过程可以看下：
教程：http://wiki.ros.org/camera_calibration/Tutorials/MonocularCalibration
校准完了把参数写入camera_xtion_pinhole.yaml文件，在live.launch中将camera_xtion.yaml改为camera_pinhole.yaml。
标定参数：

cam_model: Pinhole
cam_width: 640
cam_height: 480
cam_fx: 534.609558
cam_fy: 536.659729
cam_cx: 325.287103
cam_cy: 240.129954
cam_d0: 0.037906
cam_d1: -0.101329
cam_d2: 0.000831
cam_d3: 0.005041

live.launch:

<?xml version="1.0"?>
<launch>
   <include  file="$(find openni2_launch)/launch/openni2.launch" />

   <node pkg="imu_dep_fusion" type="convertimage" name="convertimage" output="screen"/>
   //或者这样：
   <!--<node name="image_proc" pkg="image_proc" type="image_proc" ns="camera">
       <remap from="camera_info" to="/camera/rgb/image_info" />
       <remap from="image_raw" to="/camera/rgb/image_raw" />
       <remap from="image_mono" to="/mono_image" />-->

   <node pkg="svo_ros" type="vo" name="svo" clear_params="true" output="screen">

        <!-- Camera topic to subscribe to -->
        <param name="cam_topic" value="/mono_image" type="str" />

        <!-- Camera calibration file -->
        <rosparam file="$(find svo_ros)/param/camera_xtion_pinhole.yaml" />

        <!-- Default parameter settings: choose between vo_fast and vo_accurate -->
        <rosparam file="$(find svo_ros)/param/vo_fast.yaml" />

   </node>

   <node pkg="rqt_svo" type="rqt_svo" name="rqt_svo" />

   <node pkg="rviz" type="rviz" name="odometry_rviz" args="-d $(find svo_ros)/rviz_config.rviz"/>

</launch>

下面就可以跑live.launch了。这是实验视频：
http://pan.baidu.com/s/1jIO1IkQ 密码：qq6n
